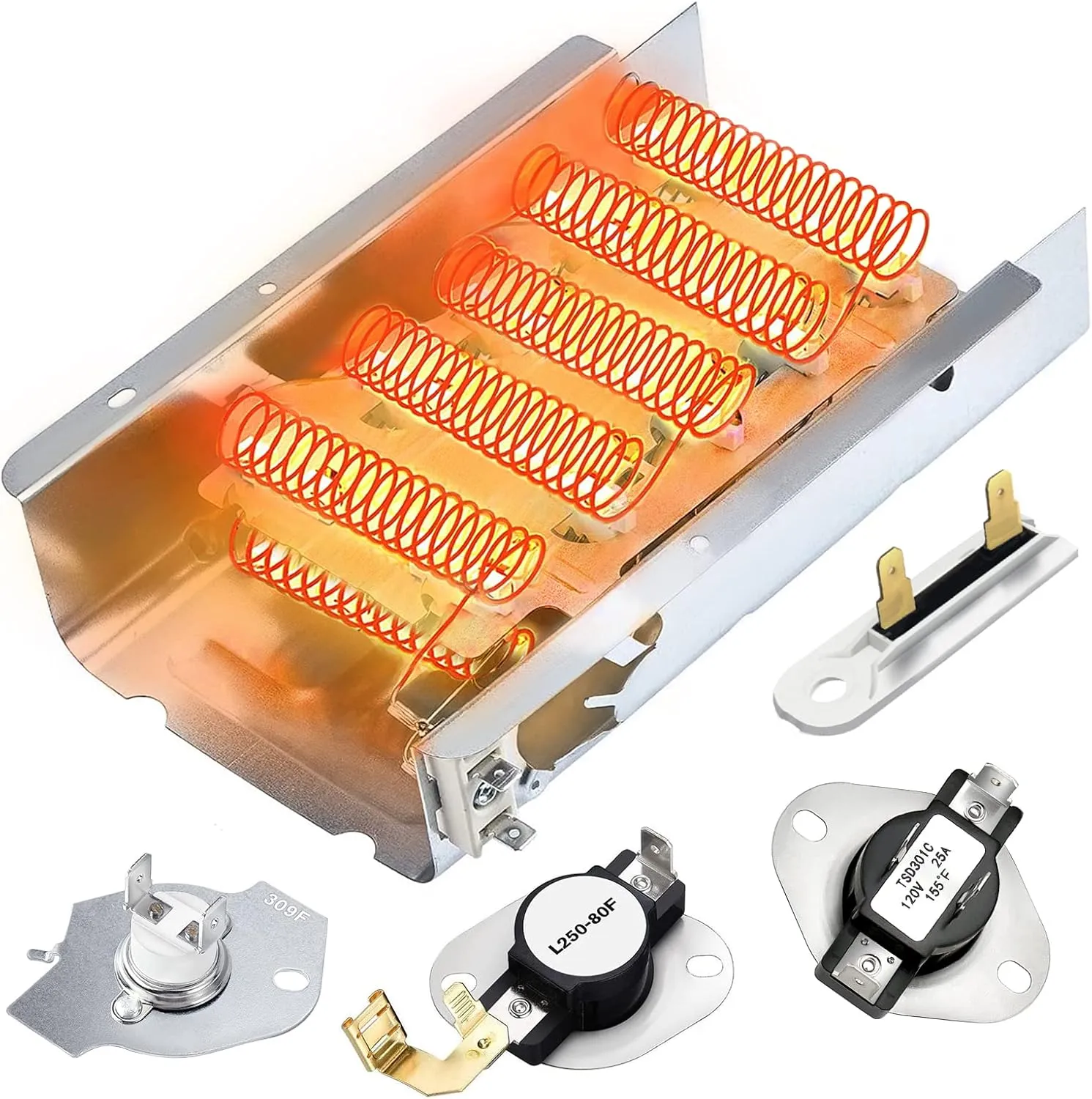

• 【𝟮𝟳𝟵𝟴𝟯𝟴 𝘿𝙍𝙔𝙀𝙍 𝙃𝙀𝘼𝙏𝙄𝙉𝙂 𝙀𝙇𝙀𝙈𝙀𝙉𝙏 𝙆𝙄𝙏】-- W10724237 279838 Dryer Heating Element Assembly Kit includes 1 x 279838 Dryer Heating Element, 1 x 3977767 High Limit Thermostat, 1 x 3387134 Cycle Thermostat, 1 x 3392519 Thermal Fuse, 1 x 3977393 Thermal Cut-off Switch. The coil on the 279838 heating element accepts and resists the controlled current, thus heating the wire. The heat generated is used to dry the clothes in the dryer. 279838 dryer heating element content of NICKEL and CHROMIUM reaches 90% and the length of the heating wire is 25% longer than other replacement parts of the ordinary dryer. It is rated at 5,400 watts and 240 volts and has a 2-5/16 "male terminal
• 【𝙃𝙄𝙂𝙃 𝙌𝙐𝘼𝙇𝙄𝙏𝙔 𝙉𝙄𝘾𝙆𝙀𝙇 𝘾𝙃𝙍𝙊𝙈𝙄𝙐𝙈 𝘼𝙇𝙇𝙊𝙔】-- 279838 4531017 Dryer element includes the housing with the heating element coil and insulators attached. The heating coil is made of an alloy of nickel and chromium. It has a high resistance that prevents itself from breaking and burning out. The insulators are made of high-tem-perature ceramic. They are firmlymounted into the frame to hold theheating coil, which will not come looseunder the vibration of a running machine. The dryer heating element kit can SOLVE THE FOLLOWING PROBLEMS ①Dryer takes too long to dry, ② Not enough heat, ③ Dryer does not automatically shut off when it overheats, ④Dryer does not heat up
• 【𝟱-𝙋𝙄𝙀𝘾𝙀 𝙆𝙄𝙏】-- The 3977767 is Dryer high limit thermostat, pushes onto the terminal of the heating element. Has one 1/4" male terminal, 1/4" female terminal, and one 3/16"male terminal. The 3387134 Cycling Thermostat has an internal offset heater that opens at 155℉ and closes at 130℉. The 3392519 Thermal Fuse is non-recoverable thermal fuse with two 3/16" wire terminals. lf the dryer overheats, the thermal fuse blows to cut off power to the dryer and/orstop the dryer from running. The 3977393 Thermal Fuse keeps the dryer from overheating. Once the dryer temperature reaches 221 degrees Fahrenheit, this piece will shut down power to theheating element
• 【𝟮 𝙔𝙀𝘼𝙍𝙎 𝙂𝙐𝘼𝙍𝘼𝙉𝙏𝙀𝙀】-- 279838 Dryer Heating Element Kit supports 2 YEARS AFTER-SALES SERVICE. Our company attaches great importance to the shopping experience of every customer. No risk shopping, if there is any quality problem, please contact customer service. Heating elements are used to heat the air inside the dryer. A thermostat regulates the temperature within a safe range. Thermal fuse cuts off the power supply in case of high temperature. Check the list of compatible models in the description to find yours !
• 【𝙍𝙀𝙋𝙇𝘼𝘾𝙀𝙈𝙀𝙉𝙏 𝙈𝙊𝘿𝙀𝙇】-- The 279838 Dryer Heating Element Kit can fit for Whirlpool, Kenmore, Maytag, Crosley, Kitchen-Aid, Roper, Estate, Amana and other brands dryer. 279838 Replace: 2438, 279837, 279838A, 279838VP, 3398064, 3403585, 8565582, AP3094254, W10724237, W1072423, PS3343130, AH334313, EA334313. 3977767 Replace: 3399693, L250-80F, AP3131941, PS351925, 898078, EAP351925. 3392519 Replace: 3388651, 694511, 80005, G4AP0500, PS11741460, AP6008325, EAP11741460. 3387134 Replace: 2011, 2893, AP6008270, PS11741405, 306910, 3387135, 3387139, ET187, EAP11741405. 3977393 Replace: 279816VP, 3399848, 2651, 279816, AP3094244
• 【𝙀𝘼𝙎𝙔 𝙏𝙊 𝙄𝙉𝙎𝙏𝘼𝙇𝙇】-- The installation of 279838 kit is simple. Before replacing, turn off the power and water supply and wear work gloves. Remove the back cover of the dryer and locate where the heating element is located. Remove the fixing screws with a screwdriver, gently remove the heating element and disconnect the connected wires from the small temperature control unit and replace it. You can save a lot of money on replacing the dryer or hiring a mechanic. NOTE: When installing, please ensure that the kit is firmly connected to prevent the dryer from not running due to loose installation
