- Powerful Motor: This motor is a 48V 1000W brush motor for efficient operation. The powerful motor has a rated speed of 3000rpm so that it can help you drive faster.
- 3 Speed Gears: The controller has three speed gears to adjust the speed of the motor. You can adjust the appropriate speed to ensure safe driving.
- Complete Kit: This electric bike conversion kit contains most of the accessories for converting your bike. So you don't need to buy these accessories separately. After being attached, this kit can be locked with the complimentary key to prevent others from stealing your bike. The handle is pre-loaded with a keyhole for smooth opening and locking.
- High-quality Motor: This electric motor equipped with reliable metal housing protects the internal circuit and has good heat dissipation performance with the holes to avoid thermal overload. So it has a long service life.
- Energy-saving: With this conversion kit, your bike or EVO scooter will become an electric one. So you don't have to struggle to ride.
Specification
Color: Black, Silver
Material: Copper, Iron and Aluminum
Chain Model: T8F
Motor Model: MY1020
Controller Model: LK-07
Voltage:48V
Power:1000W
Motor Type: Brush Motor
Unload Current: 2.2A
Rated Current: 26.7A
Unload Speed: 3700 rpm
Rated Speed: 3000 rpm
Rated Torque: 3.2N·m
Motor Efficiency: ≥78%
Motor Length: 15cm/5.91inch
Motor Shaft Length: 2.4cm/0.94inch
Motor Diameter: 10.2cm/4.01inch
Motor Screw Holes Distance: 9.489-9.511cm/3.736-3.744inch
Motor Height: 11cm/4.33inch
Motor Stand Screw Holes Distance (Horizontal): 5.6cm/2.2inch
Motor Stand Screw Holes Distance (Vertical): 10.2cm/4.01inch
Package Size: 29*17*19cm/11.4*6.7*7.5inch
Gross Weight: 6.2kg/13.7lbs

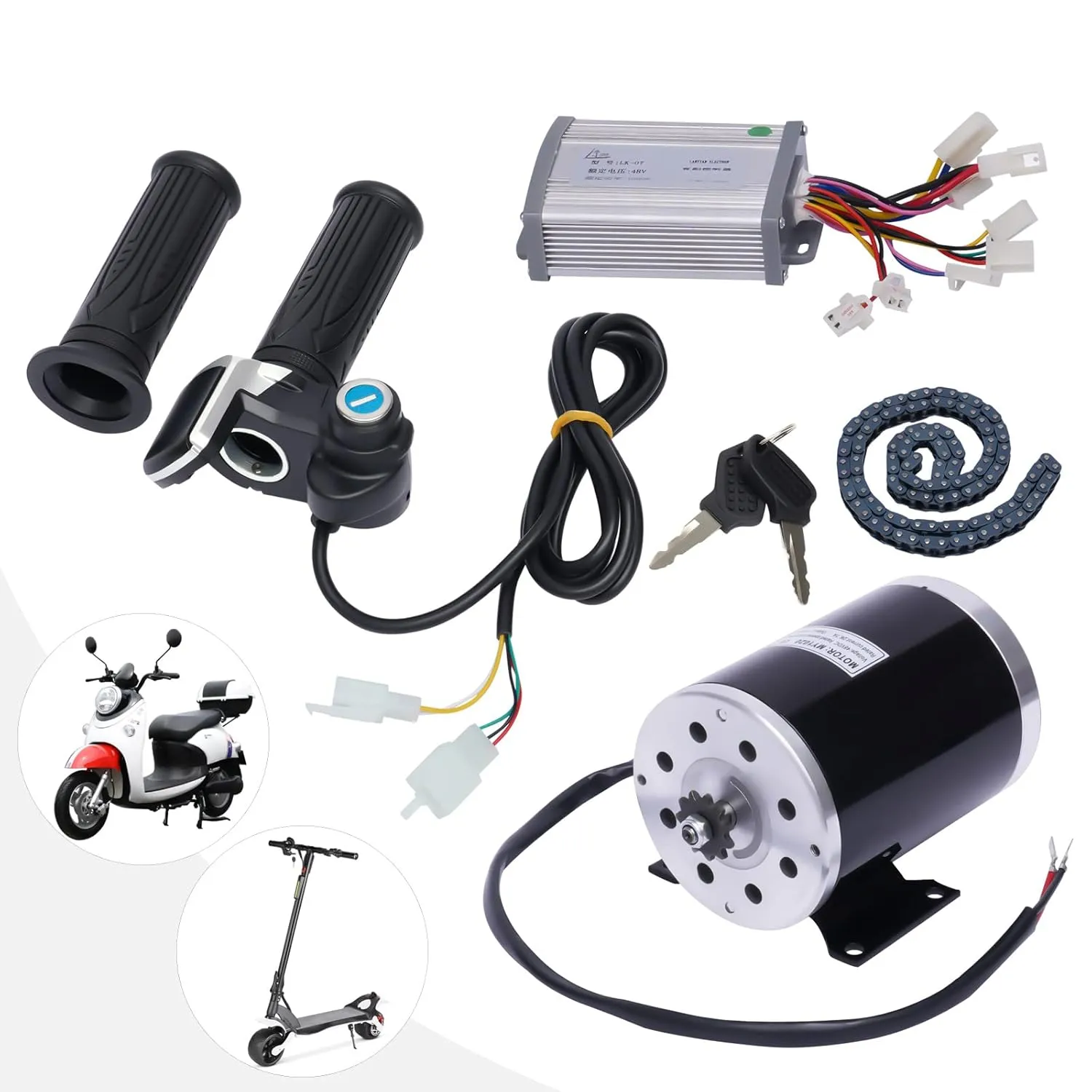

Package Included
1* Brush Motor
1* Controller
1* Drive Handle
1* Regular Handle Cover
1* Chain
2* Keys
- Item Weight : 13.7 Pounds
- Date First Available : April 29, 2025
- Manufacturer : GDATOOL
- Country of Origin : China
