- Turbo 3K and Image Scale: 3K resolution comes into focus of clearer live stream clarity and a more friendly budget. Monitors in the market usually have 16:9 aspect ratio, which is the same with this 3K cam, while other 5MP cams' ratio is 4:3 that causes distortion
- Smarter Person/Vehicle Detection Staying in the Know: Having optimized the AI person/vehicle detection, ANNKE DVR sends you the intruding alerts by app pushes & emails more instantly & precisely. Always get to know a real threat at time yet free from unnecessary alarms
- From Black & White to Colored Night: Three night visions to adapt to your needs: smart light night vision, white light night vision, and IR night vision. The smart mode is the default as it can automatically turn on the color night vision once a human/vehicle is detected

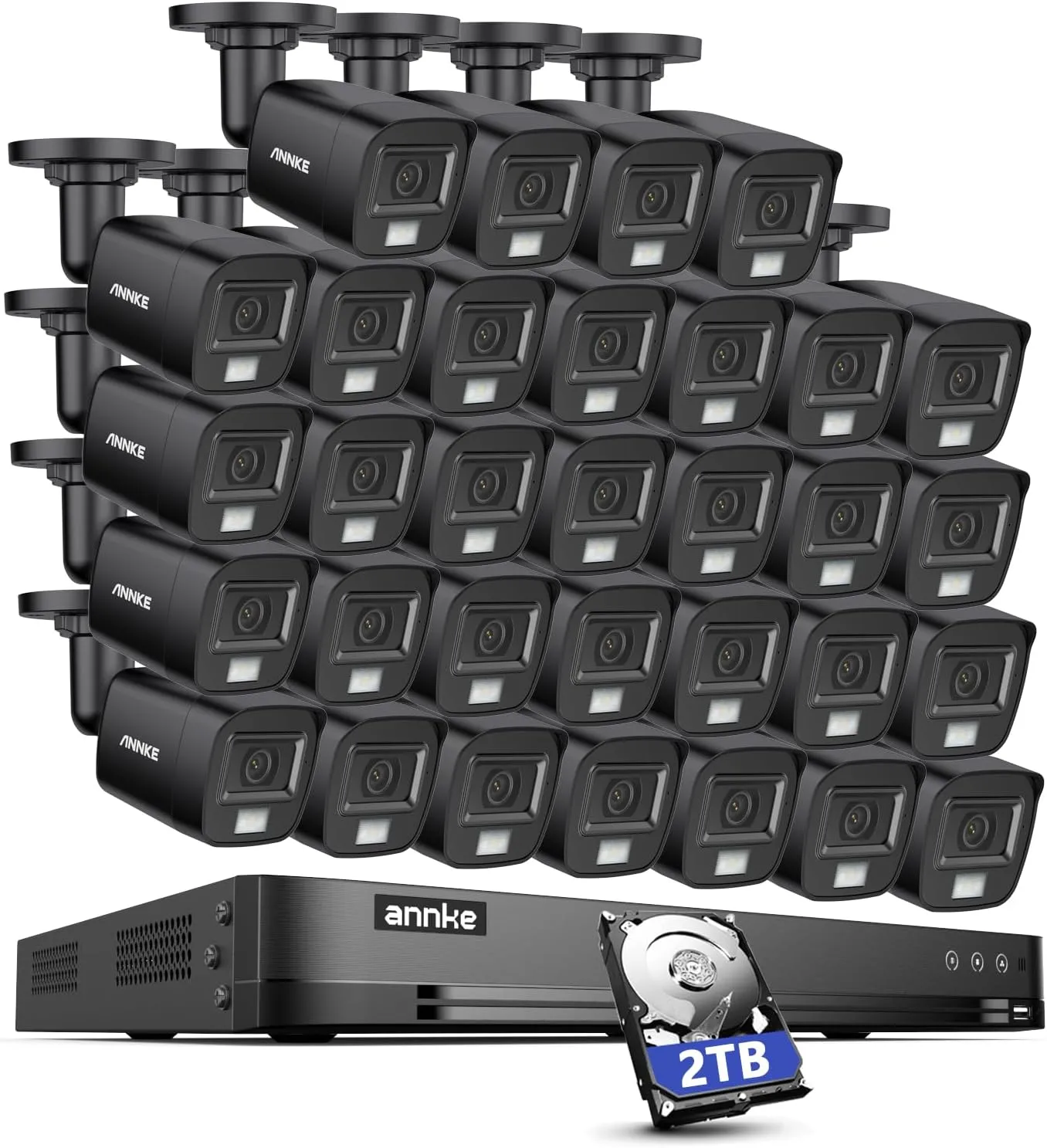

- Ideal 5-in-1 Hybrid 3K Lite DVR for Full-Range Protection: Up to 34CH, including 32pcs 3K analogs 2pcs IP cameras, ANNKE DVR accesses the DVR/NVR/HVR tech seamlessly to record videos from 3K TVI & CVI/AHD/CVBS with a 4MP resolution & IP cameras at a clarity of 6MP
- Remote Access via Your Most Convenient Way: You can whether remote access by an ANNKE Vision App downloaded on your phones, iPad, tablets, etc. with 2G/3G/4G/5G, or switch to a browser you're familiar with to conveniently customize your concerning areas and more
DVR Specification:
Deep learning-based motion detection 2.0 for all analog channels
Deep learning-based perimeter protection
Efficient H.265 pro compression technology
Encoding ability up to 3K Lite@ 20 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 40 network cameras can be connected
Support 4-ch line crossing detection and intrusion detection
Video Compression: H.265 Pro /H.265 Pro/H.265/H.264 /H.264
IPC Playback Resolution: Up to 6 MP resolution
Max Playback Channel: 16CH
Motion Detection 2.0: "Deep learning-based motion detection 2.0 for all analog channels, it can classify human and vehicle,
and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by human, vehicle and event type is supported;"
Smart event: 4CH Line crossing & Intrusion Detection
HDD: 2 SATA Interface
HDD Capacity: Up to 10 TB Capacity for each disk
Camera Specification:
High quality imaging with 3K, 2960 × 1665 resolution
High quality audio with audio over coaxial cable, built-in mic
Up to 25 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP67)
Image sensor: 3K CMOS Image sensor
Video Resolution: 2960 (H) × 1665 (V) (16:9)
Frame Rate: "TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
CVI: 4 MP@25 fps/30 fps
CVBS: PAL/NTSC"
Lens: 2.8mm
Angle of View: Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129°
Supplement Light Mode: IR light works normally, and it switches to white light when human or vehicle are detected at night.
Wide Dynamic Range: Digital WDR
Audio: Built-in mic
