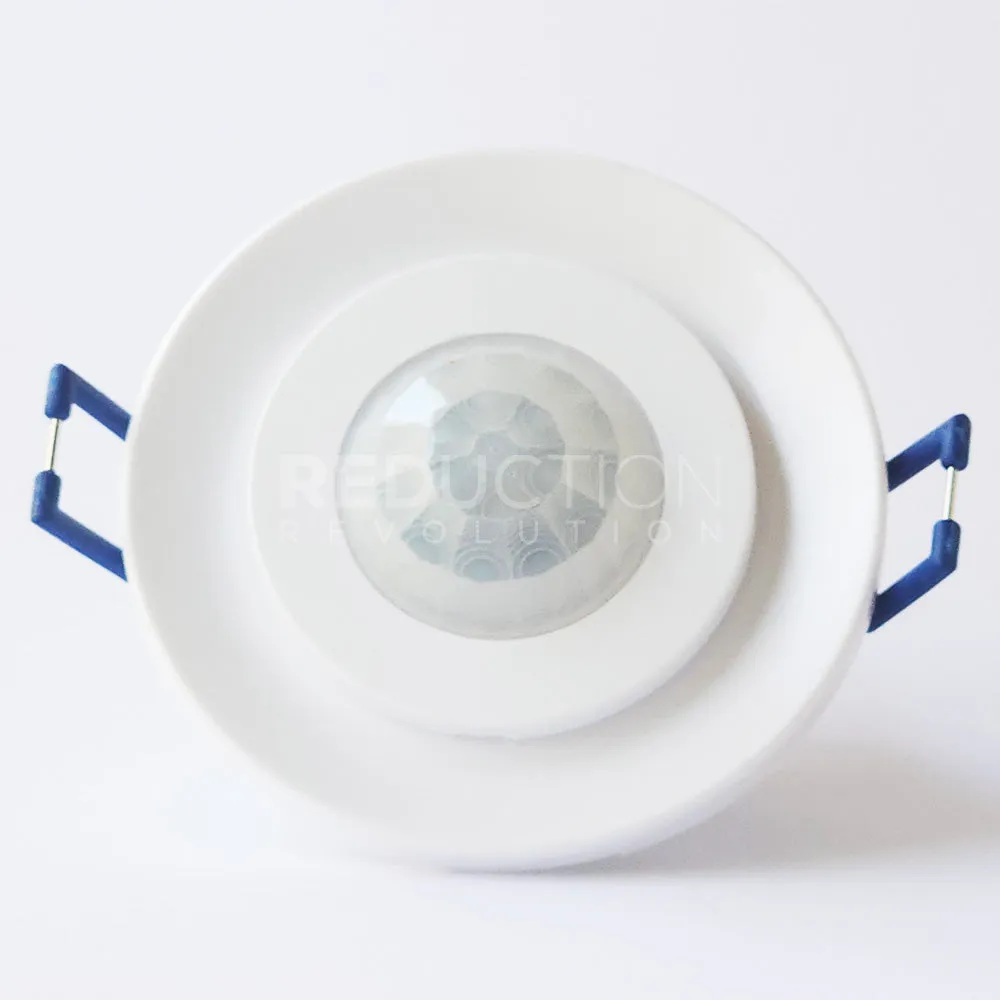

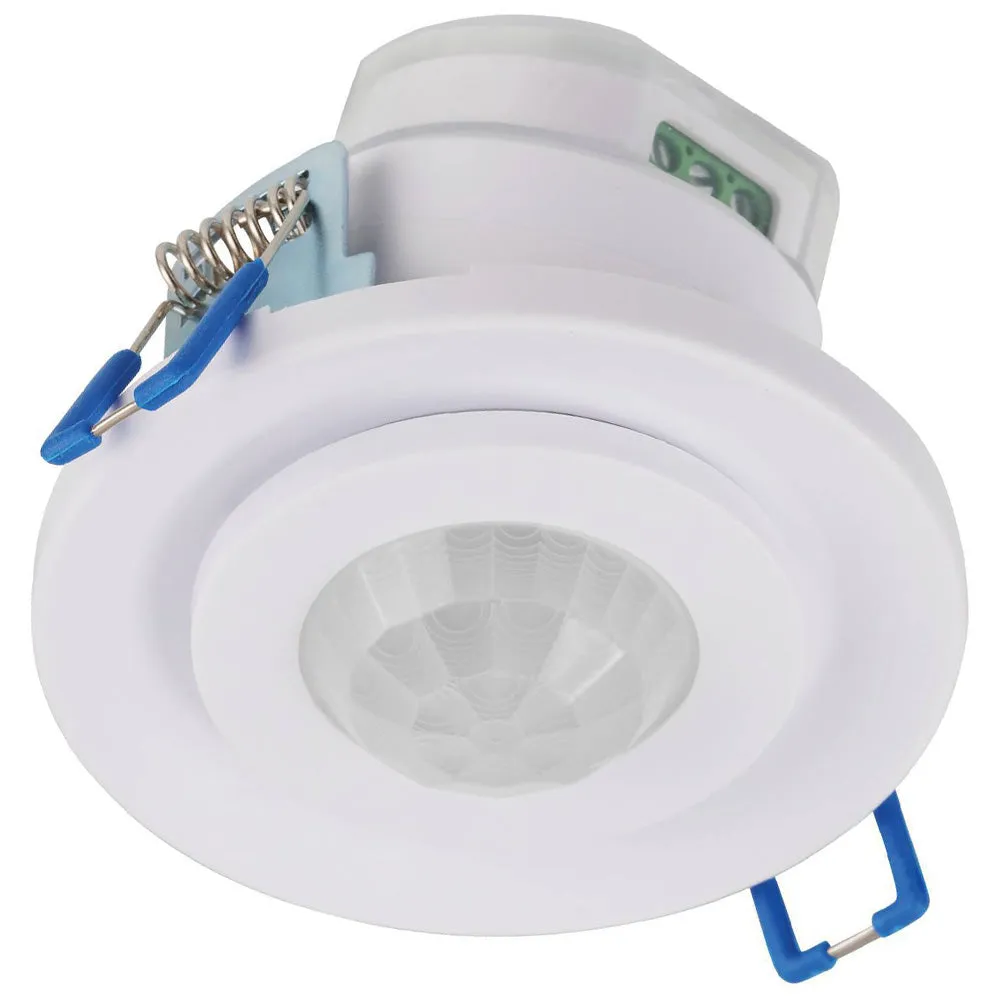

360° Recessed Motion Sensor
The EGLO Detect Me 7 motion sensor reduces energy usage in low-occupancy areas. It detects movement and switches your lights off when no one is around. Its features include:
- 360° Detection - Passive Infrared (PIR) sensor detects motion for several metres in any direction.
- Quick Installation - Spring retention clips and a standard 70mm cutout size enables fast installation by an electrician.
- Easy to Adjust - The pull-down settings allow anyone to adjust time and light-level sensitivity, even after installation.
- Manual Override - Disable the sensor from your light switch.
- Dependable - Maintenance-free and a 5-year warranty.
PLEASE NOTE: This recessed motion sensor has no built-in light source. See our LED lights for a range of lights that you can get wired to this sensor.
Switch Lights & Other Loads On & Off Automatically
This recessed occupancy sensor helps reduce costs wherever lights may get left on unnecessarily. Popular installation locations include:
- Workplace bathrooms and meeting rooms
- Entrance areas and hallways
- Garages and storage areas
- Walk-in wardrobes, closets, and pantries

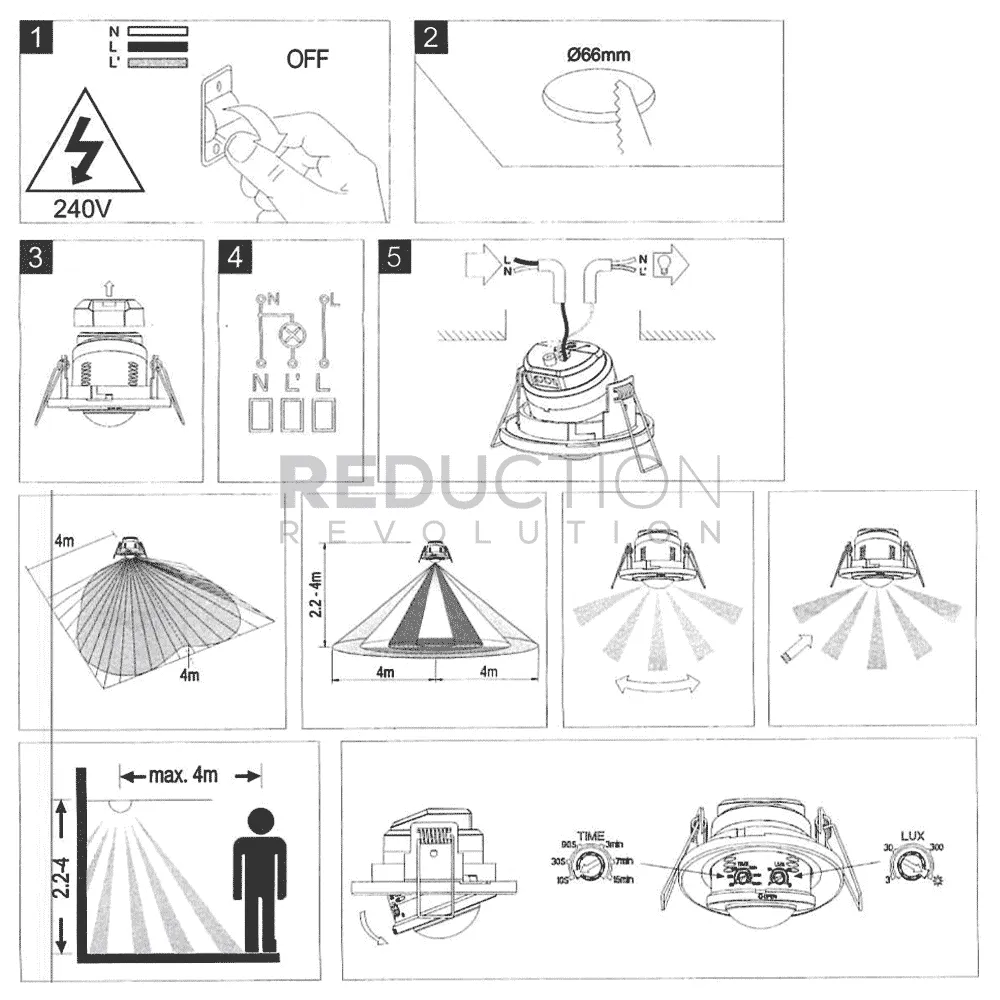

PIR Motion Sensor - Detection Area & Adjustment
You can recess this motion sensor into plasterboard ceilings, office ceiling tiles, or similar. The recommended ceiling height is between 2.2m and 4m and it detects motion below in all directions (360°).
The typical detection area of the sensor unit

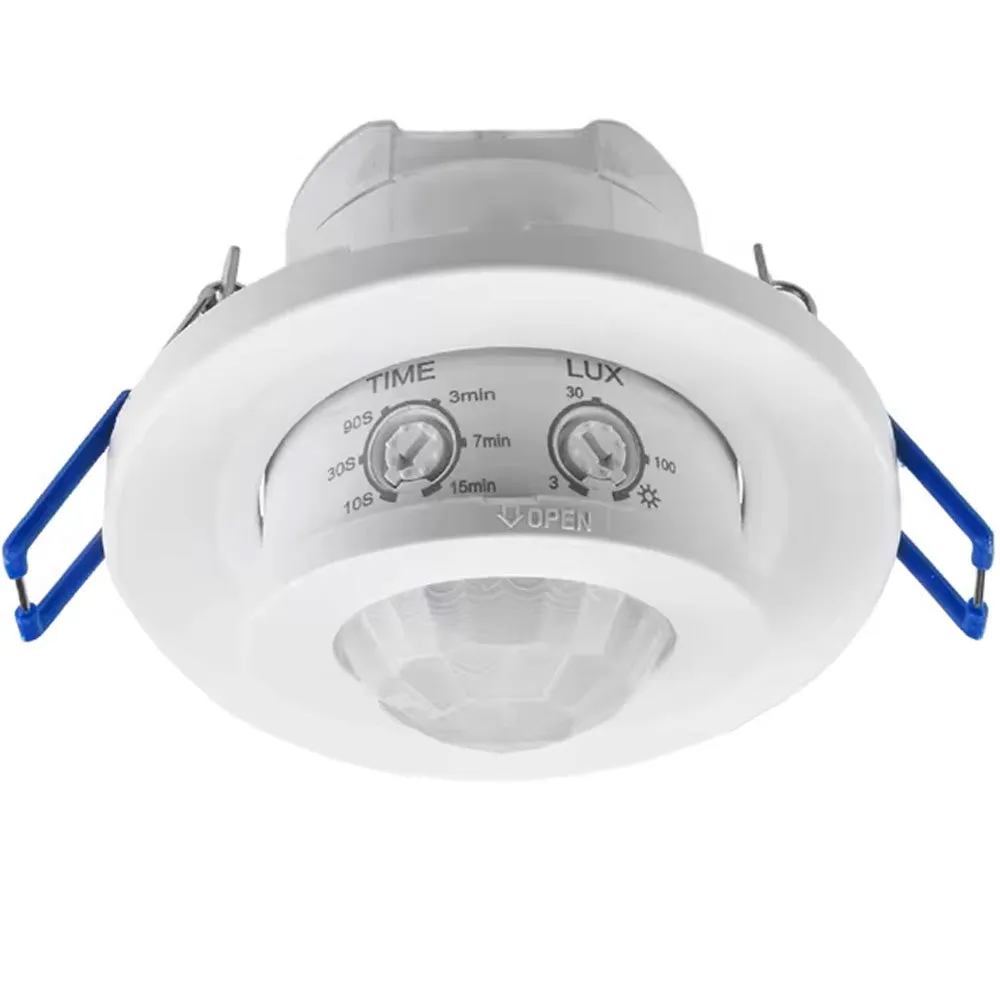

The sensor itself is adjustable for the time of operation and daylight sensitivity:
- The 'TIME' control is for between 10 seconds and 15 minutes. At the maximum setting, it switches off 15 minutes after detecting any motion.
- The 'LUX' sensor determines whether the light will still come on during the day or only after dark. It is adjustable from 3 to 2000 lux.

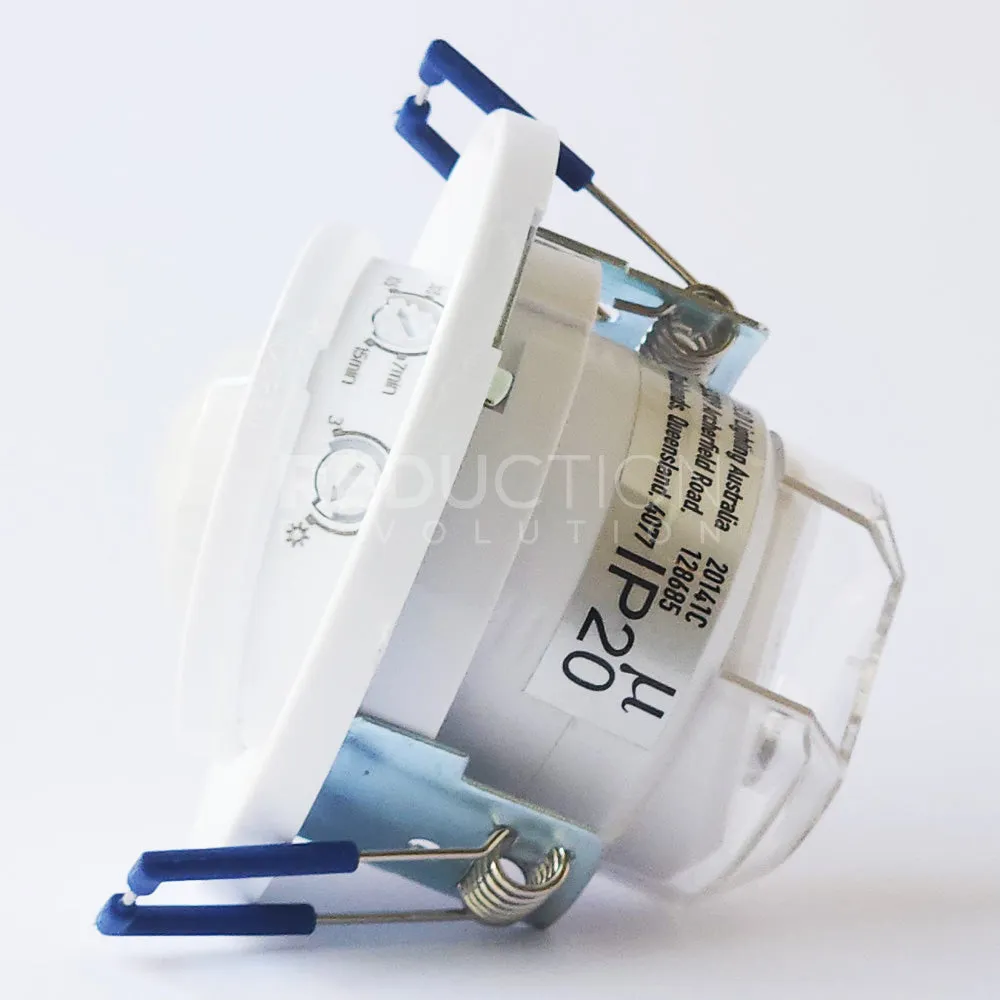

Both settings are user-adjustable. Pull down on the sensor to access the adjustment dials.
Specifications - EGLO Recessed Motion Sensor
| Mounting Type | Recessed (70mm cutout) |
| Sensor Type | Passive infrared sensor (PIR) Photocell (for daylight detection) |
| Voltage | 220 - 240V AC |
| Rated Loads | Up to 400W for LED or compact fluorescent (CFL), or 800W for halogen or incandescent |
| Sensor Operation | Automatic or manual override (see install guide below for details) |
| Sensor Adjustments | On Time: adjustable from 10 seconds to 15 minutes (restarts from the last movement detected). Light Sensitivity: adjustable from 3 to 2000 lux. |
| Detection Angle | 360° |
| Detection Distance | 8 metres |
| Mounting Height | 2.2 to 4 metres |
| Protection | IP20 indoor-rated, electrically double insulated |
| Dimensions | 80mm (width) x 70mm (depth). Cutout diameter: 70mm |
| Weight | 130 grams |

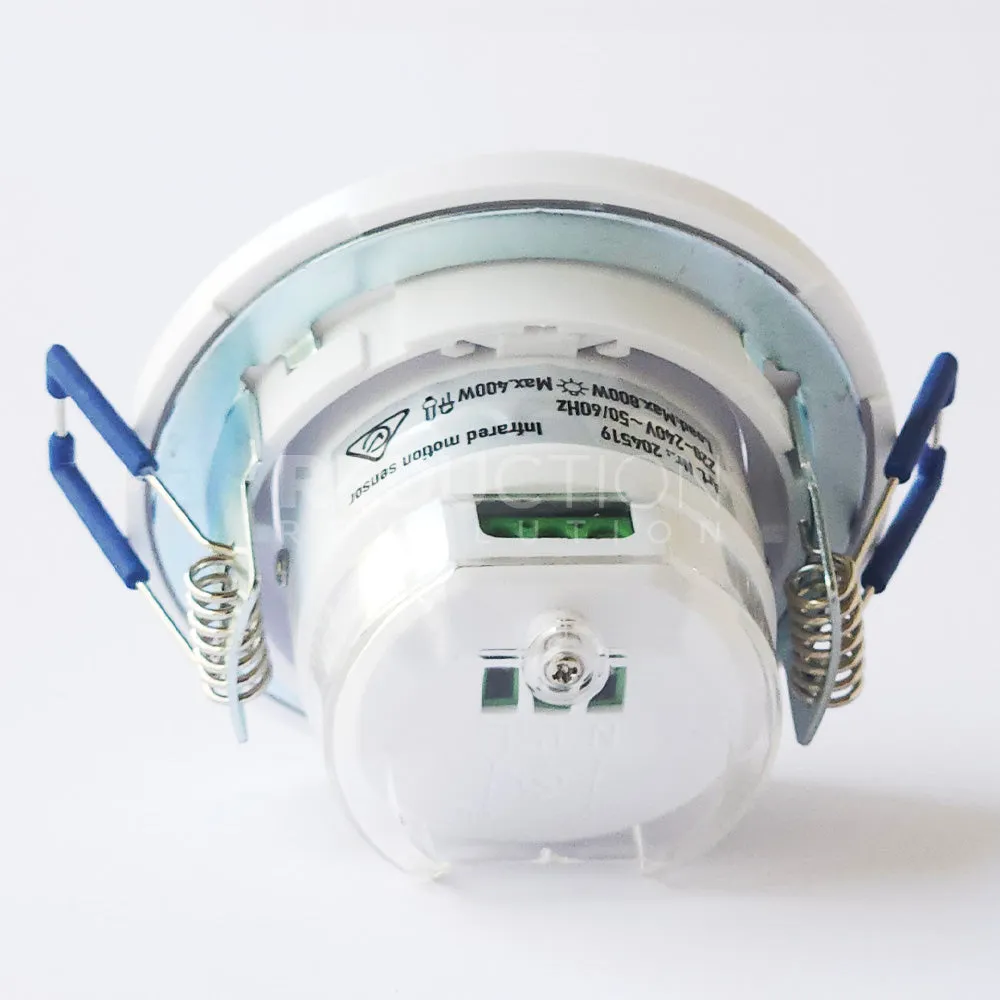

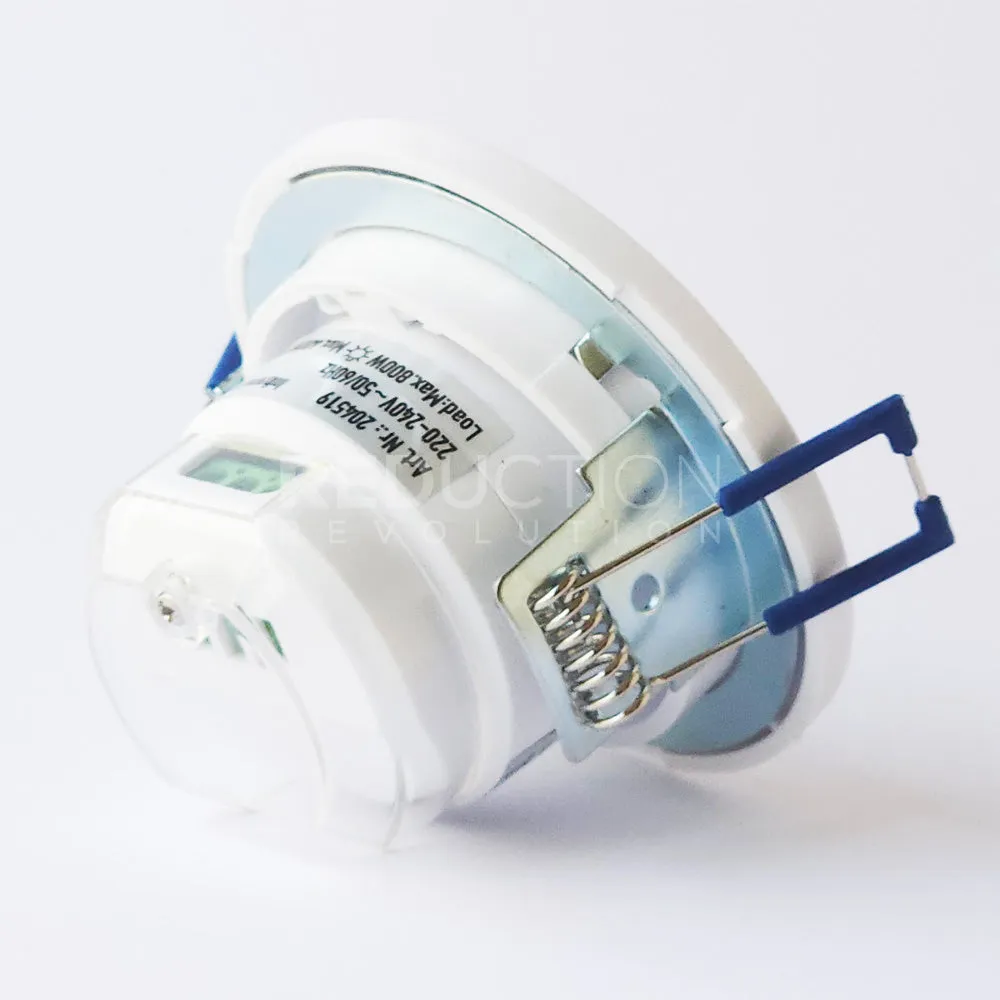

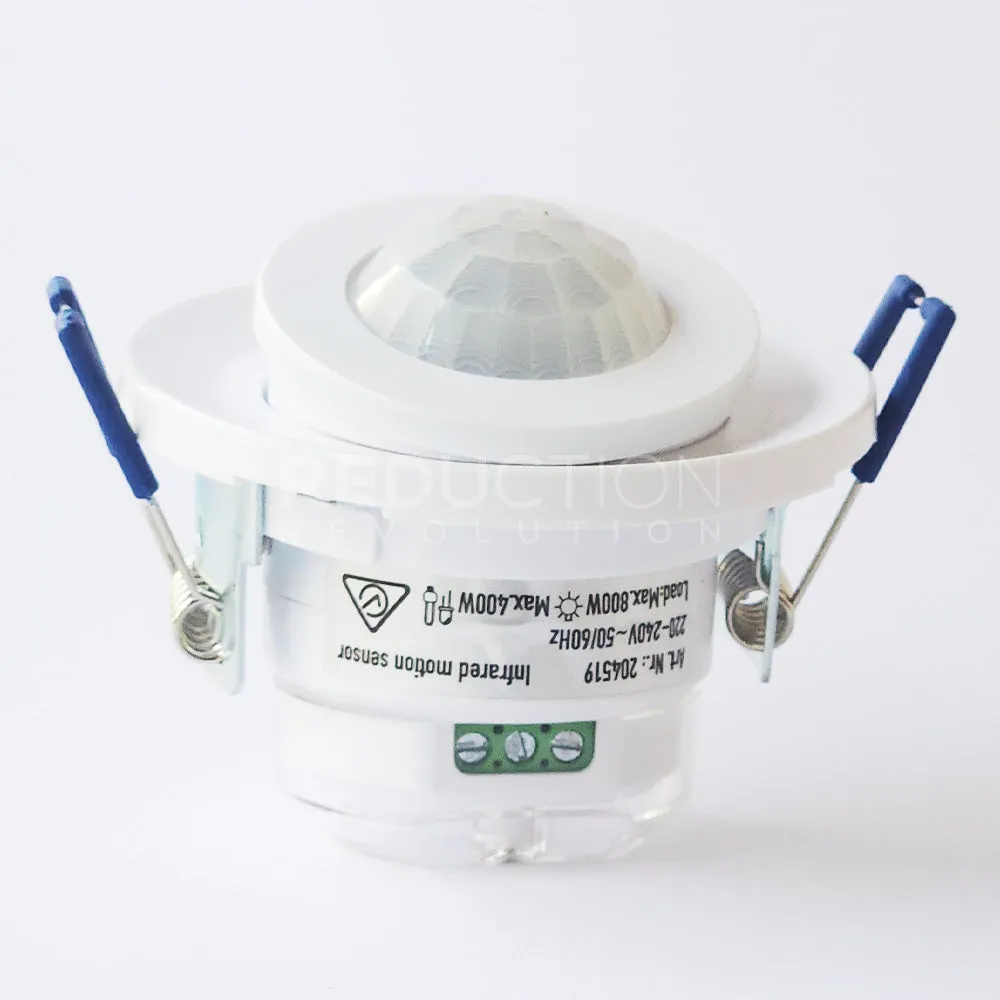

| Installation | To be completed by an electrician. Three wire screw-down terminals for electrical connection are located at the back of the unit (see photos). |
| Product Identifiers | EGLO Detect Me 7 Recessed PIR Motion Sensor; 204519 |
| Documents | Spec Sheet (PDF); Install Guide (PDF) |
| Warranty | 5 Years |
Frequently Asked Questions
Does this product include an LED light and motion sensor?
No, this is a stand-alone recessed motion sensor only. It controls other lighting loads connected to it. It has no in-built light source.
Does this PIR motion sensor include a manual override?
Yes. You can disable the sensor from your light switch. The manual override lets you leave your lights on continuously until you wish to re-activate the sensor.
