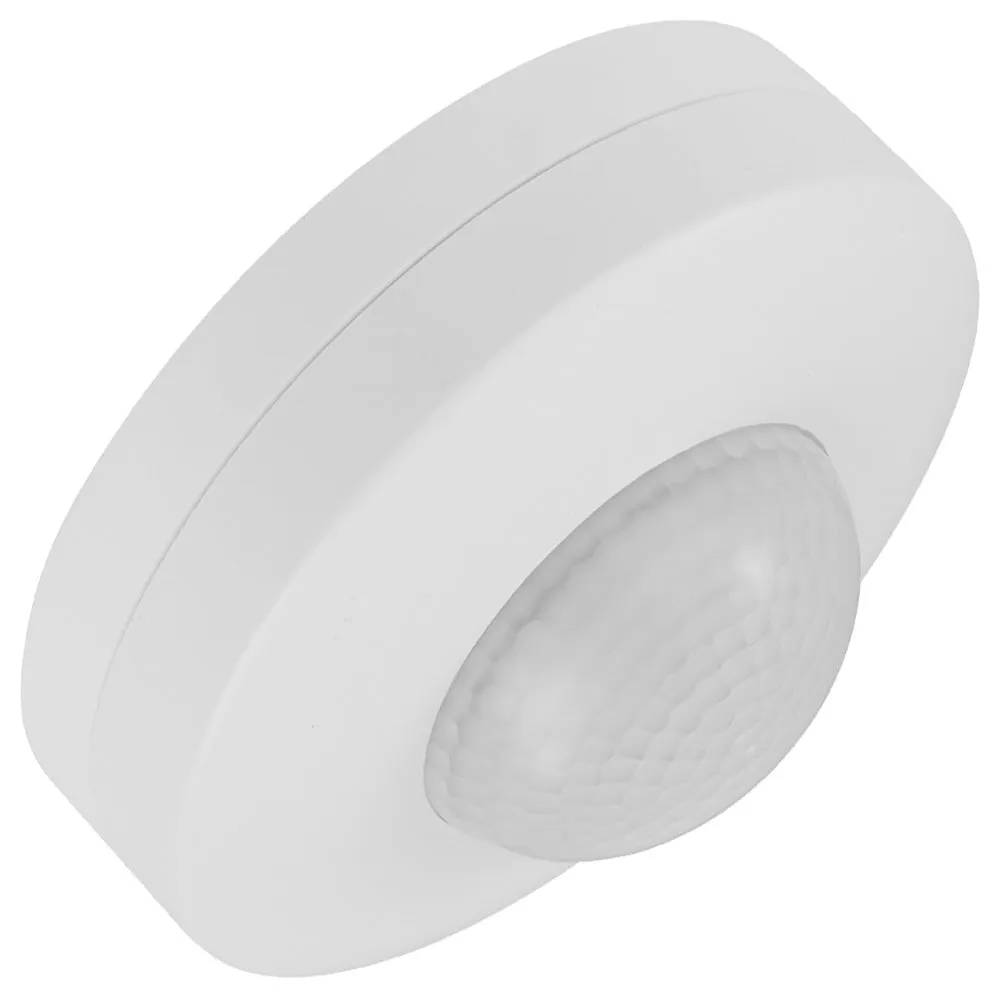

360° Surface Mount Motion Sensor
The EGLO Detect Me 6 motion sensor reduces energy usage in low-occupancy areas. It detects movement and switches your lights off when no one is around. Its features include:
- 360° Detection - Passive Infrared (PIR) sensor detects motion for several metres in any direction.
- Quick Installation - Detachable baseplate with cable glands and mounting holes. This enables fast installation on ceilings or walls.
- Easy to Adjust - Adjust 'on' time and light-level sensitivity under a removable cover, even after installation.
- Manual Override - Disable the sensor from your light switch.
- Dependable - Maintenance-free and a 5-year warranty.
Switch Lights & Other Loads On & Off Automatically
This surface mounted occupancy sensor helps reduce costs wherever lights may get left on unnecessarily. Popular ceiling or wall installation locations include:
- Workplace bathrooms and meeting rooms
- Entrance areas and hallways
- Garages and storage areas
- Walk-in wardrobes, closets, and pantries
PIR Motion Sensor - Detection Area & Adjustment
You can mount this motion sensor onto any type of ceiling surface or wall. The recommended ceiling height is between 2.2m and 4m and it detects motion below in all directions (360°).

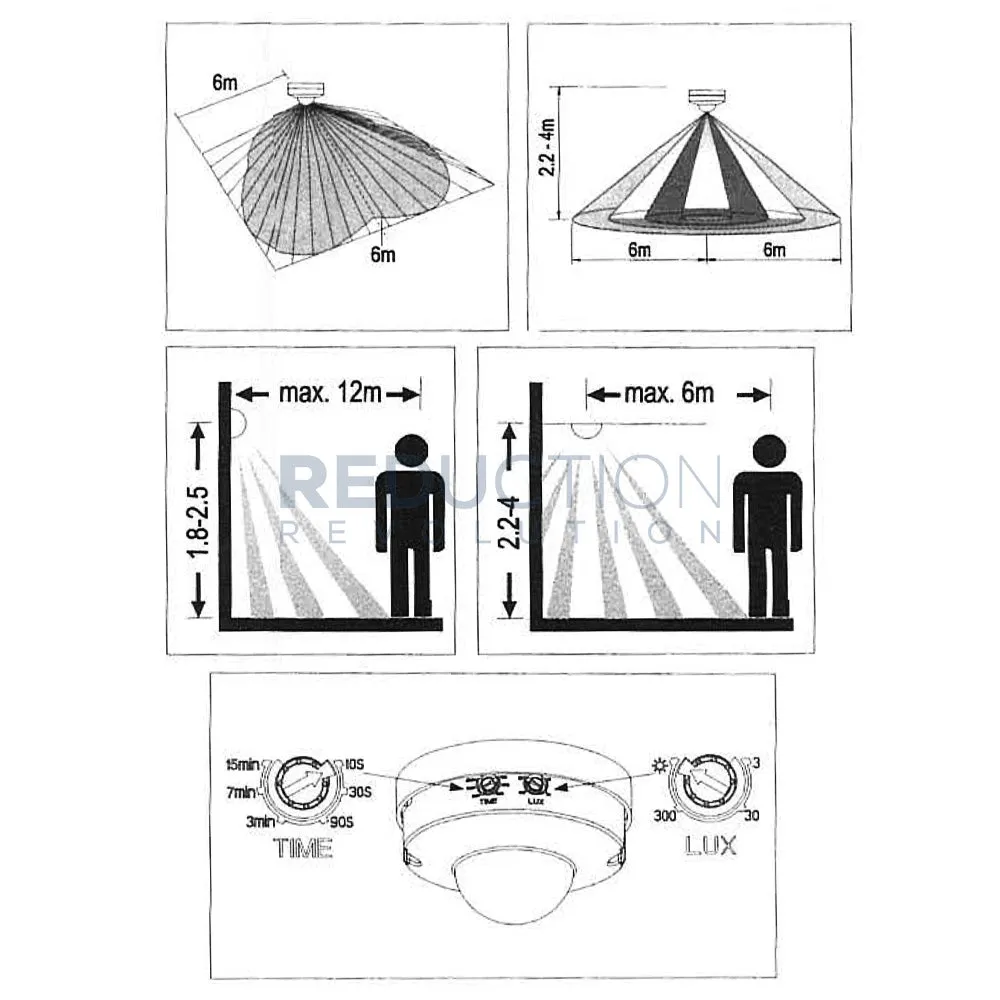

The typical detection area of the sensor unit
The sensor itself is adjustable for the time of operation and daylight sensitivity:
- The 'TIME' control is for between 10 seconds and 15 minutes. At the maximum setting, it switches off 15 minutes after detecting any motion.
- The 'LUX' sensor determines whether the light will still come on during the day or only after dark. It is adjustable from 3 to 2000 lux.

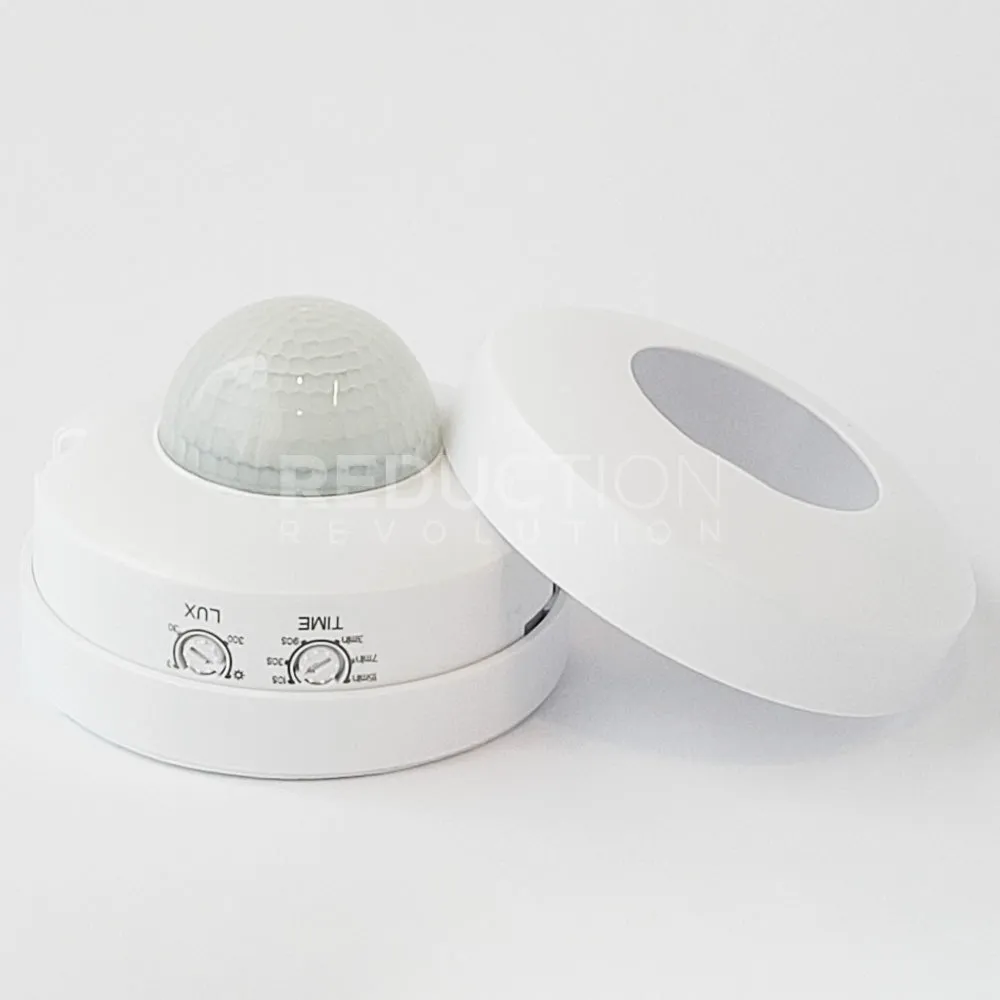

Both settings are user-adjustable. Twist and pull down on the surface mount cover to access the adjustment dials.
Specifications - EGLO Surface Mount Motion Sensor
| Mounting Type | Surface |
| Sensor Type | Passive infrared sensor (PIR) Photocell (for daylight detection) |
| Voltage | 220 - 240V AC |
| Rated Loads | Up to 300W for LED or compact fluorescent (CFL), or 1200W for halogen or incandescent |
| Sensor Operation | Automatic or manual override (see install guide below for details) |
| Sensor Adjustments | On Time: adjustable from 10 seconds to 15 minutes (restarts from the last movement detected). Light Sensitivity: adjustable from 3 to 2000 lux. |
| Detection Angle | 360° (ceiling) or 180° (wall) |
| Detection Area | 12 metres |
| Mounting Height | 2.2 to 4 metres (ceiling) or 1.8 to 2.5 metres (wall) |
| Protection | IP44 rated, electrically double insulated |
| Dimensions | 90mm (width) x 55mm (depth) |
| Weight | 140 grams |

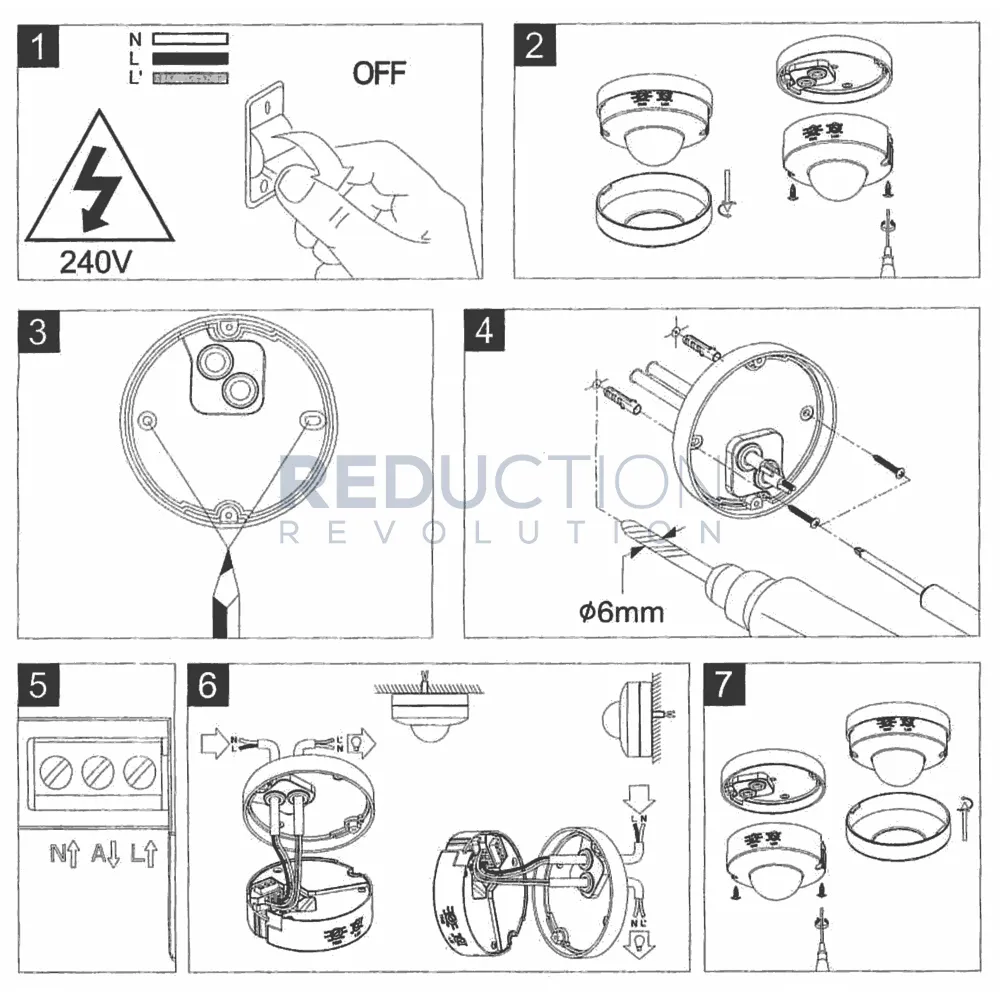

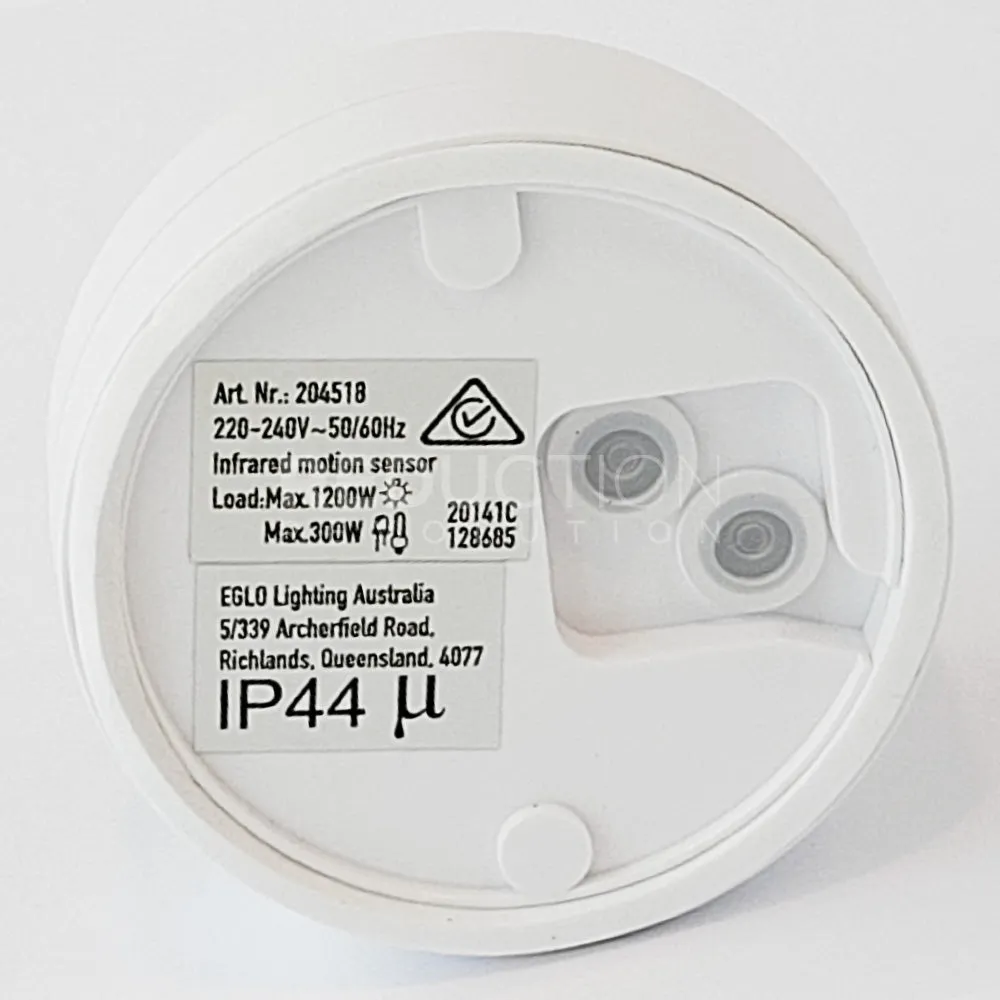

| Installation | To be completed by an electrician. Three wire screw-down terminals for electrical connection are located between the baseplate and back of sensor unit (see photos). |
| Product Identifiers | EGLO Detect Me 6 Surface Mount PIR Motion Sensor; 204518 (part number); 9008606210398 (barcode). |
| Documents | Spec Sheet (PDF); Install Guide (PDF) |
| Warranty | 5 Years |
Frequently Asked Questions
Does this PIR motion sensor include a manual override?
Yes. You can disable the sensor from your light switch. The manual override lets you leave your lights on continuously until you wish to re-activate the sensor. See installation guide for details.
