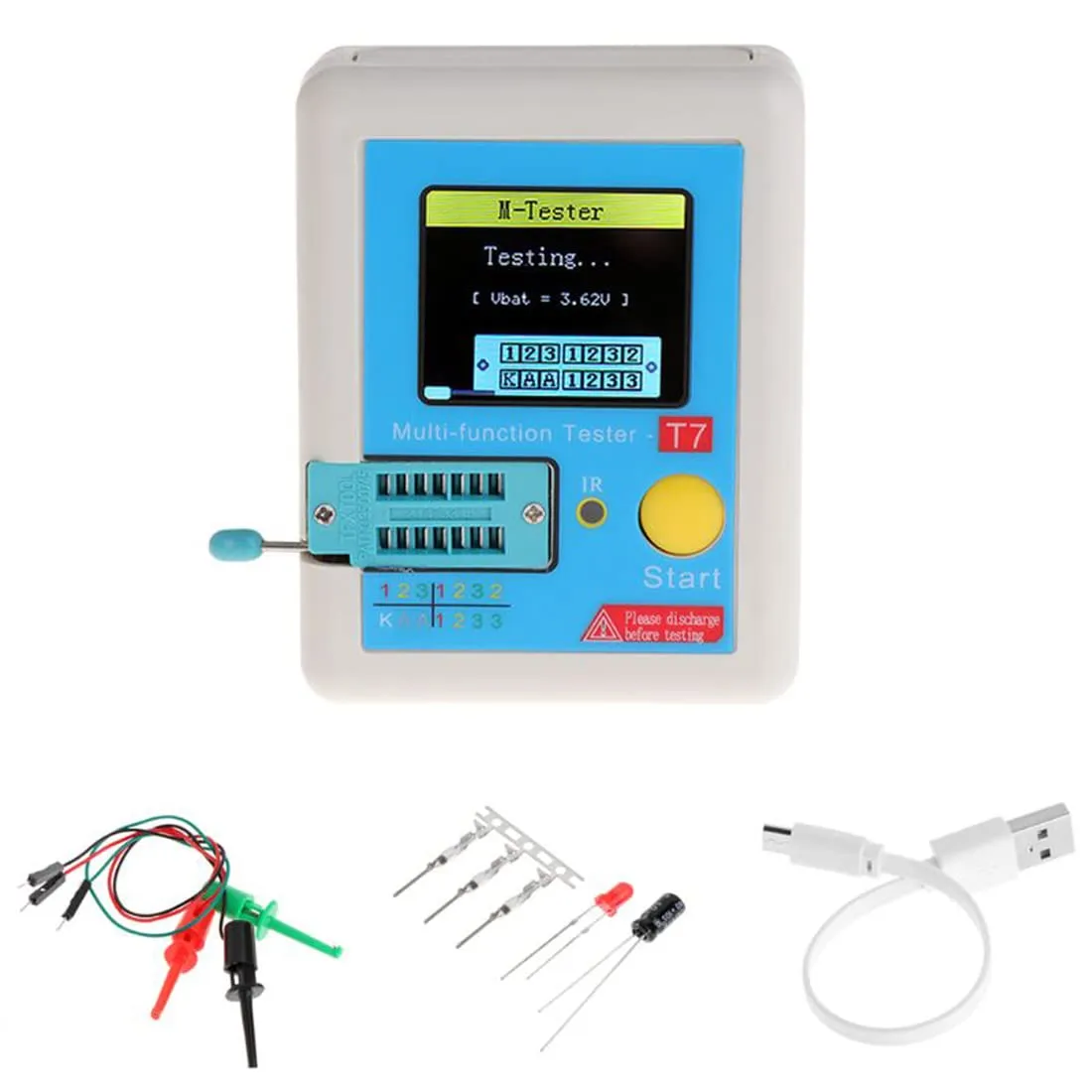

- LCR-T7 Transistor Tester TFT Diode Triode Capacitance Meter LCR Meter
- Multimeter for Transistor Diode Triode Capacitance, Inductor, Thyristor, Field effect tube, Regulator tube, Double diode and Light-emitting diodes etc.
- Self test with automatic calibration, support Hitachi IR coding.
- Easy to use, one key operation, auto power off (timeout settable).
- Built-in high capacity rechargeable Li-ion battery.
Description:
A full-color display multi-function testing instrument, can measure the transistor, diode, resistor, capacitor, inductor, thyristor, field effect tube, regulator tube, double diode, the light-emitting diodes, infrared decoding. Can measure the voltage, built-in lithium battery, long battery life.
Features:
Automatic detection of zener diode 0.01-30V.
Self test with automatic calibration.
Support Hitachi IR coding.
IR waveform display.
Infrared receiving instruction.
Measurement results using TFT graphic display.
One key operation.
Auto power off (timeout settable).
Built-in high capacity rechargeable Li-ion battery.
Li-ion Battery voltage detection.
Specifications:
Main color: blue
Sweep range: 0.1MHz
Voltage: 3.7V
Display: 160*128 TFT
Battery: 1 * Li-ion battery, 3.7V, 300mAh
Package include:
1 * Tester
1 * USB Cable
1 * Test Clip
1 * LED
1 * Capacitance
1 * Resistance
- Package Dimensions : 5.94 x 4.06 x 1.54 inches; 5.15 ounces
- Date First Available : October 27, 2021
- Manufacturer : HiLetgo
