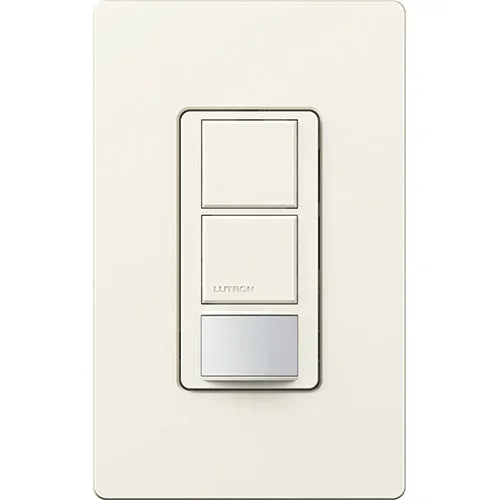

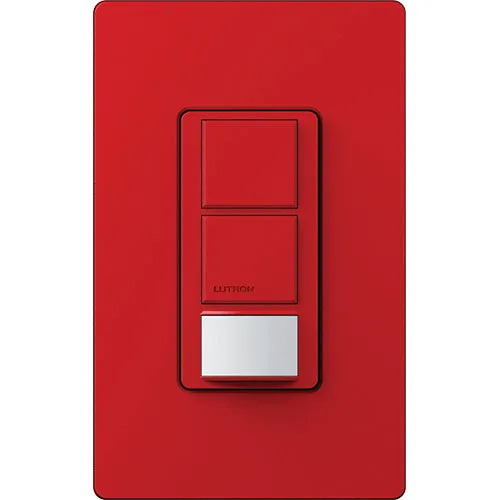

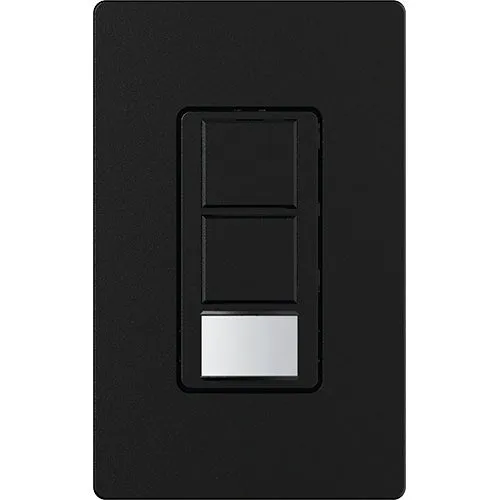

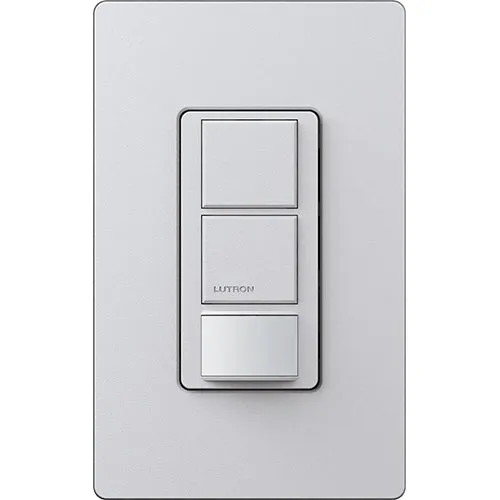

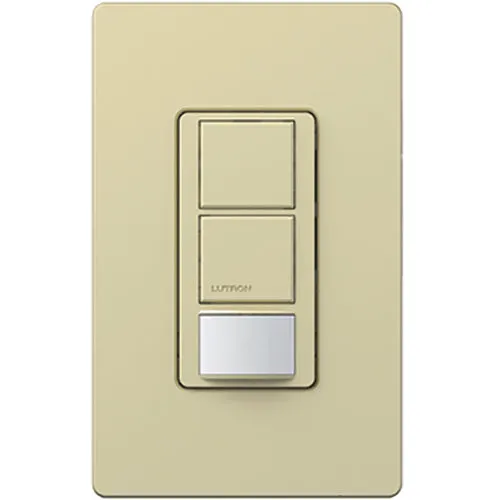

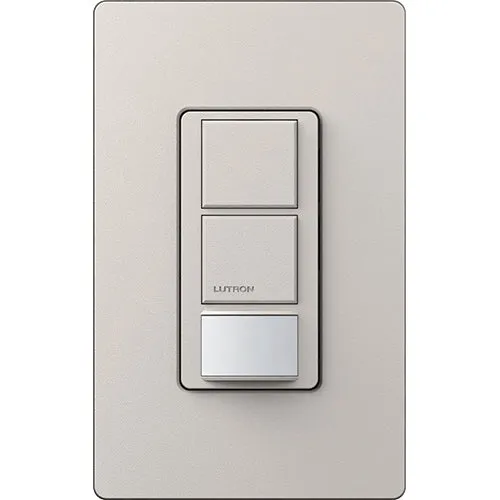

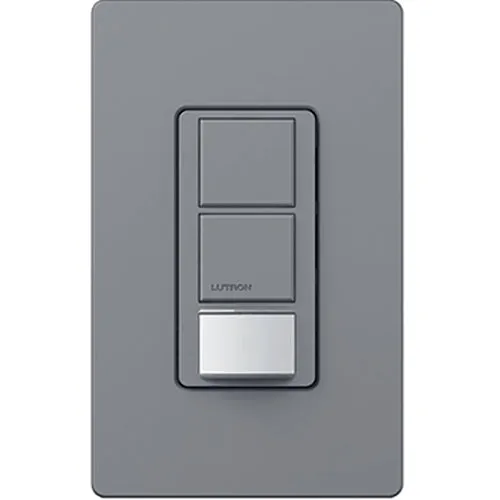

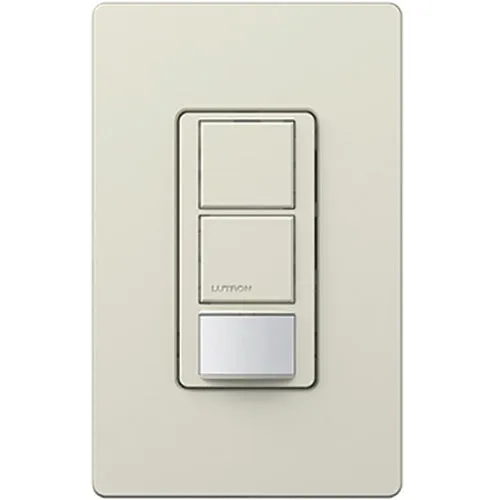

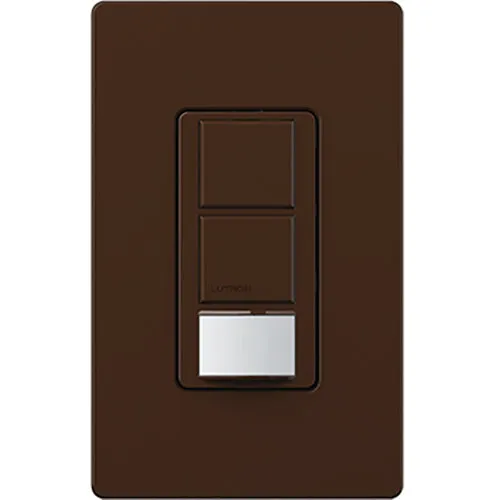

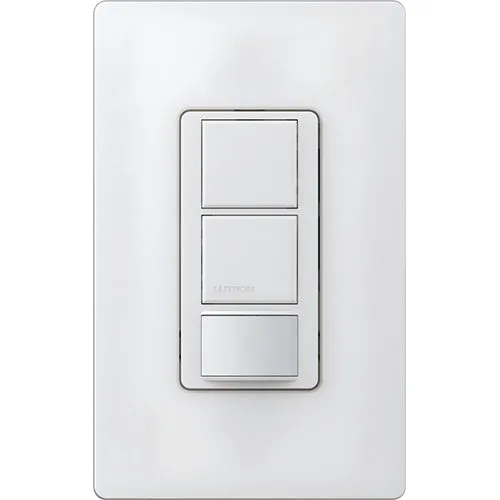

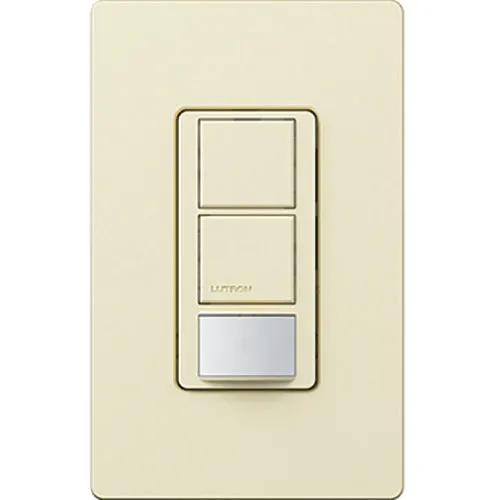

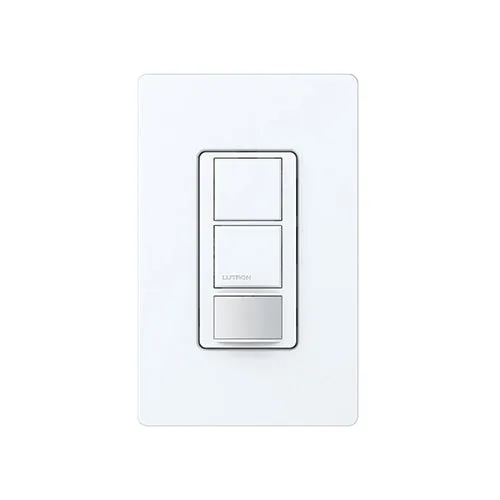

Features

• Family/Collection: Maestro
• Combines two switches with an in-wall, passive infrared (PIR) occupancy or partial-on sensor. The sensor is intended for either control of two circuits or bi-level control of two circuits, as required by certain energy codes. Passive infrared sensor with exclusive Lutron XCT Technology for minor motion detection. 180 degree sensor field-of-view. Tamper-resistant PIR lens. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Smart Ambient Light Detection (ALD) mode uses adaptive algorithm: Sensor learns the user's preferred light level over time. Adjustable timeout for each circuit (1, 5, 15, or 30 minutes). Sensitivity adjustment (high/low). Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent.
• Bi-level control of two circuits, as required by certain energy codes (e.g., ASHRAE)
• Passive infrared sensor with exclusive Lutron XCT Technology for minor motion detection
• 180 deg sensor field-of-view
• Tamper-Resistant Pir Lens
• Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
• Smart Ambient Light Detection (ALD) mode uses adaptive algorithm: Sensor learns the user's preferred light level over time
• Occupancy version can be set to Auto-ON / Auto-OFF or Manual-ON / Auto-OFF
• Adjustable timeout for each circuit (1, 5, 15, or 30 minutes)
• Sensitivity adjustment (High/Low)

Specifications

• Application: Lighting Control
• Body: Plastic
• Brand Name: Lutron
• Load: 6 A@120 to 277 VAC lights/4.4 A@120 VAC fan
• Mounting: Wallbox
• Operating Temperature: 32 to 104
• Sensing Range: 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
• Sensor: Yes
• Special Features: Combines two switches with an in-wall, passive infrared (PIR) occupancy or partial-on sensor. The sensor is intended for either control of two circuits or bi-level control of two circuits, as required by certain energy codes. Passive infrared sensor with exclusive Lutron XCT Technology for minor motion detection. 180 degree sensor field-of-view. Tamper-resistant PIR lens. U[ tp 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Smart Ambient Light Detection (ALD) mode uses adaptive algorithm: Sensor learns the user's preferred light level over time. Adjustable timeout for each circuit (1, 5, 15, or 30 minutes). Sensitivity adjustment (high/low). Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent.
• Standard: UL, cUL, NOM, Title 20/24
• Sub Brand: Maestro
• Supply Voltage: 120 to 277
• Type: Occupancy sensor switch, dual-circuit, partial-on, single-pole

Downloads

Technical Document

Installation

Specifications

Warranty
