Twice the flame, half the gas. Built to last with 100% rust-resistant brass and backed by the Full Manufacture Lifetime Warranty!
Complete your fire pit kit with the Ultimate Crossfire Bundle: Warming Trends Crossfire CFB Original Brass Burner with WATERSTOP Bundle. This patented, revolutionary burner delivers taller, brighter, fuller, and more natural flames while using less fuel. Its advanced regulation system works seamlessly with propane or natural gas, giving you ultimate control.
Available in a variety of sizes and BTU ratings, the Crossfire burner ensures exceptional durability, corrosion resistance, and unmatched performance—all backed by the Full Manufacture Lifetime Warranty.
Burner Plate/Pan Size Guide
Need help choosing the right size? Check out our Burner & Plate Size Guide for assistance in finding the perfect fit for your fire pit.
FREE Media Options
- Black Lava Rock
- Rolled Lava Rock
- 1/2" Reflective Fire Glass
- 1/2" Fire Glass 2.0 Cubes
3/4" Recycled Fire Glass
Note: Use the easy-to-use Media Calculator to help you determine the ideal amount of media needed for your fire feature. Or call/chat for assistance.

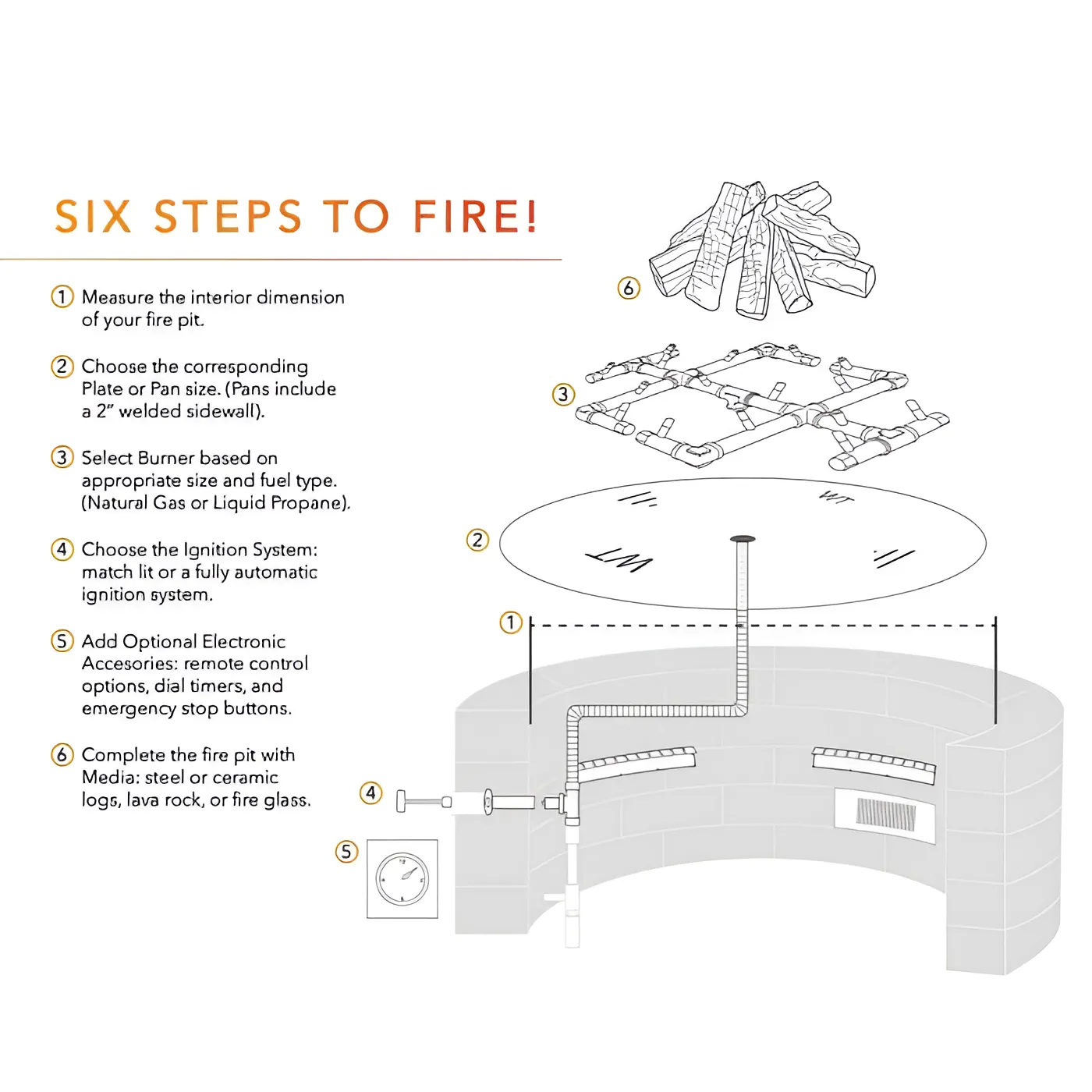

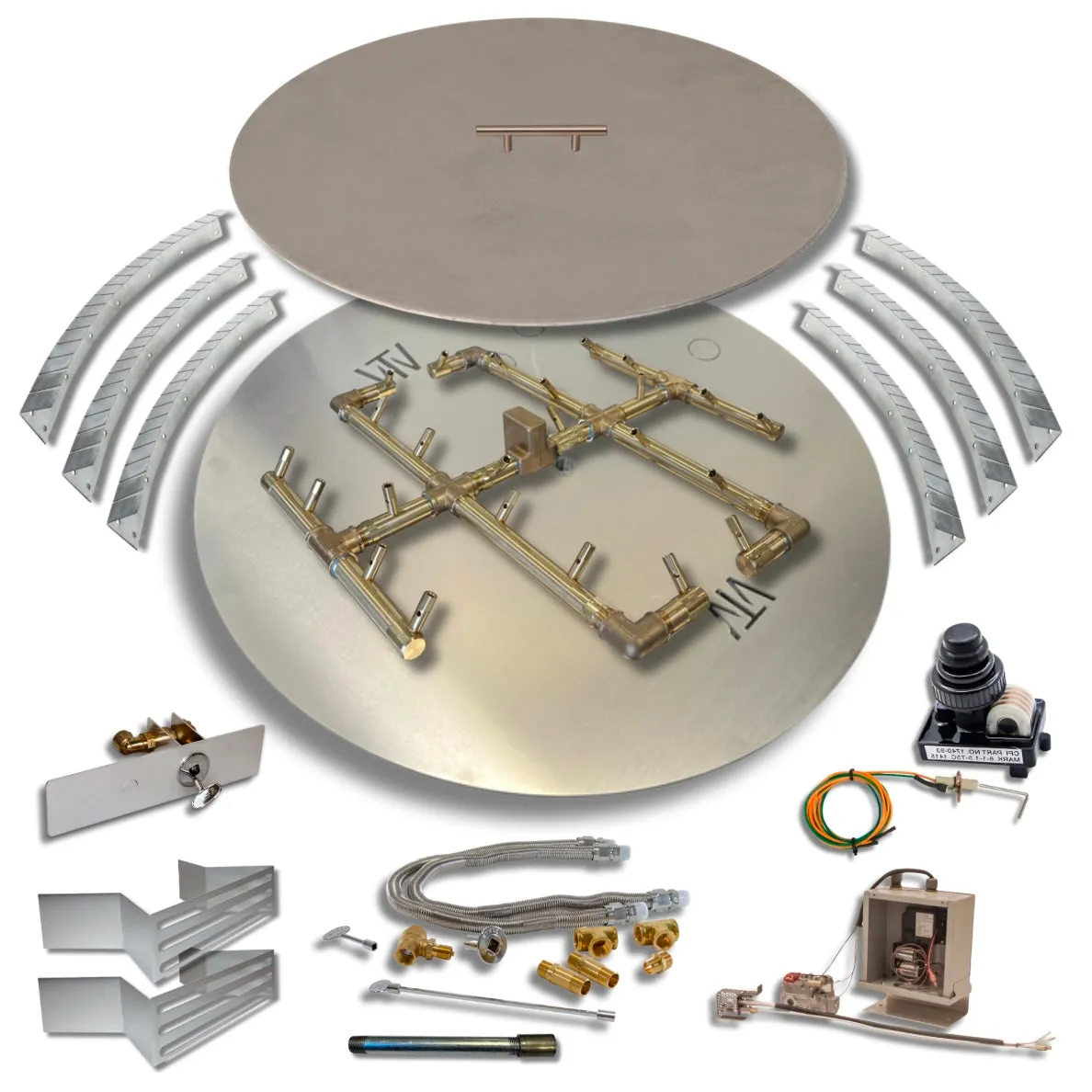

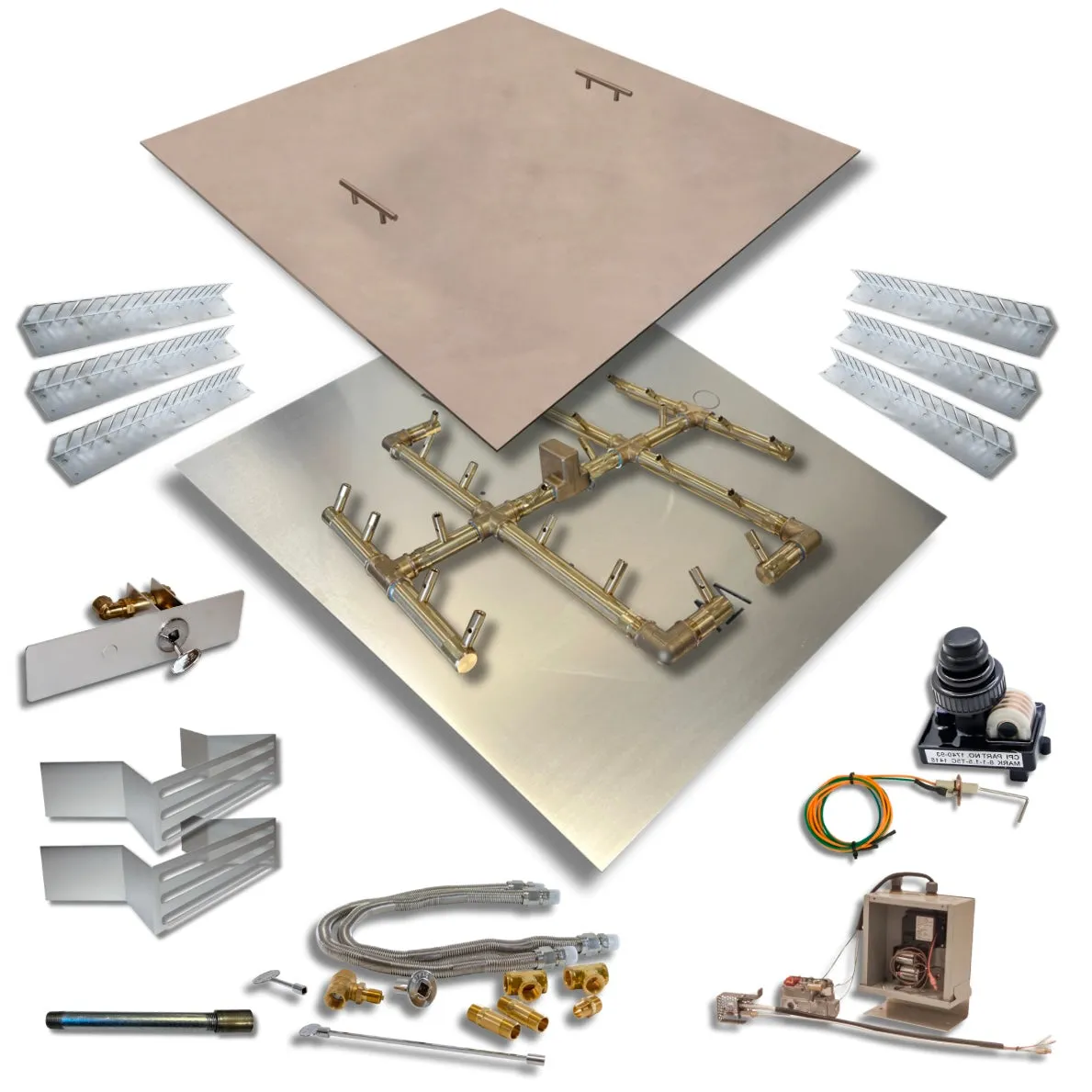

Bundle Item Options

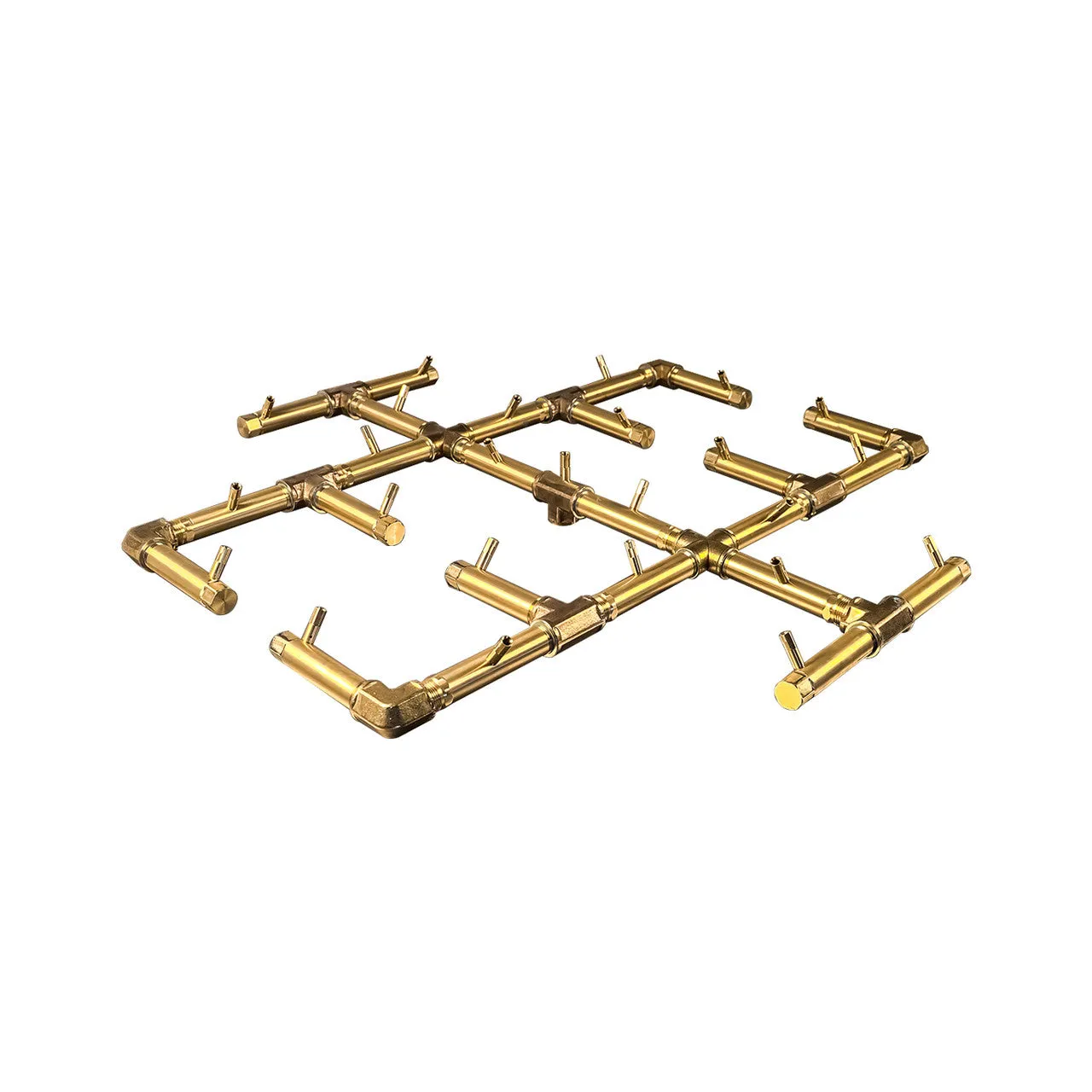

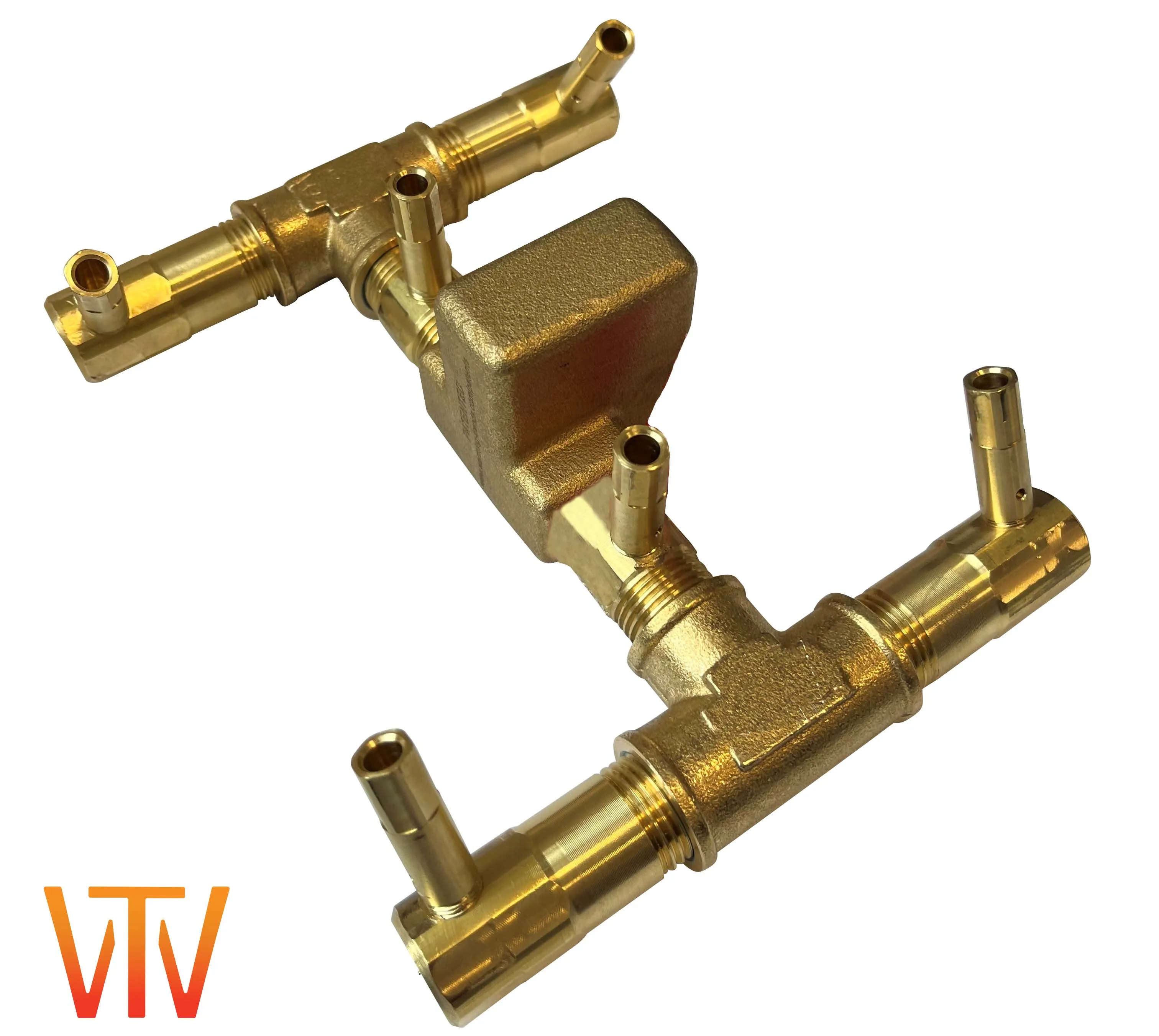

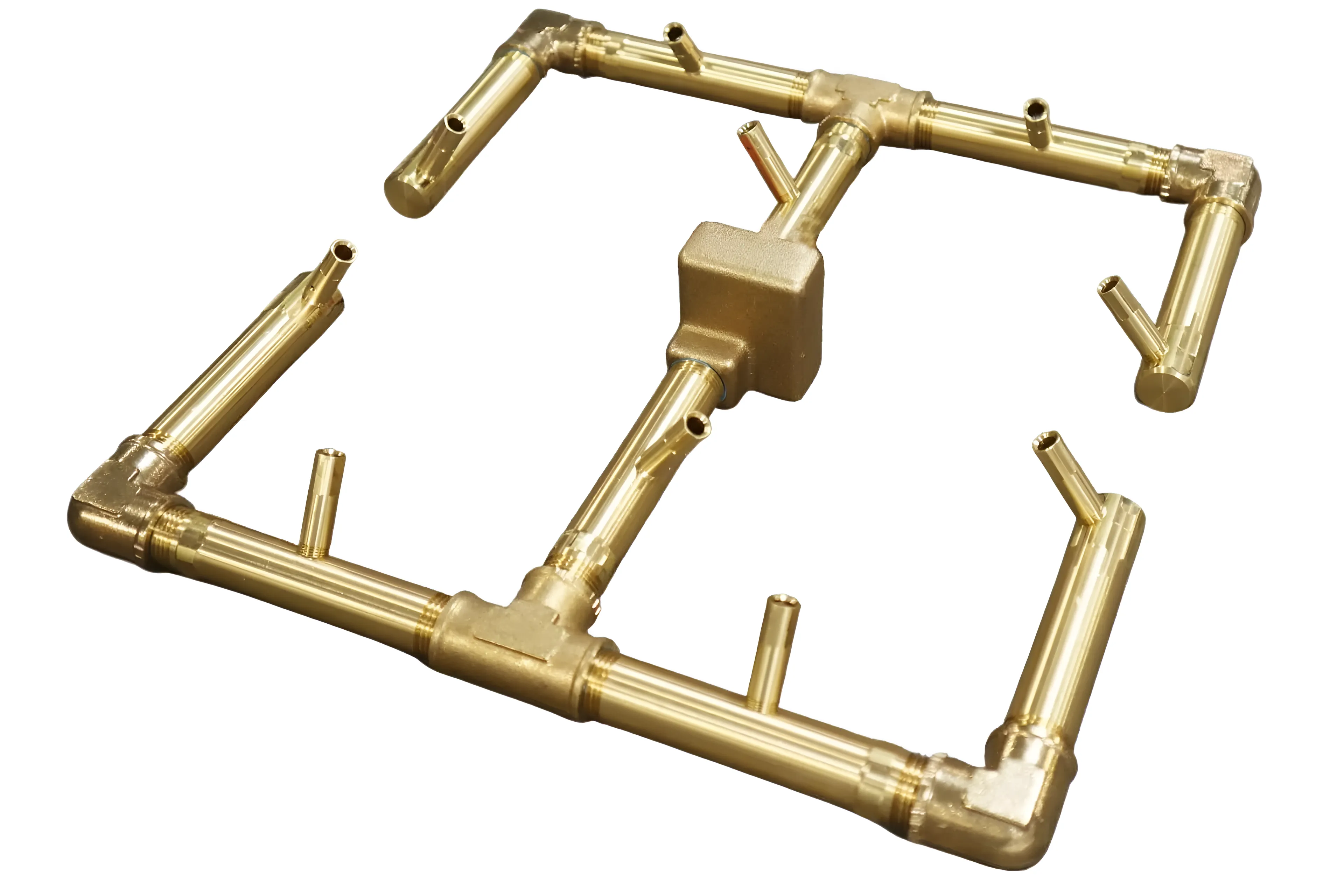

1. Burner

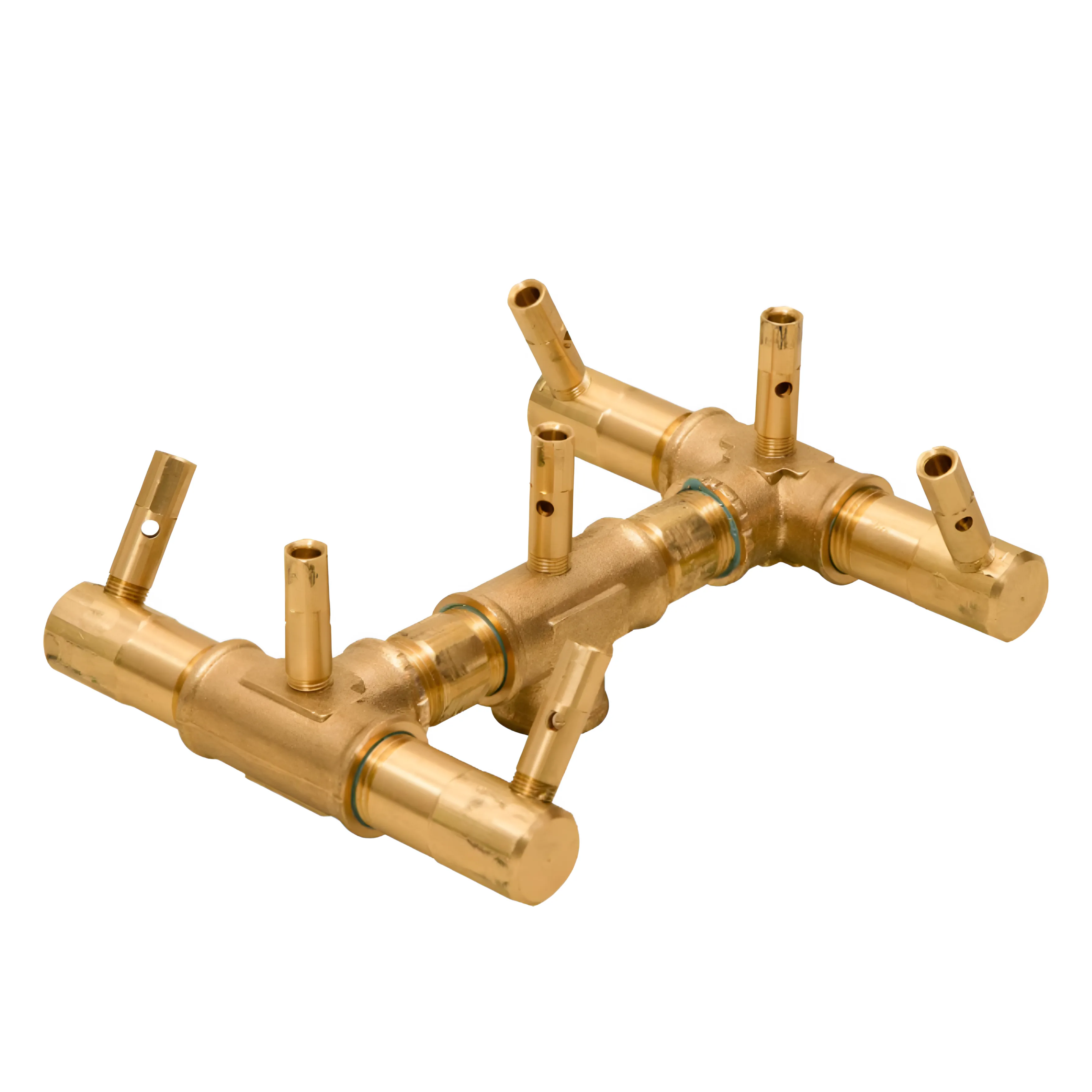

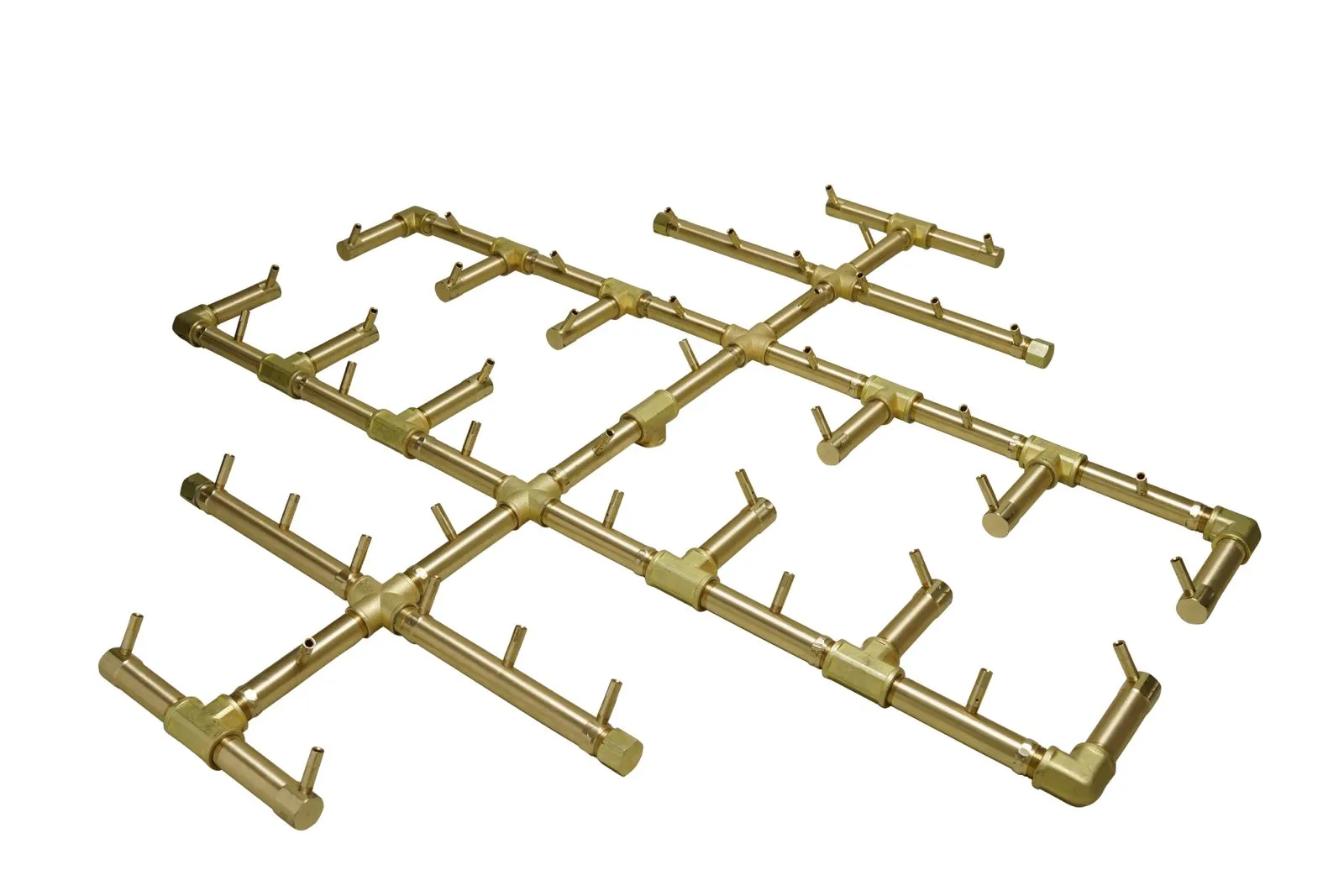

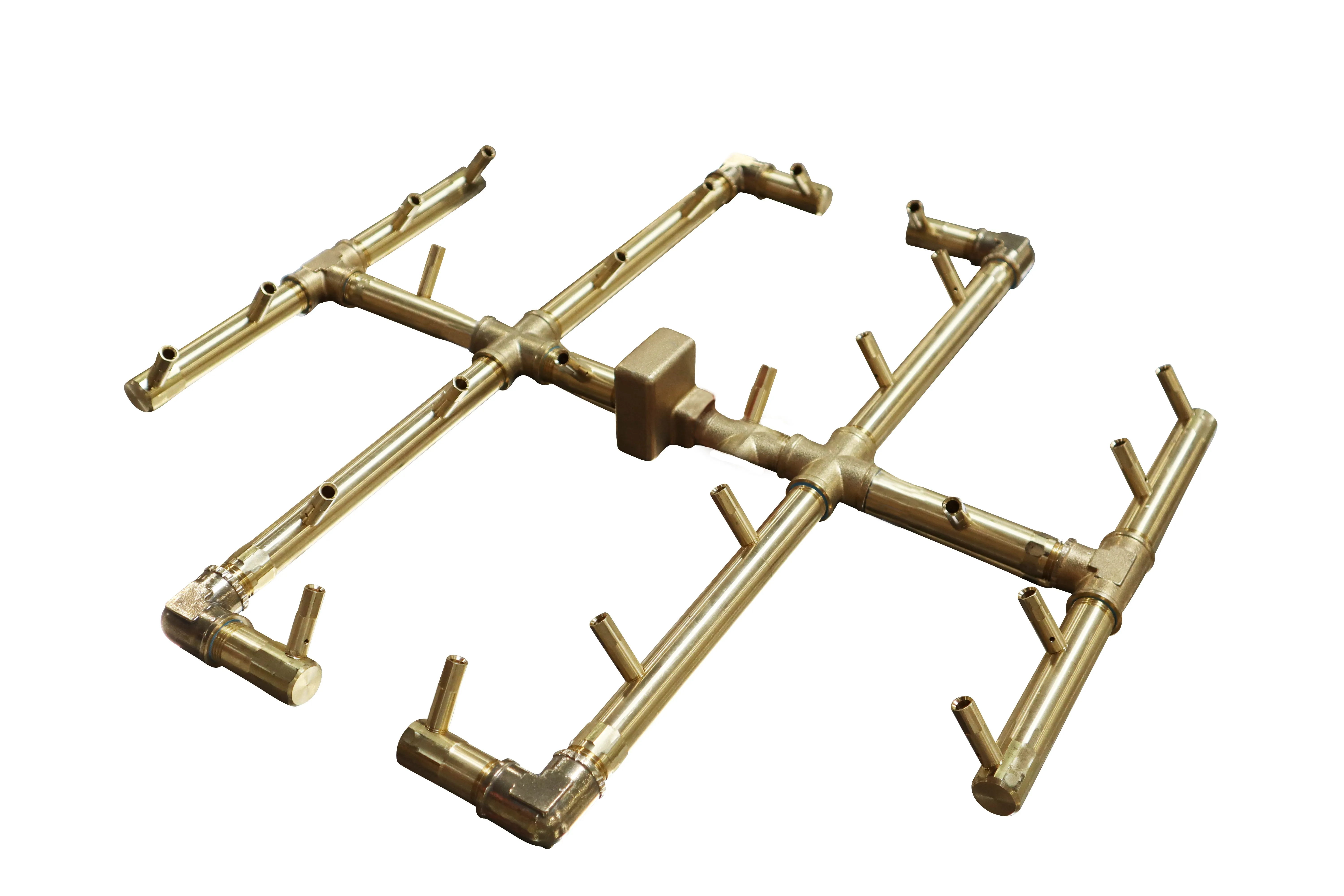

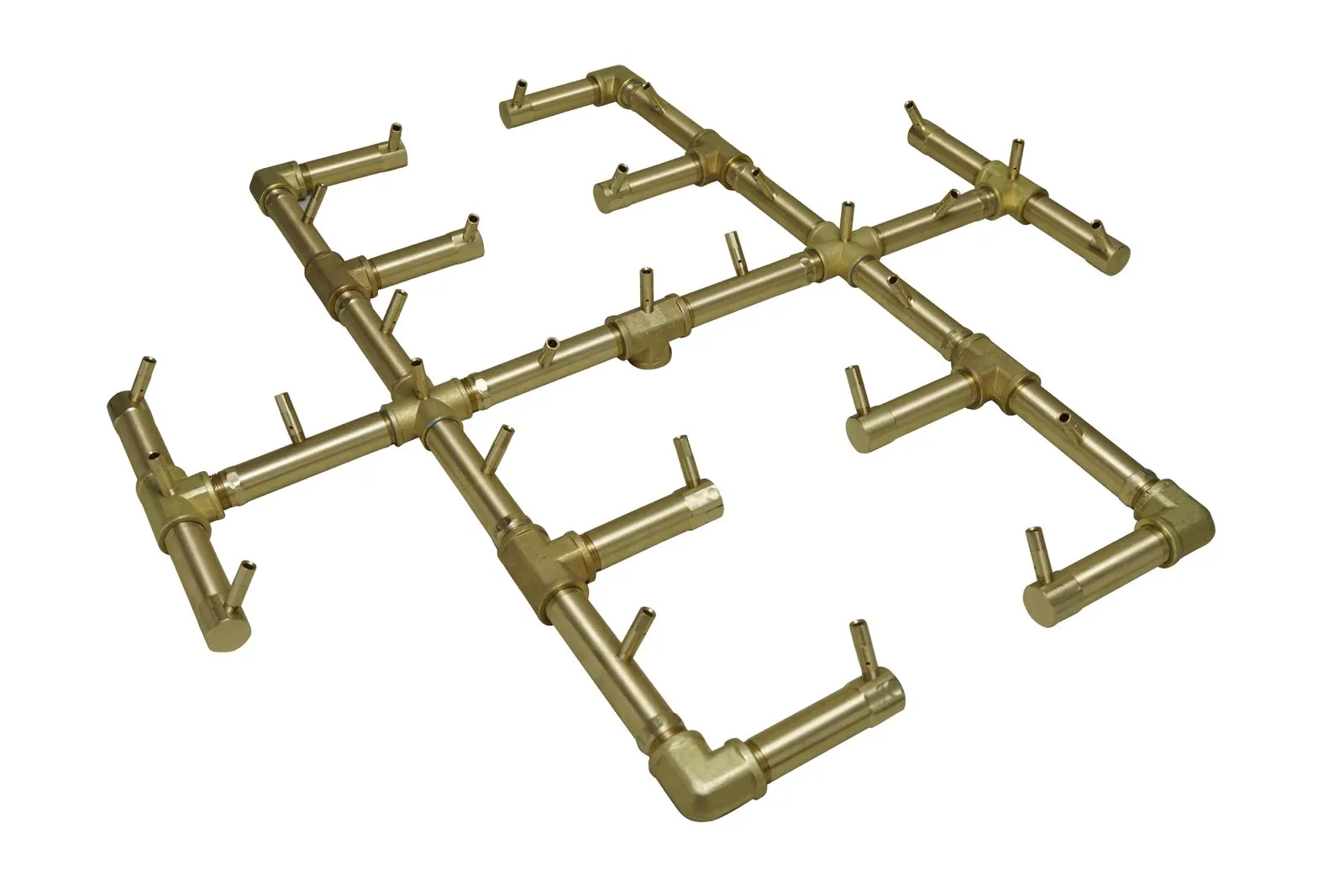

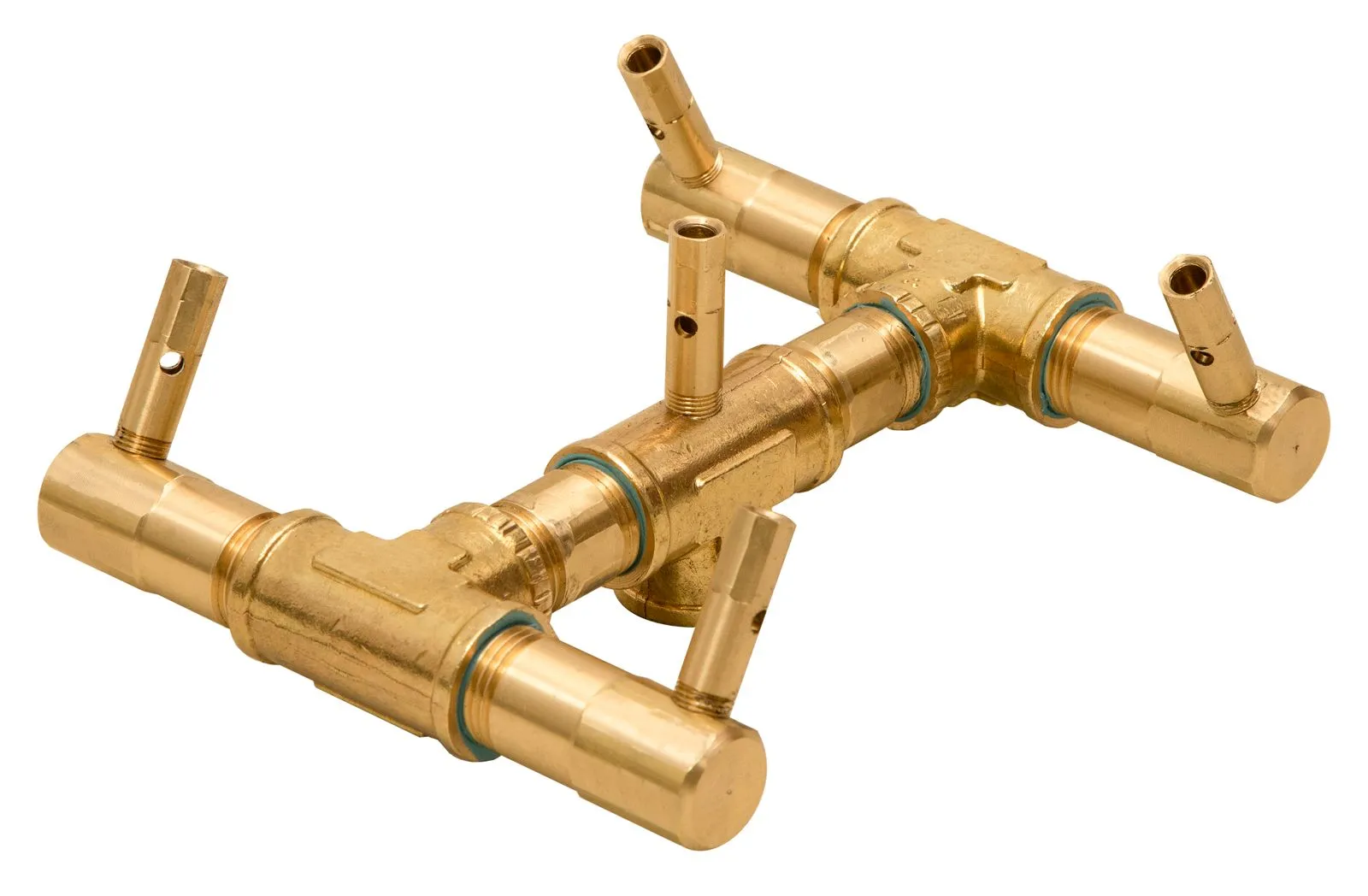

The Original Crossfire Burner comes in a range of sizes, from 60K BTU (7.5x7.5-inch) to 450K BTU (46x46-inch), offering plenty of options to fit your needs.

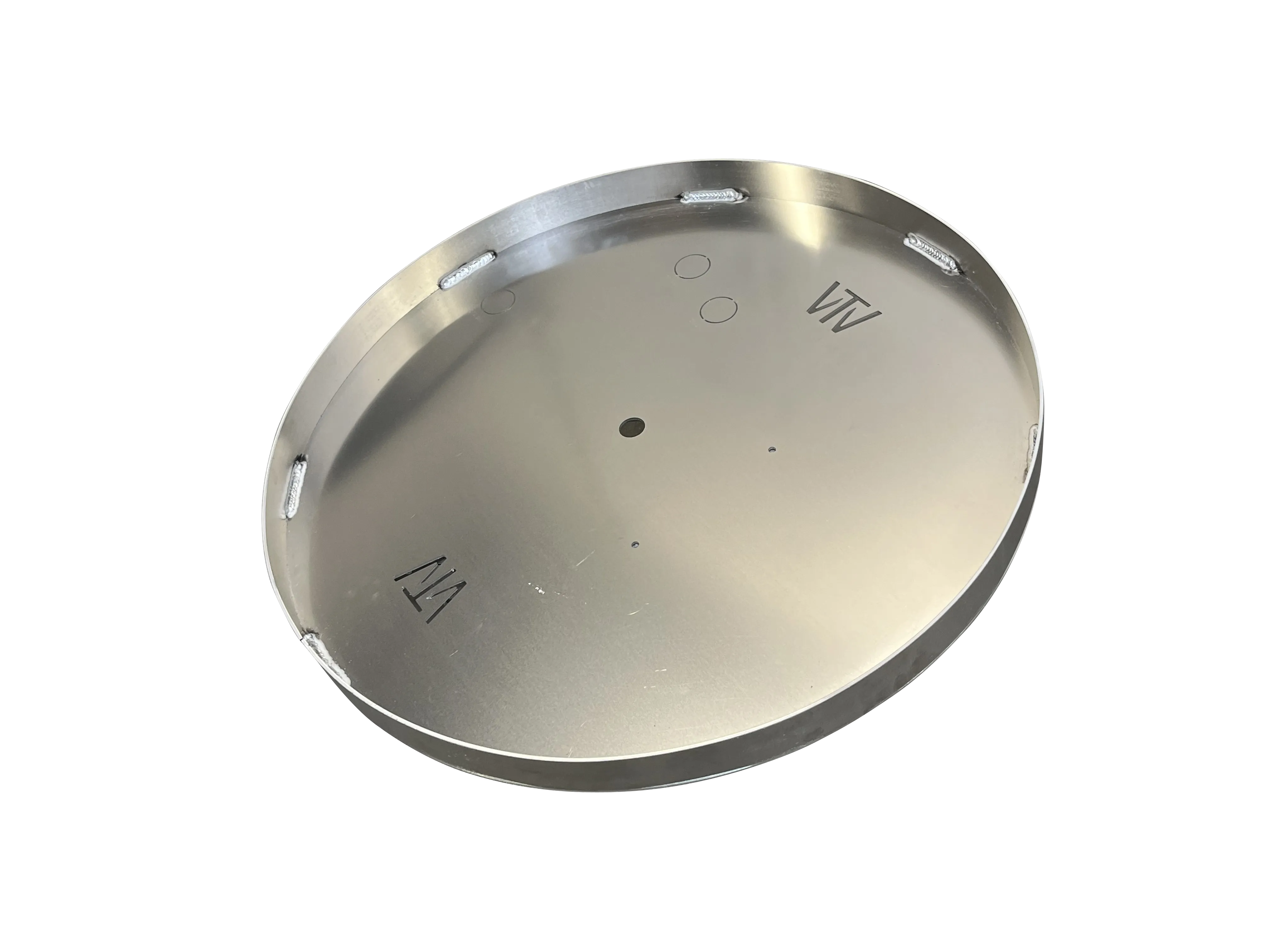

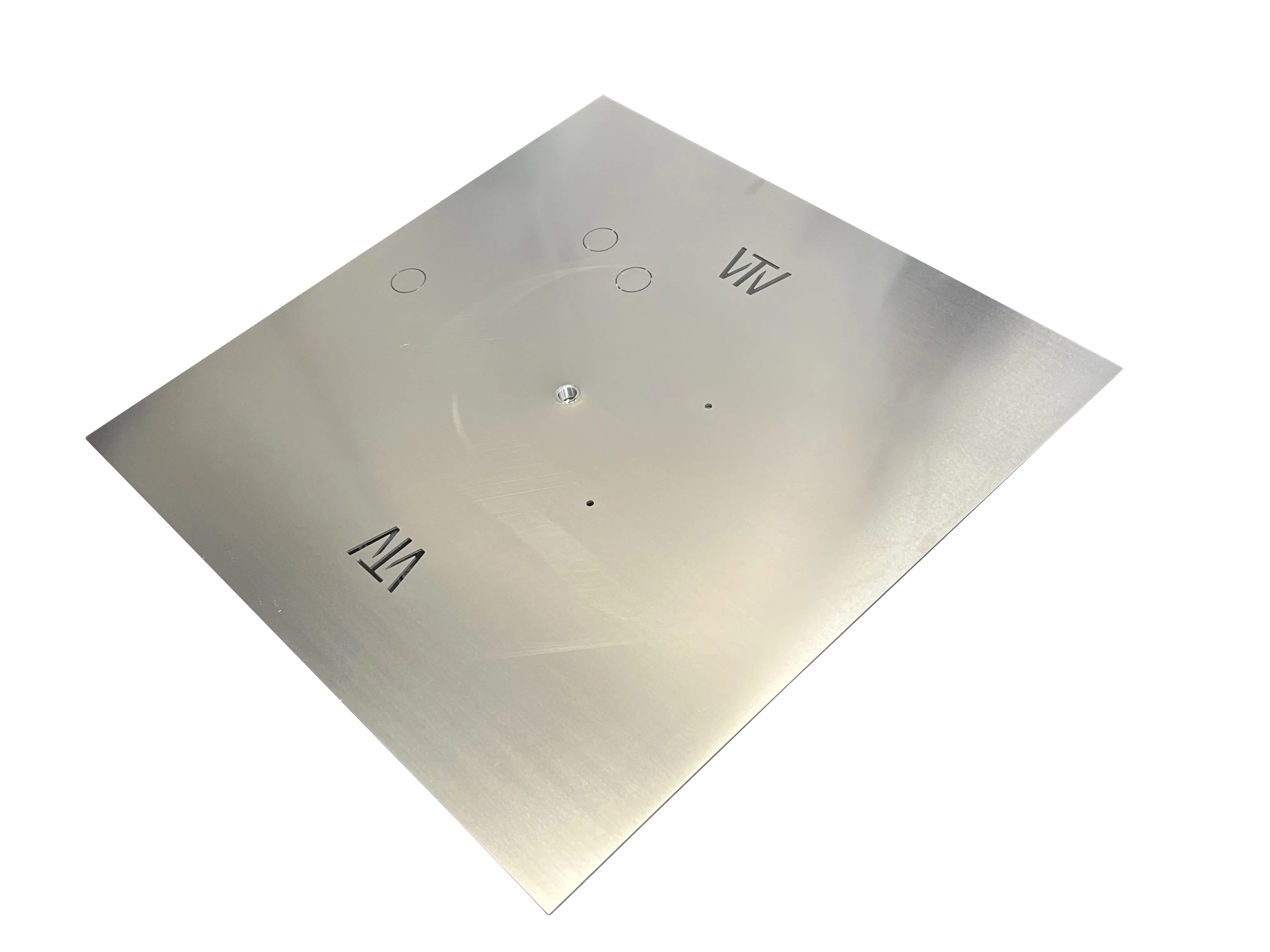

2. Plate Or Pan

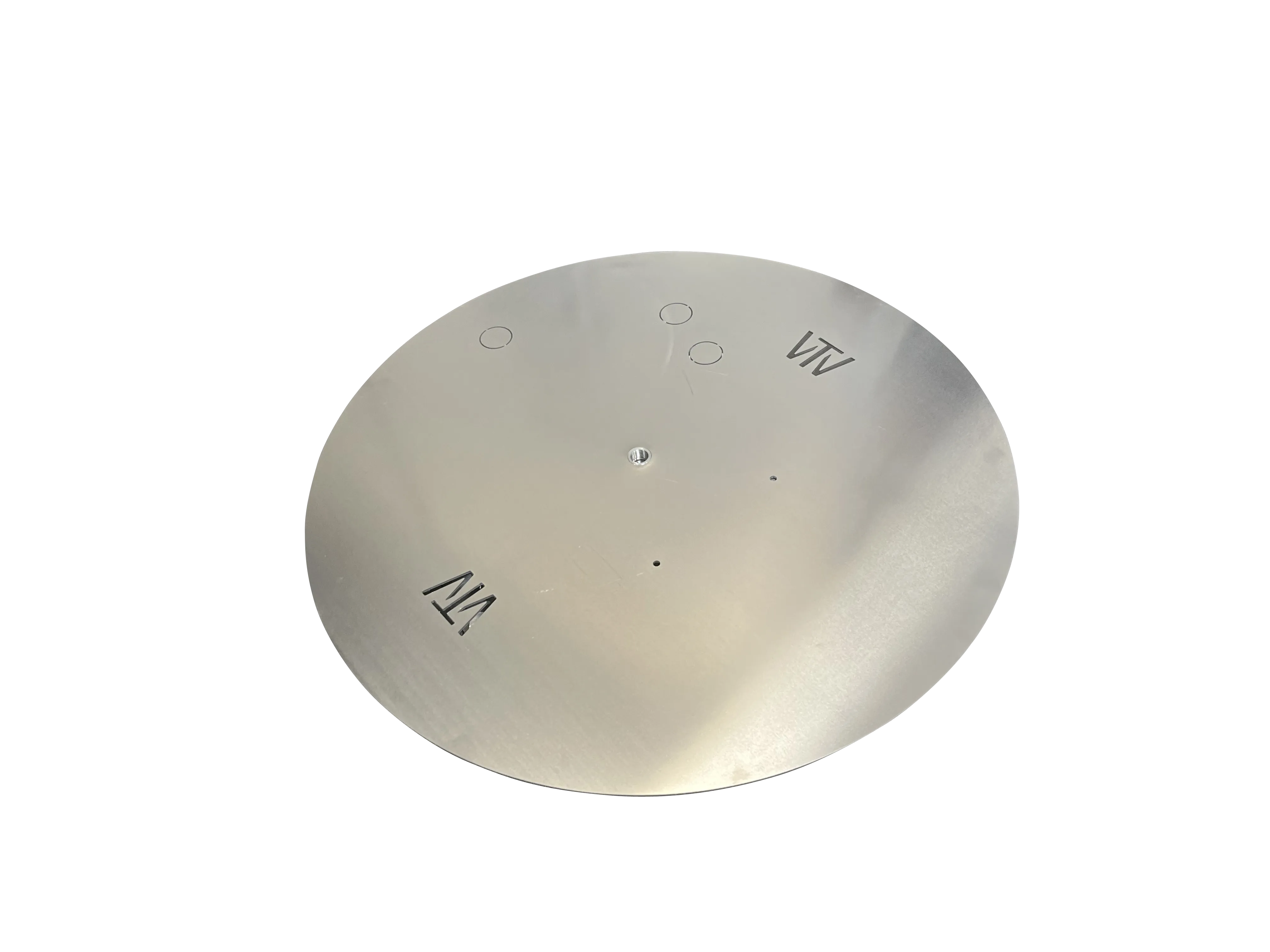

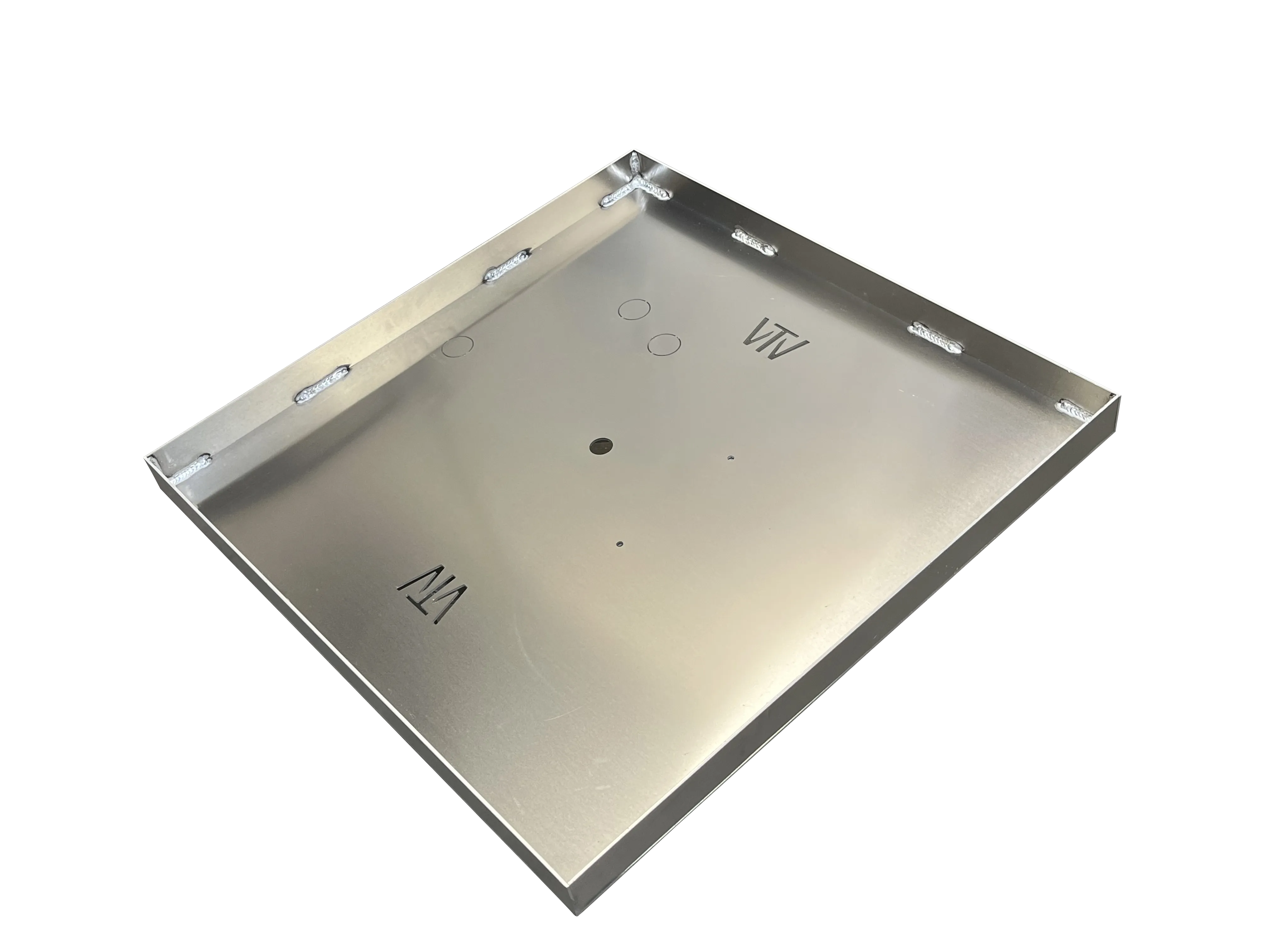

Plates and pans are available in square or circular designs, made from durable tempered aluminum. They feature precisely cut weep holes for drainage and are offered in 1/8" or 3/16” thickness. Each includes a central gas inlet opening. The size you choose depends on the dimensions of your fire pit opening.

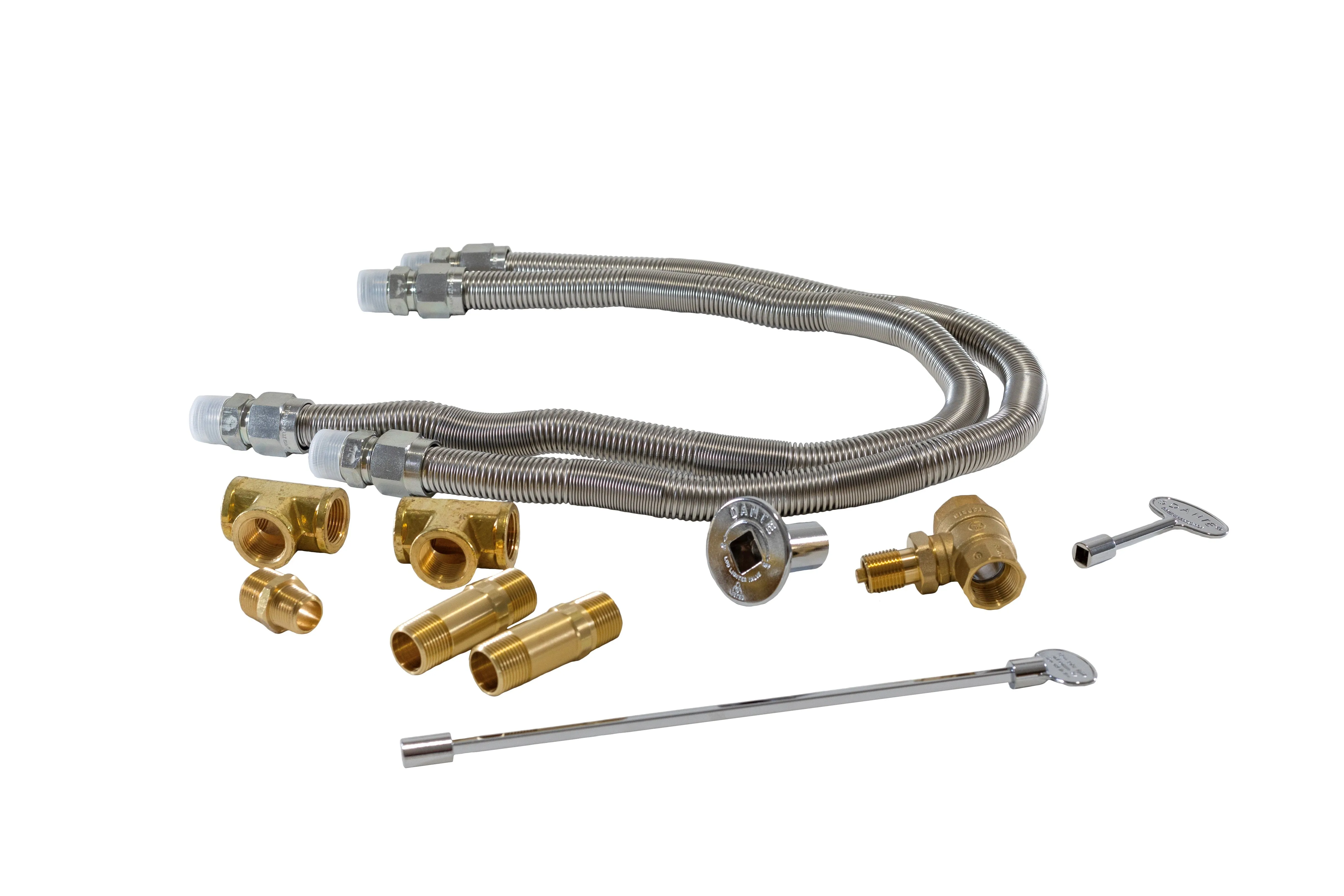

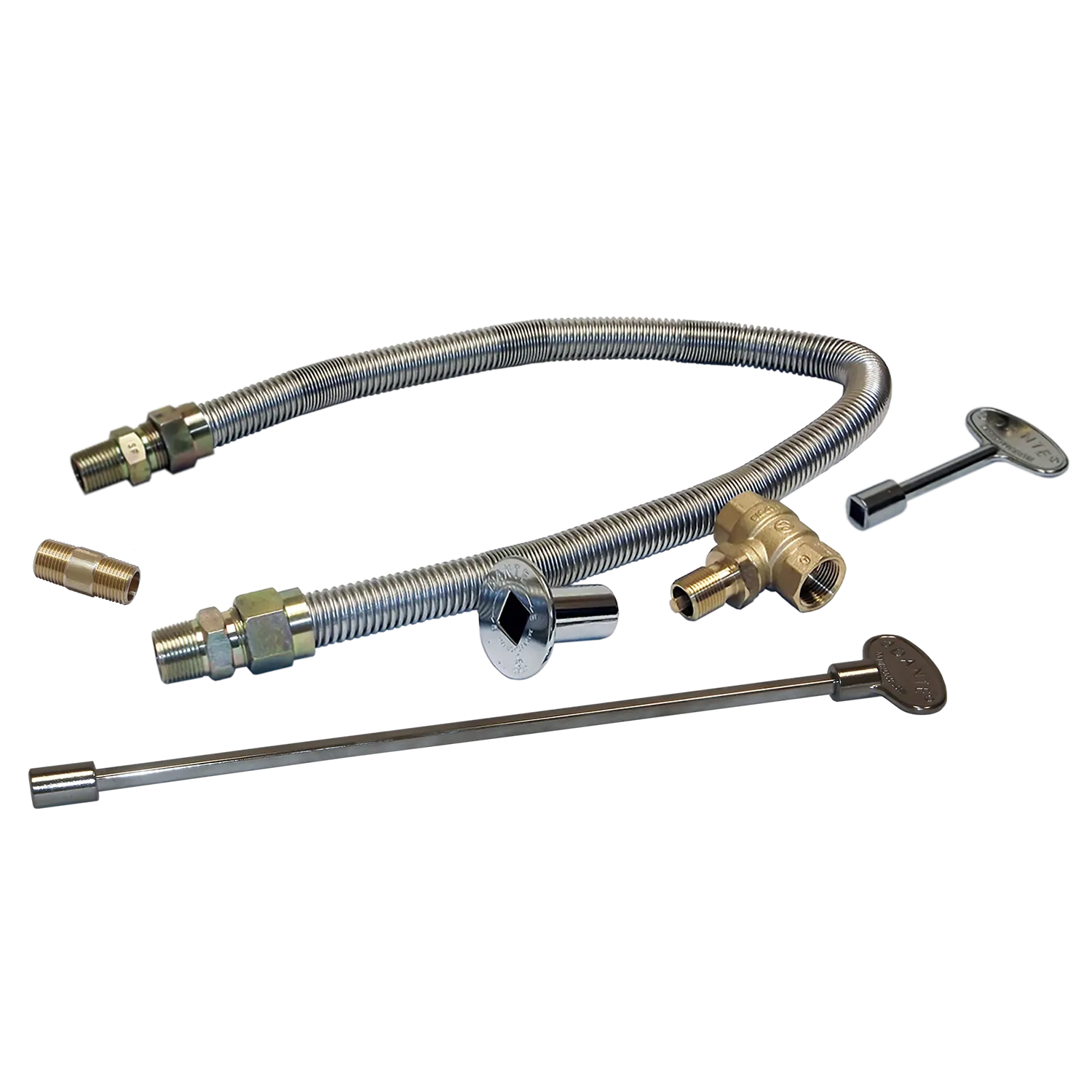

3. Flex Line & Key Valve Kit
Choose between two Flex Line & Key Valve Kits based on your burner's BTU:
- FK1 – For burners under 249K BTU
- FK2 – For burners over 249K BTU

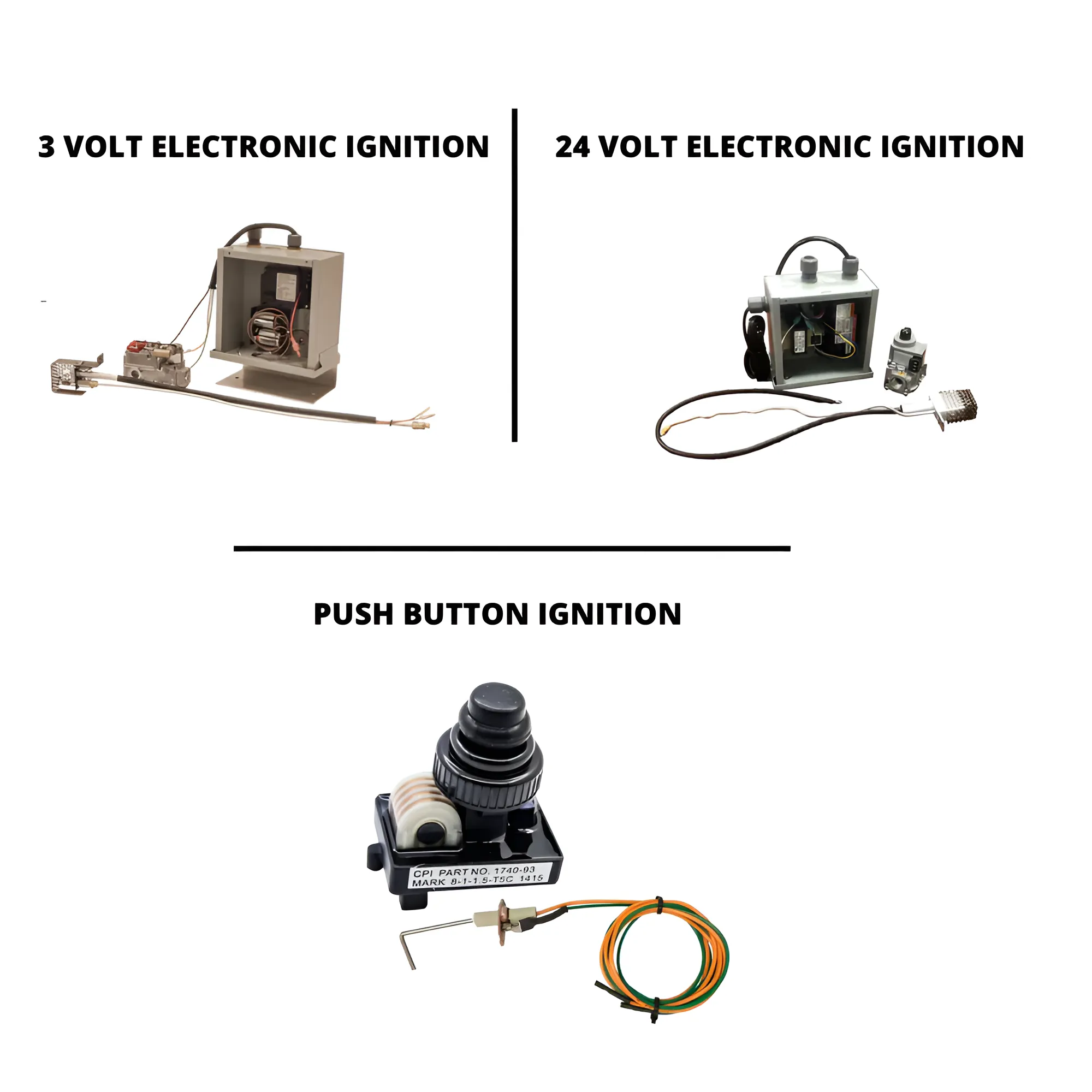

4. Ignition Type
There are four main ignition options:
- Match Light Ignition – Open the gas valve and light it with a match or lighter. This is the default ignition system.

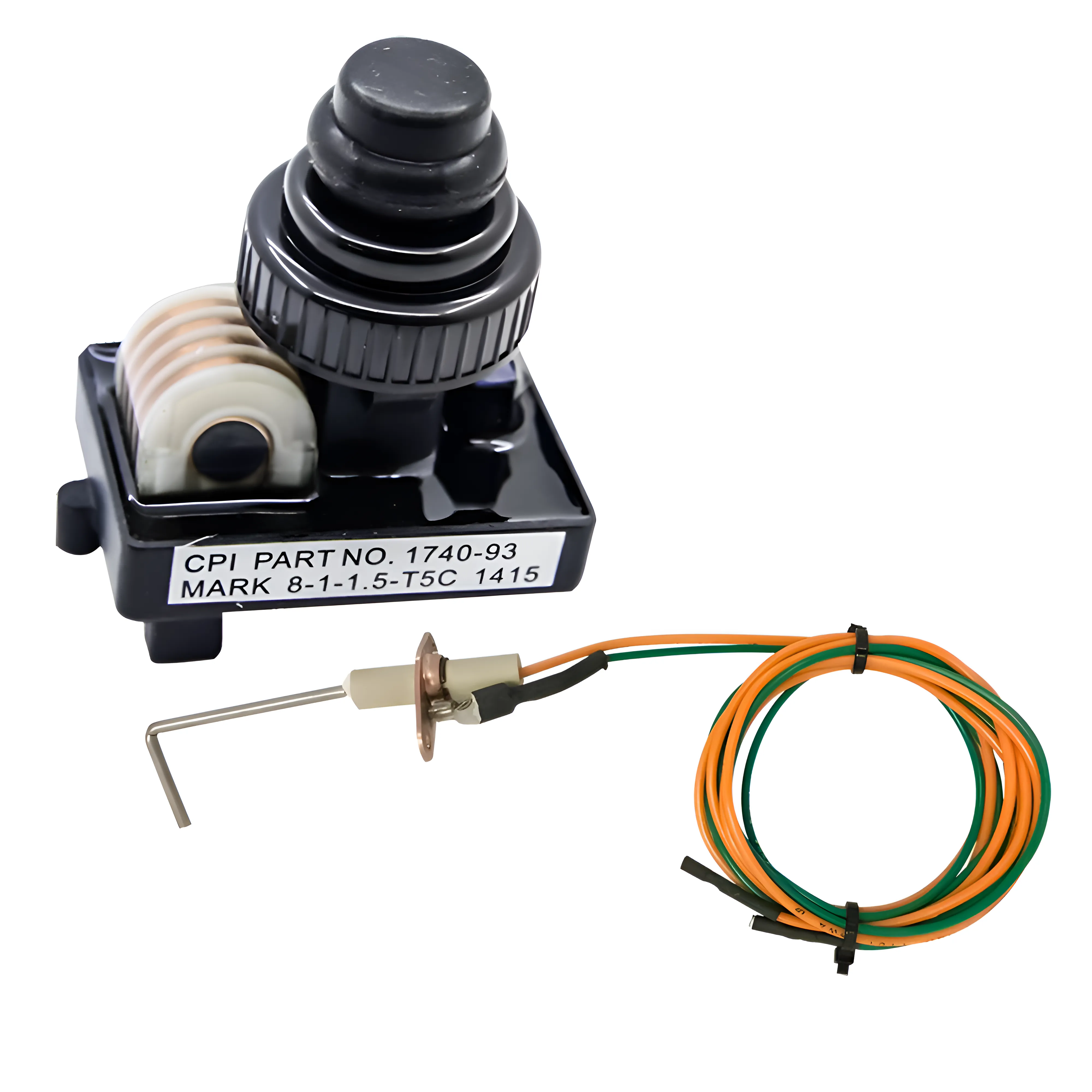

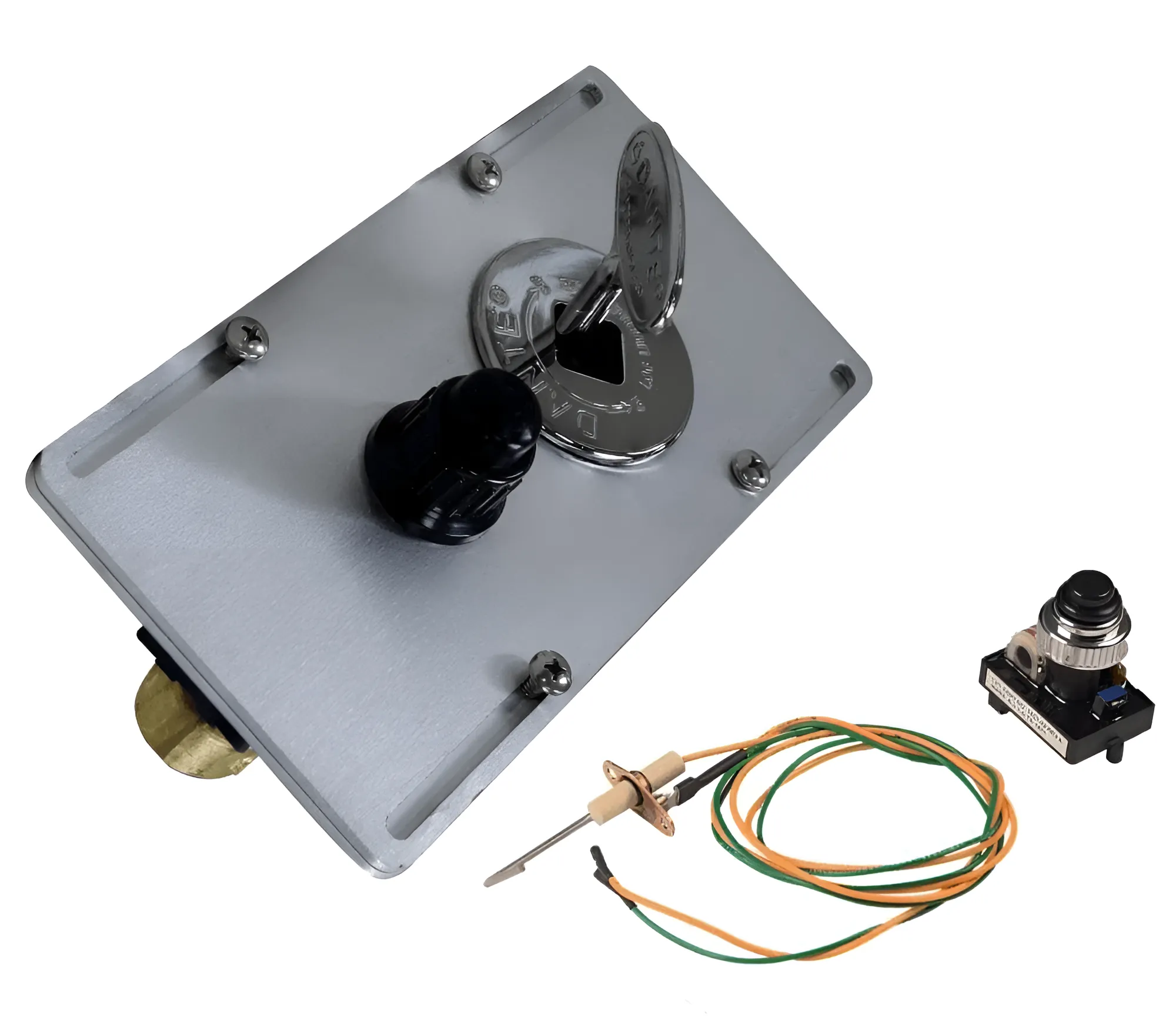

- Push Button Spark Ignition – Like a grill starter, open the valve and push the ignitor button. No need for matches or lighters.
- Push Button Spark with Flame Sense – Adds a safety feature that shuts off gas if the flame goes out. No external power is required.

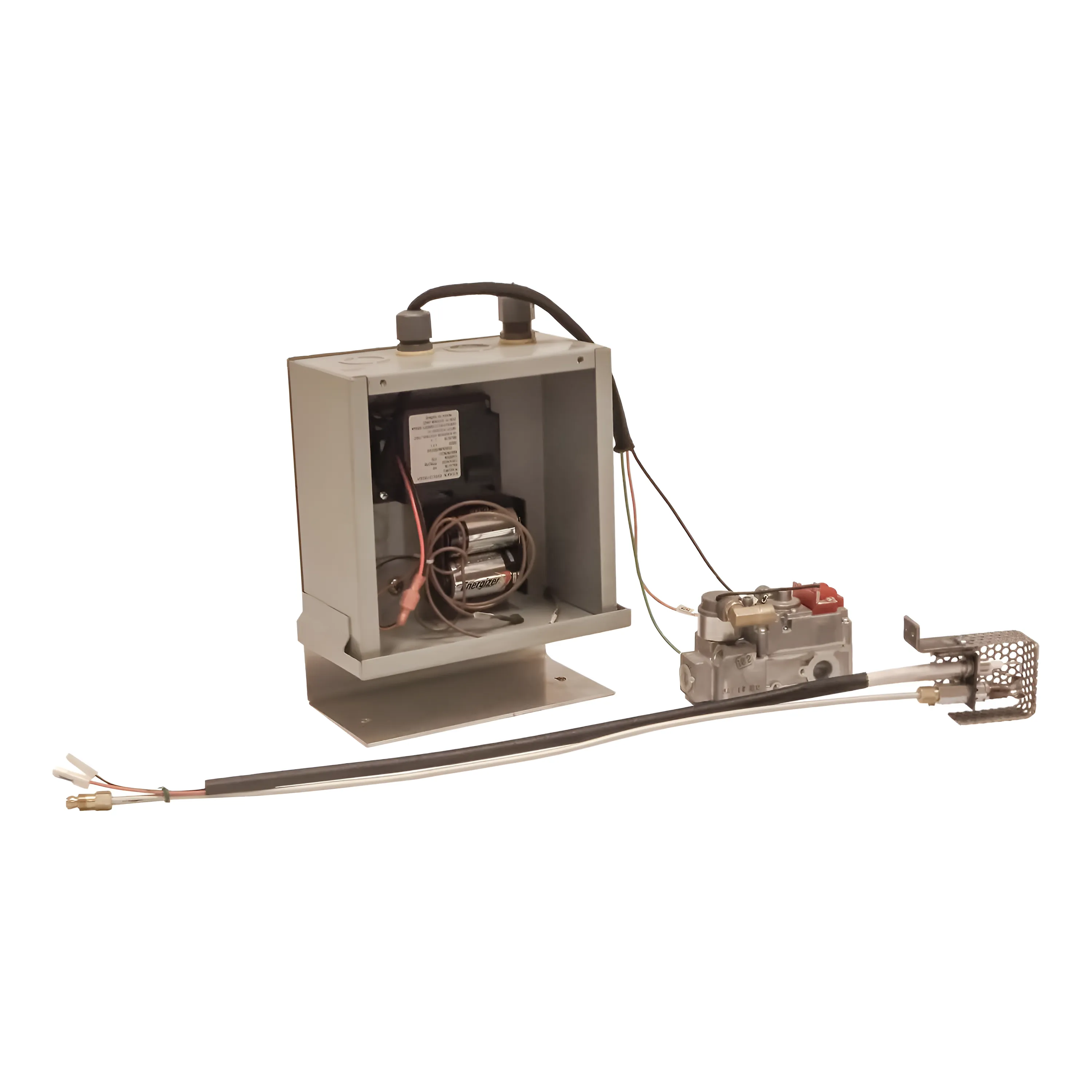

- Electronic Ignition – Allows remote on/off operation with flame sensing for added safety. External power may be required for higher BTU burners.
5. Venting

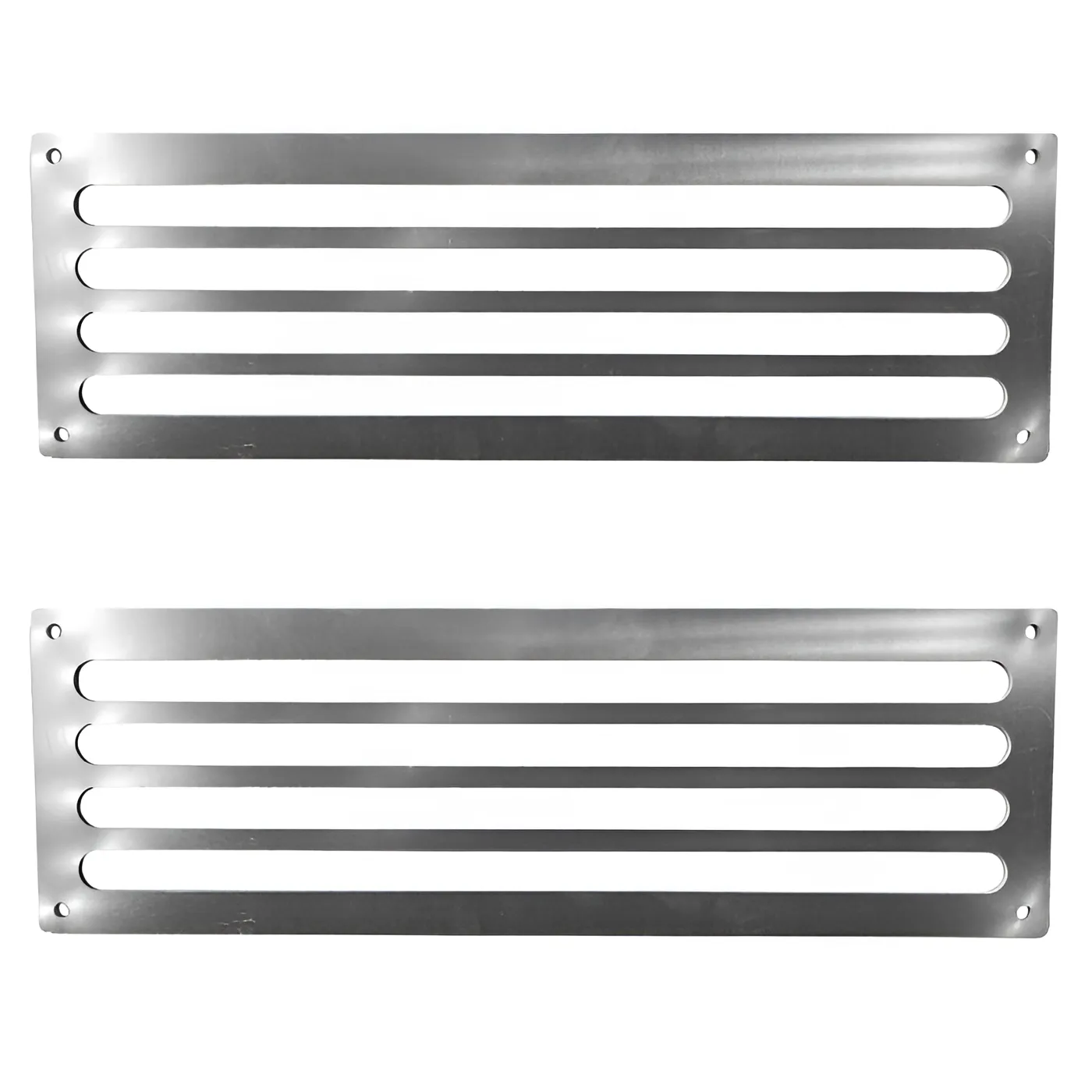

For proper ventilation, it’s recommended to have two 18-square-inch vents on opposite sides of the fire pit. Some variation is common, but adequate venting is essential for airflow and safety.

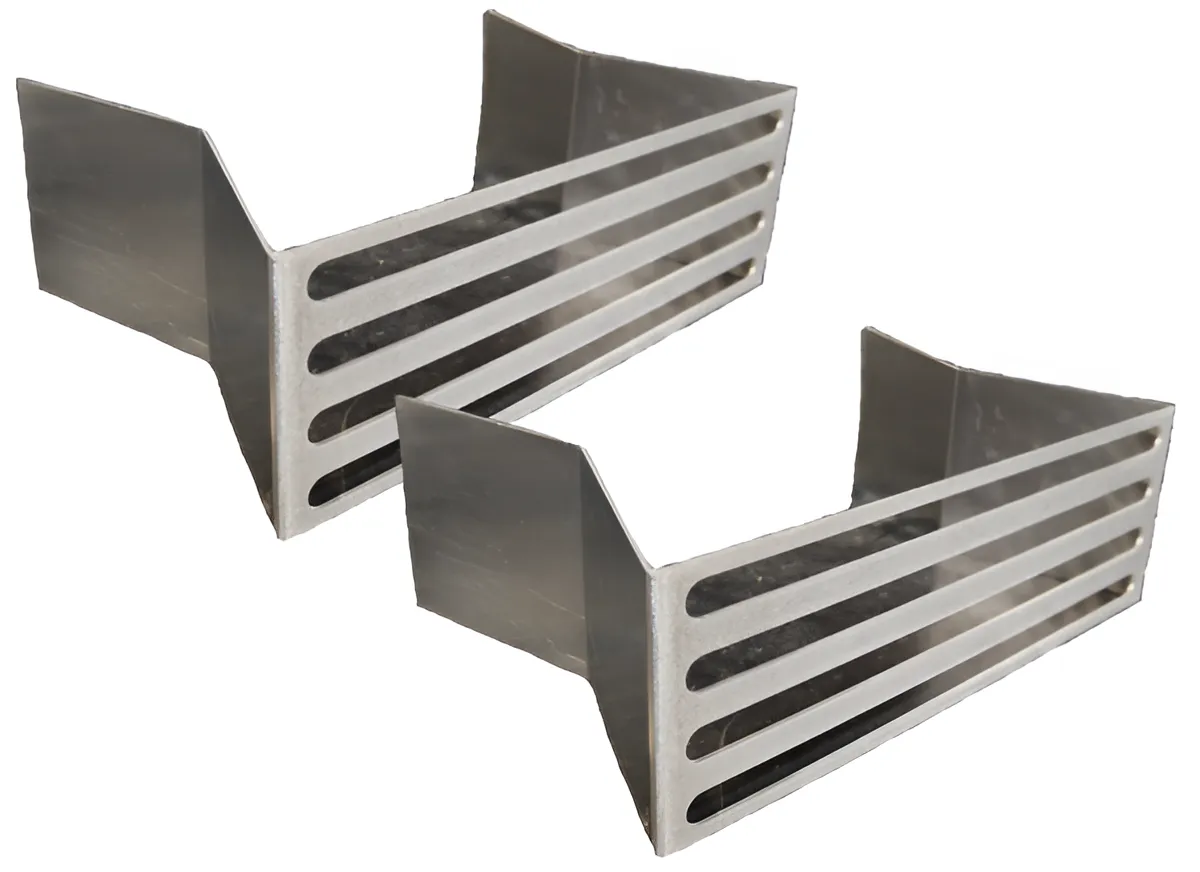

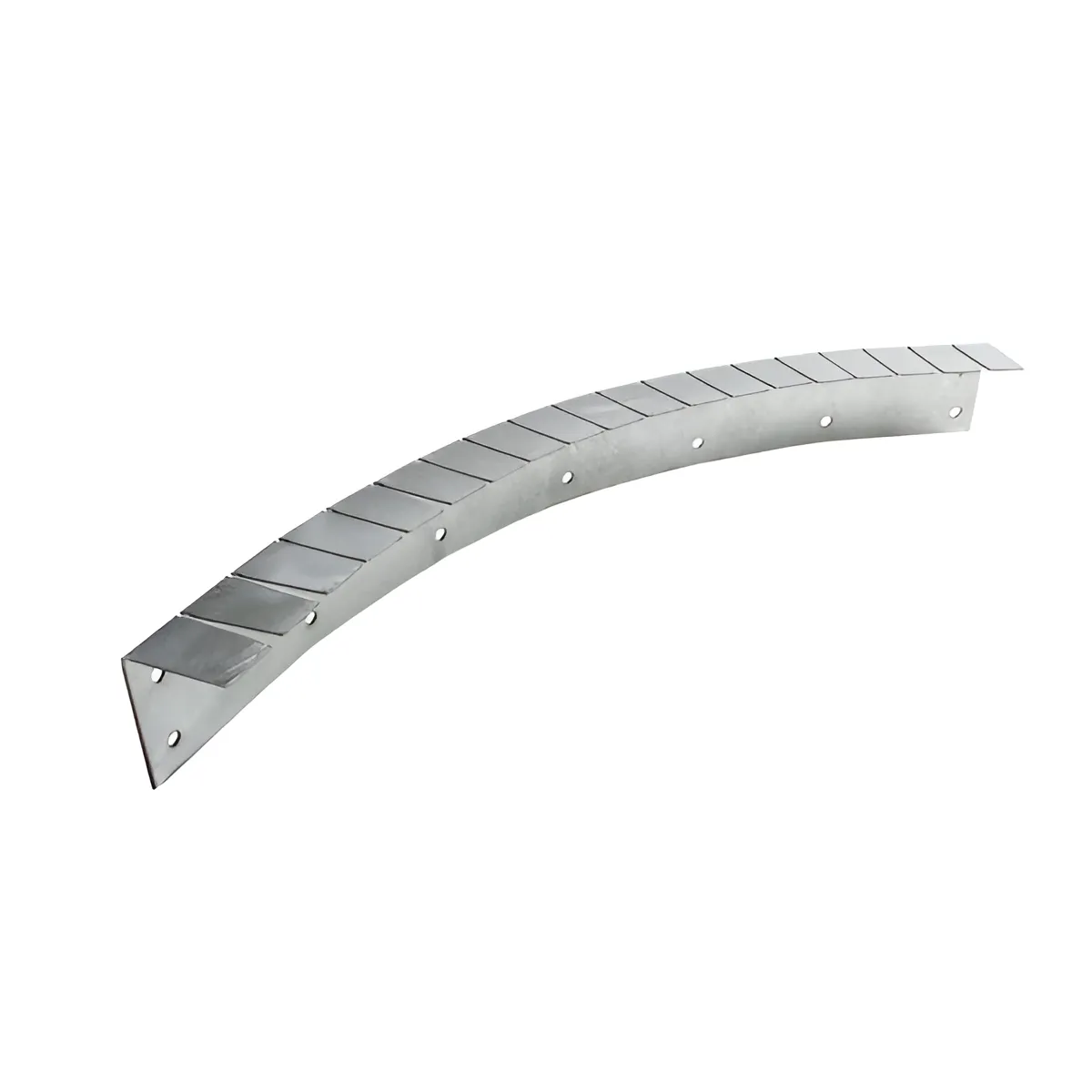

6. Installation Collars

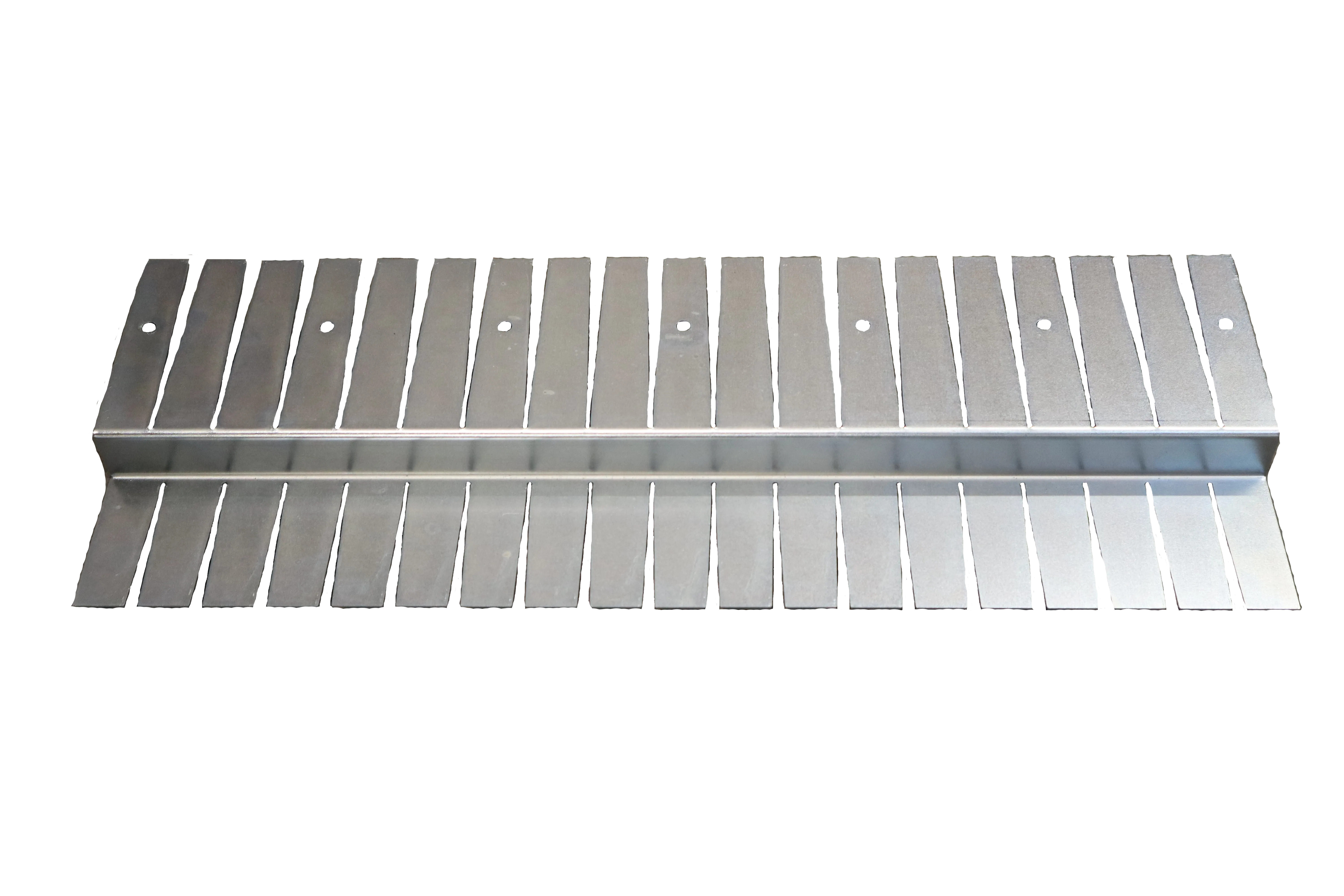

To support the plate, install collars about 4-5 inches below the top of the fire pit. While bricks or cinder blocks can work, support collars are designed specifically to act as shelves for the plate.

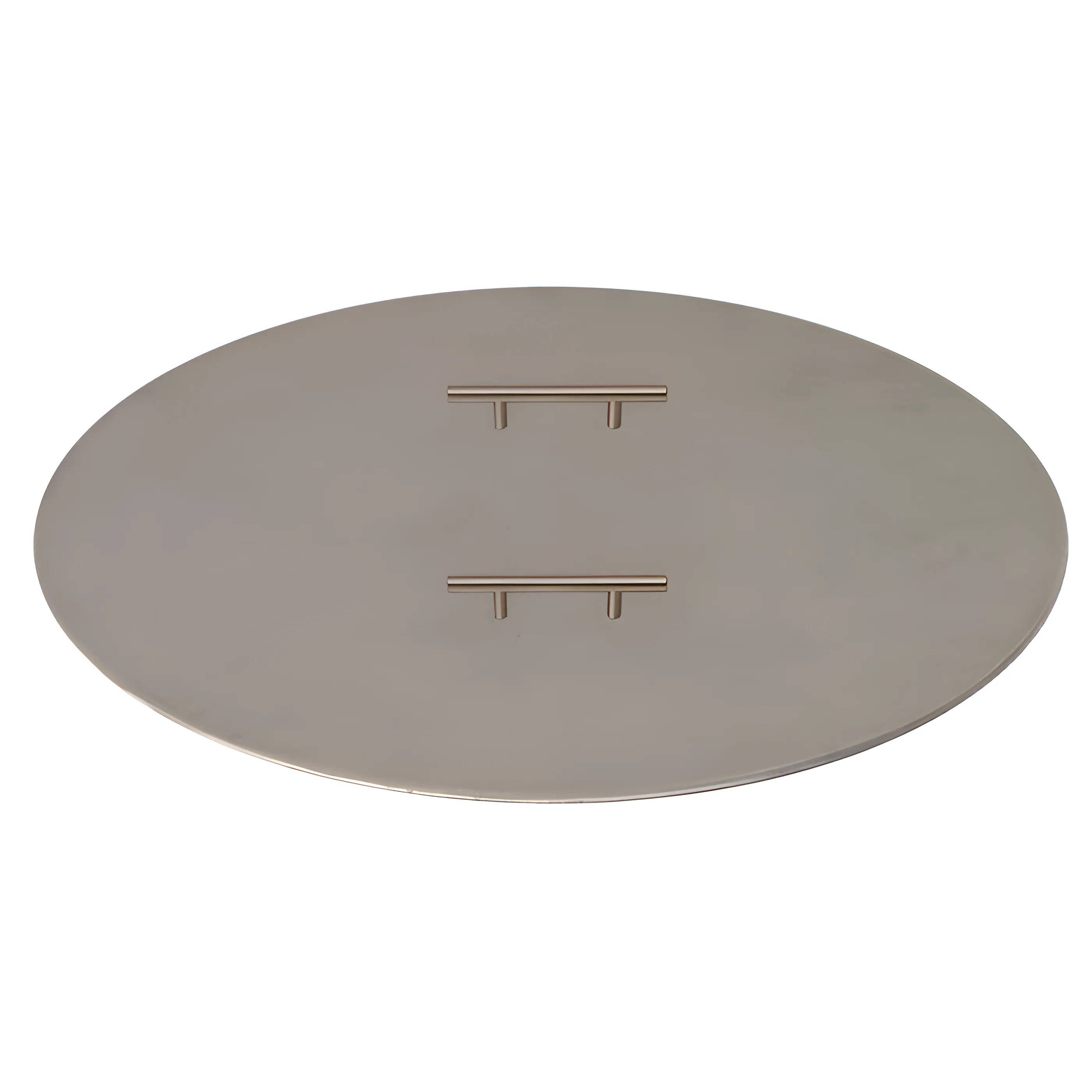

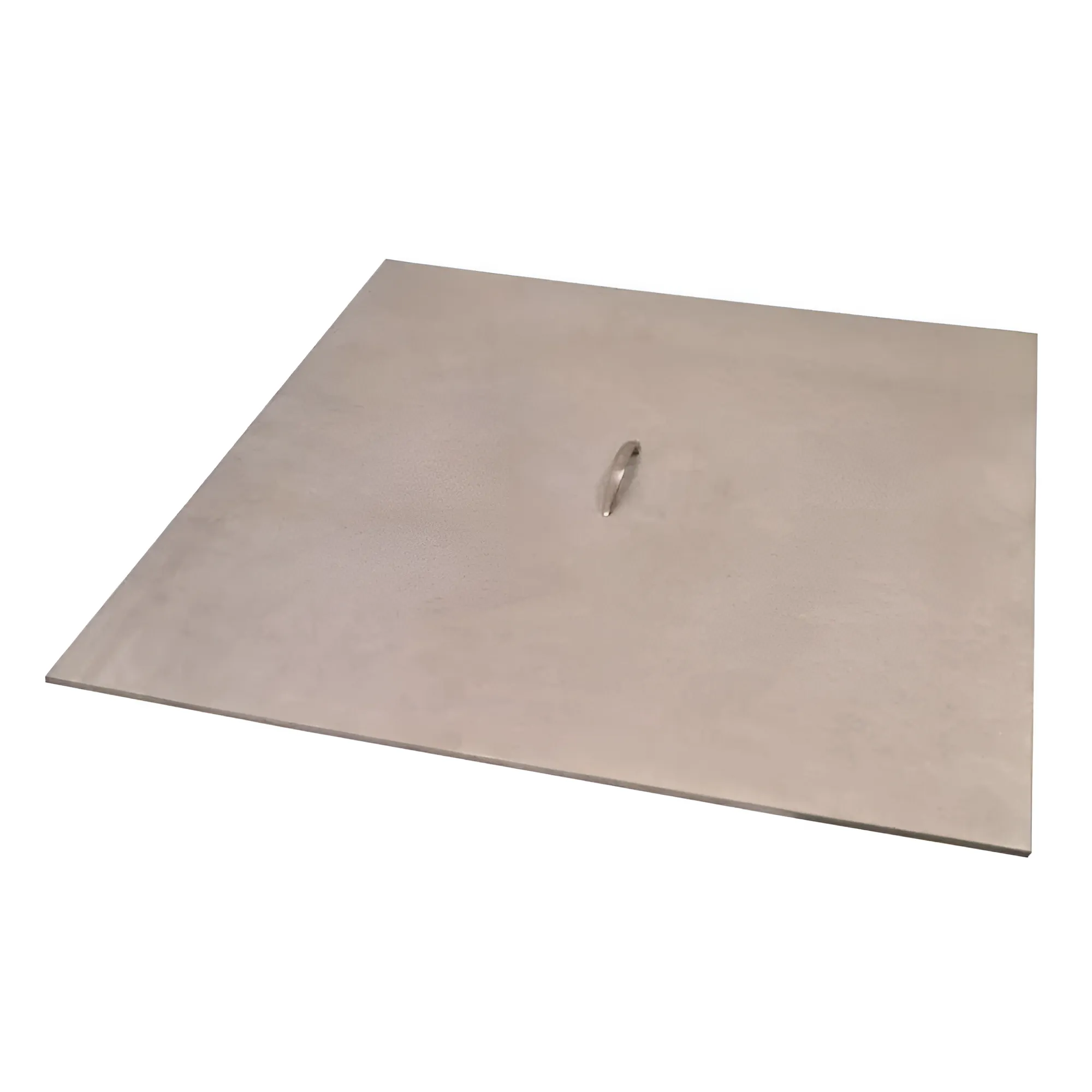

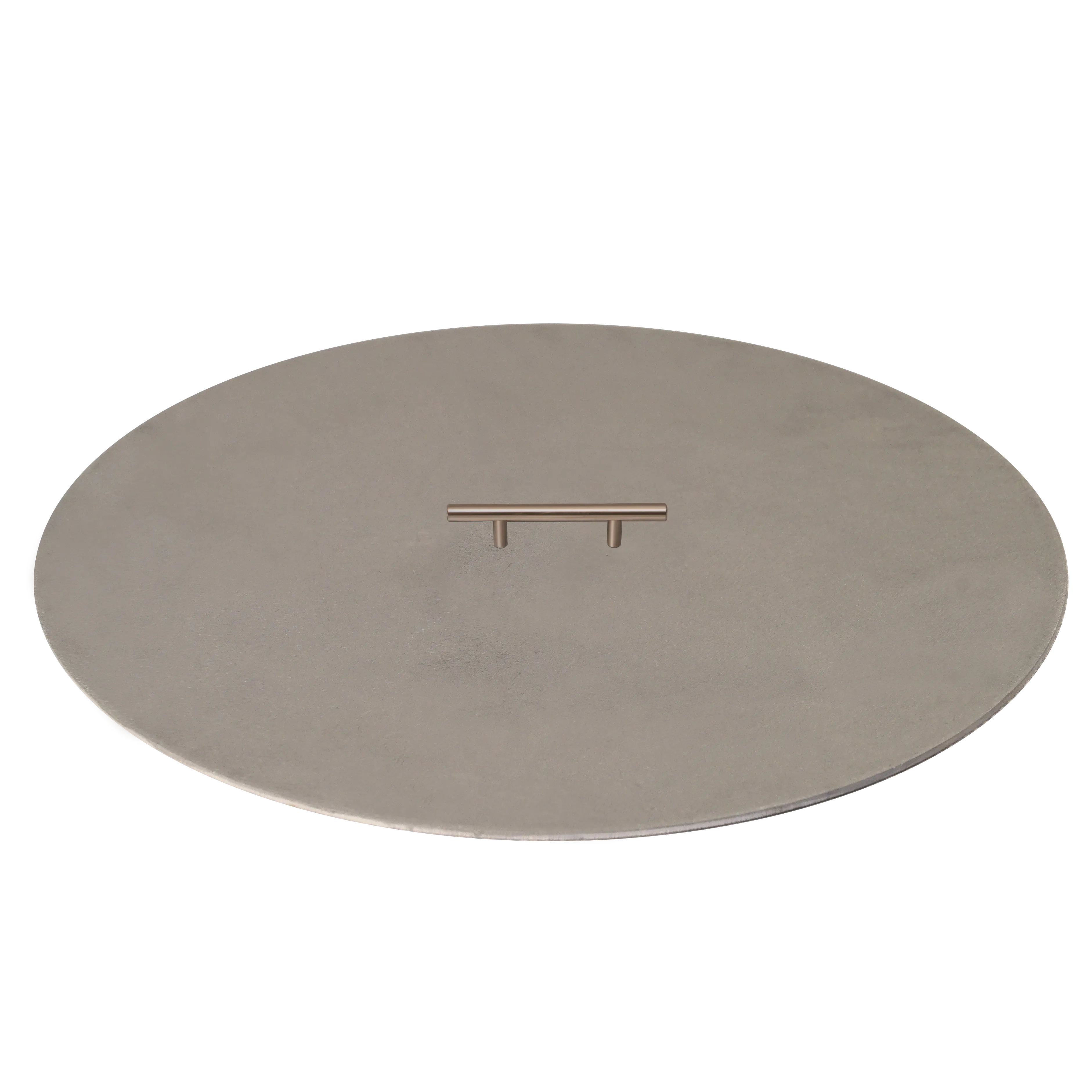

7. Cover
Protect your fire pit with a cover to prevent damage from the elements. Aluminum covers are available, but even a tarp works in a pinch. For sizing, choose a cover with a 1-inch lip around the edge (e.g., a 34" cover for a 32" opening)
Features

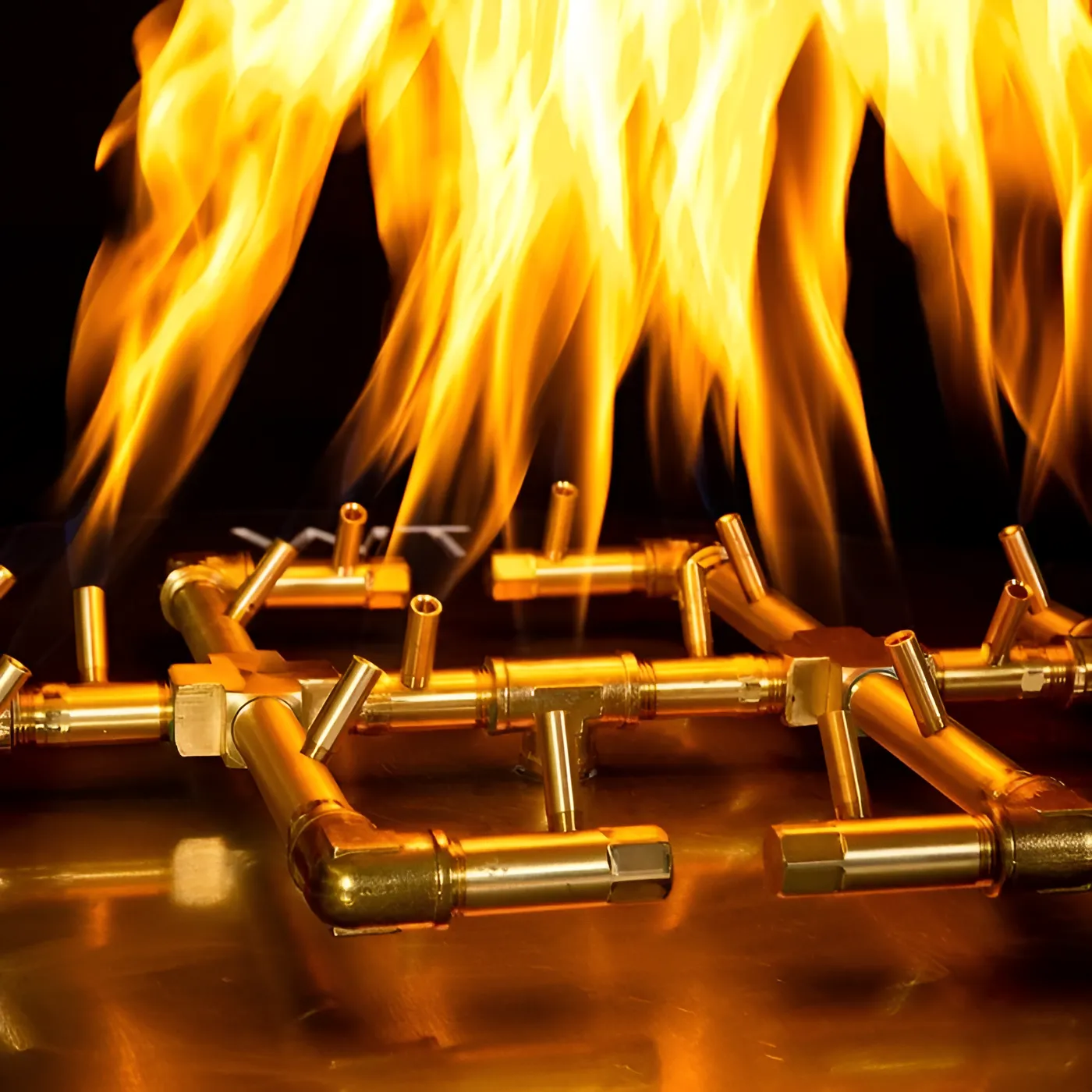

- 100% Brass Construction – Corrosion-resistant for low maintenance and lifetime durability. No rust!

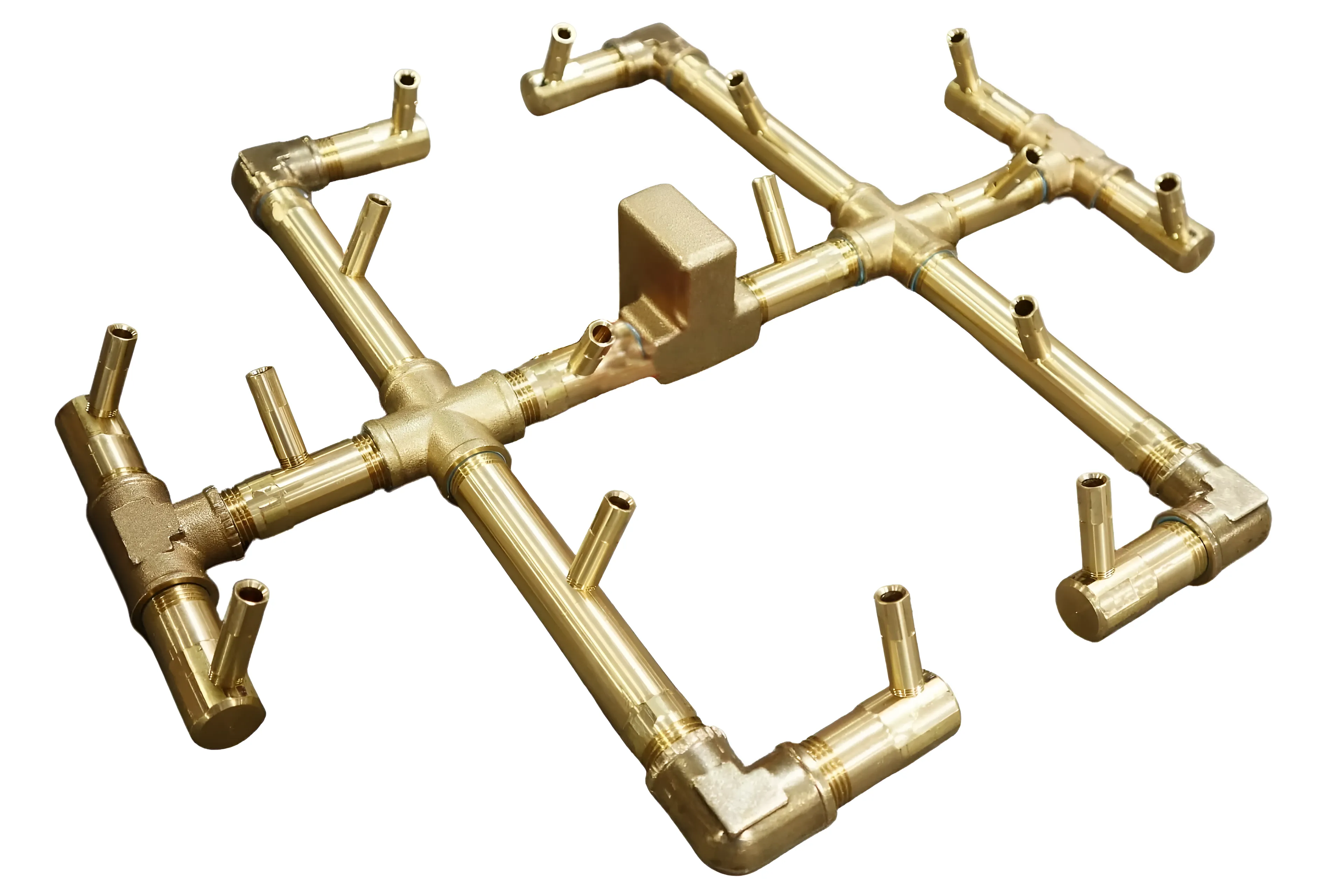

- Crossfire Burner Design – Patented technology delivers taller, brighter, fuller, and more natural flames.
- Fuel Types – Compatible with natural gas and propane.
- Fuel Efficiency – Uses half the fuel of conventional burners, saving on propane or natural gas.
- Lifetime Warranty – Backed by Warming Trends’ full lifetime guarantee against rust.
- Made in the USA – Proudly 100% manufactured in the United States.
- Variety of BTU Ratings and Sizes – Multiple options available to fit your needs.
- Style Options – Choose from Original, Octagonal, Tree-style, H-style, and Linear designs.
Specifications
| Manufacturer | Warming Trends |
| Burner Material | 100% Brass |
| Burner Style | CFB Original Crossfire Brass Burner |
| Fuel Type | Natural Gas or Propane |
Dimensions

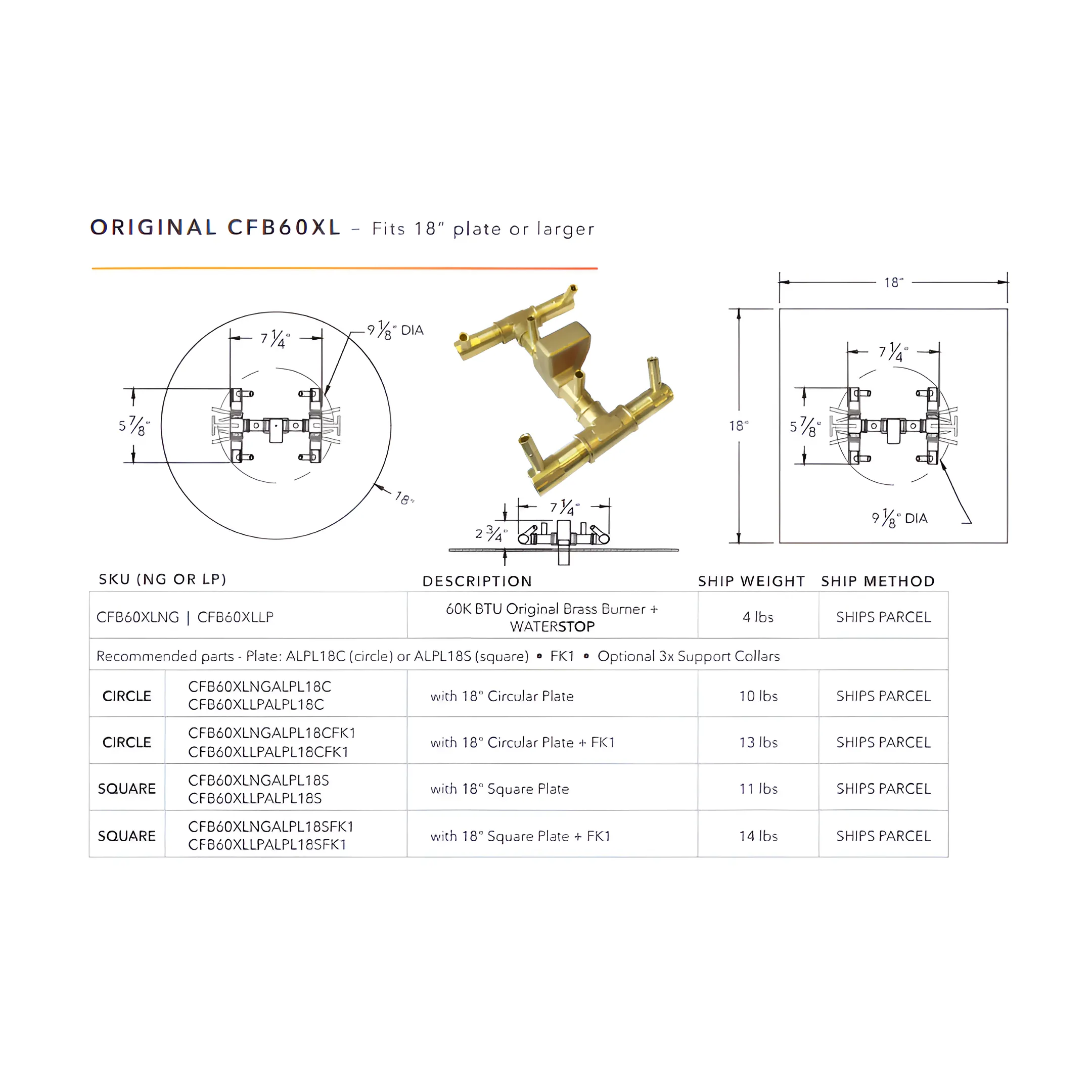

| SKU Number | BTUs | Burner Size | Inlet Size | Rec. Opening Size | WATERSTOP |

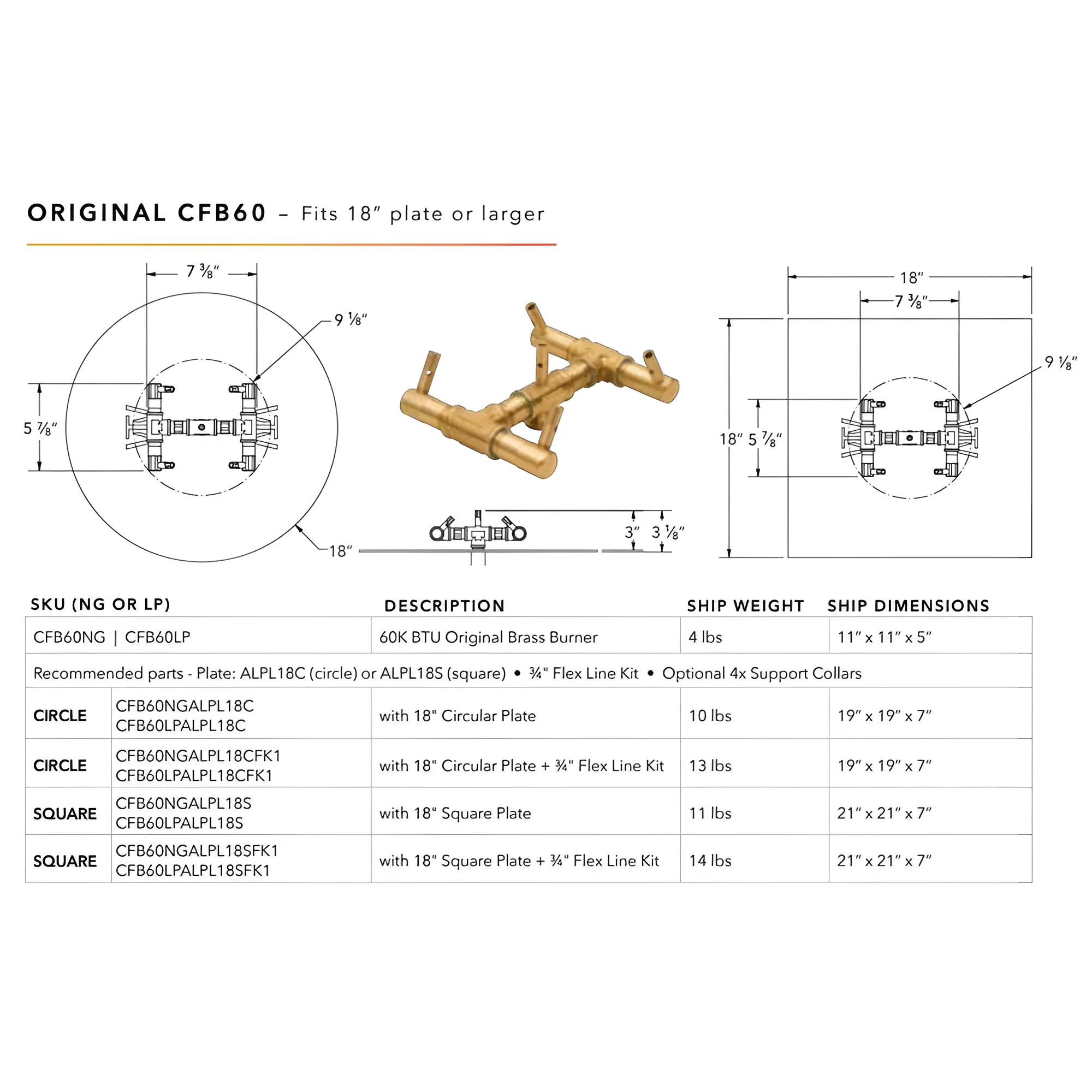

| CFB60 | 60K | 7.375" x 7.375" | 1/2" | 18" | No |
| CFB60XL | 60K | 7.375" x 7.375" | 1/2" | 18" | Yes |

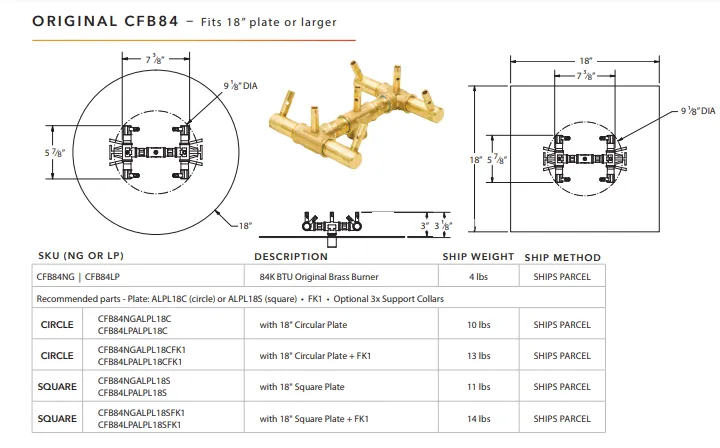

| CFB84 | 84K | 7.25" x 5.875" | 1/2" | 18" | Yes |

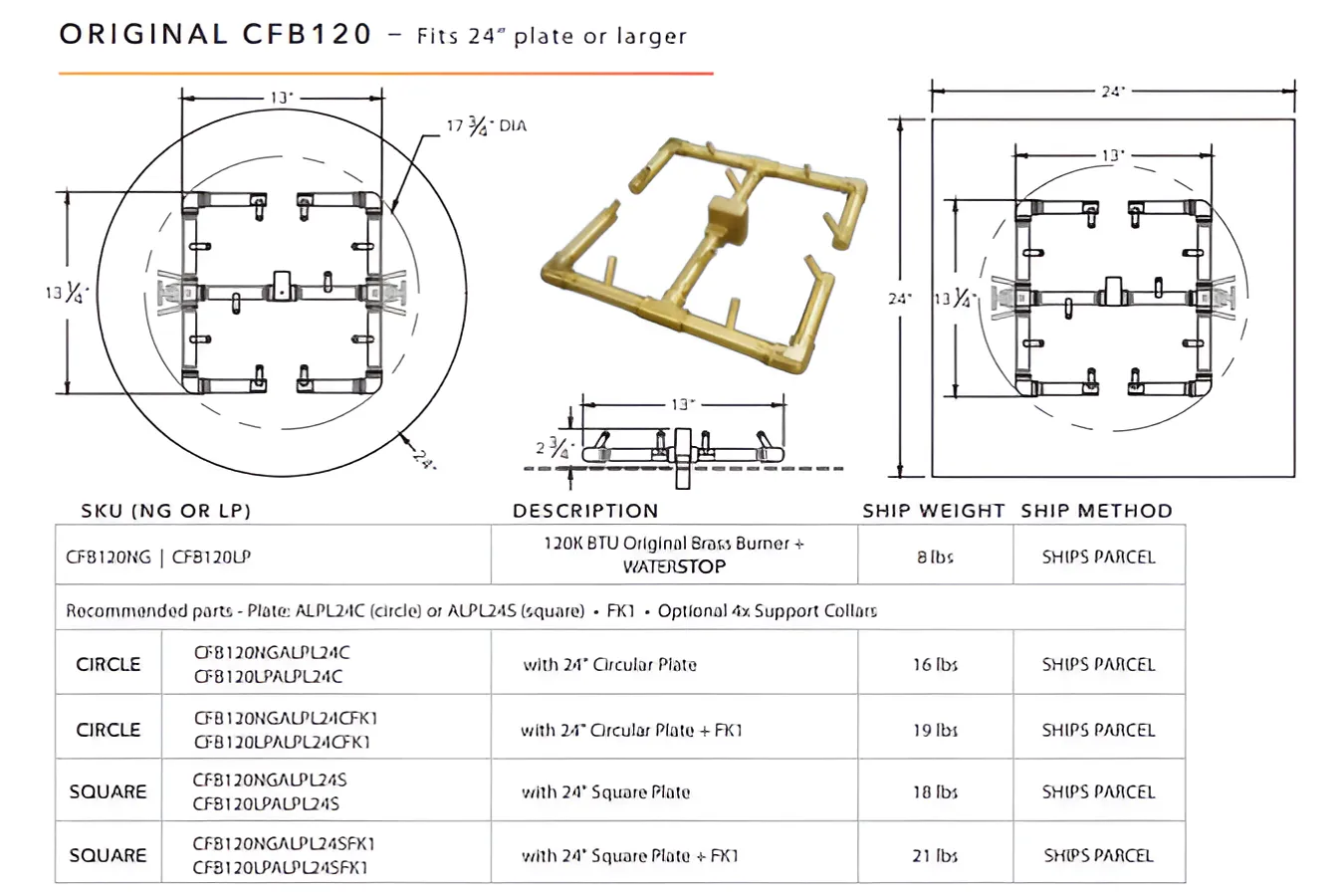

| CFB120 | 120K | 13" x 13.25" | 1/2" | 24" | Yes |

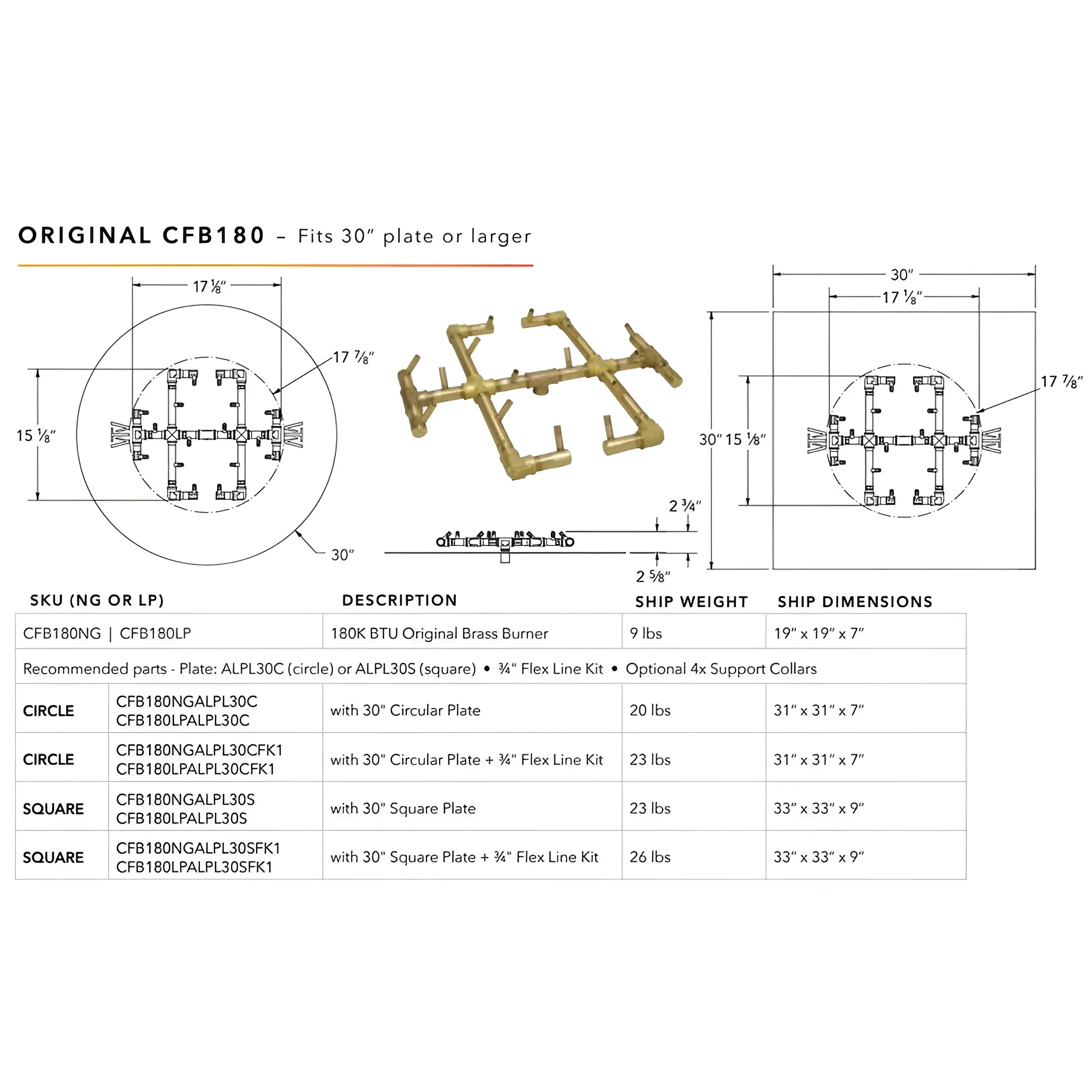

| CFB180 | 180K | 17.25" x 16.5" | 1/2" | 30" | Yes |

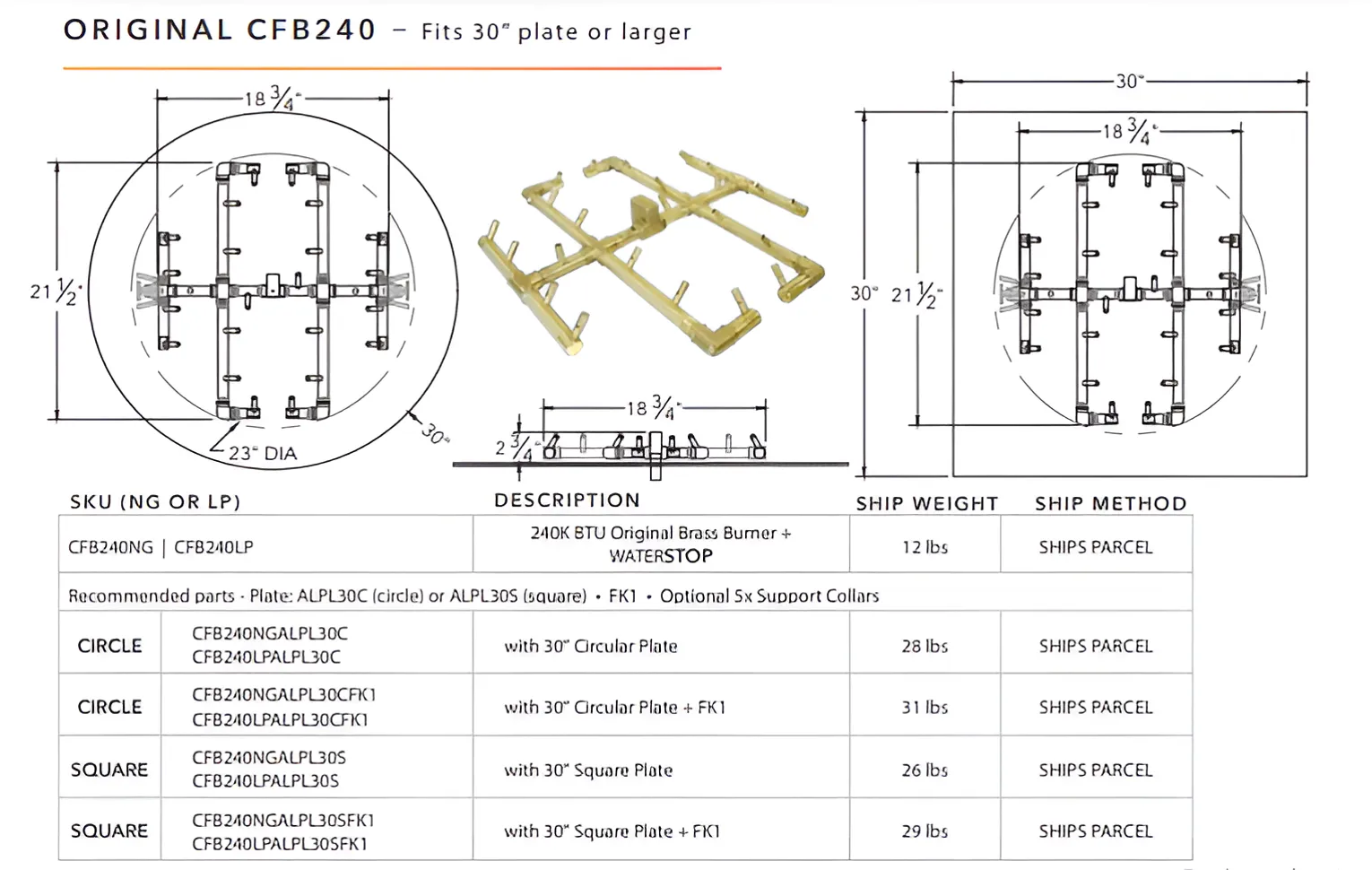

| CFB240 | 240K | 18.75" x 21.5" | 1/2" | 30" | Yes |

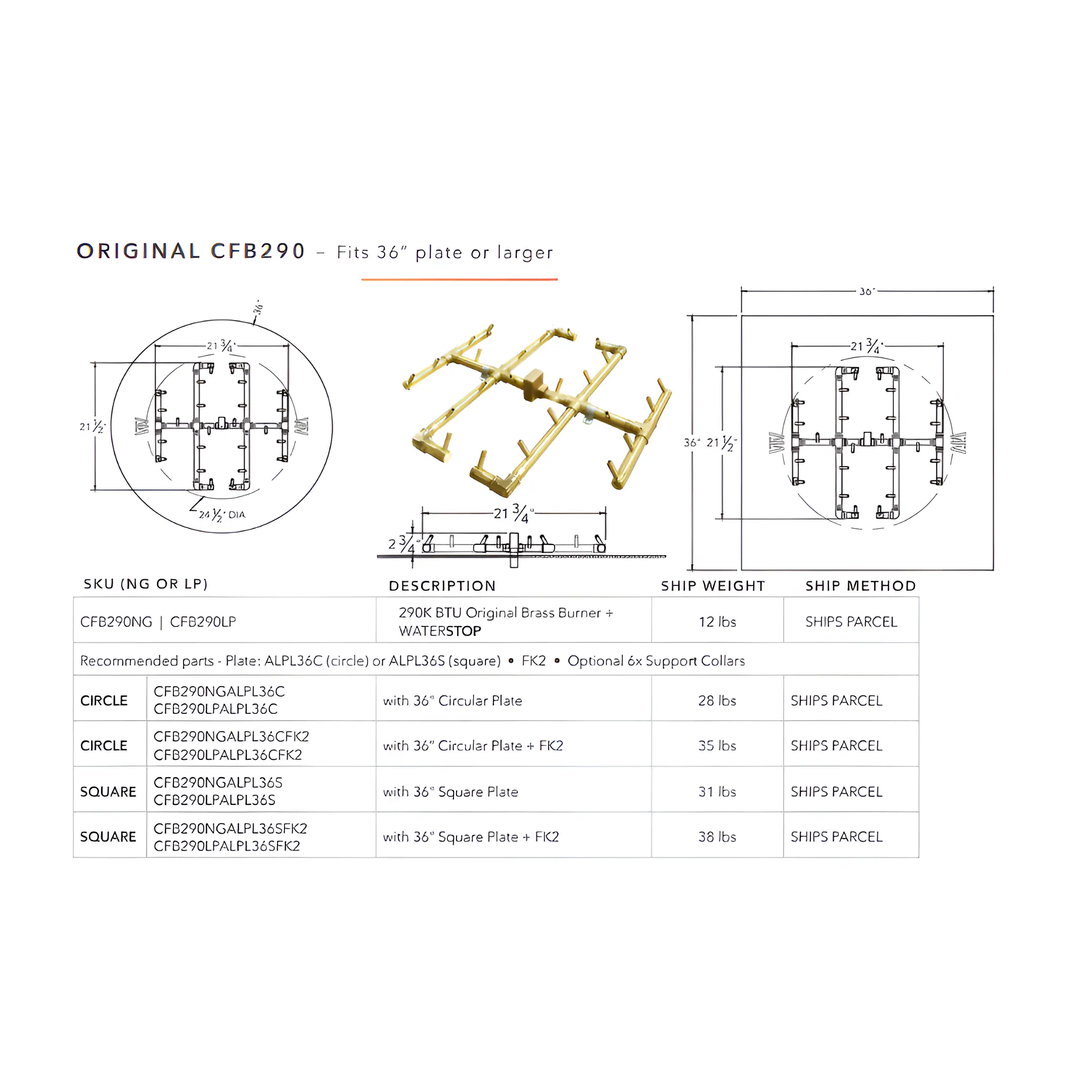

| CFB290 | 290K | 21.75" x 21.5" | 1/2" | 36" | Yes |

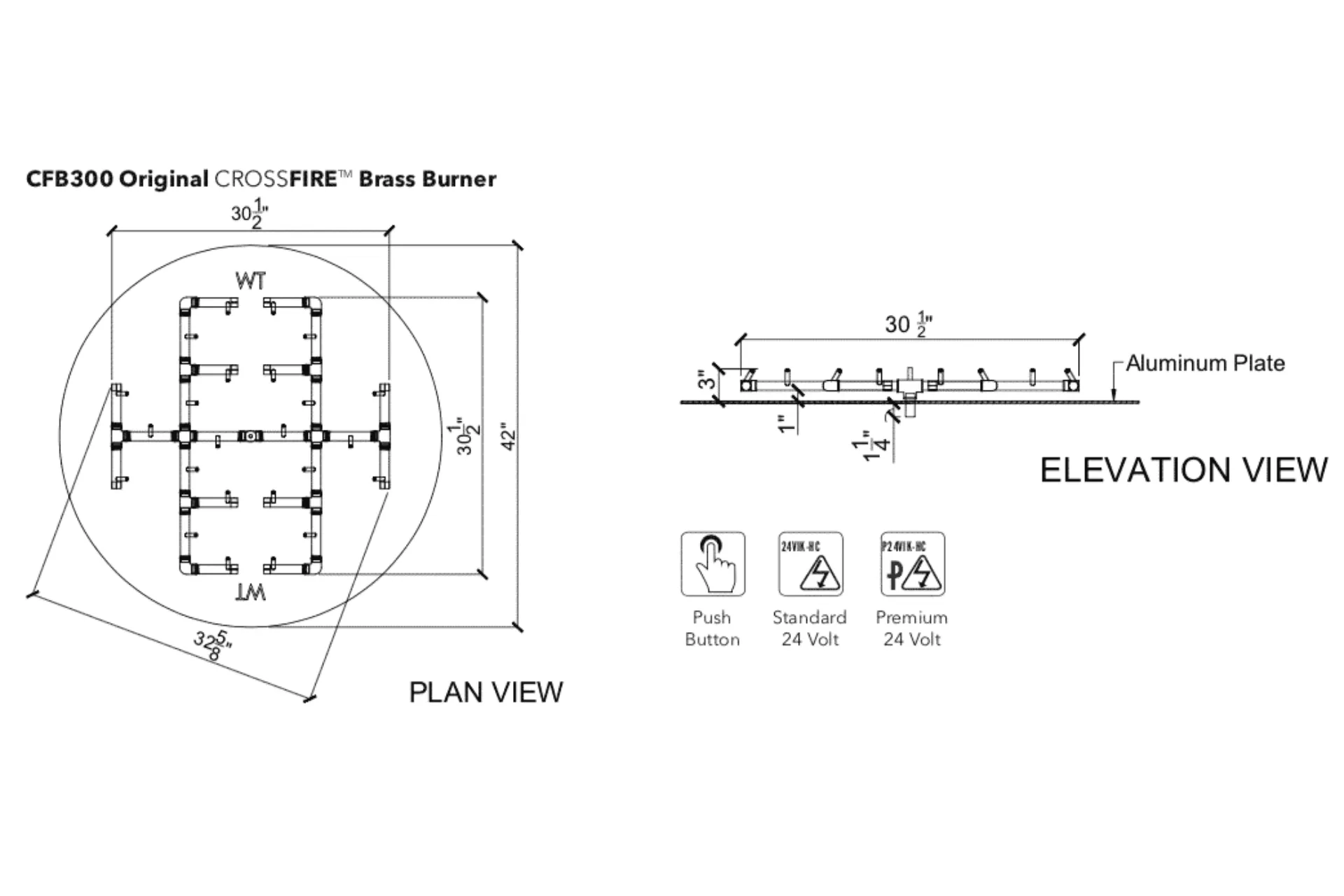

| CFB300 | 300K | 30.5" x 30.5" | 3/4" | 42" | Yes/No |

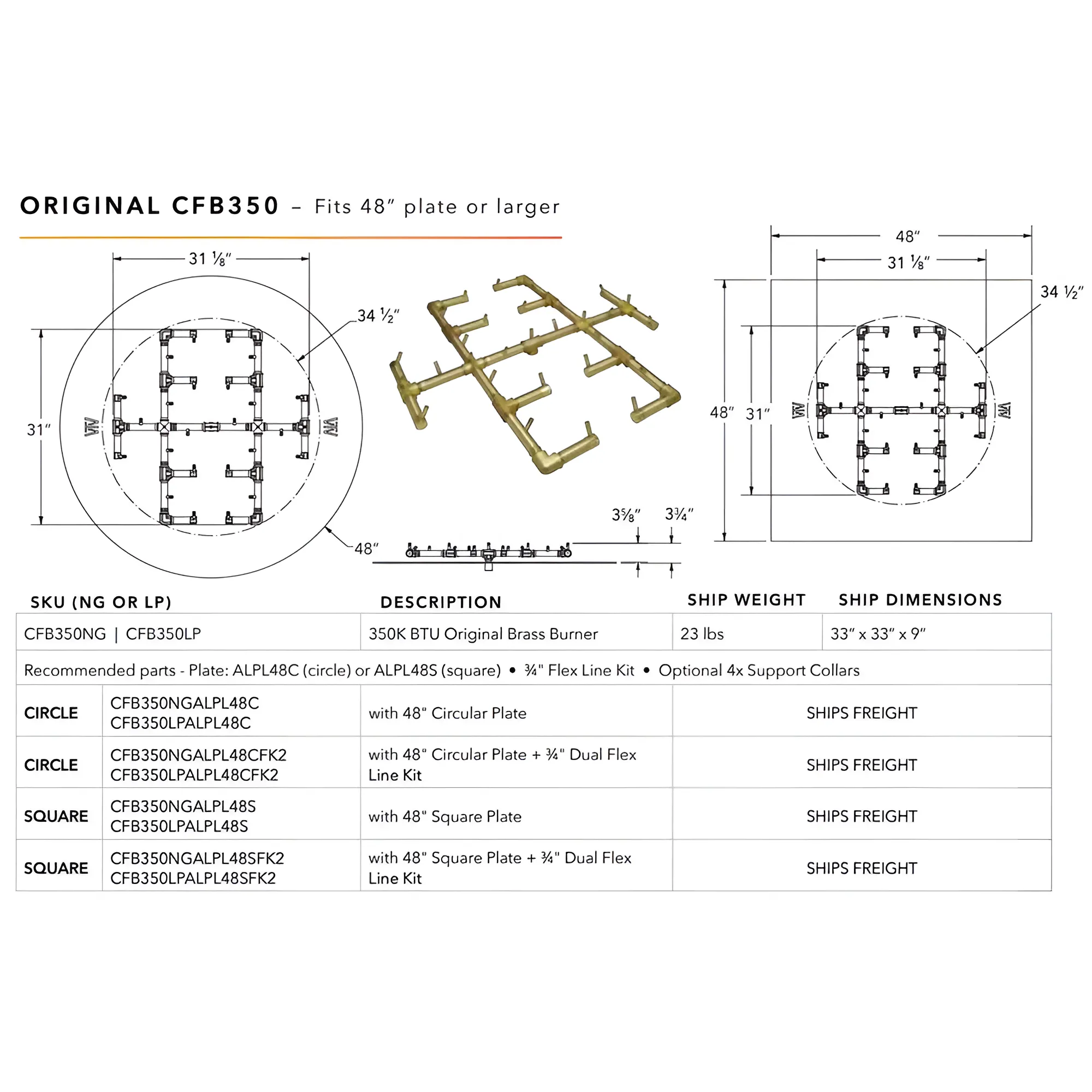

| CFB350 | 350K | 31.125" x 31" | 3/4" | 48" | Yes/No |

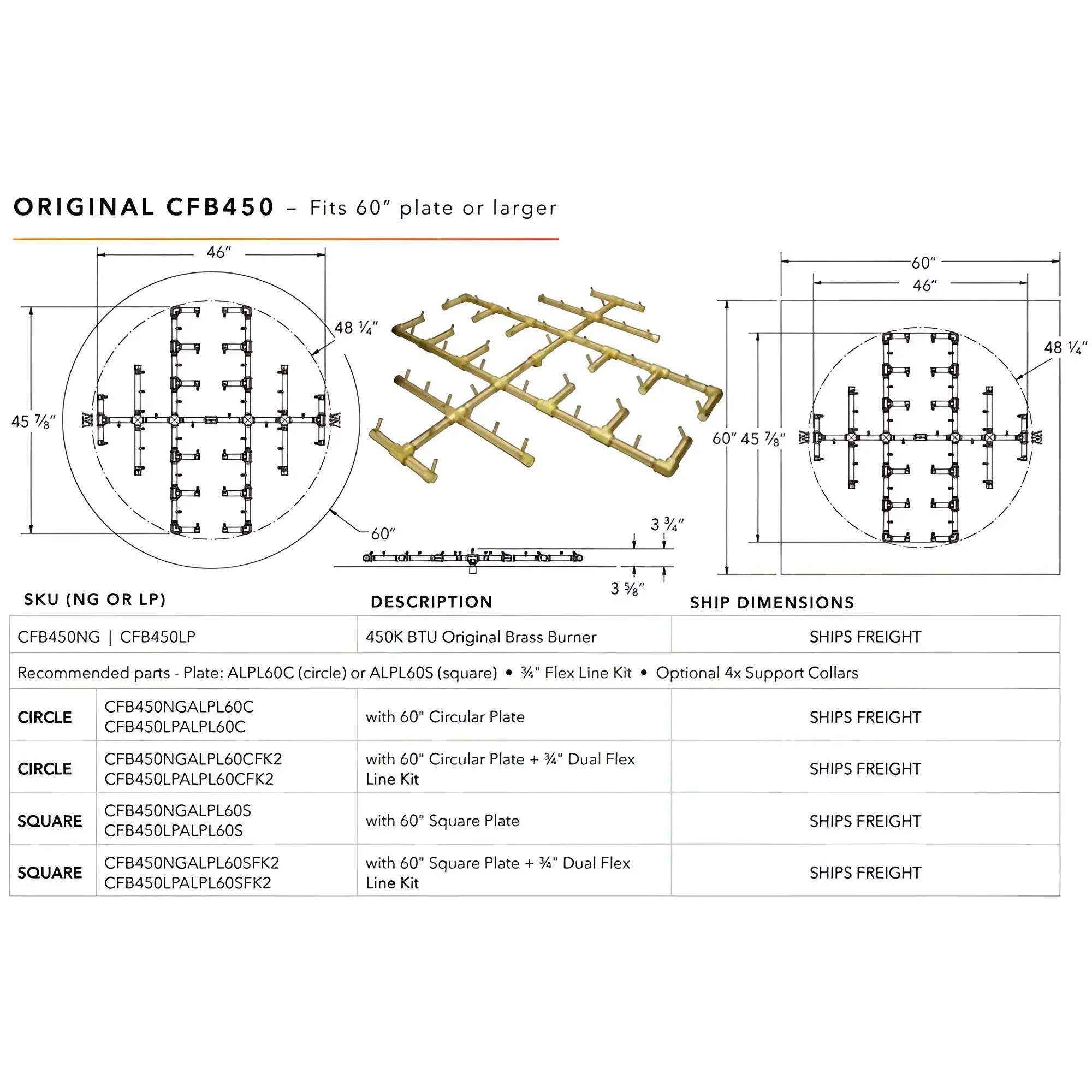

| CFB450 | 450K | 46" x 45.875" | 3/4" | 60" | Yes |

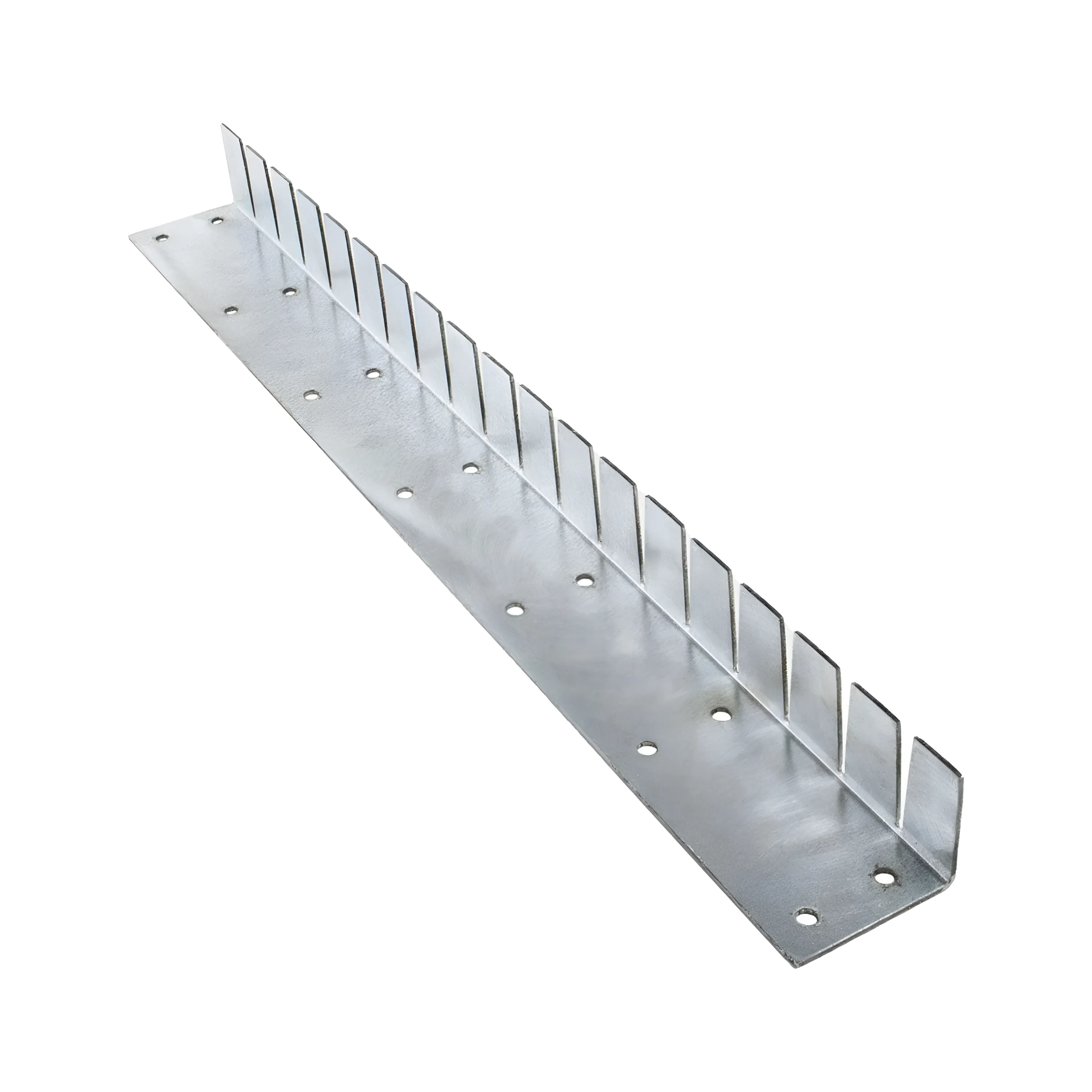

Collar Guide
- The adjustable installation collars can bend for round enclosures and can be anchored in with concrete screws
| Round Plate/Pan (Diameter) | Collars Required |
| 12” | 2 Units |
Note: For square or rectangular enclosures, use enclosure length and width measurements
Lava Rock Guide
Note: 1 bag = 1 cubic foot
| Fire Plate Size | Lava Rock Required |
| 18” Plate | 1 bag |
Warranty
Warming Trends warrants that each Warming Trends CROSSFIRE and other jetted-flame-brass-burners is free from defects in materials and workmanship and conforms to its specifications, which are available upon request. The warranty period for a Burner is lifetime warranty beginning on the date of purchase. During the Warranty Period, Warming Trends provides repair and exchange services for the Burners, without charge. Labor not included. Please refer to the manufacturer downloads section below for full warranty details.
Manufacture Downloads
- Click Here For Warming Trends Owner's Manual
- Click Here For CFB60 Detailed Dimensions
- Click Here For CFB60XL Detailed Dimensions
- Click Here For CFB84 Detailed Dimensions
- Click Here For CFB120 Detailed Dimensions
- Click Here For CFB180 Detailed Dimensions
- Click Here For CFB240 Detailed Dimensions
- Click Here For CFB290 Detailed Dimensions
- Click Here For CFB300 Detailed Dimensions
- Click Here For CFB350 Detailed Dimensions
- Click Here For CFB450 Detailed Dimensions
- Click Here For Full Warming Trends Burner and Accessories Brochure
- Click Here For Ignition Systems Trifold Brochure
- Click Here For Mercury Ignition Owner's & Instructions Manual
- Click Here For Mercury Ignition Brochure
- Click Here For Mercury Ignition Q & A Manual
- Click Here For Full Platinum Ignition Specification
- Click Here For Mercury Electronic & Clearance Diagram
- Click Here For A Quick Guide Manual
- Click Here For Burner Size Guide Manual
- Click Here For Warming Trends Quick Reference Guide Manual
- Click Here For WATERSTOP Brochure
- Click Here For Warming Trends Warranty
- Click Here For Warming Trends Displays
- Click Here For Warming Trends Brochure
- Click Here For Warming Trends Full Catalog
Legal Disclaimers & Warnings
Product packaging, owners’ manuals, installation instructions, and/or operating instructions may include more information than what is shown on our website. The content on our site is intended to be used for reference purposes only. Please fully read all included manuals and documentation before installing or using this product. WARNING for California residents: this product may contain chemical(s) known to the state of California to cause birth defects, cancer, or other reproductive harm.
