Ultimate Crossfire Bundle: Warming Trends Crossfire CFBCT Circular Tree-Style Brass Burner Bundle

Ultimate Crossfire Bundle: Warming Trends Crossfire CFBCT Circular Tree-Style Brass Burner Bundle

$ 562.00

$ 0.00

Save: $

Size:
  • 120K BTU 11 x 10-Inch (WATERSTOP)
  • 120K BTU 13 x 16-Inch (WATERSTOP)
  • 240K BTU 18 x 24.25-Inch (WATERSTOP)P
  • 440K BTU 30.25 x 34-Inch (WATERSTOP)
Fuel Type:
  • Natural Gas
  • Propane
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Twice the flame, half the gas. Built to last with 100% rust-resistant brass and backed by the Full Manufacture Lifetime Warranty!

Complete your fire pit kit with the Ultimate Crossfire Bundle: the Warming Trends Crossfire CFBCT Circular Tree-Style Brass Burner with WATERSTOP Bundle. This patented, revolutionary burner delivers taller, brighter, fuller, and more natural flames while using less fuel. Its advanced regulation system works seamlessly with propane or natural gas, giving you ultimate control.

Available in a variety of sizes and BTU ratings, the Crossfire burner ensures exceptional durability, corrosion resistance, and unmatched performance—all backed by the Full Manufacture Lifetime Warranty.

Burner Plate/Pan Size Guide

Need help choosing the right size? Check out our Burner & Plate Size Guide for assistance in finding the perfect fit for your fire pit.

FREE Media Options

  • Black Lava Rock
  • Rolled Lava Rock
  • 1/2" Reflective Fire Glass
  • 1/2" Fire Glass 2.0 Cubes
  • 3/4" Recycled Fire Glass

Note: Use the easy-to-use Media Calculator to help you determine the ideal amount of media needed for your fire feature. Or call/chat for assistance.

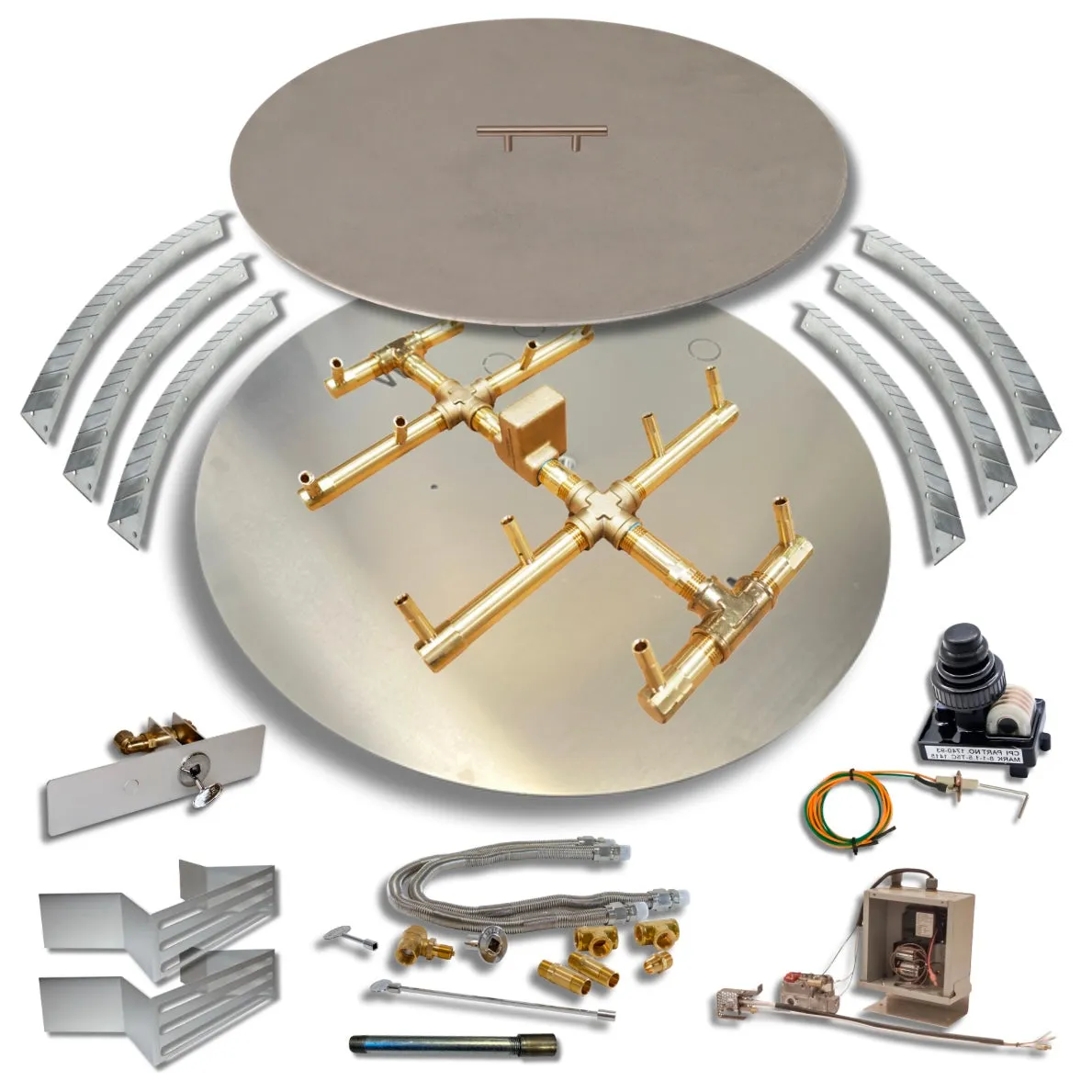

Bundle Item options

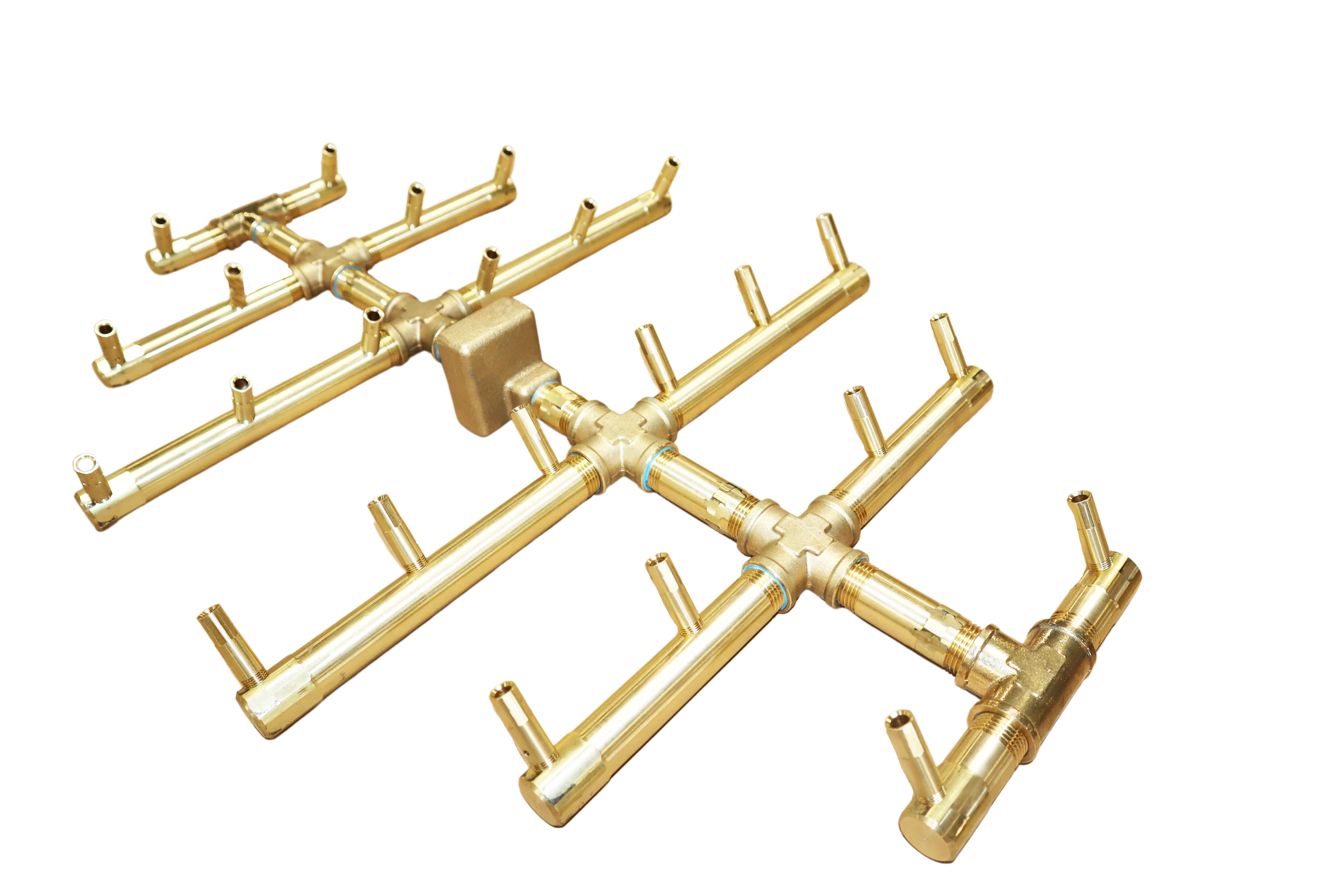

1. Burner

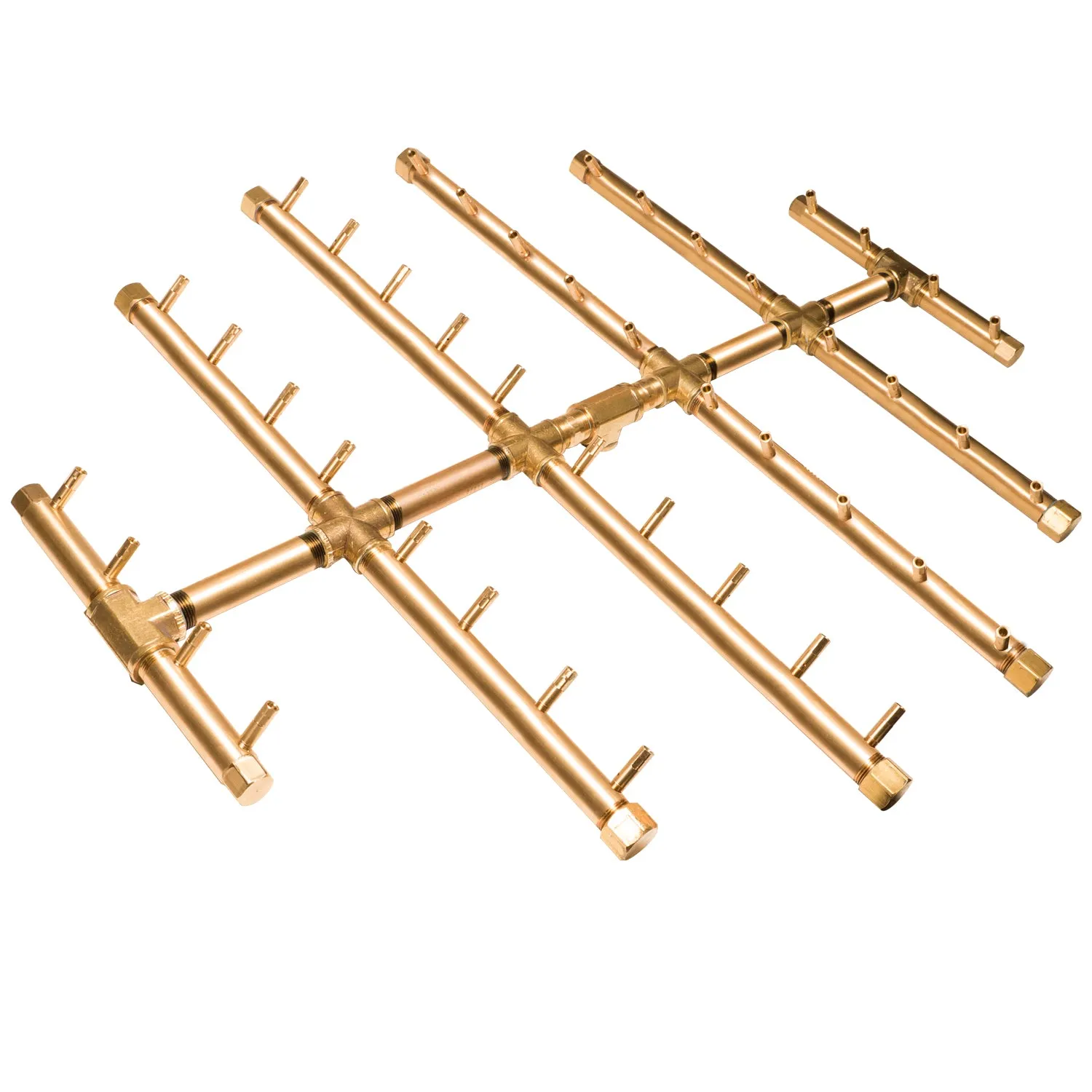

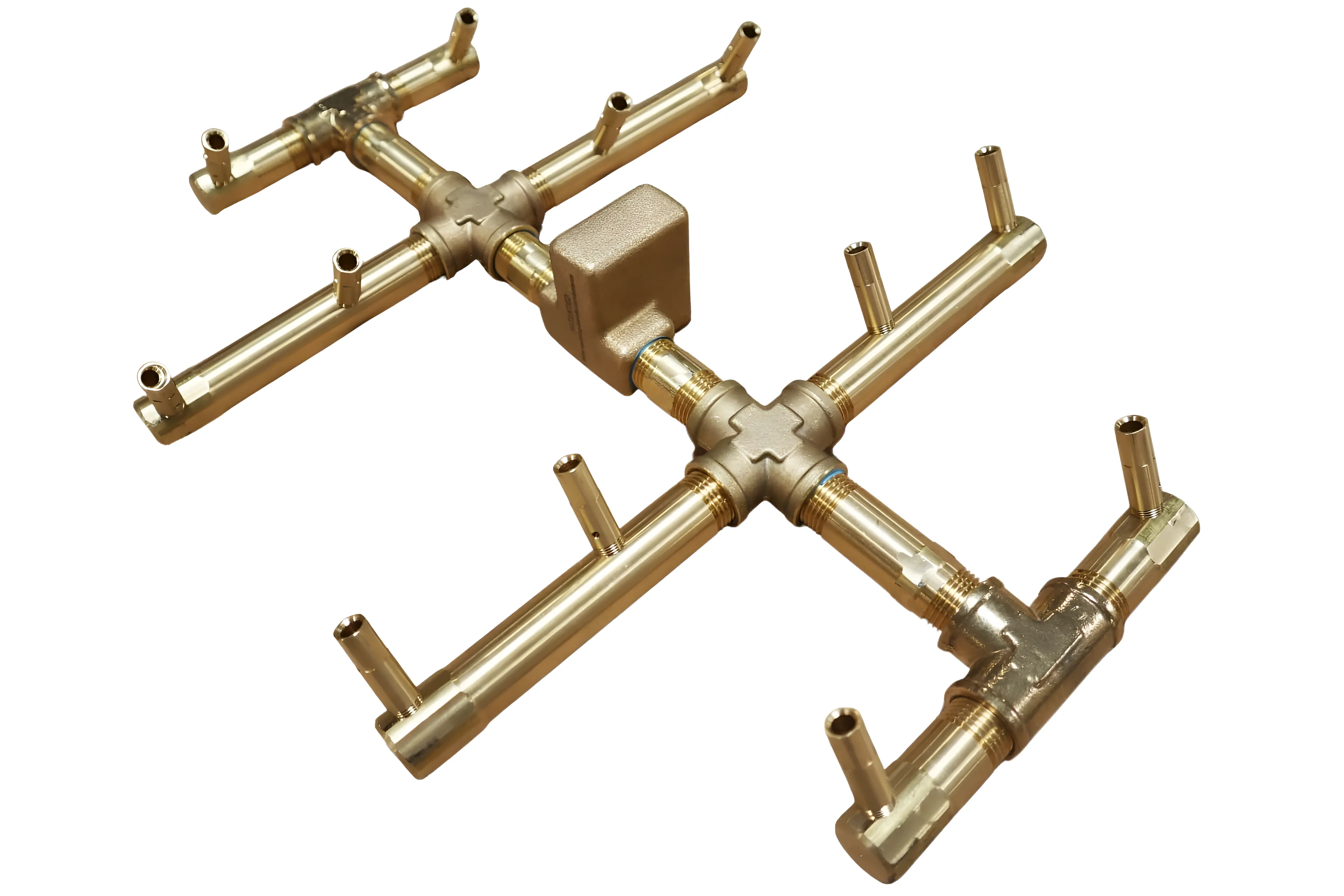

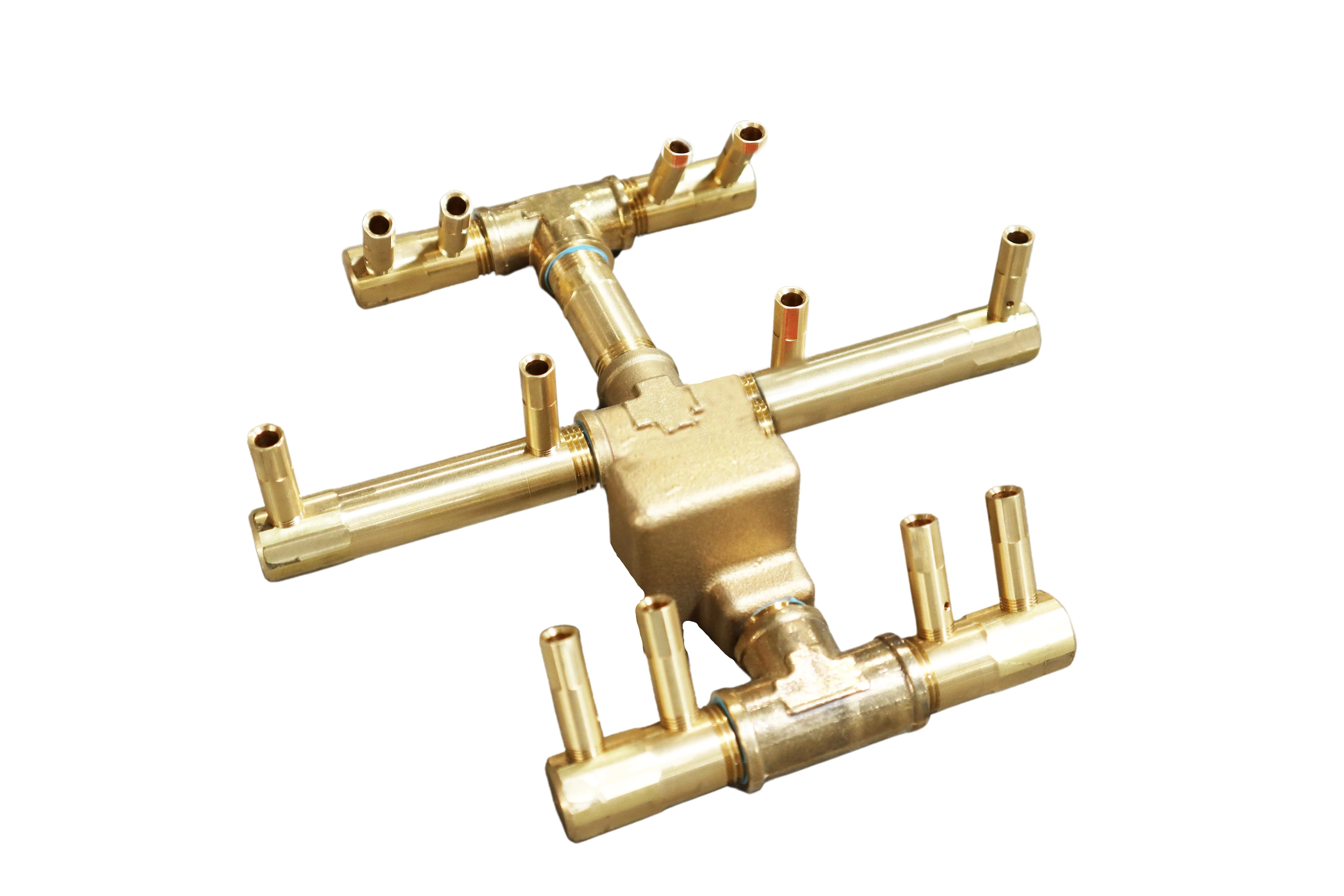

The Circular Tree-Style Crossfire Burner is available in a wide range of sizes, from a 120K BTU, 11x10-inch model to a 440K BTU, 30.25x34-inch option.

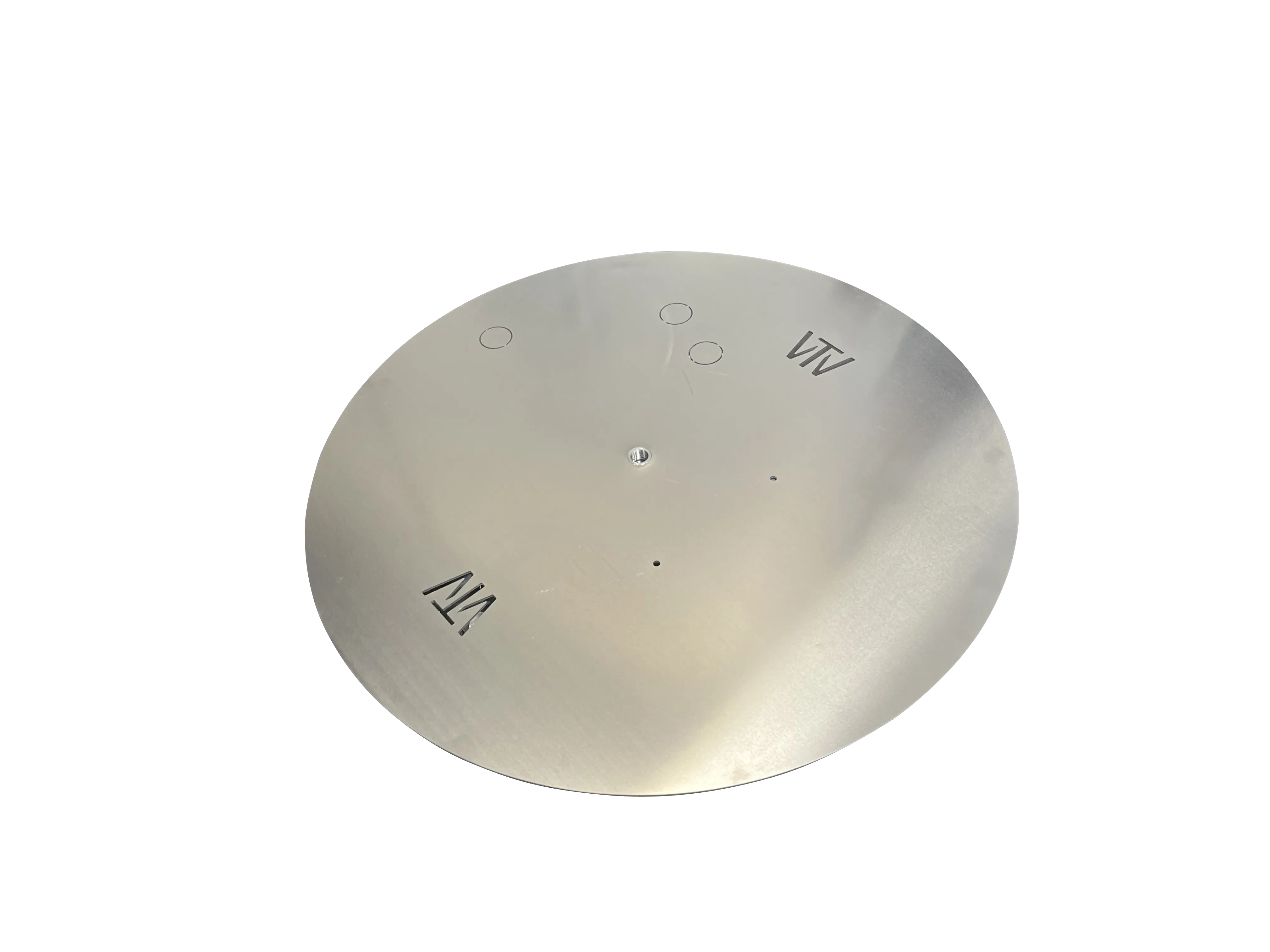

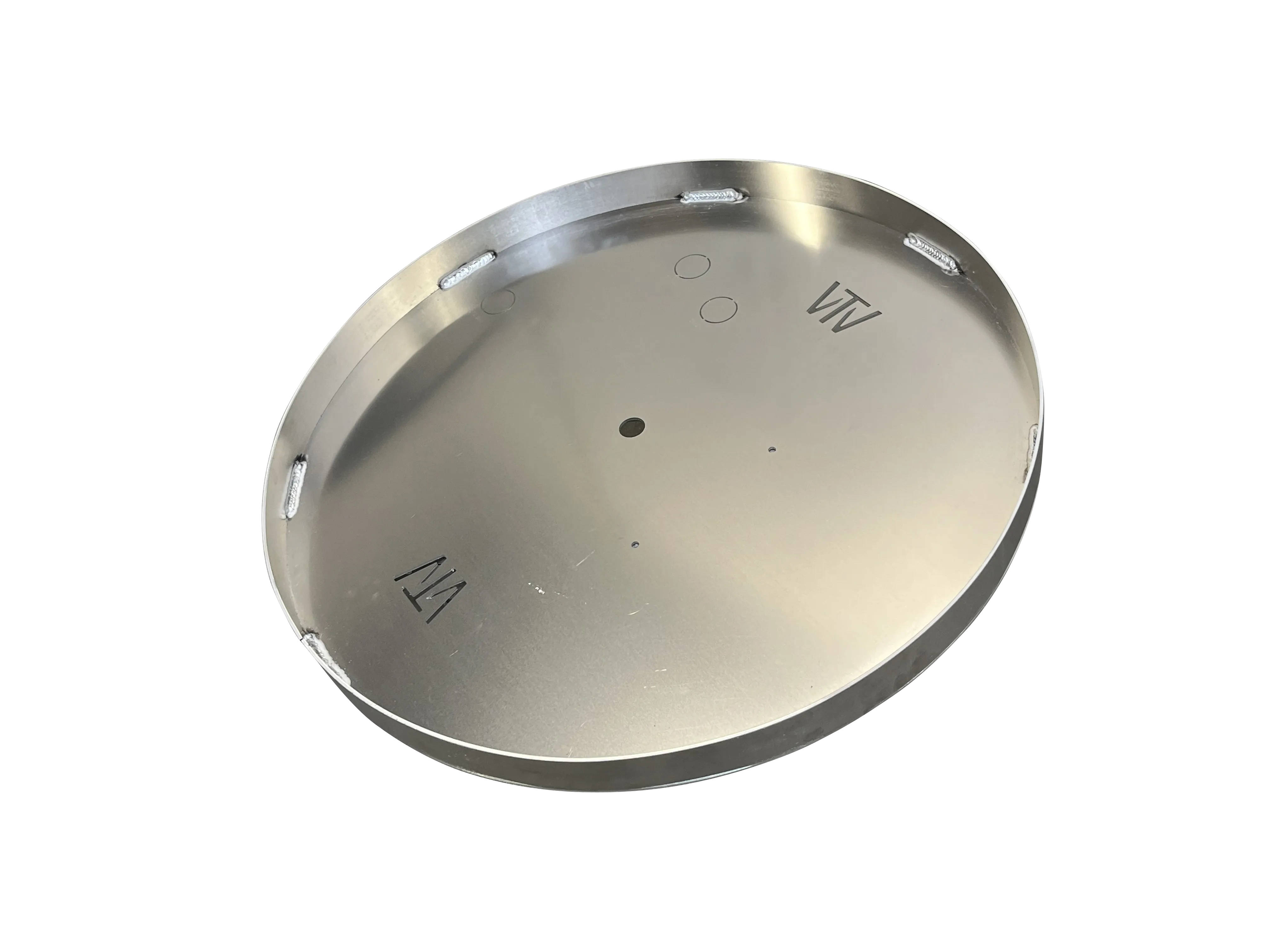

2. Plate Or Pan
Plates and pans are available in both square and circular shapes, made from durable tempered aluminum. They feature precision-cut weep holes for proper drainage and come in thicknesses of 1/8" or 3/16”. Each plate or pan includes a central opening for the gas inlet. The size of the plate or pan depends on the dimensions of your opening.

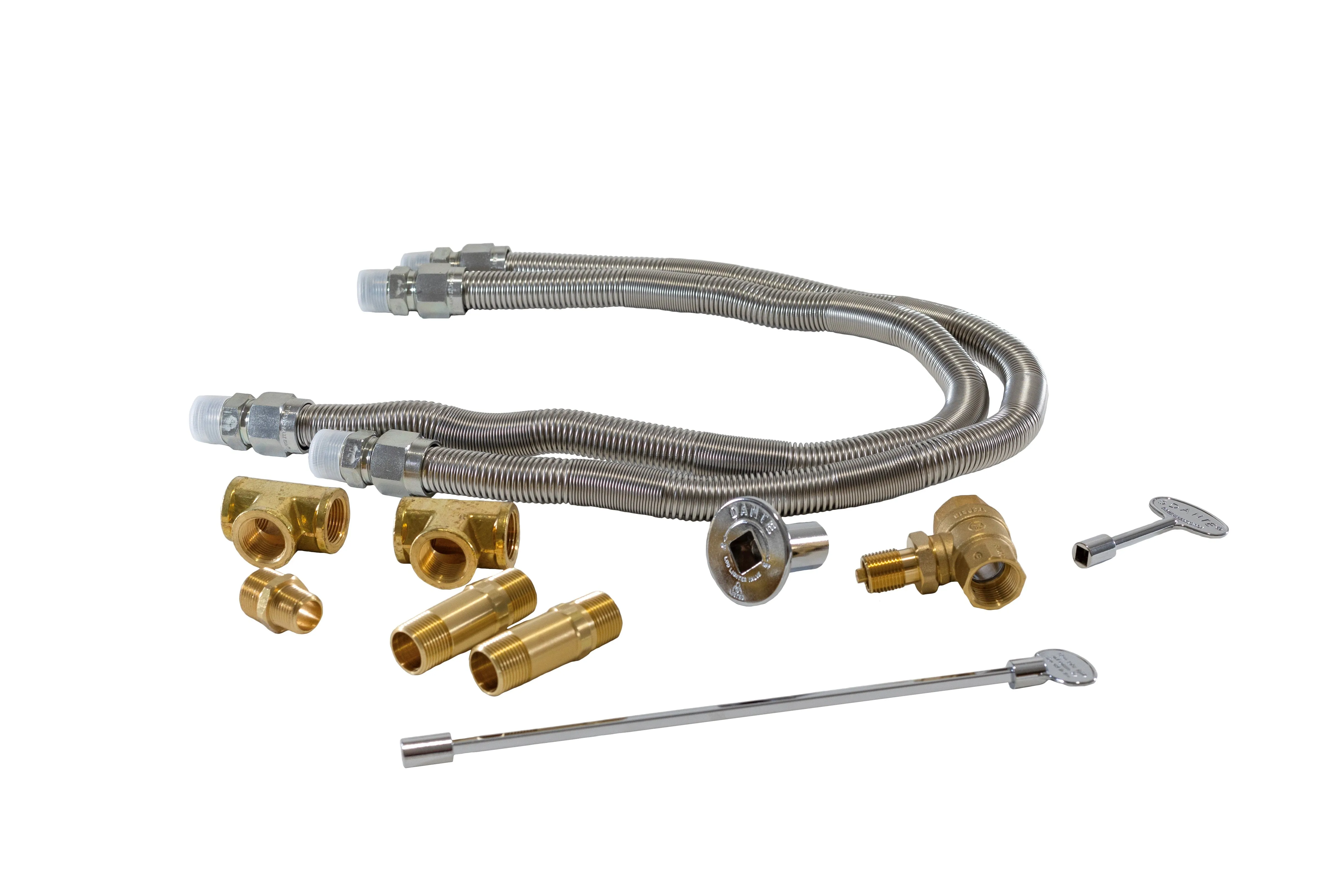

3. Flex Line & Key Valve Kit
Choose between two Flex Line & Key Valve Kit options based on your burner’s BTU rating:

  • FK1 - For Burners Below 249K BTU
  • FK2 - For Burners Above 249K BTU

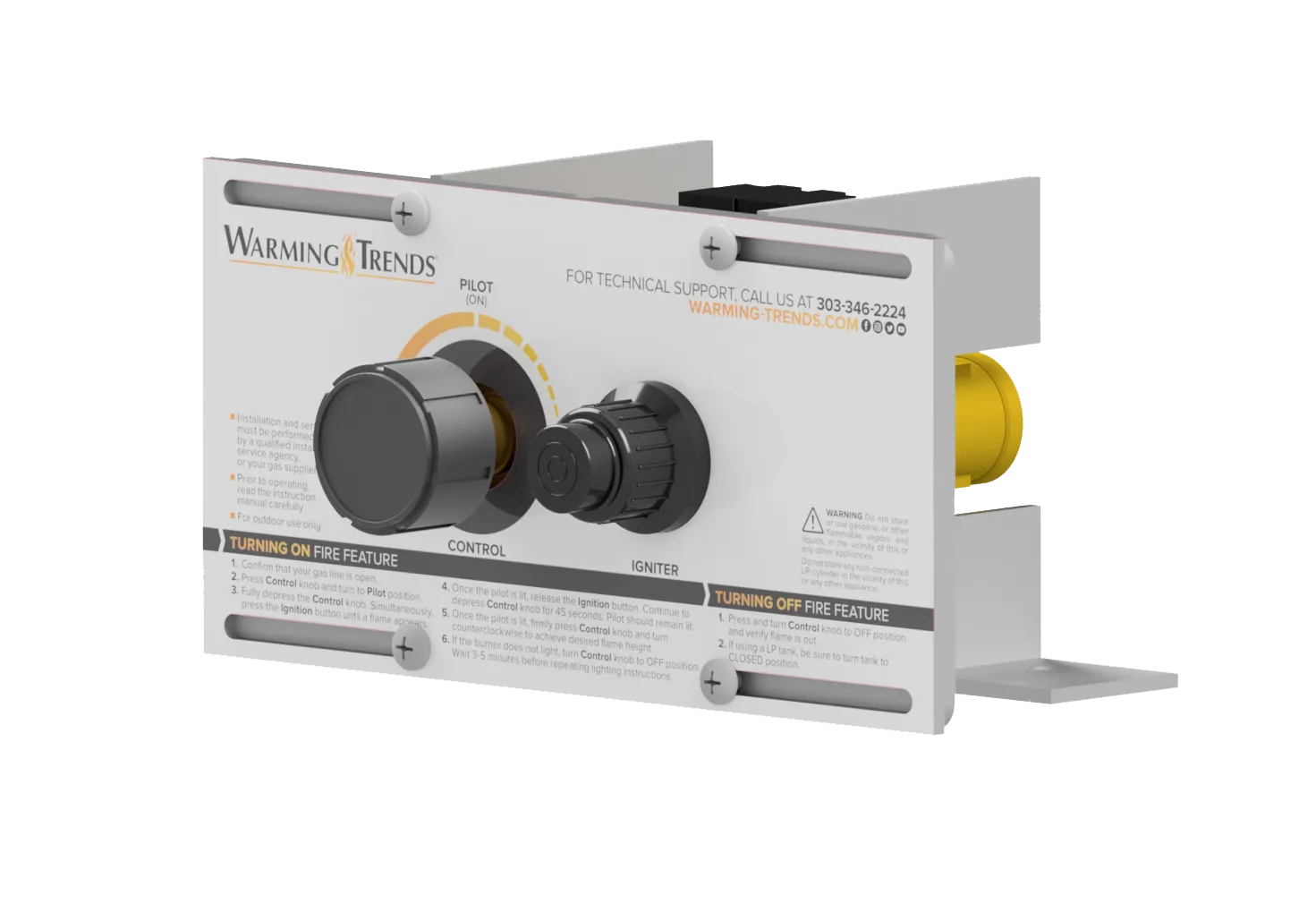

4. Ignition Type
There are four primary ignition systems:

  • Match Light Ignition - The simplest method, where you open the gas valve and light the burner with a lighter or long match. This is the default option.

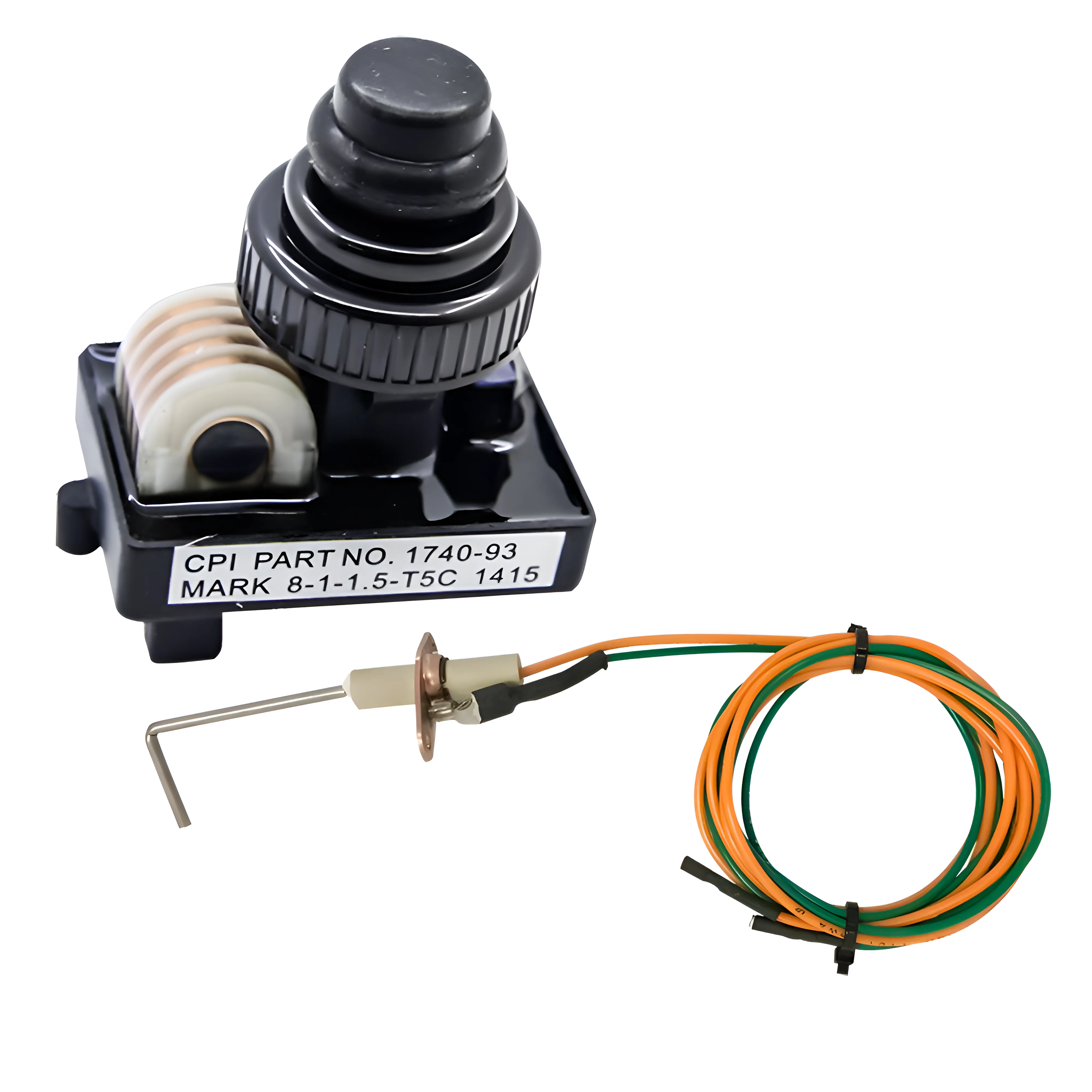

  • Push Button Spark Ignition - Similar to igniting a grill, simply open the gas valve and press the button to start the flame. Ideal for those who prefer not to use a match or lighter.

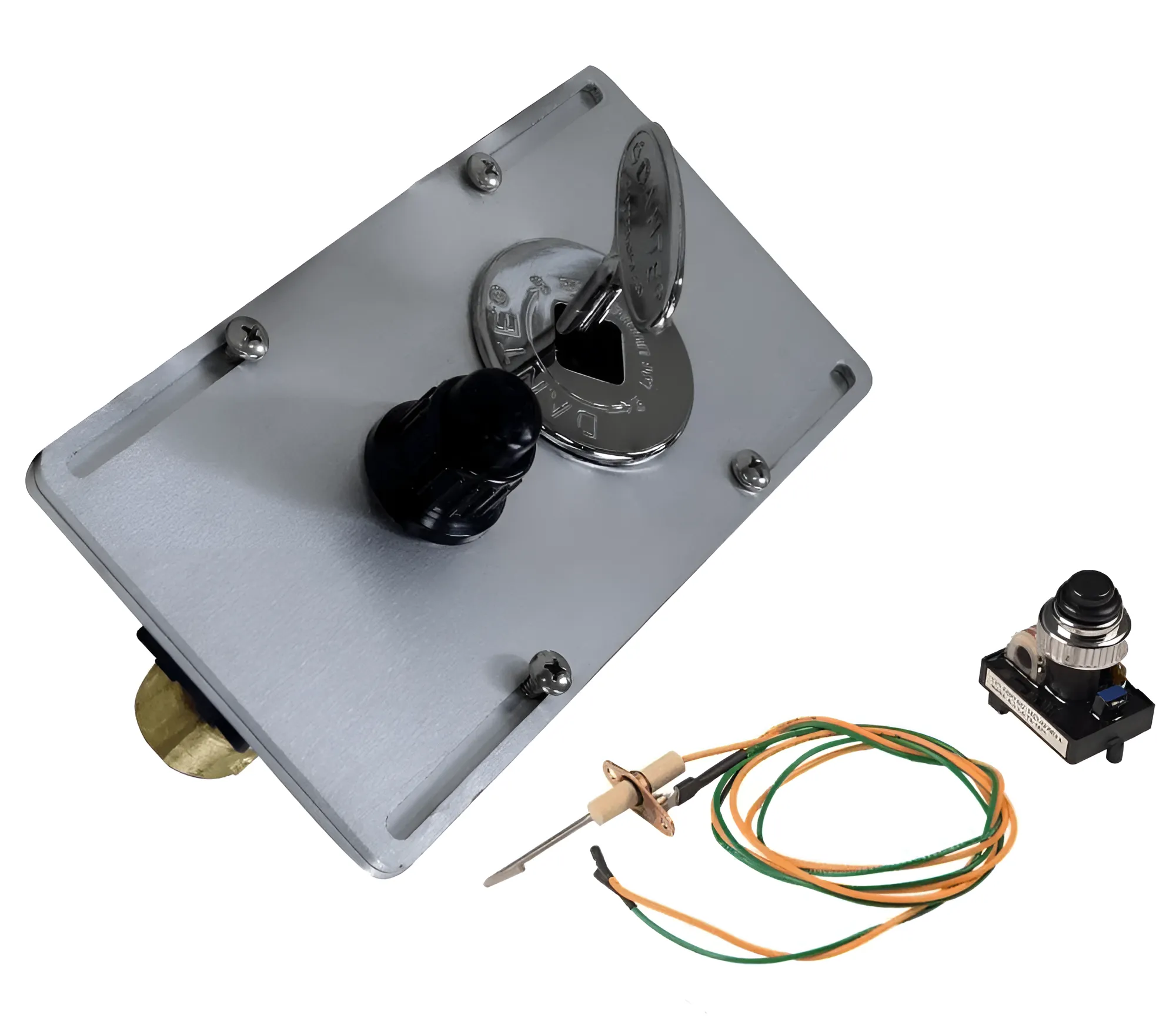

  • Push Button Spark Ignition with Flame Sense - This system includes the standard Push Button Spark Ignition plus a built-in Flame Sensing Sensor. It shuts off the gas if the flame is extinguished unexpectedly, with no need for external power.

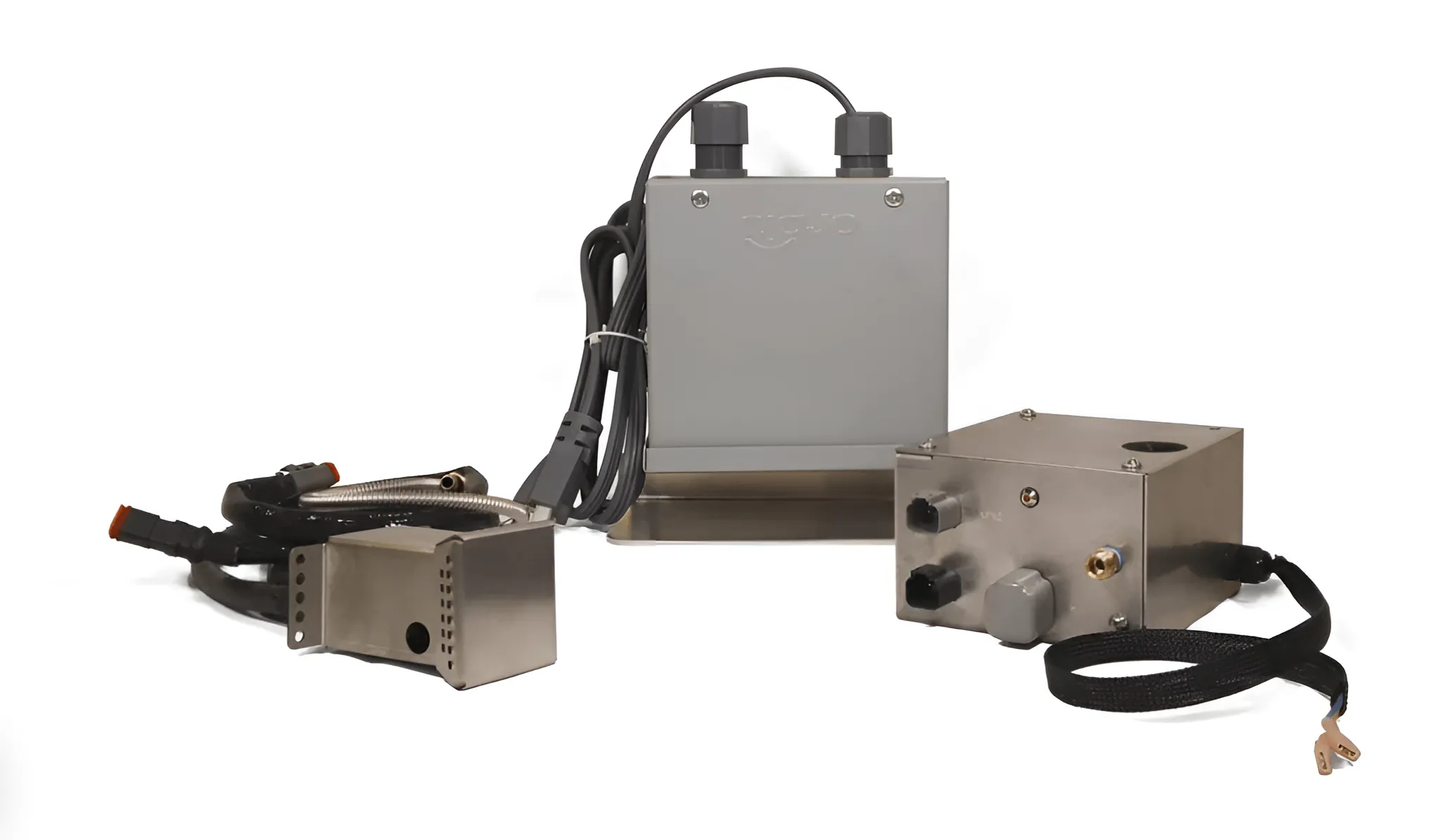

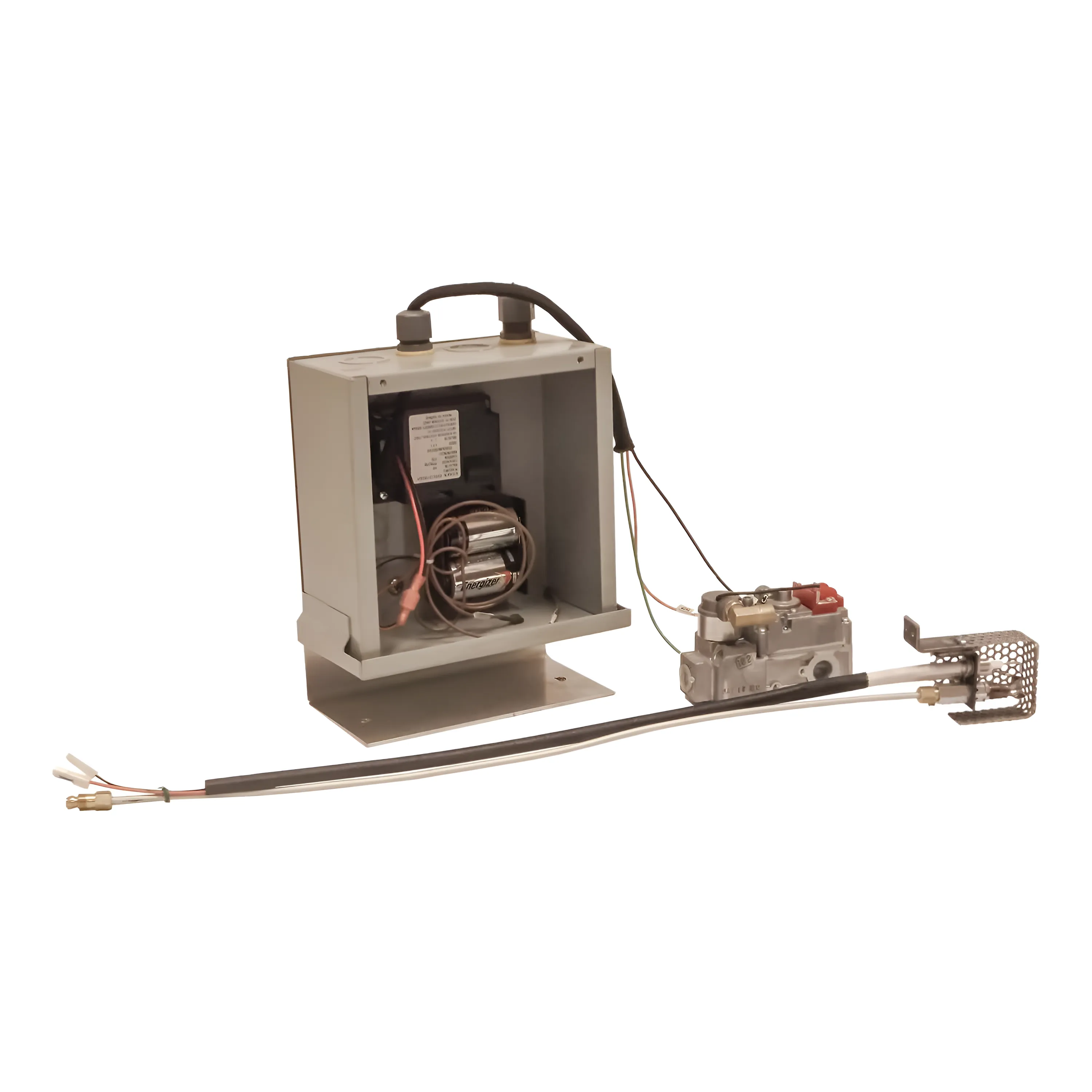

  • Electronic Ignition - The most advanced ignition system, allowing you to turn the fire pit on and off with a button. It also includes a flame-sensing feature for added safety. Depending on your burner’s BTU, this system may require external power.

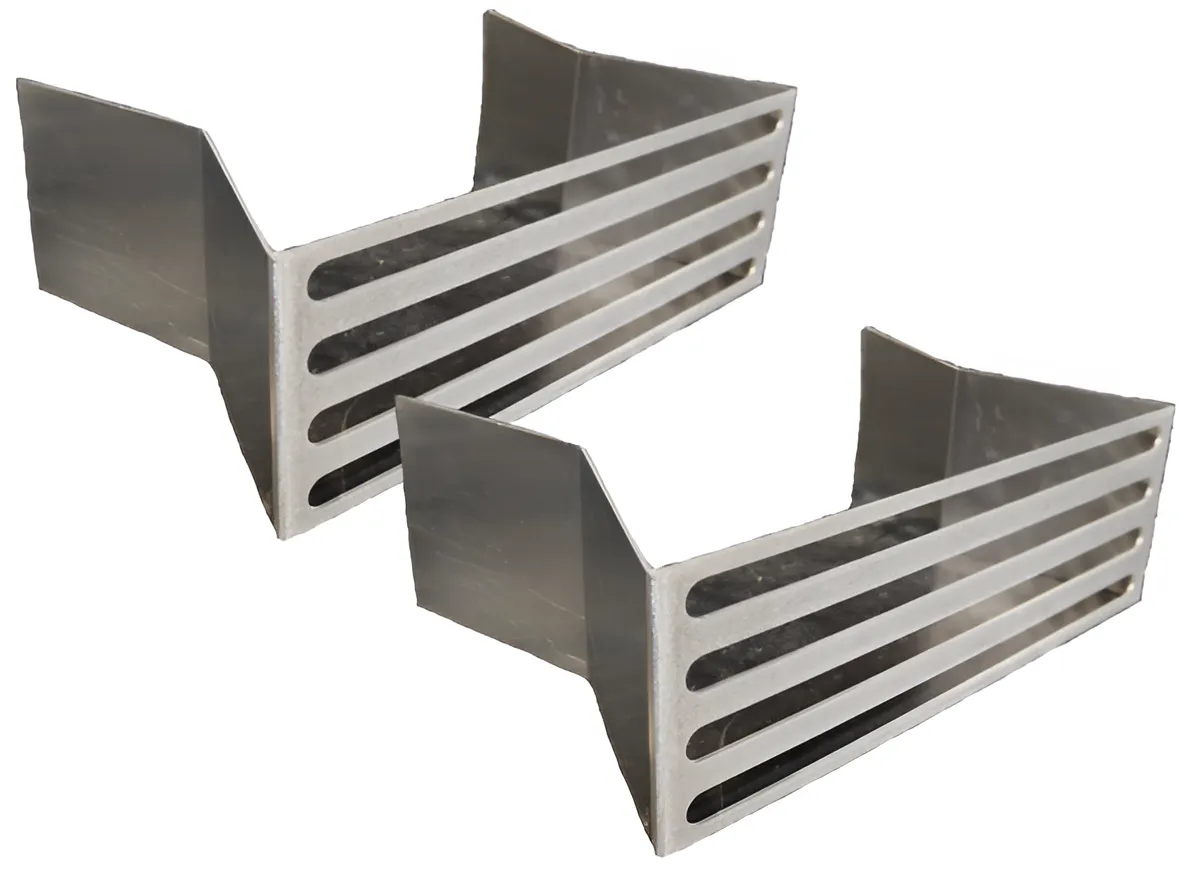

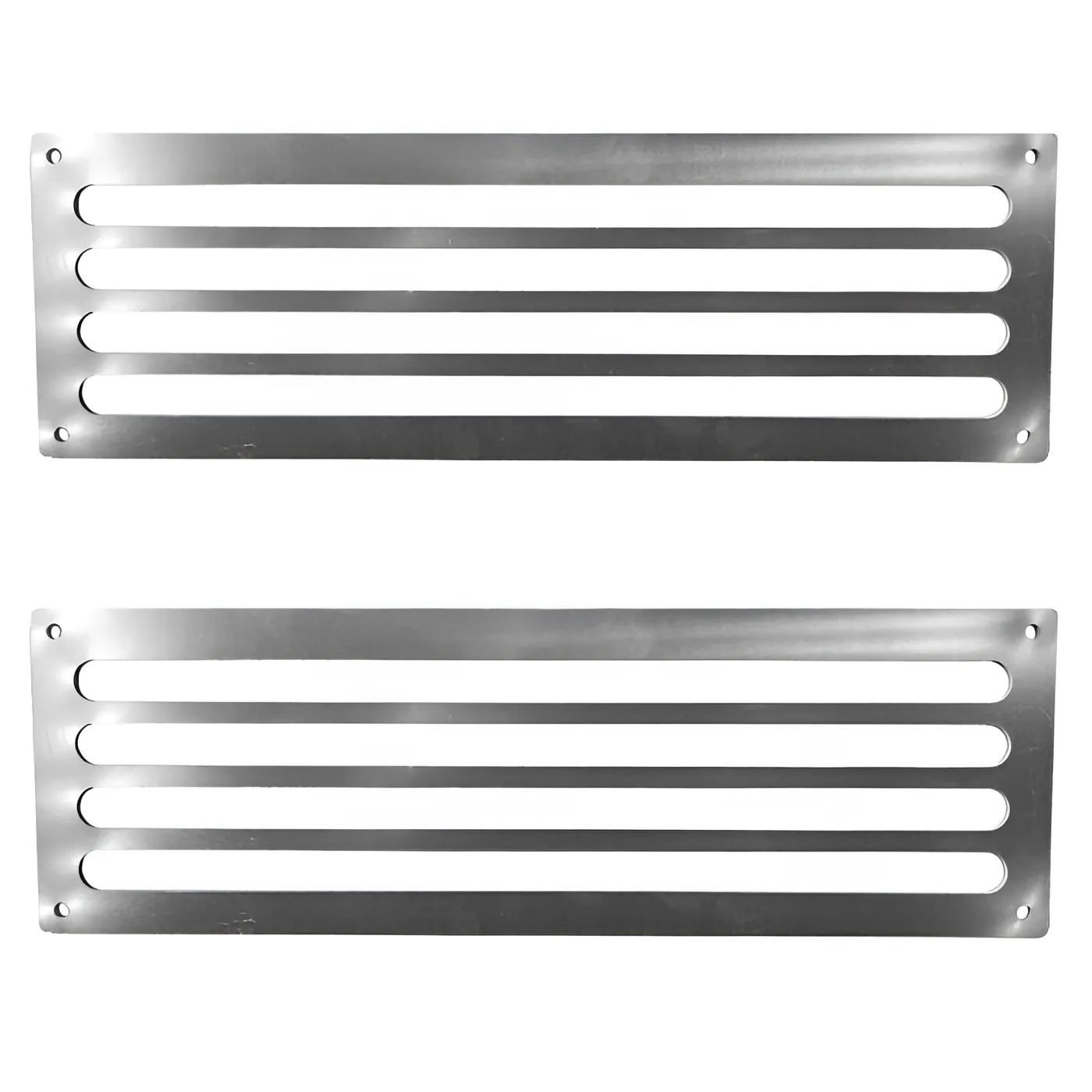

5. Venting
It’s generally recommended to have two vents, each 18 square inches, placed on opposite ends for cross ventilation. While 18 square inches may not be required, some form of venting is crucial to ensure proper airflow.

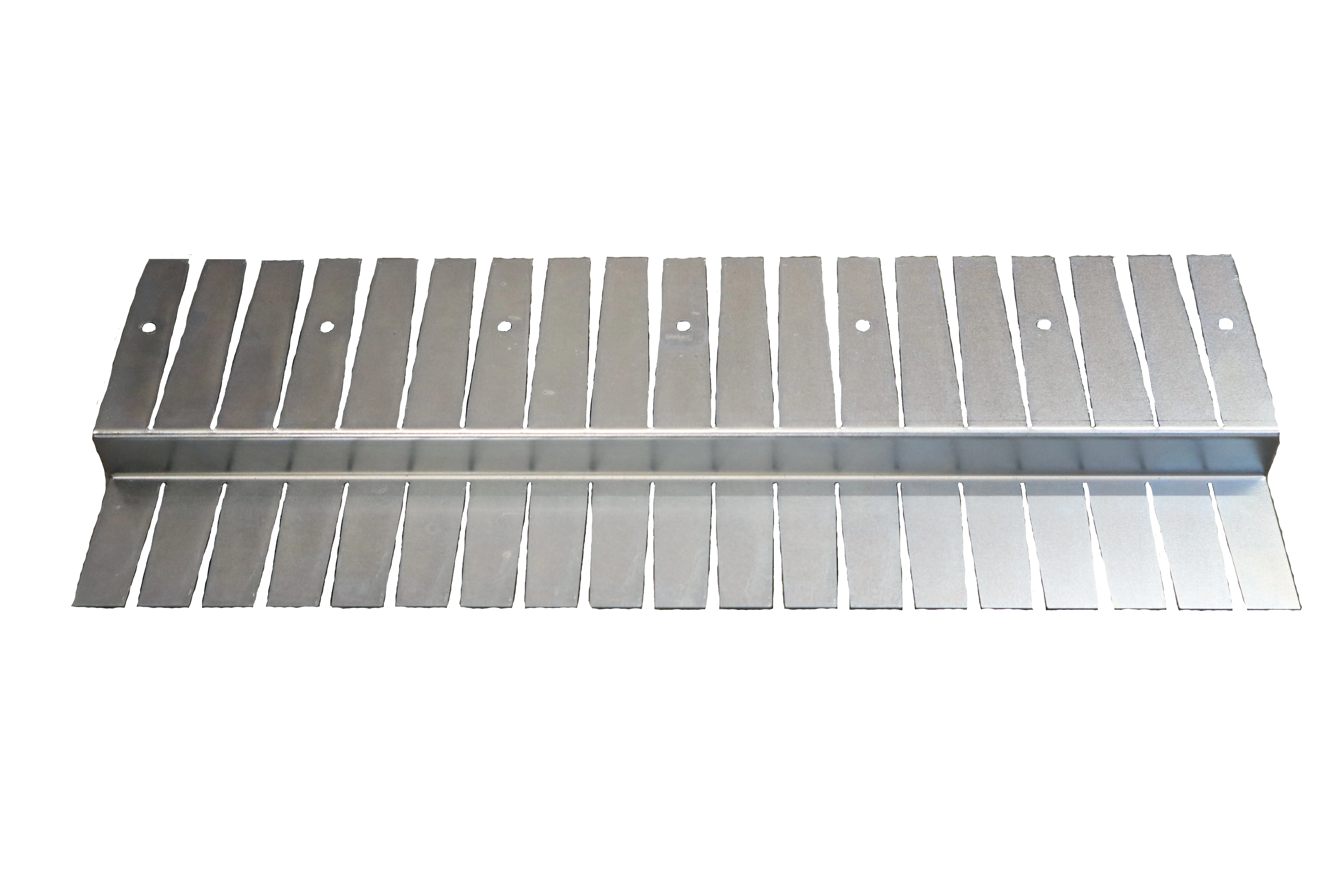

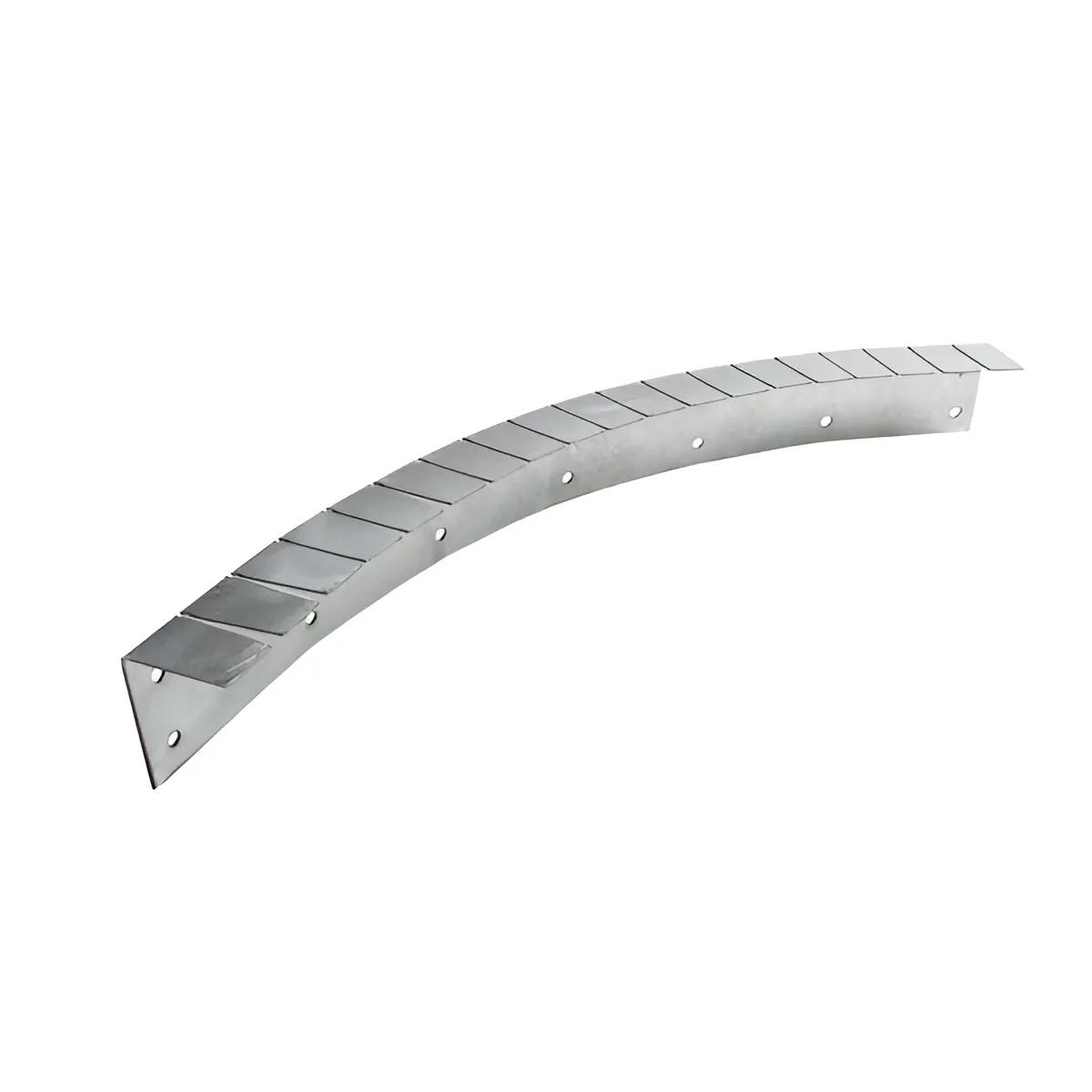

6. Installation Collars
The plate should sit about 4-5 inches below the top of the fire pit and requires support. While some use bricks or cinder blocks, you can also opt for dedicated support collars, which act as a shelf to hold the plate securely in place.

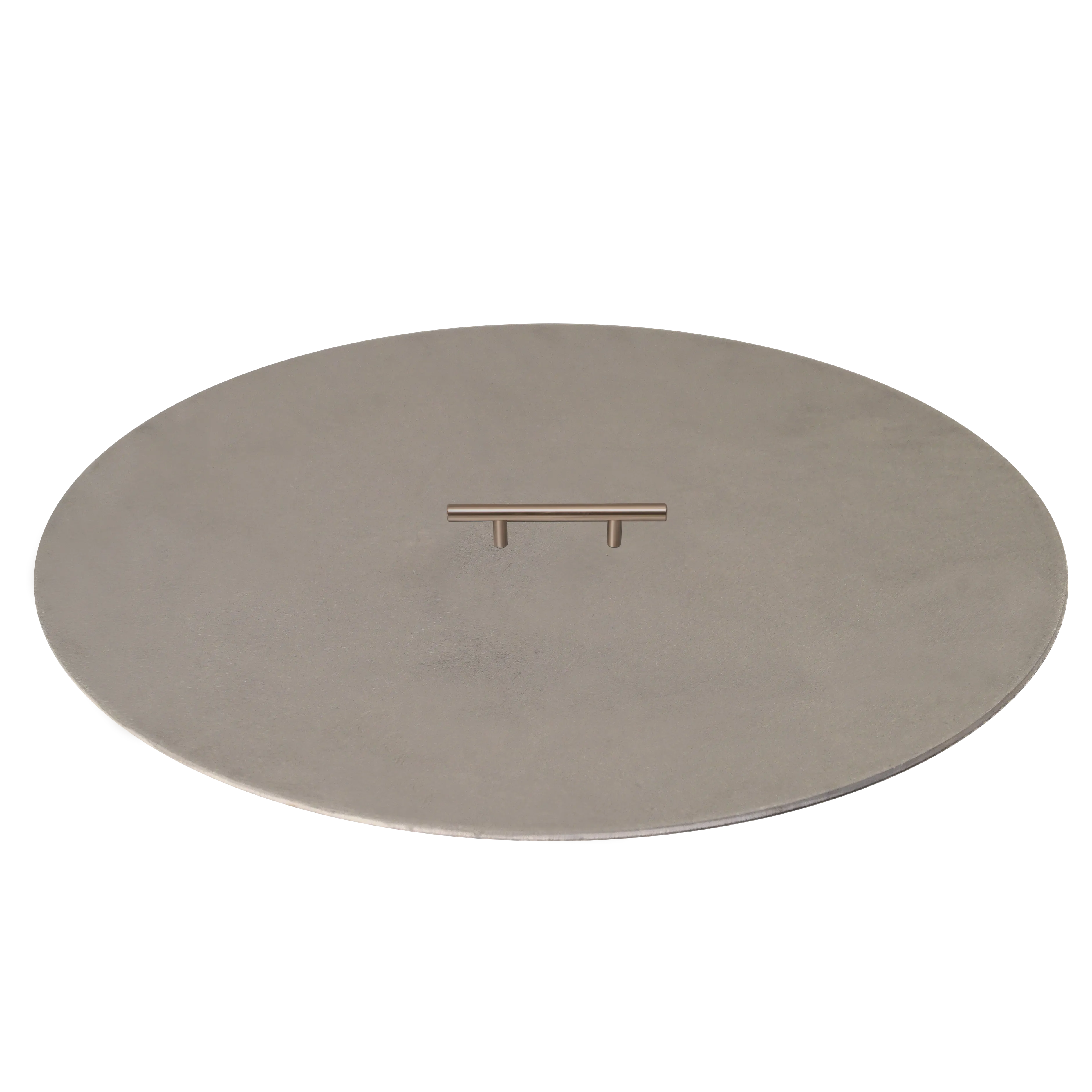

7. Cover
Protect your fire pit from the elements by using a cover. Even a simple tarp is better than leaving it exposed. If the fire pit will not be used for an extended period, a cover is especially recommended. Warming Trends offers high-quality aluminum covers. To choose the correct size, add a 1-inch lip around the fire pit’s opening. For example, if the opening is 32 inches, a 34-inch cover would be ideal.

Features

  • 100% Brass Construction – Crafted from corrosion-resistant brass for low-maintenance care and lasting quality. No rust, guaranteed!
  • Crossfire Burner Technology – Patented burner design for taller, brighter, fuller, and more natural flames, offering an innovative solution for your fire feature.
  • Compatible with Multiple Fuel Types – Works seamlessly with both natural gas and propane for versatile fuel options.
  • Fuel Efficiency – Enjoy a burner that uses half the fuel of conventional burners, providing maximum efficiency with propane or natural gas.
  • Full Lifetime Warranty – Backed by Warming Trends' Full Lifetime Warranty, ensuring long-lasting performance and reliability.
  • Proudly Made in the USA – 100% designed and manufactured in the United States, guaranteeing a genuine "Made in the USA" product.
  • Available in Various BTU Ratings and Sizes – Choose from a range of BTU ratings and dimensions to suit your fire pit needs. See the specification table for details.
  • Multiple Style Options – Select from several designs: Original, Octagonal, Tree-style, H-style, and Linear to match your aesthetic.

    Specifications

    ManufacturerWarming Trends
    SKU NumberUCB-CFBCT
    Burner Material100% Brass
    Burner StyleCFBCT Circular Tree-Style Crossfire Brass Burner
    Fuel TypeNatural Gas or Propane
    Twice The FlameYes
    Fuel-EfficientYes
    Lifetime WarrantyYes
    Made In the USA?Yes

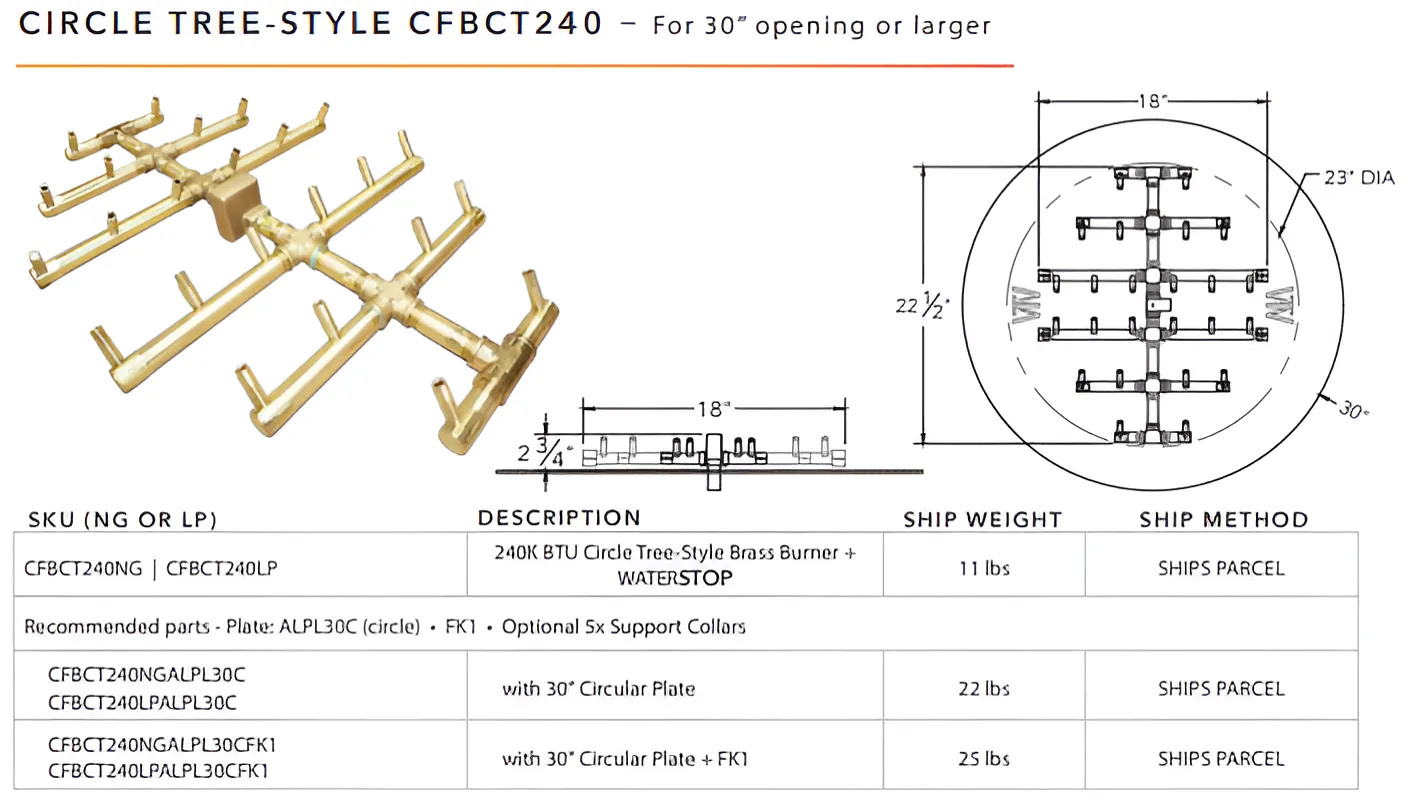

    Dimensions

    SKU NumberBTUsBurner SizeInlet SizeRec. Opening SizeWATERSTOP
    CFBCTL120120K11" x 10"1/2"28"Yes

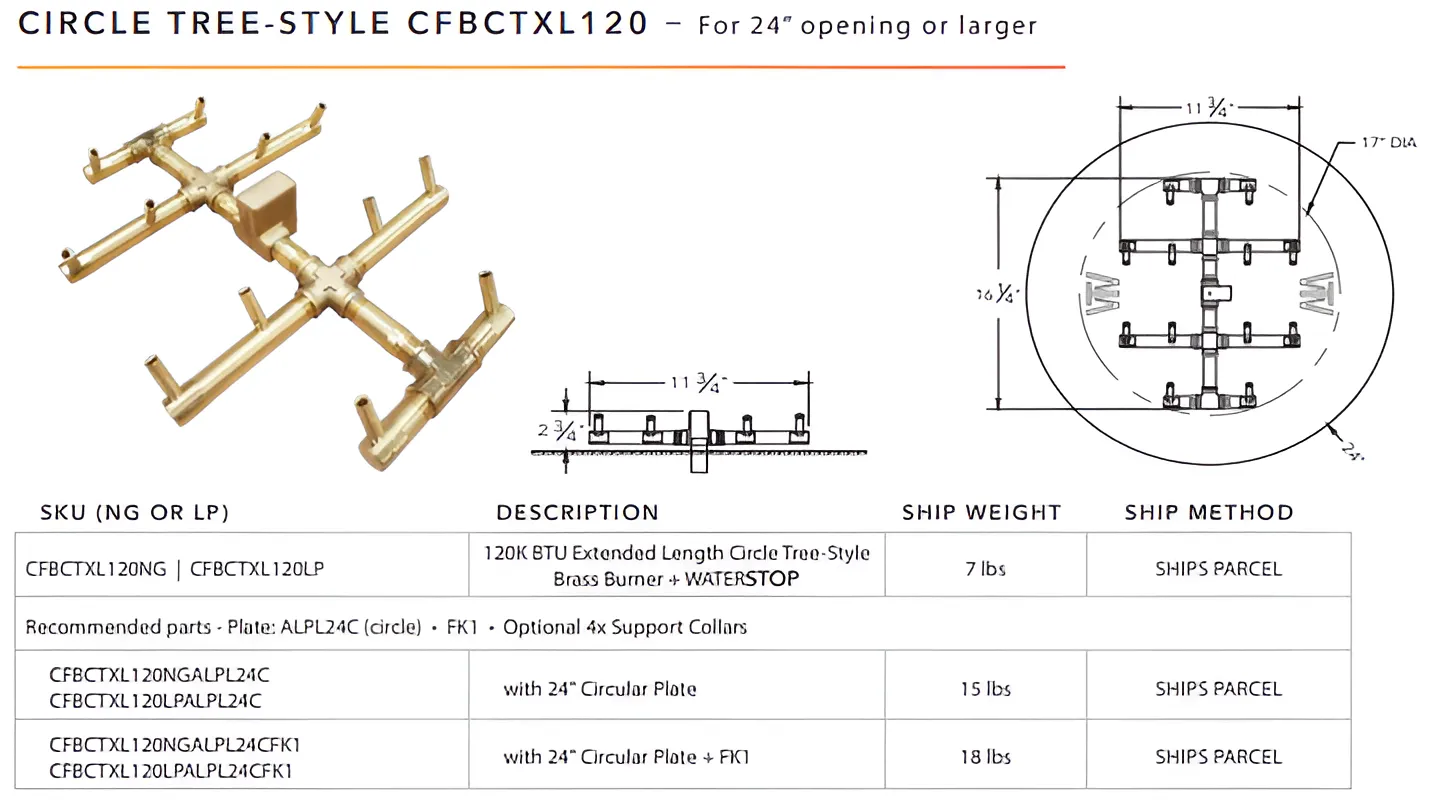

    CFBCTXL120120K13" x 16"1/2"24"Yes
    CFBCT240240K18" x 24.25"1/2"30"Yes

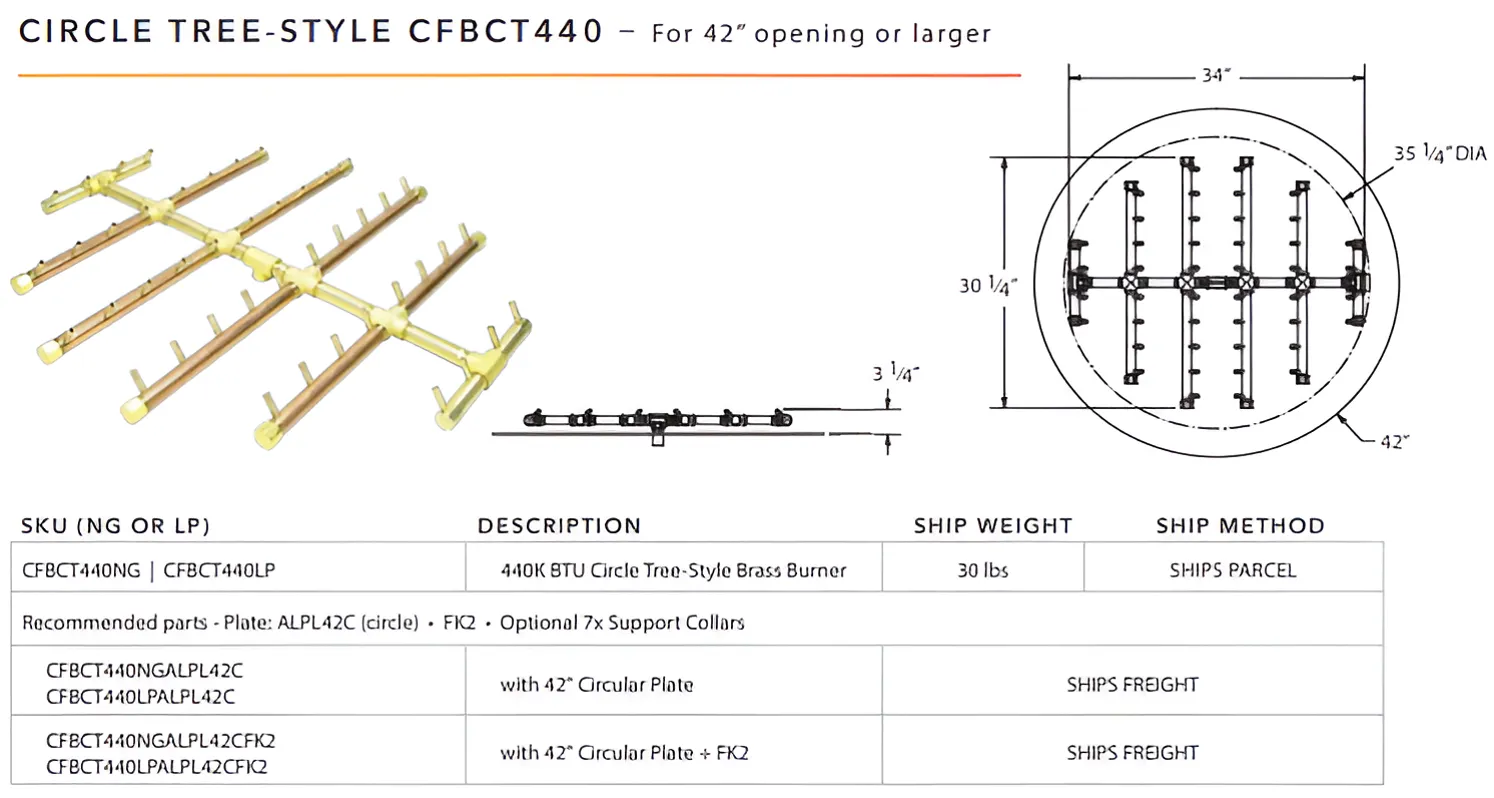

    CFBCT440440K30.25" x 34"3/4"42"Yes



    Collar Guide

    • The adjustable installation collars can bend for round enclosures and can be anchored in with concrete screws
    Round Plate/Pan (Diameter)Collars Required
    12”2 Units
    18”3 Units
    24”4 Units
    30”5 Units
    36”6 Units
    42”7 Units
    48”8 Units
    54”9 Units

    Note: For square or rectangular enclosures, use enclosure length and width measurements

    Lava Rock Guide

    Note: 1 bag = 1 cubic foot

    Fire Plate Size Lava Rock Required
    18” Plate1 bag
    24” Plate1 bag
    30” Plate2 bags
    36” Plate3 bags
    42” Plate4 bags
    48” Plate4-5 bags
    60” Plate7-8 bags
    46x172 bags
    50x101 bag


    Warranty

    Warming Trends warrants that each Warming Trends CROSSFIRE and other jetted-flame-brass-burners is free from defects in materials and workmanship and conforms to its specifications, which are available upon request. The warranty period for a Burner is lifetime warranty beginning on the date of purchase. During the Warranty Period, Warming Trends provides repair and exchange services for the Burners, without charge. Labor not included. Please refer to the manufacturer downloads section below for full warranty details.

    Manufacture Downloads

    • Click Here For Warming Trends Owner's Manual

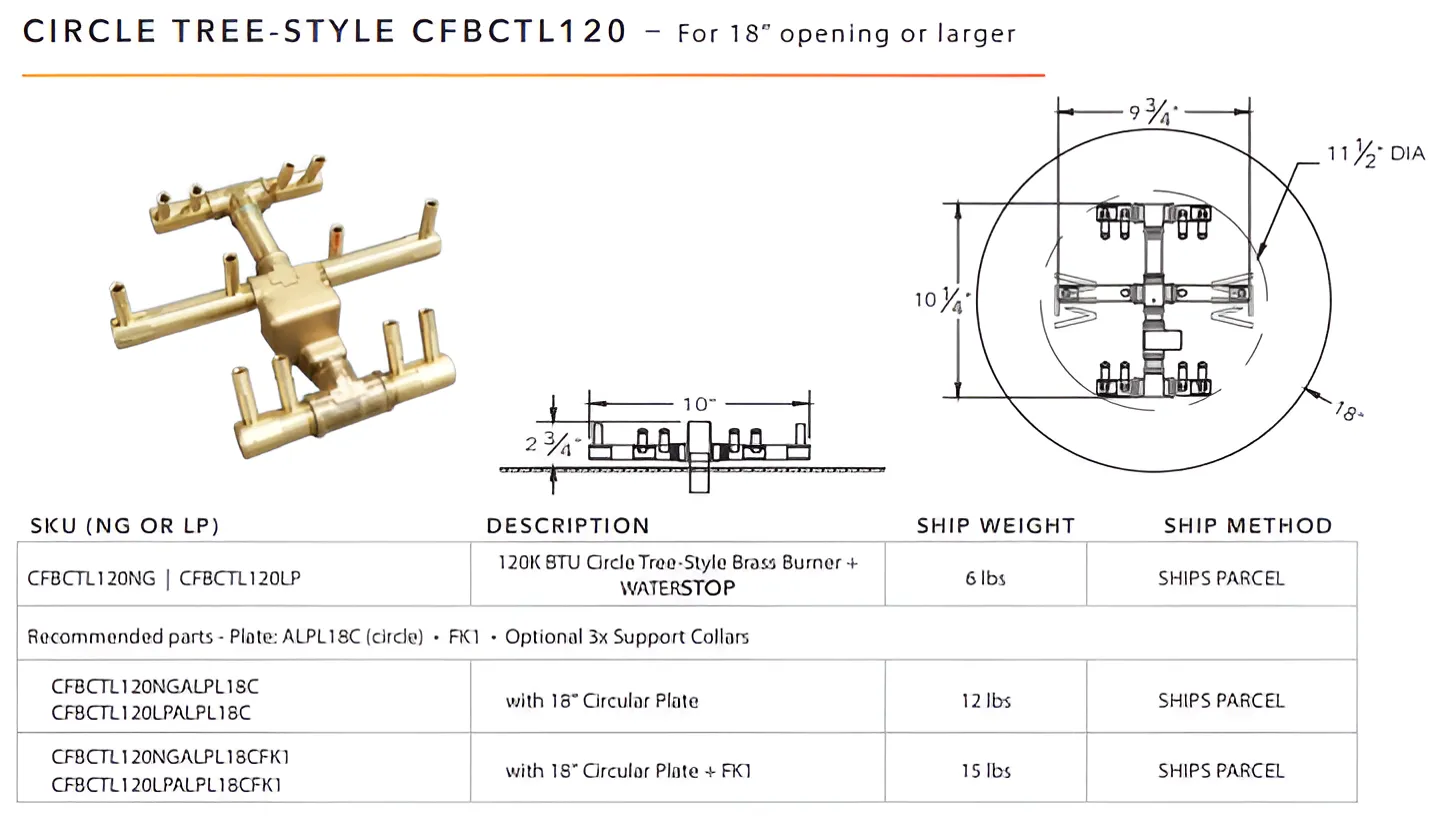

    • Click Here For CFBCTL120 Detailed Dimensions
    • Click Here For CFBCTXL120 Detailed Dimensions
    • Click Here For CFBCT240 Detailed Dimensions
    • Click Here For CFBCT440 Detailed Dimensions
    • Click Here For A Quick Guide Manual
    • Click Here For Burner Size Guide Manual
    • Click Here For Gas Pipe and BTU Chart Guide
    • Click Here For Mercury Ignition Owner's & Instructions Manual
    • Click Here For Mercury Ignition Brochure
    • Click Here For Mercury Ignition Q & A Manual
    • Click Here For Full Platinum Ignition Specification
    • Click Here For Mercury Electronic & Clearance Diagram
    • Click Here For Warming Trends Quick Reference Guide Manual
    • Click Here For Waterstop Brochure
    • Click Here For Ignition Systems Trifold Brochure
    • Click Here For Full Warming Trends Burner and Accessories Brochure
    • Click Here For Warming Trends Warranty
    • Click Here For Warming Trends Displays
    • Click Here For Warming Trends Brochure
    • Click Here For Warming Trends Full Catalog

    Legal Disclaimers & Warnings

    Product packaging, owners’ manuals, installation instructions, and/or operating instructions may include more information than what is shown on our website. The content on our site is intended to be used for reference purposes only. Please fully read all included manuals and documentation before installing or using this product. WARNING for California residents: this product may contain chemical(s) known to the state of California to cause birth defects, cancer, or other reproductive harm.
