Twice the flame, half the gas. Built to last with 100% rust-resistant brass and backed by the Full Manufacture Lifetime Warranty!

Complete your fire pit kit with the Ultimate Crossfire Bundle: Warming Trends Crossfire CFBDT Double Tree-Style Brass Burner Bundle. This patented, revolutionary burner delivers taller, brighter, fuller, and more natural flames while using less fuel. Its advanced regulation system works seamlessly with propane or natural gas, giving you ultimate control.

Available in a variety of sizes and BTU ratings, the Crossfire™ burner ensures exceptional durability, corrosion resistance, and unmatched performance—all backed by the Full Manufacture Lifetime Warranty.

Burner Plate/Pan Size Guide

Need help choosing the right size? Check out our Burner and Plate Size Guide for assistance in finding the perfect fit for your fire pit. Or call/chat for assistance.

FREE Media Options

• Black Lava Rock
• Rolled Lava Rock
• 1/2" Reflective Fire Glass
• 1/2" Fire Glass 2.0 Cubes

• 3/4" Recycled Fire Glass

Note: Use the easy-to-use Media Calculator to help you determine the ideal amount of media needed for your fire feature. Or call/chat for assistance.

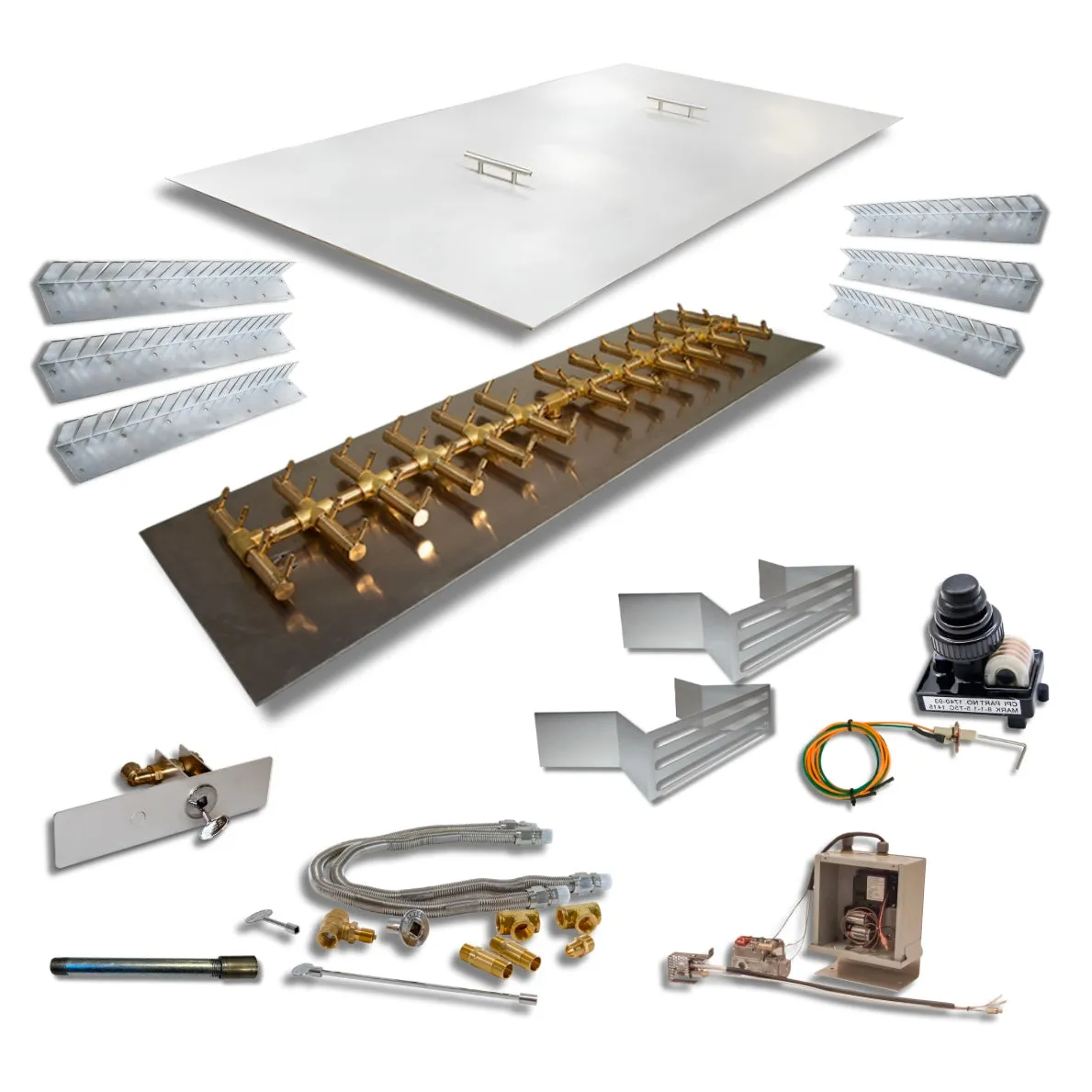

Bundle Item options

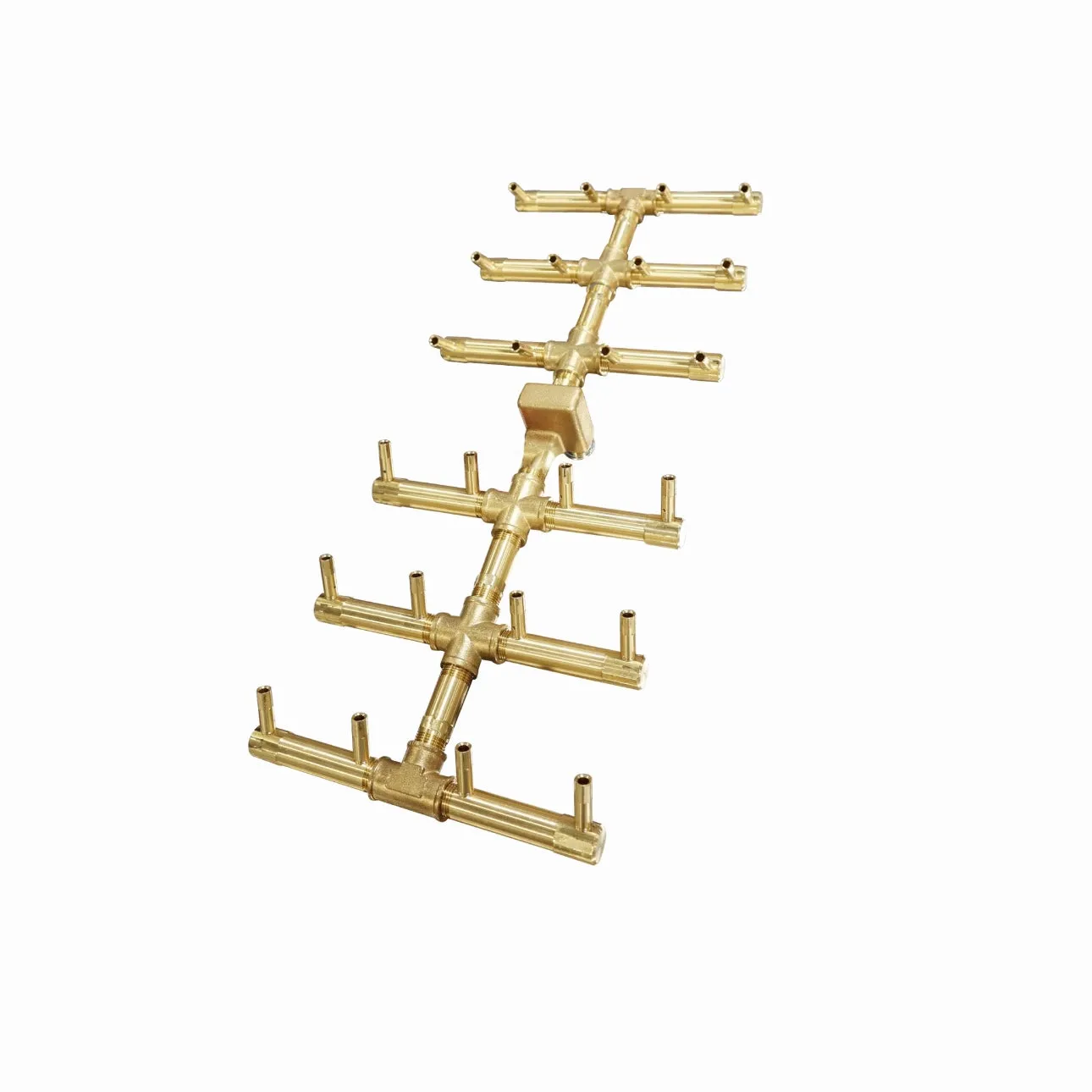

1. Burner

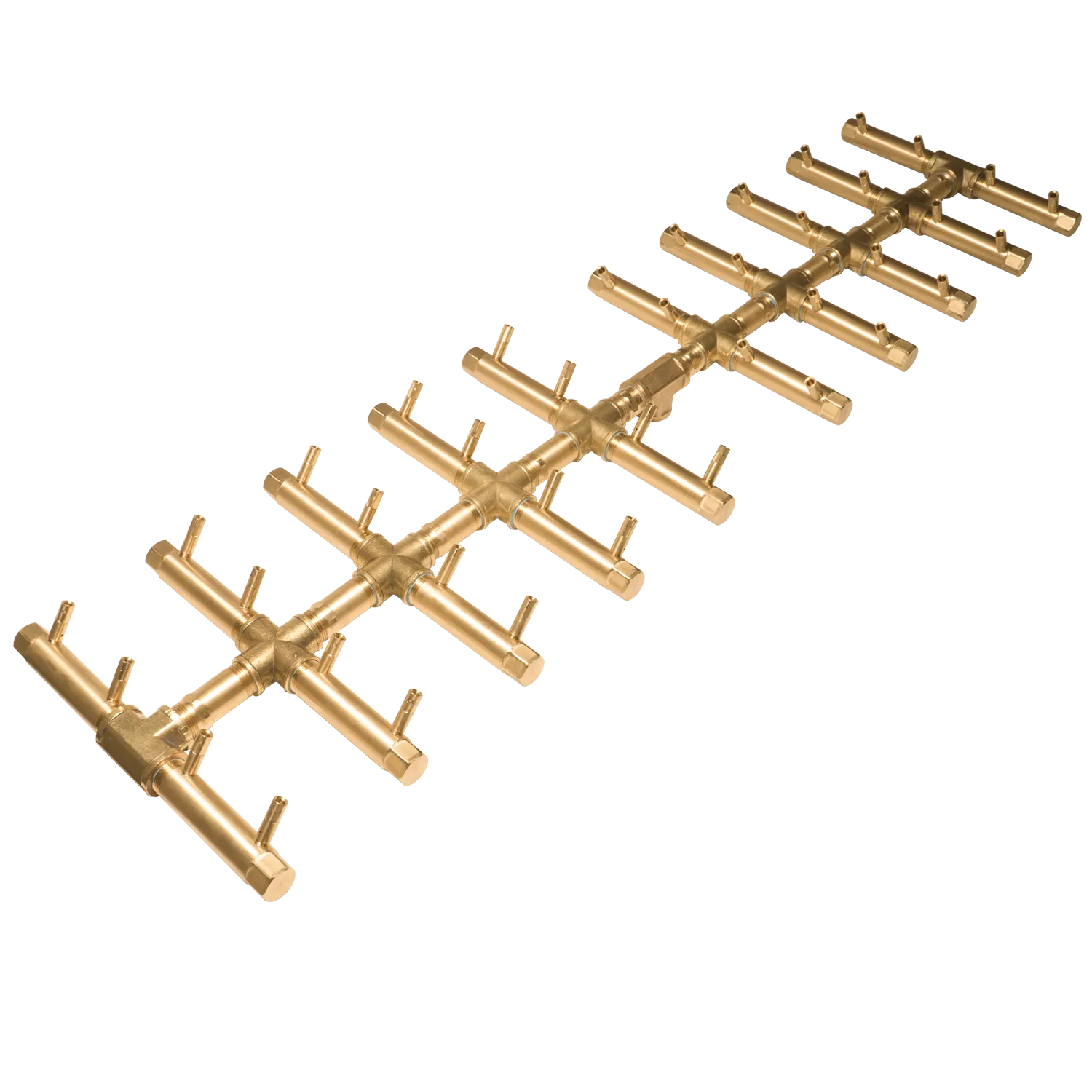

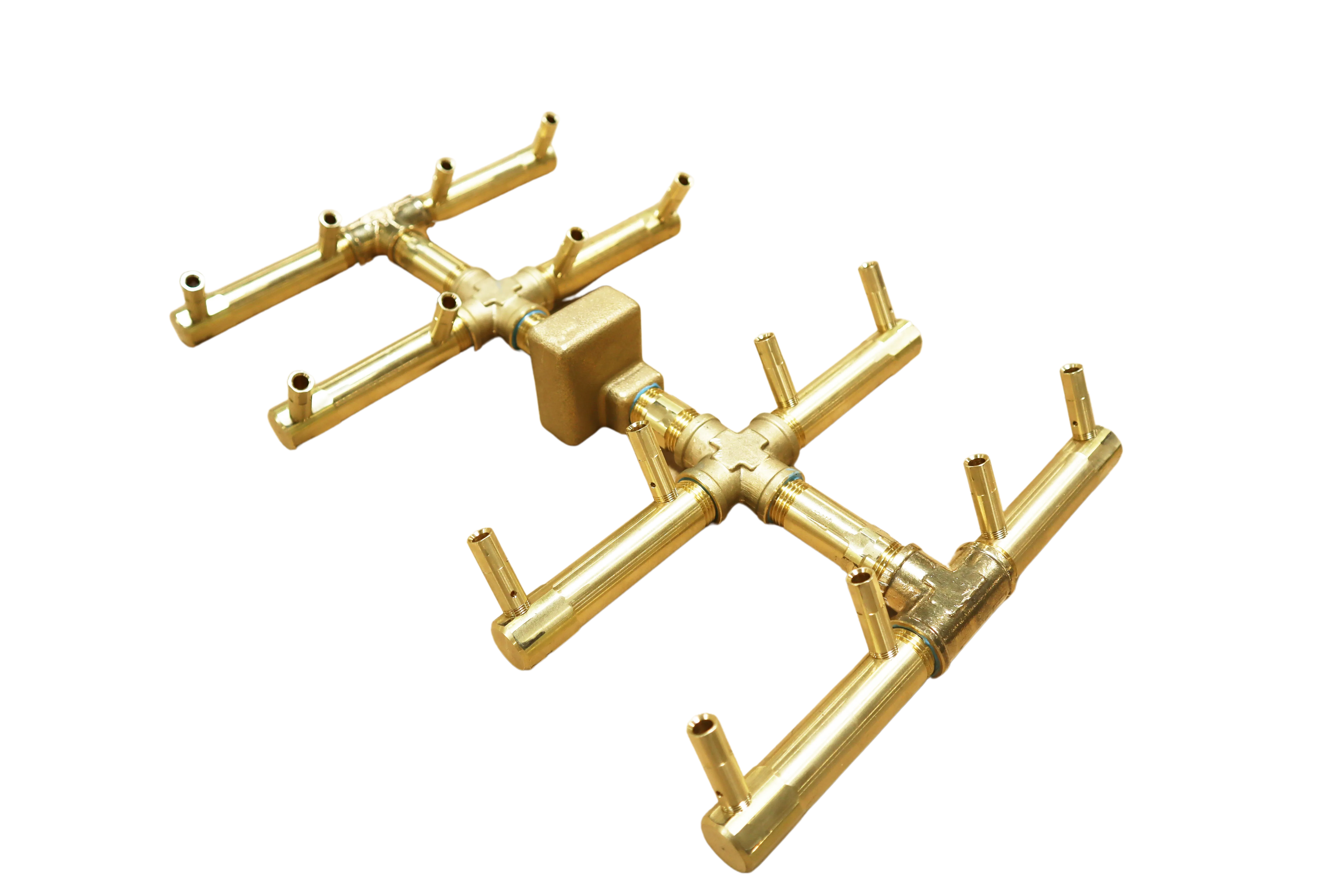

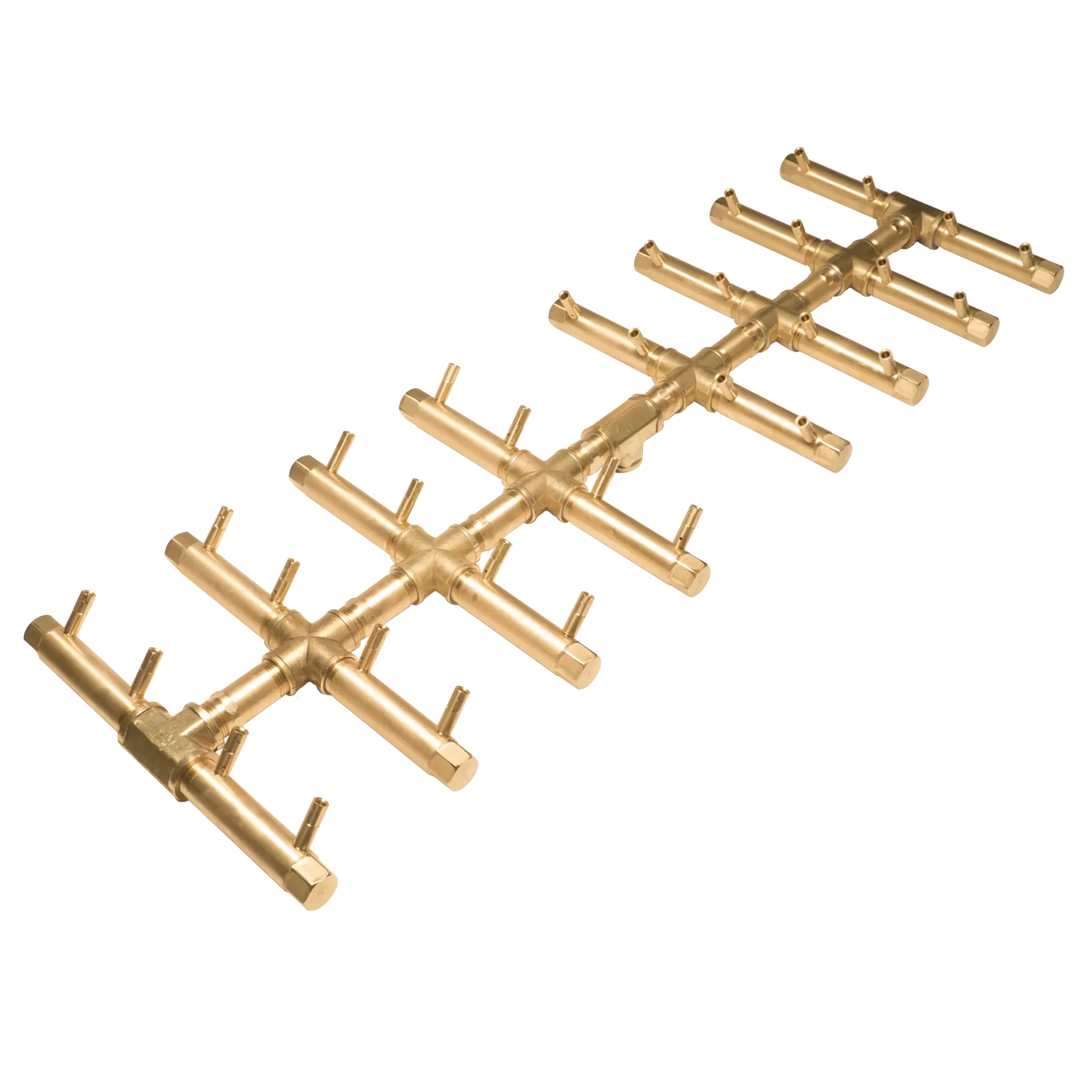

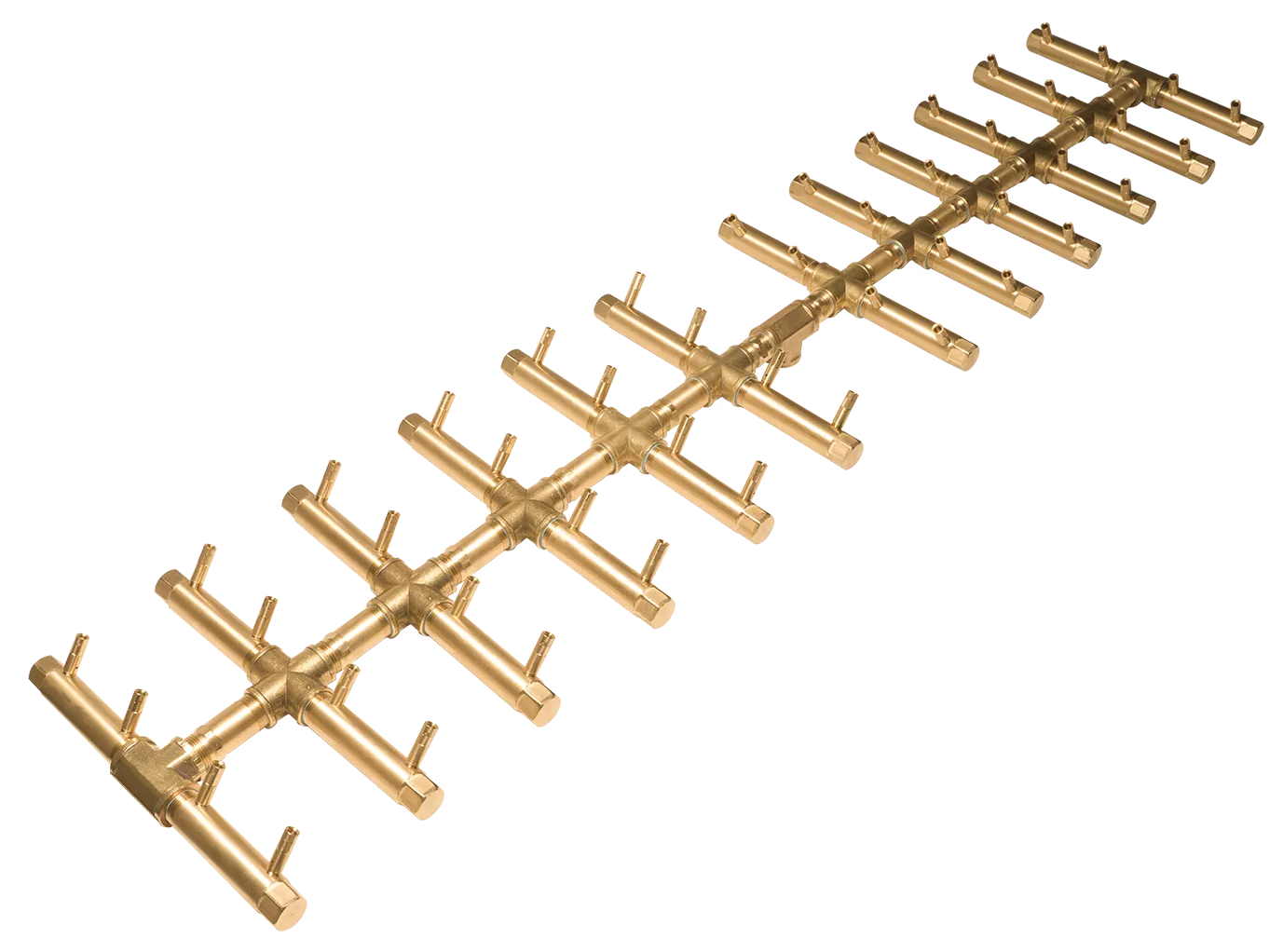

The Double Tree-Style Crossfire Burner comes in a variety of sizes, ranging from a 160K BTU, 15.75x11.25-inch burner to a 480K BTU, 53x11.5-inch model, offering excellent versatility for your fire pit setup.

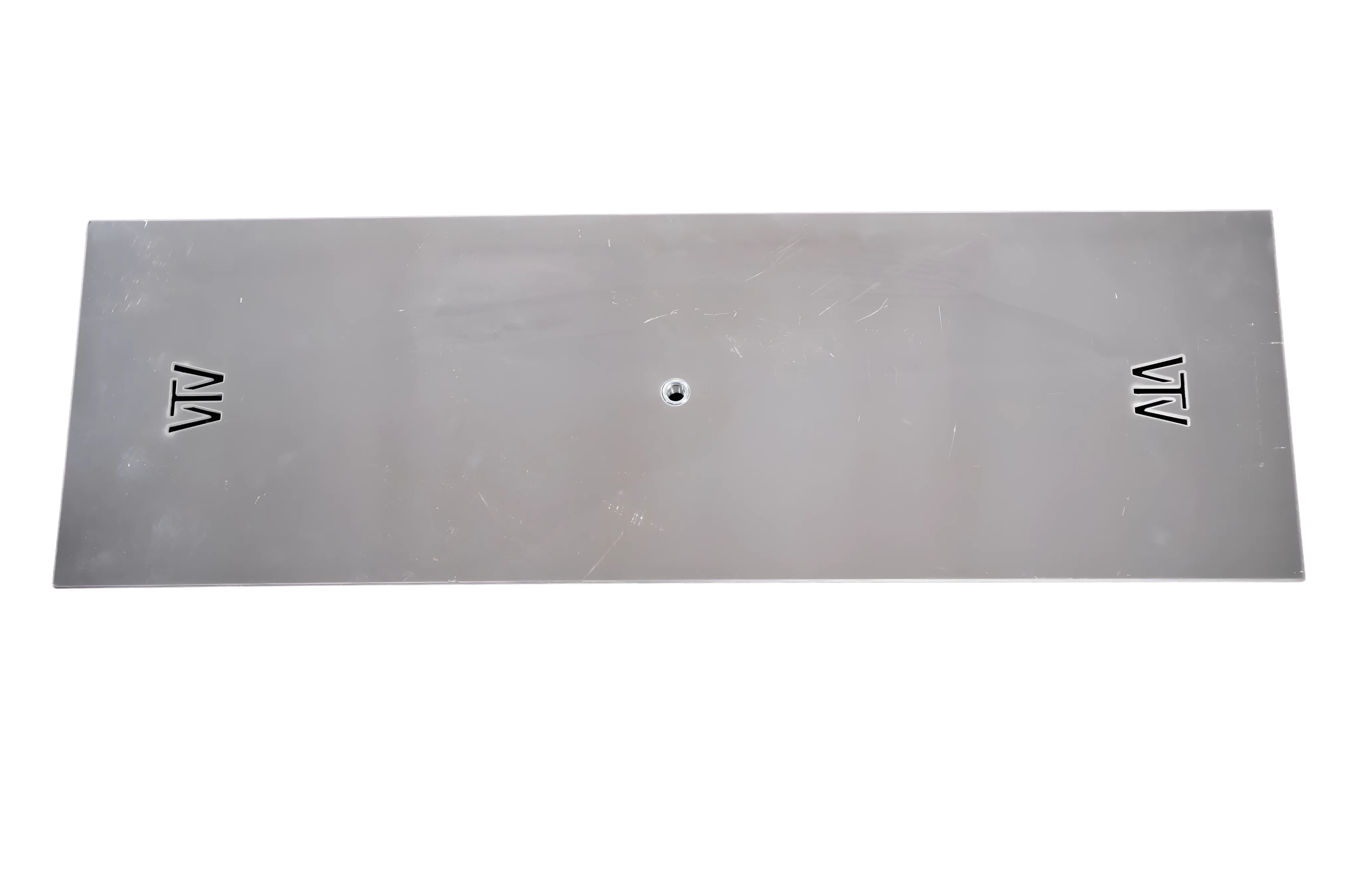

2. Plate Or Pan
Available in square and circular shapes, our plates and pans are crafted from high-quality tempered aluminum. They feature carefully cut weep holes for proper drainage and are available in either 1/8" or 3/16” thickness. Each plate or pan comes with a central gas inlet opening. The size you choose will depend on your fire pit’s opening.

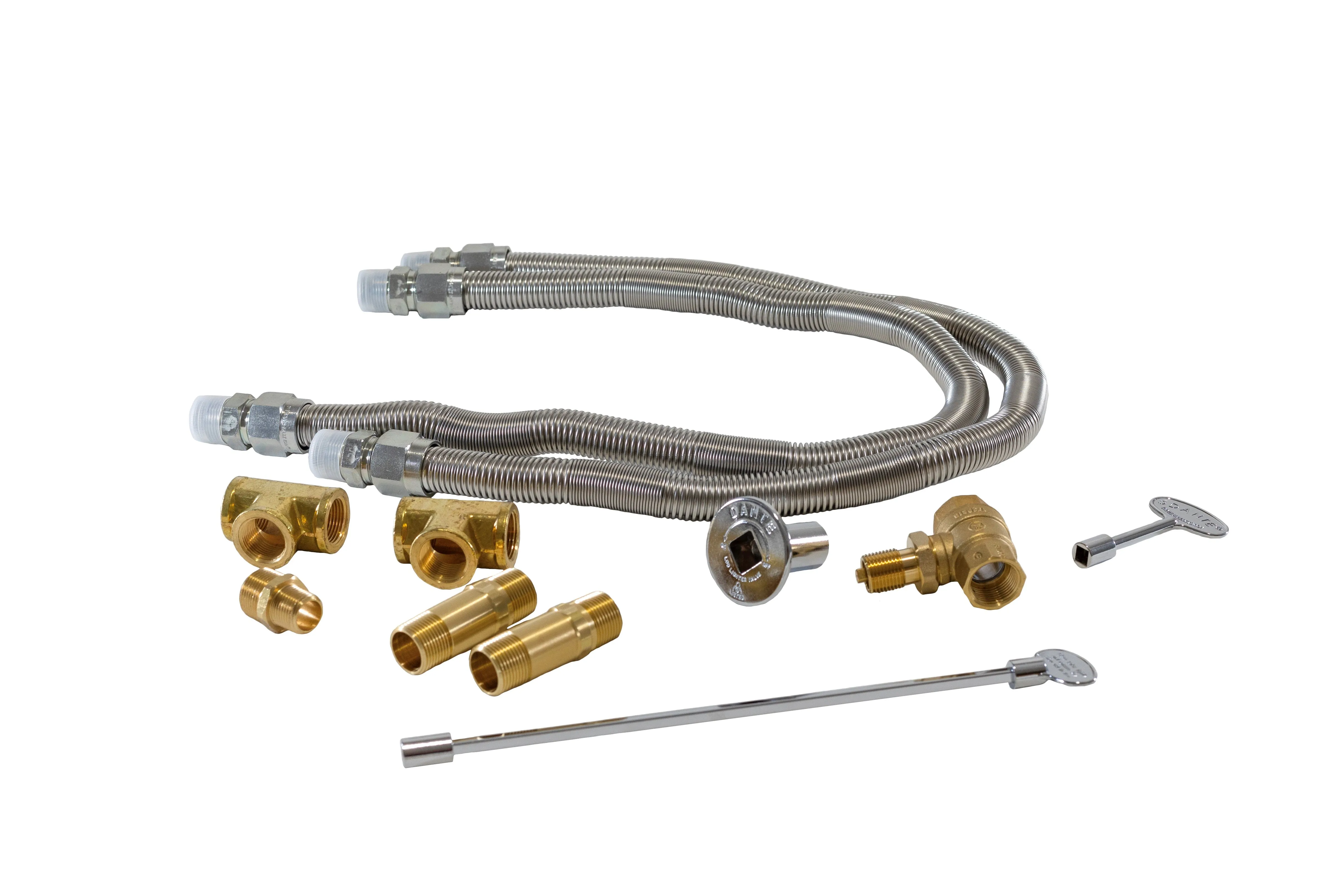

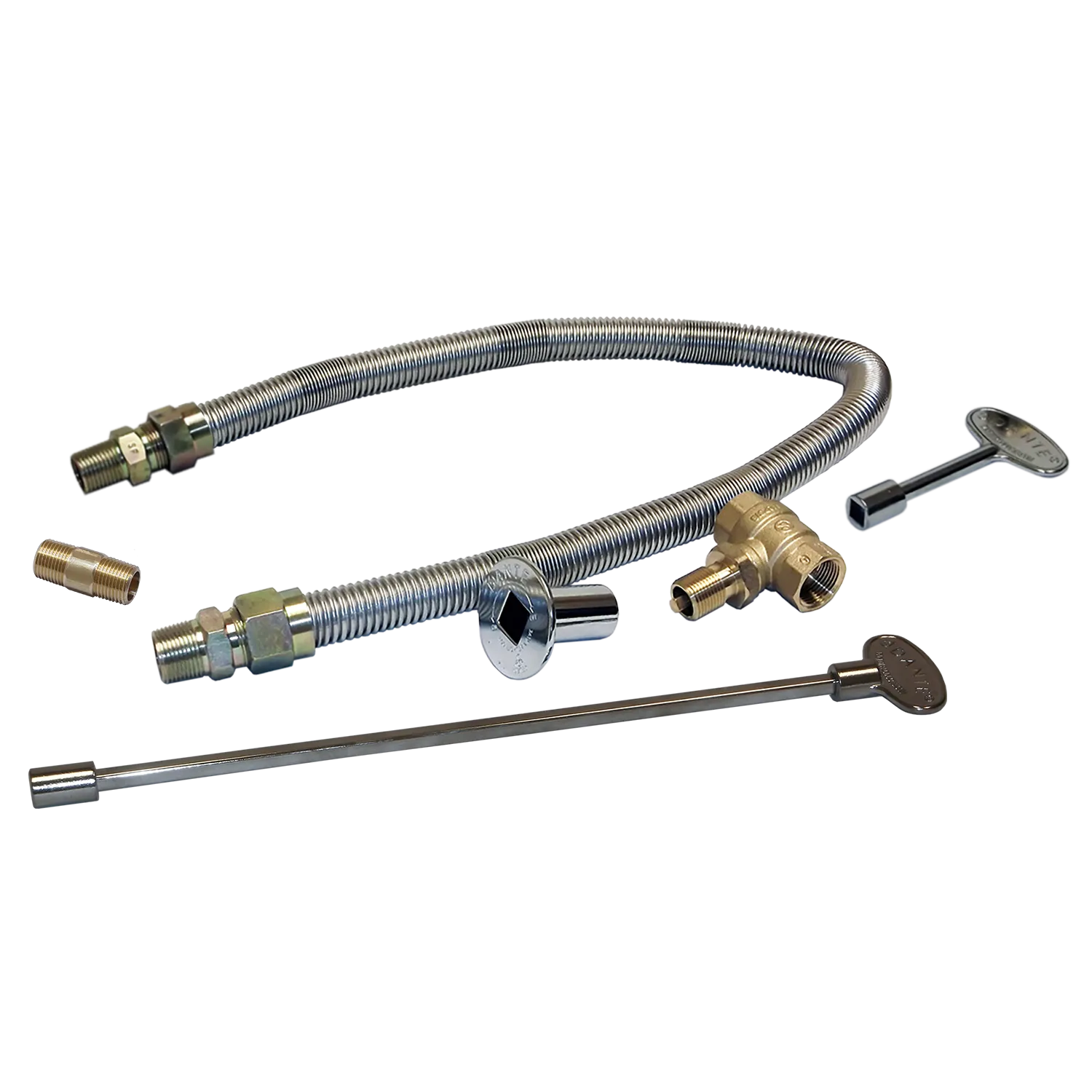

3. Flex Line & Key Valve Kit
Choose between two Flex Line & Key Valve Kit options based on your burner’s BTU rating:

• FK1: For burners up to 249K BTU
• FK2: For burners above 249K BTU

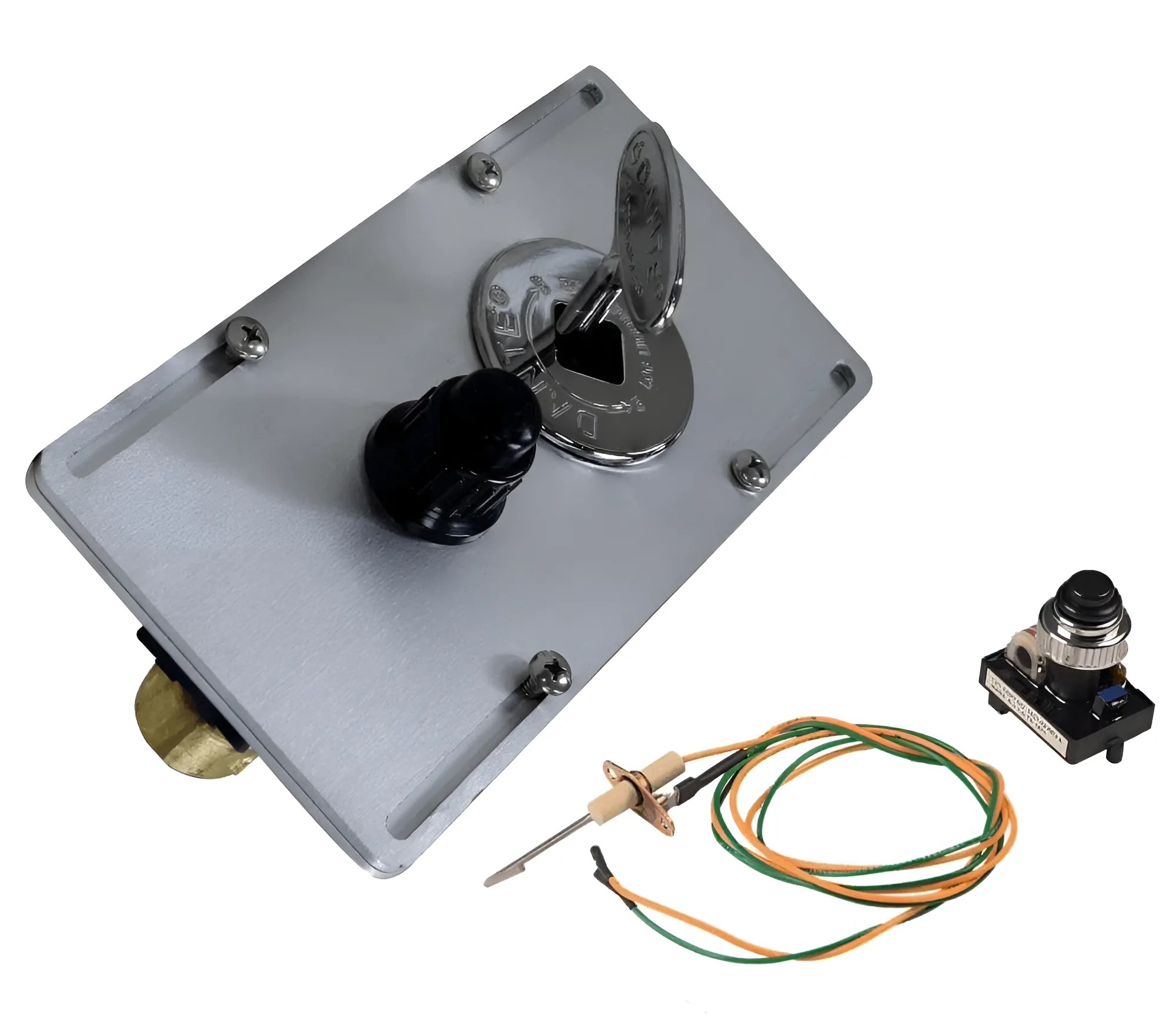

4. Ignition Type
There are four primary ignition system options:

• Match Light Ignition: The simplest option, where you open the gas valve and light the burner with a lighter or long match. This is the default setting for your fire pit.

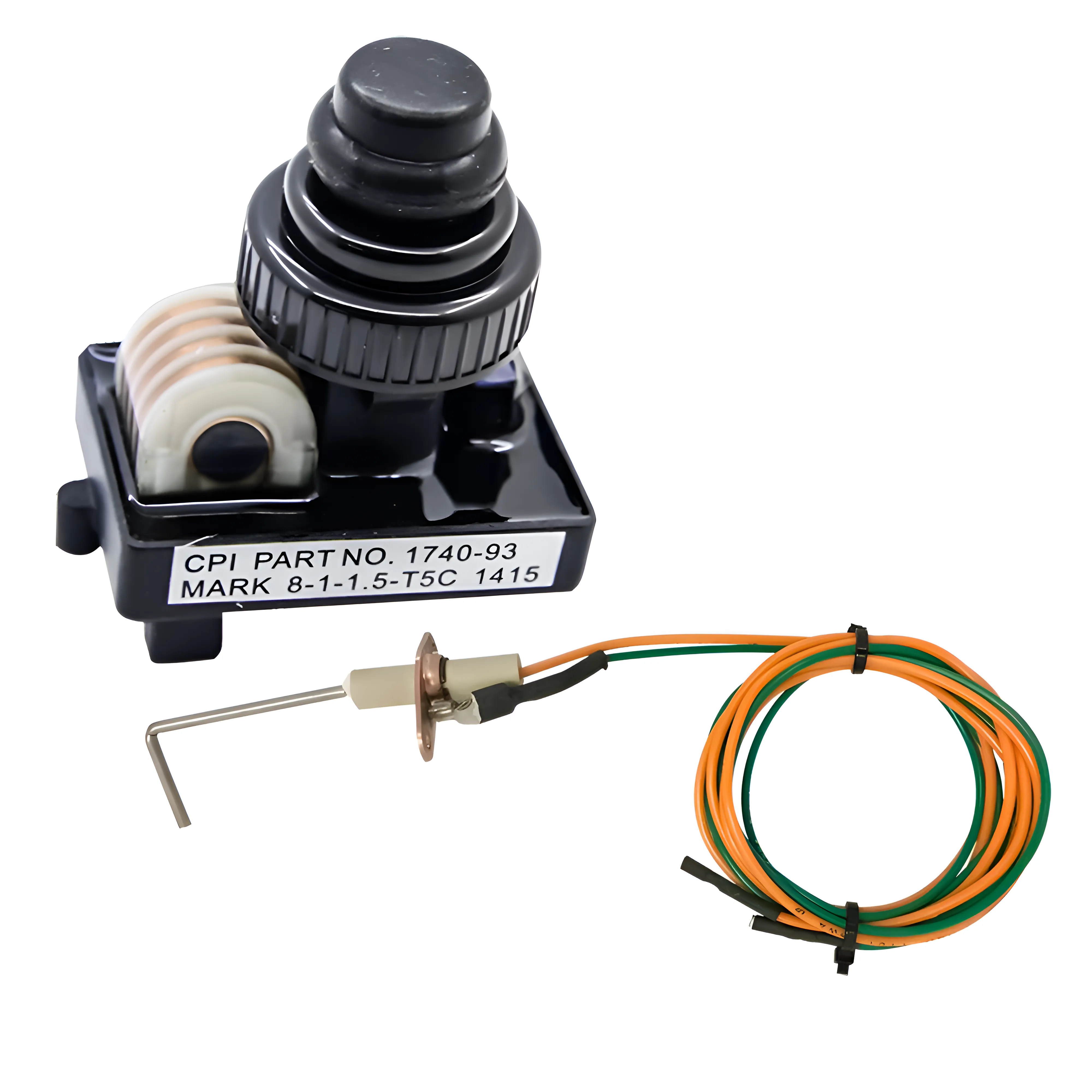

• Push Button Spark Ignition: Similar to igniting a grill, you open the gas valve and press the button to ignite the burner. This system is perfect if you want to avoid using a match or lighter.

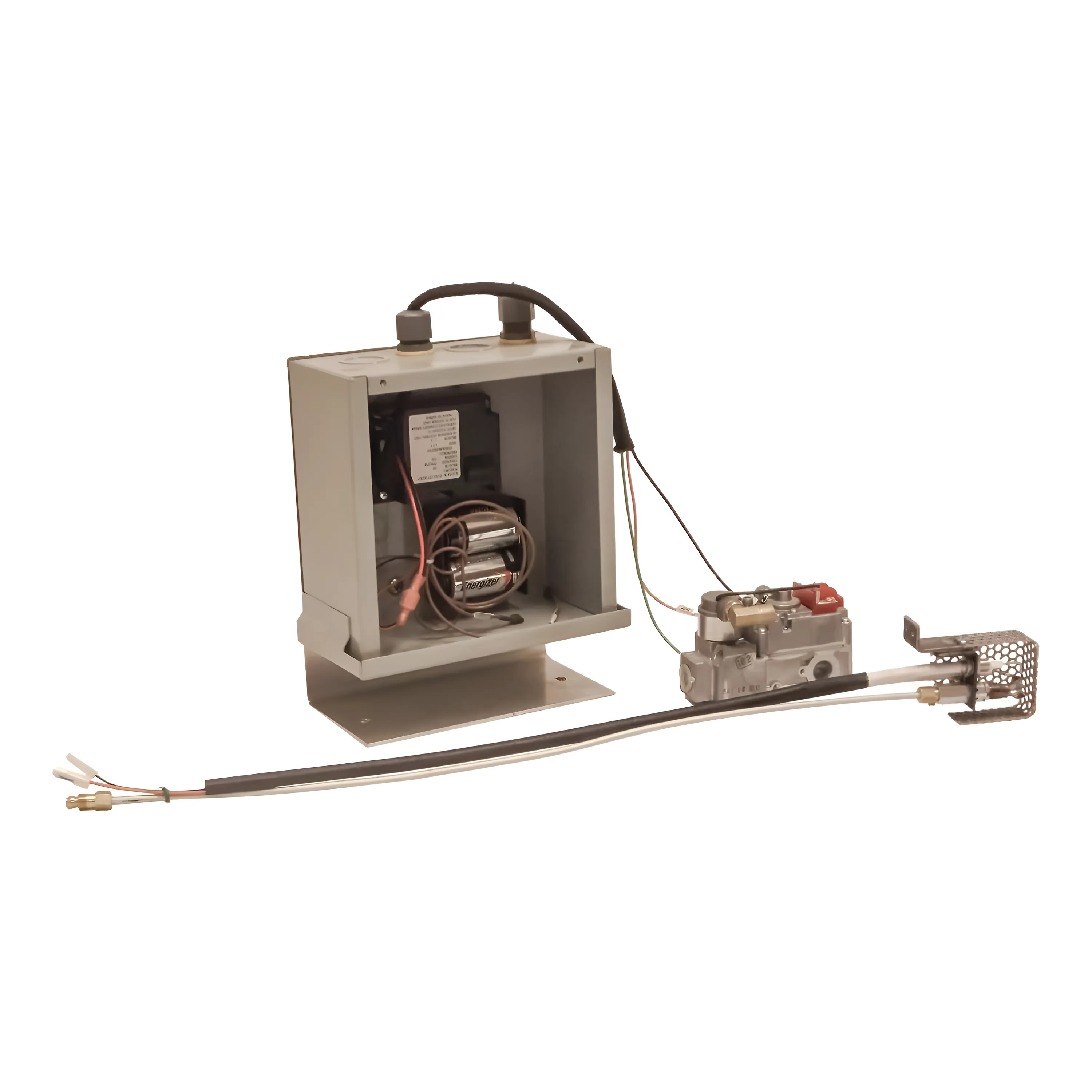

• Push Button Spark Ignition with Flame Sense: This system includes a Flame Sensing Sensor that automatically shuts off the gas if the flame is extinguished unexpectedly. No external power is required.

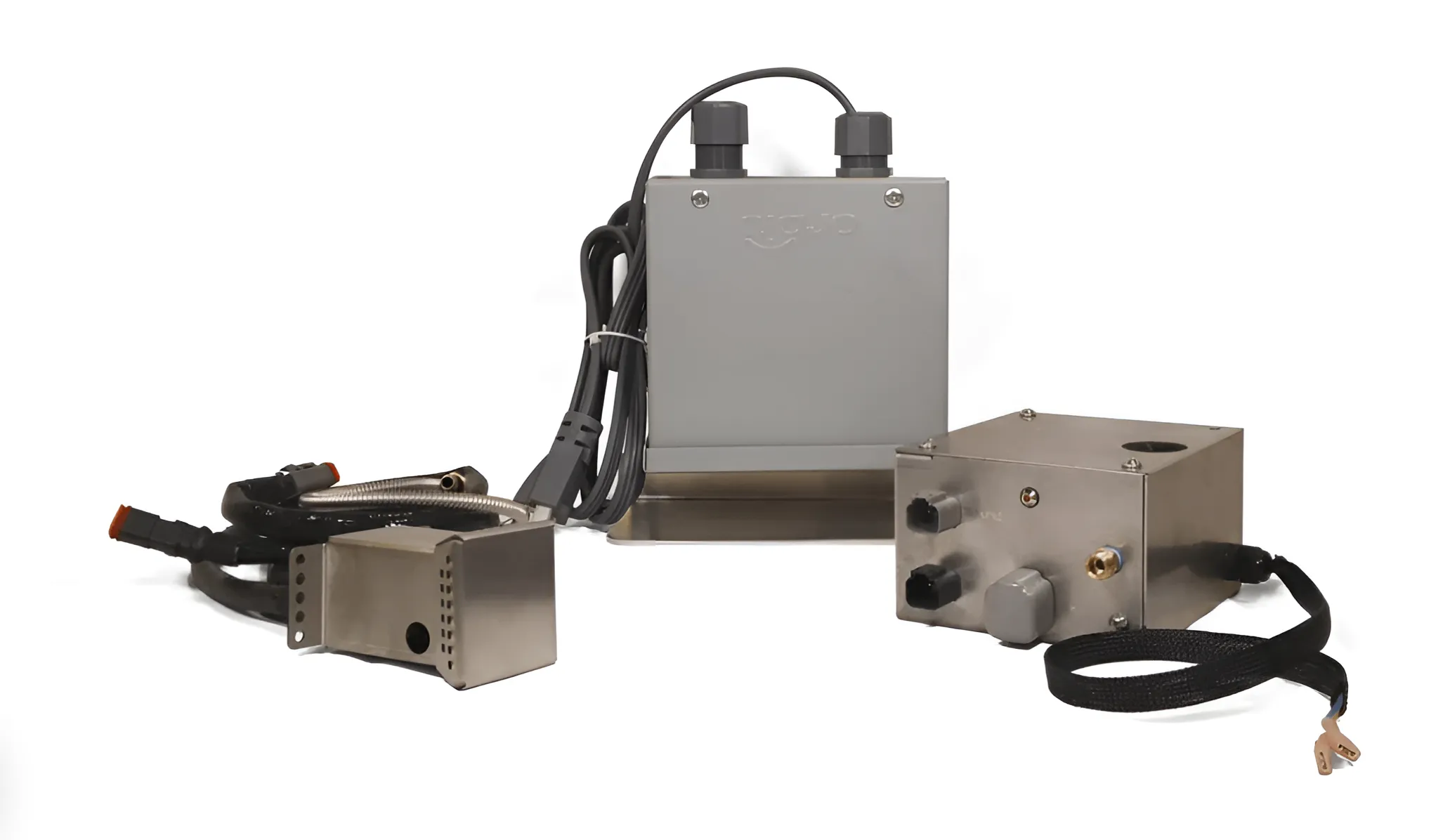

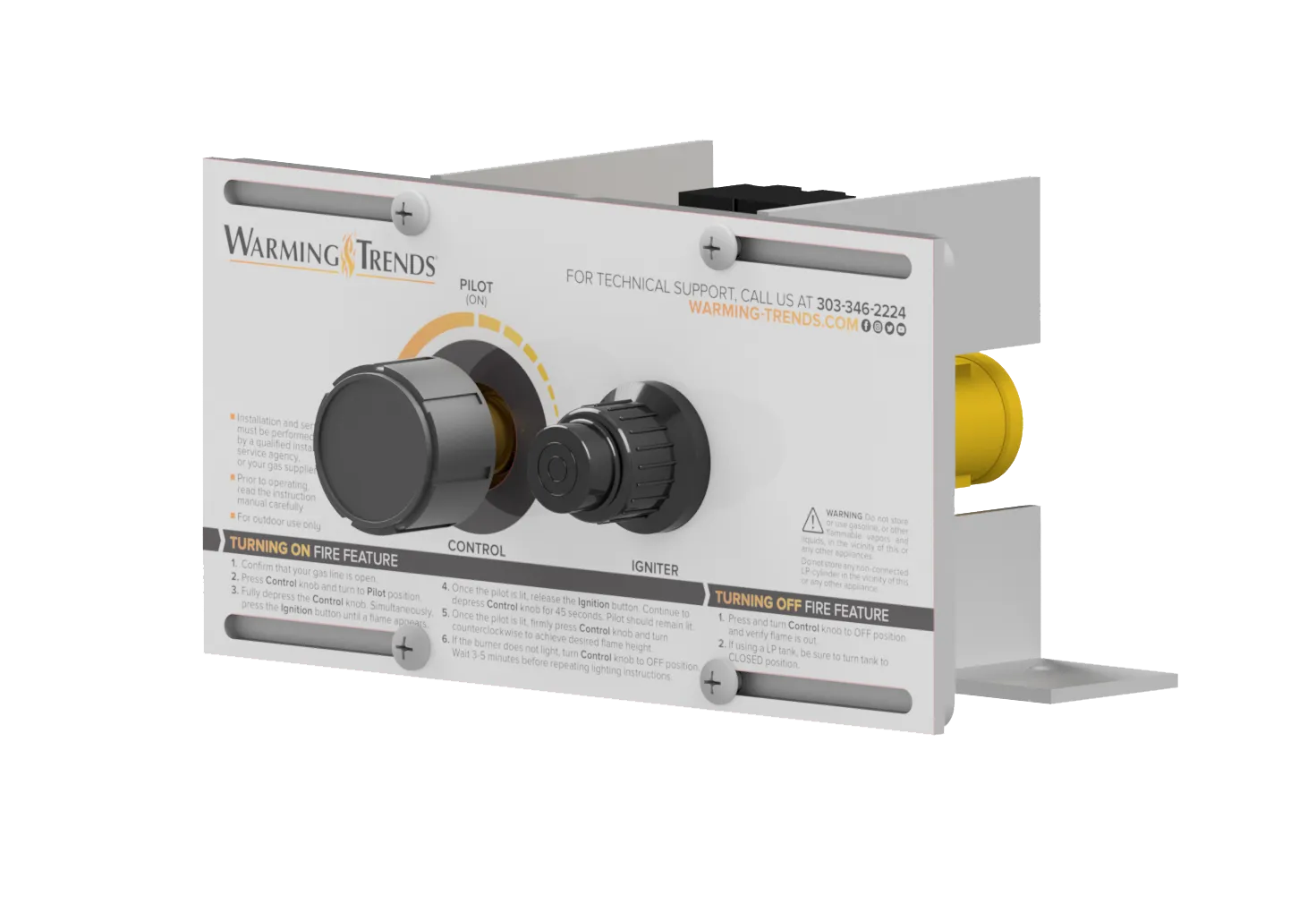

• Electronic Ignition: The top-tier ignition system, allowing you to turn your fire pit on or off with the push of a button. It also features a flame-sensing safety function. Depending on the BTU of your burner, you may need to connect this system to an external power source.

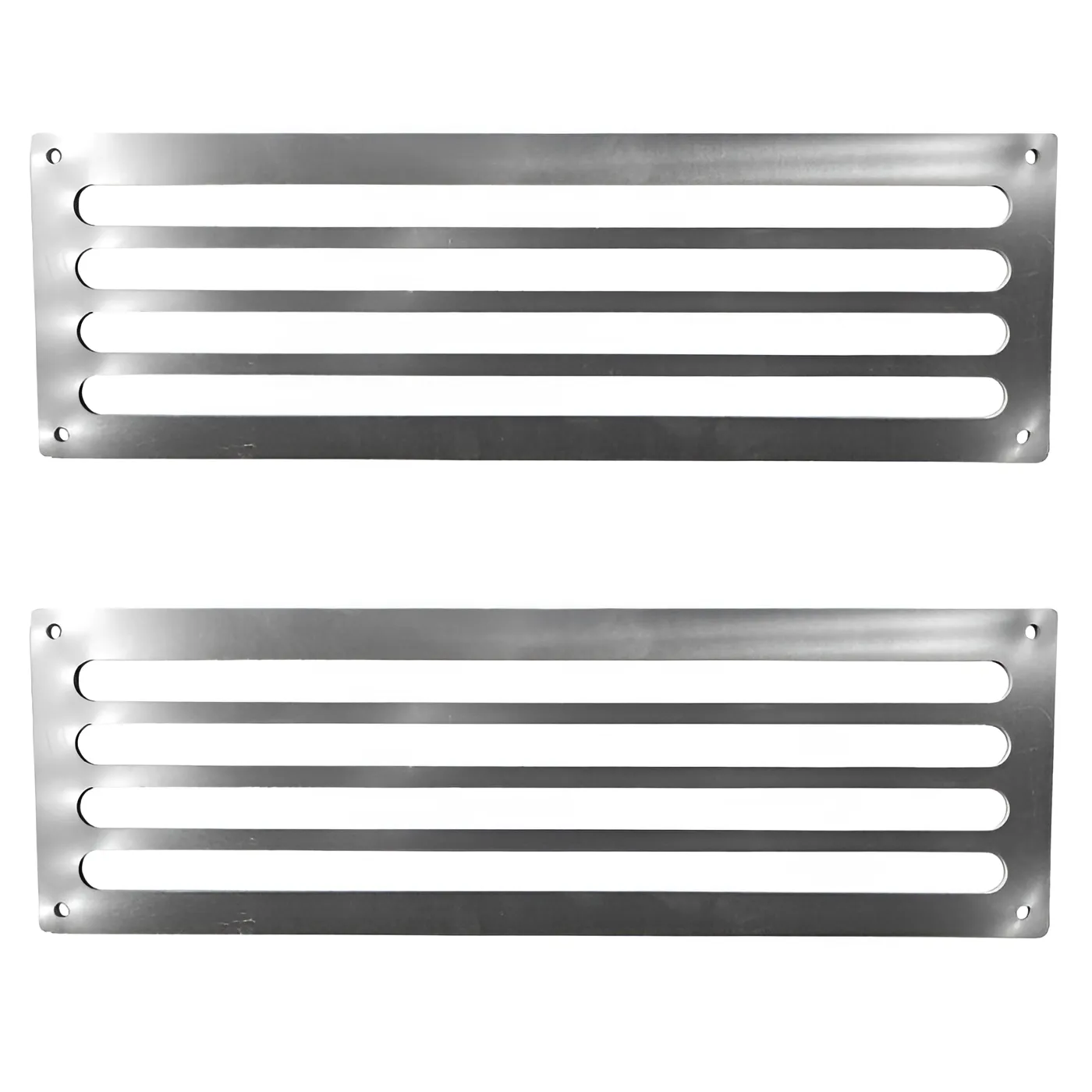

5. Venting
While not mandatory, two 18 square-inch vents on opposite sides are recommended for proper cross ventilation. Though 18 square inches isn't a strict requirement, some form of venting is essential for optimal performance.

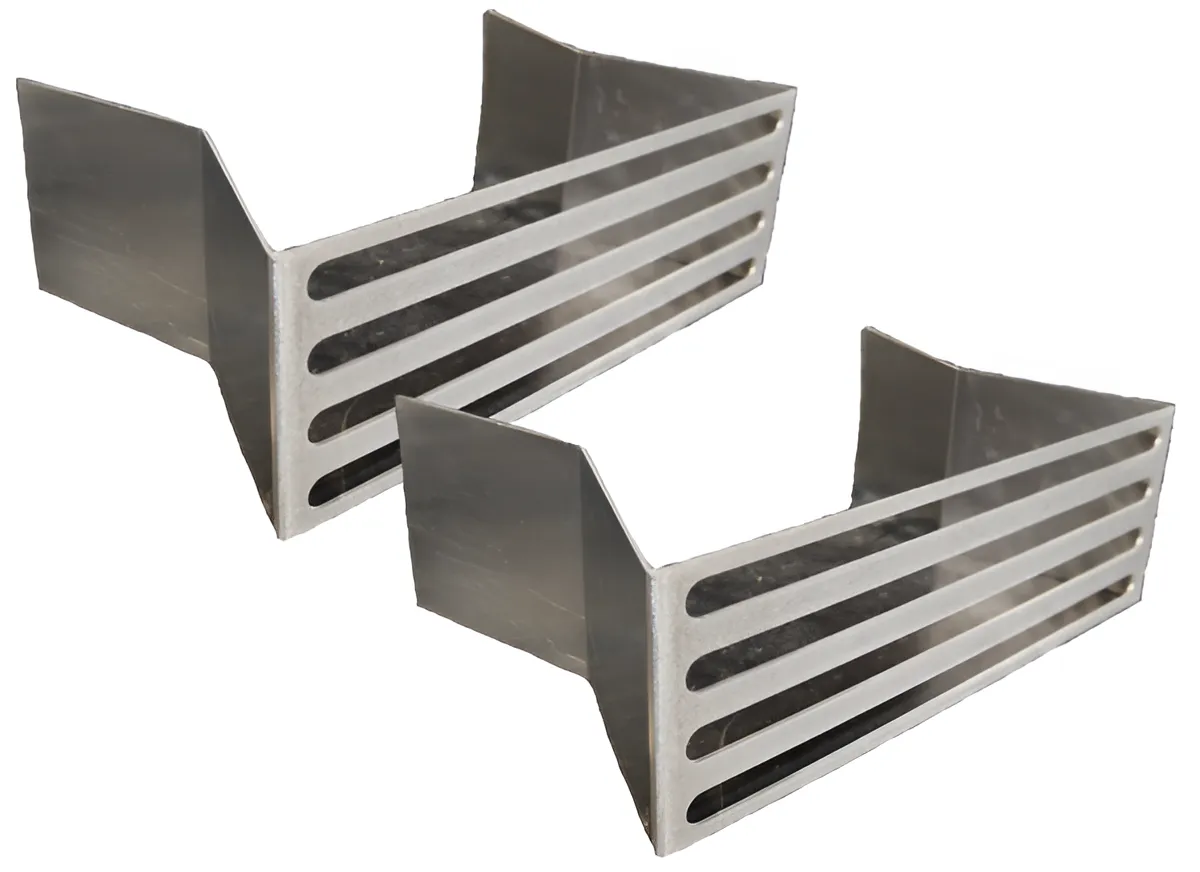

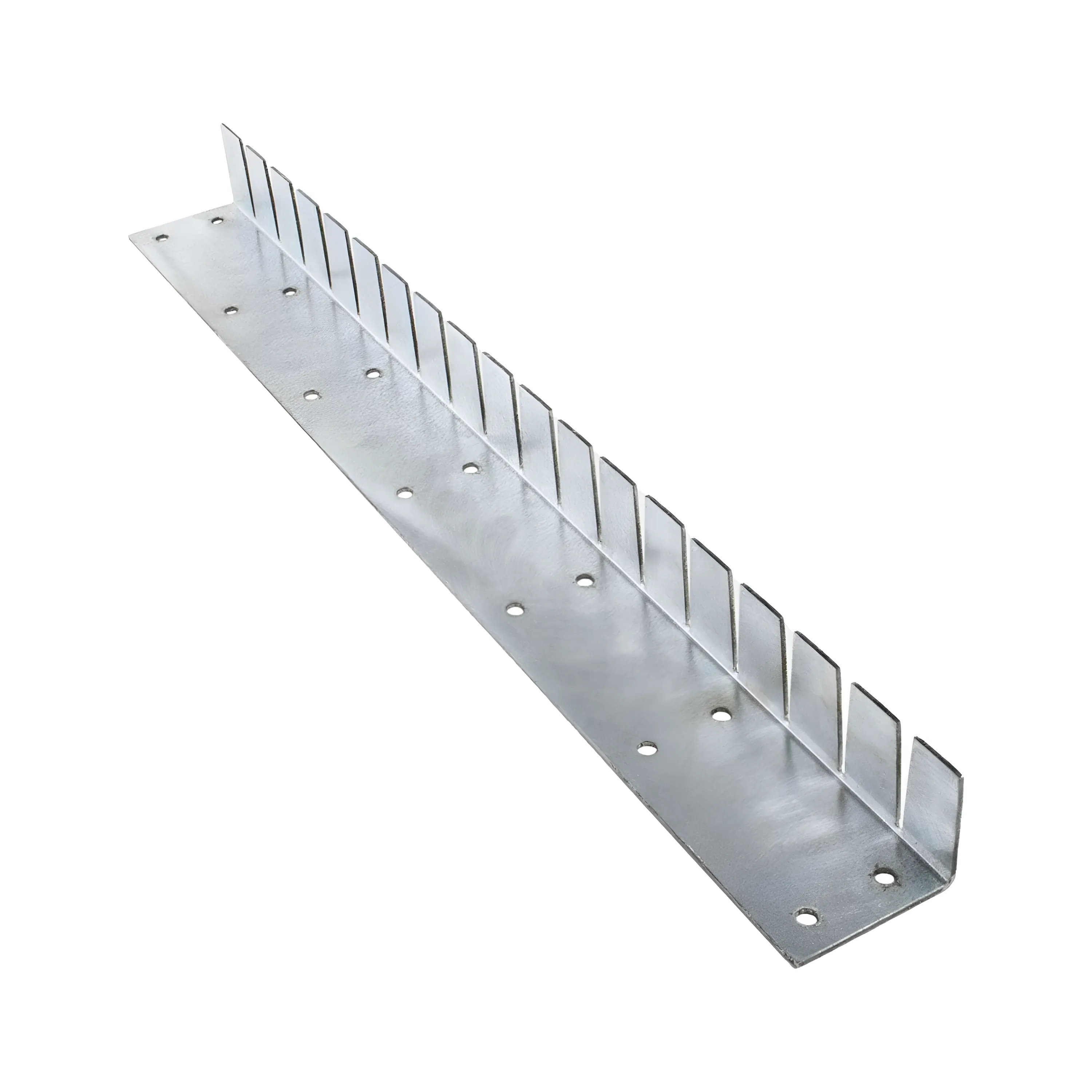

6. Installation Collars
The plate sits about 4-5 inches below the top of the fire pit and requires support. Some people use bricks or cinder blocks to hold the plate, but we recommend using support collars. These act as a stable shelf to secure the plate in place.

7. Cover
To protect your fire pit from the elements, we always recommend using a cover. Even a simple tarp can help prevent debris from entering the burner. If you won’t be using the fire pit for an extended period, a cover is especially important. Warming Trends offers durable aluminum covers. For sizing, ensure a 1-inch lip around the fire pit. For example, if your fire pit opening is 32 inches, a 34-inch cover will fit perfectly.

Features

• 100% Brass Construction – Crafted from corrosion-resistant brass for low-maintenance care and lasting quality. No rust, guaranteed!

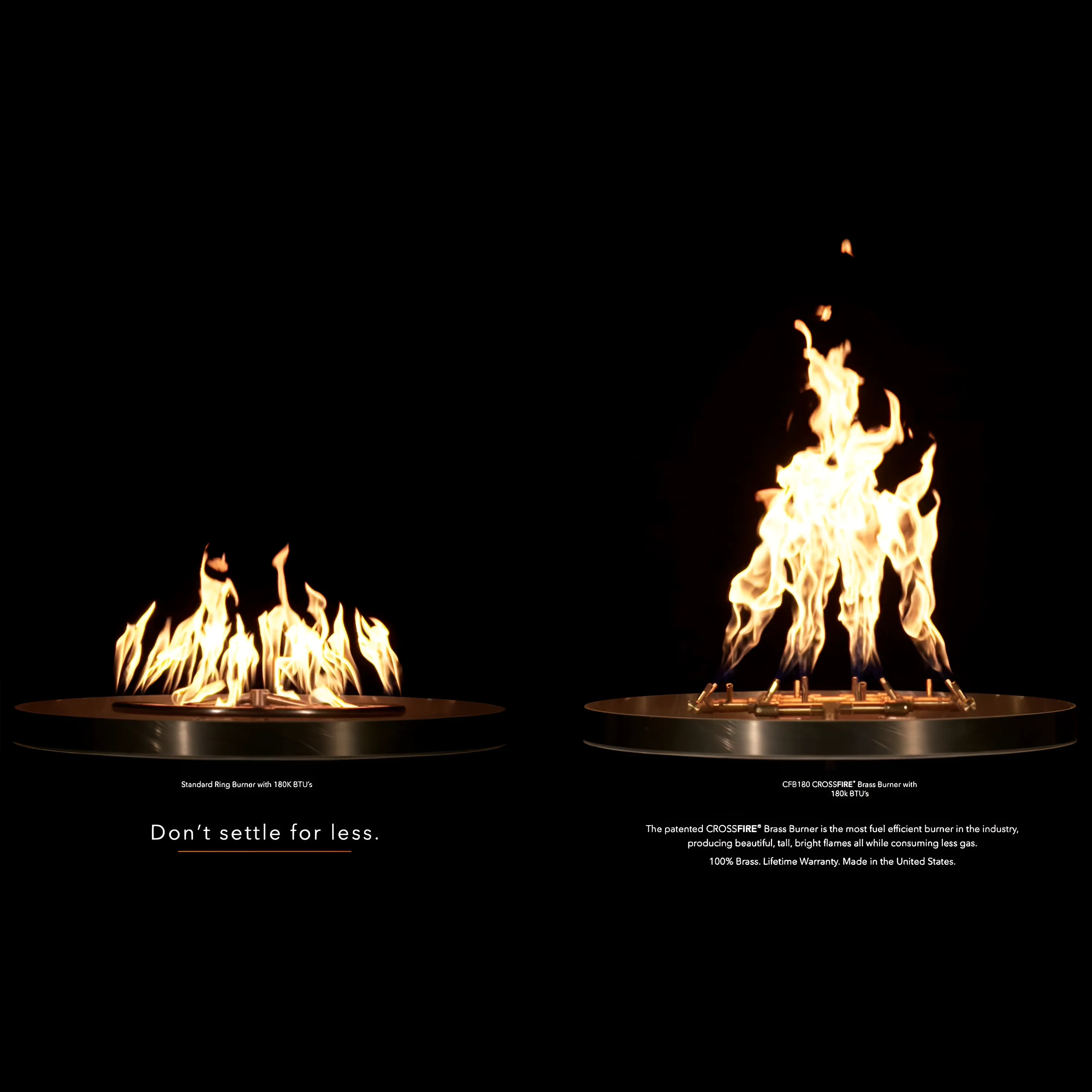

• Crossfire Burner Technology – Patented burner design for taller, brighter, fuller, and more natural flames, offering an innovative solution for your fire feature.
• Compatible with Multiple Fuel Types – Works seamlessly with both natural gas and propane for versatile fuel options.
• Fuel Efficiency – Enjoy a burner that uses half the fuel of conventional burners, providing maximum efficiency with propane or natural gas.
• Full Lifetime Warranty – Backed by Warming Trends' Full Lifetime Warranty, ensuring long-lasting performance and reliability.
• Proudly Made in the USA – 100% designed and manufactured in the United States, guaranteeing a genuine "Made in the USA" product.
• Available in Various BTU Ratings and Sizes – Choose from a range of BTU ratings and dimensions to suit your fire pit needs. See the specification table for details.
• Multiple Style Options – Select from several designs: Original, Octagonal, Tree-style, H-style, and Linear to match your aesthetic.

Specifications

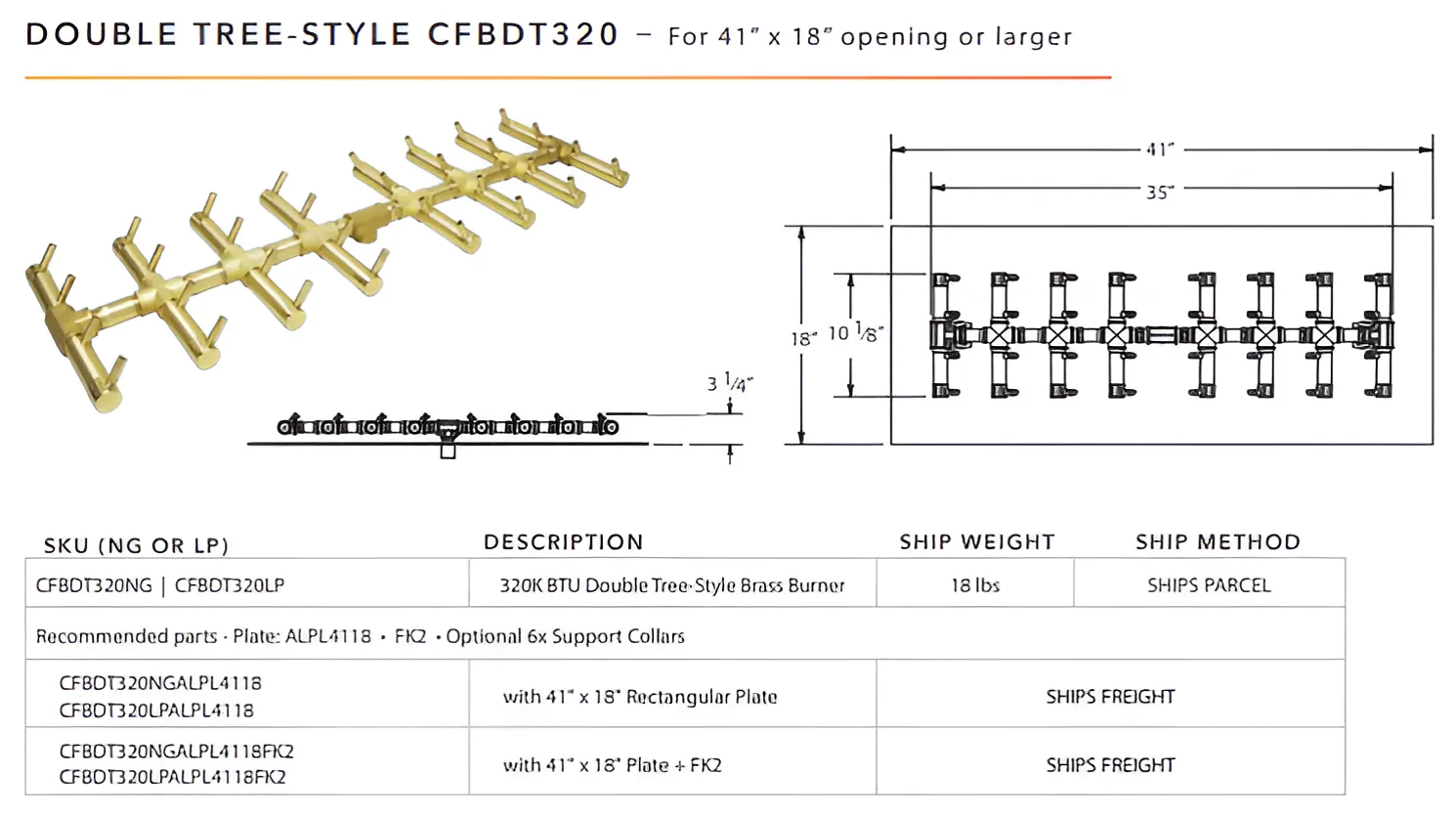

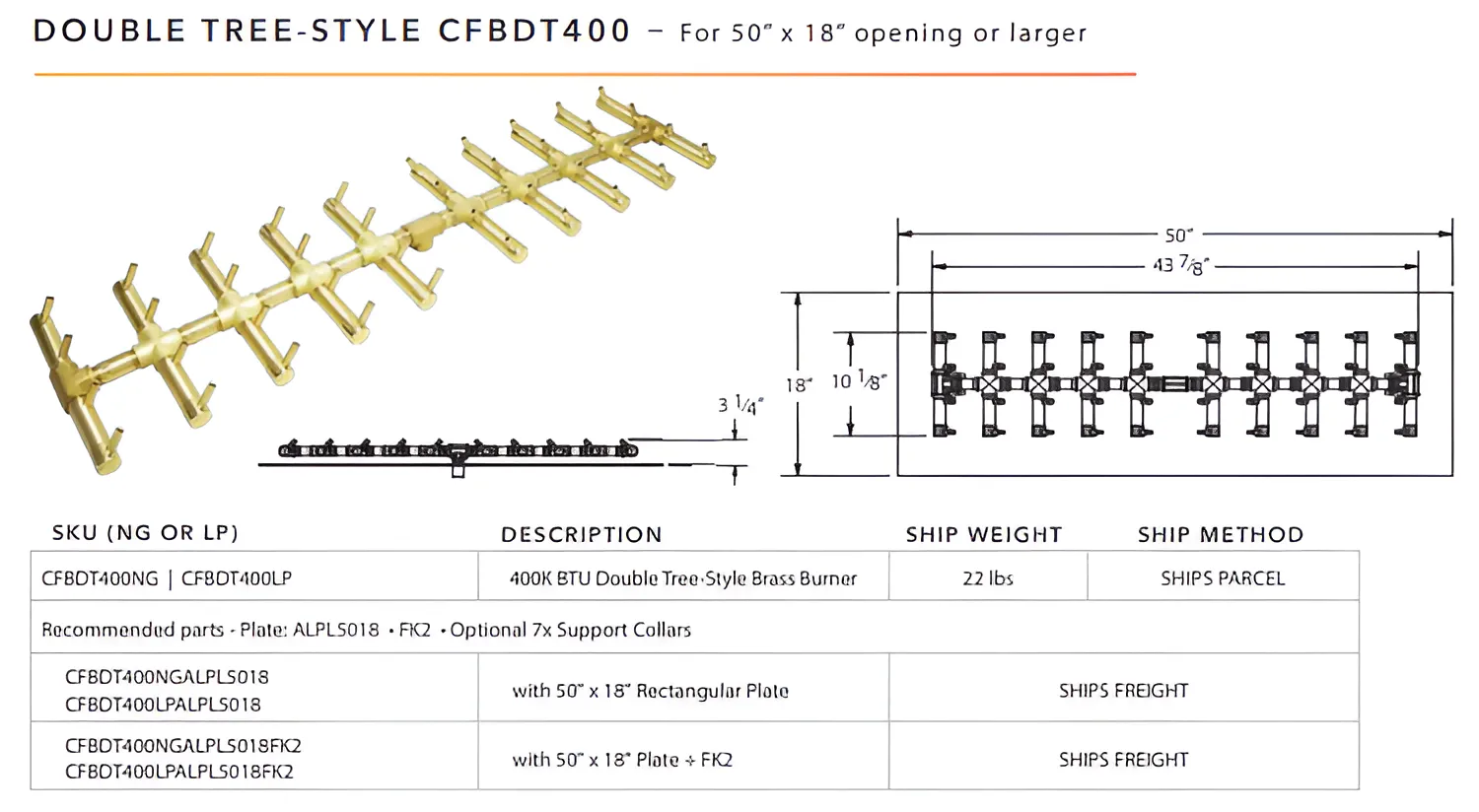

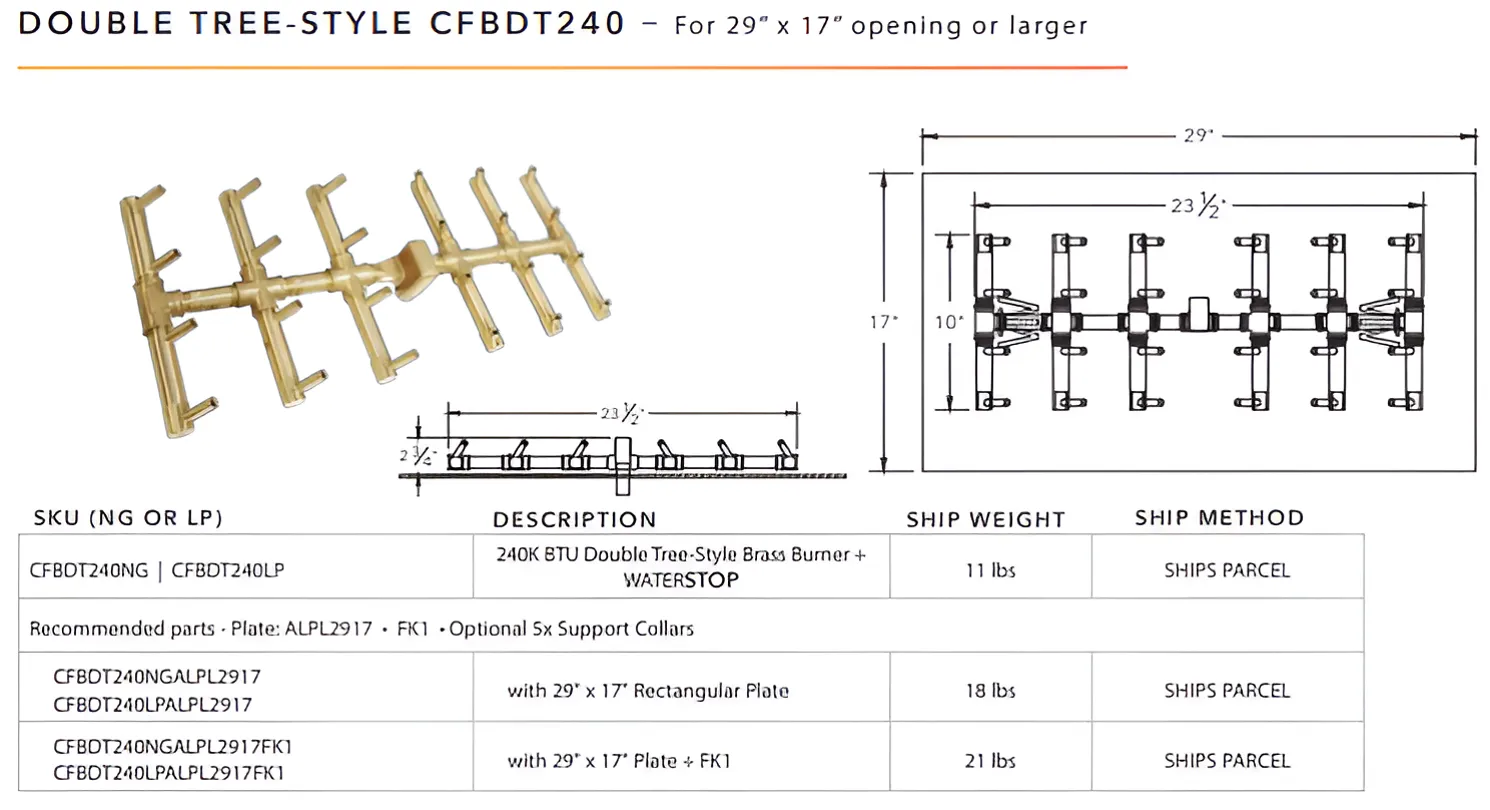

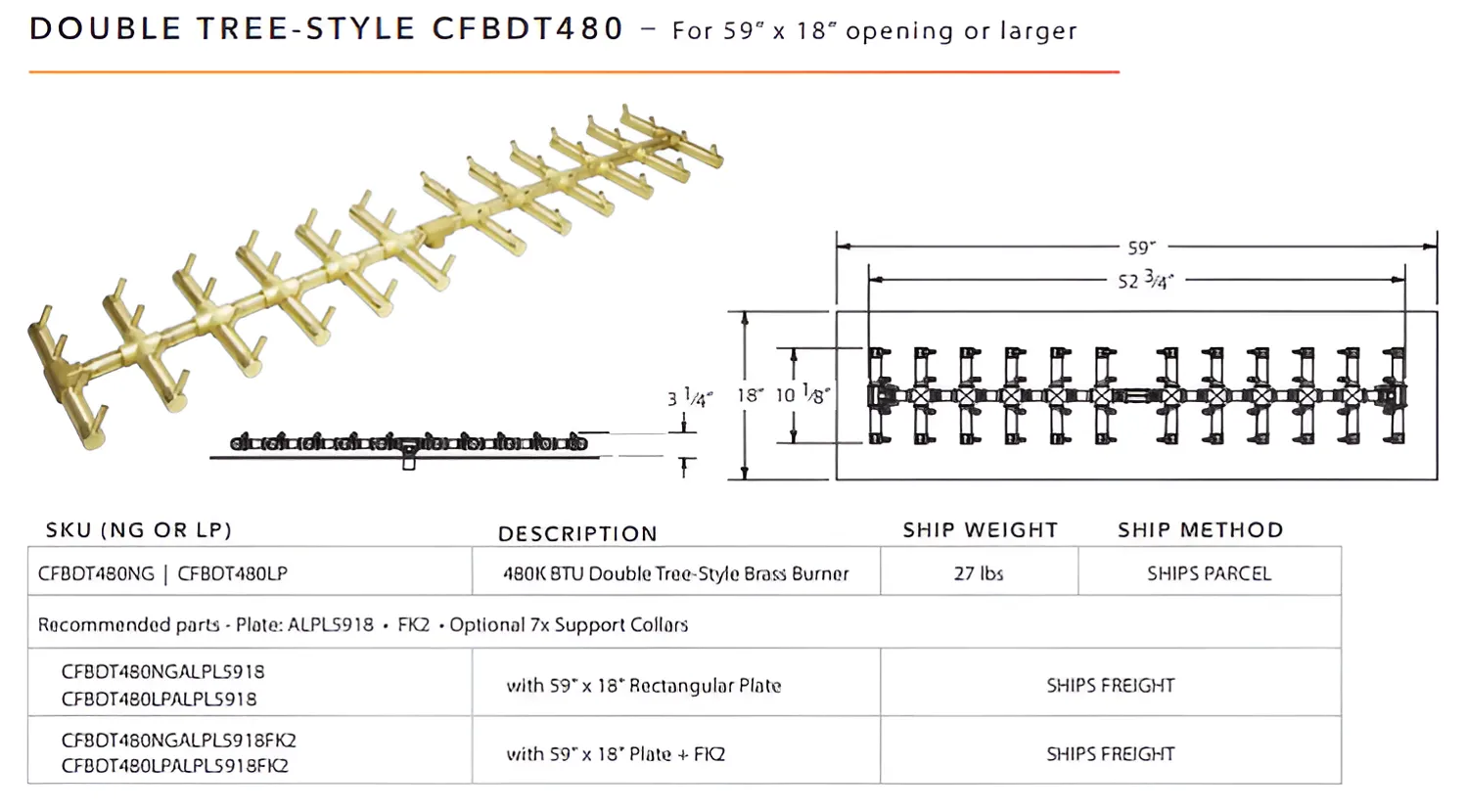

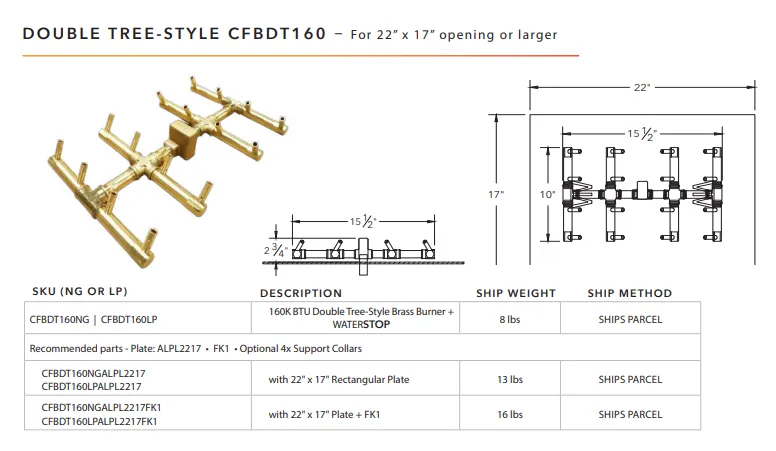

Dimensions

Collar Guide

• The adjustable installation collars can bend for round enclosures and can be anchored in with concrete screws

Note: For square or rectangular enclosures, use enclosure length and width measurements

Lava Rock Guide

Warranty

Warming Trends warrants that each Warming Trends CROSSFIRE and other jetted-flame-brass-burners is free from defects in materials and workmanship and conforms to its specifications, which are available upon request. The warranty period for a Burner is lifetime warranty beginning on the date of purchase. During the Warranty Period, Warming Trends provides repair and exchange services for the Burners, without charge. Labor not included. Please refer to the manufacturer downloads section below for full warranty details.

Manufacture Downloads

• Click Here For Warming Trends Owner's Manual
• Click Here For CFBDT160 Detailed Dimensions
• Click Here For CFBDT240 Detailed Dimensions
• Click Here For CFBDT320 Detailed Dimensions
• Click Here For CFBDT400 Detailed Dimensions
• Click Here For CFBDT480 Detailed Dimensions
• Click Here For Full Warming Trends Burner and Accessories Brochure
• Click Here For Ignition Systems Trifold Brochure
• Click Here For Mercury Ignition Owner's & Instructions Manual
• Click Here For Mercury Ignition Brochure

• Click Here For Mercury Ignition Q & A Manual
• Click Here For Full Platinum Ignition Specification
• Click Here For Mercury Electronic & Clearance Diagram
• Click Here For A Quick Guide Manual
• Click Here For Burner Size Guide Manual
• Click Here For Warming Trends Quick Reference Guide Manual
• Click Here For WATERSTOP Brochure
• Click Here For Warming Trends Warranty
• Click Here For Warming Trends Displays
• Click Here For Warming Trends Brochure
• Click Here For Warming Trends Full Catalog
