Twice the flame, half the gas. No rust or corrosion, made from 100% brass, and backed with a Full Lifetime Warranty!

Complete your fire pit kit system with this Ultimate Crossfire Bundle: Warming Trends Crossfire CFBH H-Style Brass Burner Bundle. A patented and revolutionary burner that will bring the satisfaction of witnessing taller, brighter, fuller, and more natural flames dancing above your fire pit with lesser fuel consumption. Enjoy its unique regulation system while using either propane or natural gas. Available in a range of sizes and BTU ratings, the Crossfire™ burner offers a corrosion-resistant product backed by a full lifetime warranty!

Available in a variety of sizes and BTU ratings, the Crossfire burner ensures exceptional durability, corrosion resistance, and unmatched performance—all backed by the Full Manufacture Lifetime Warranty.

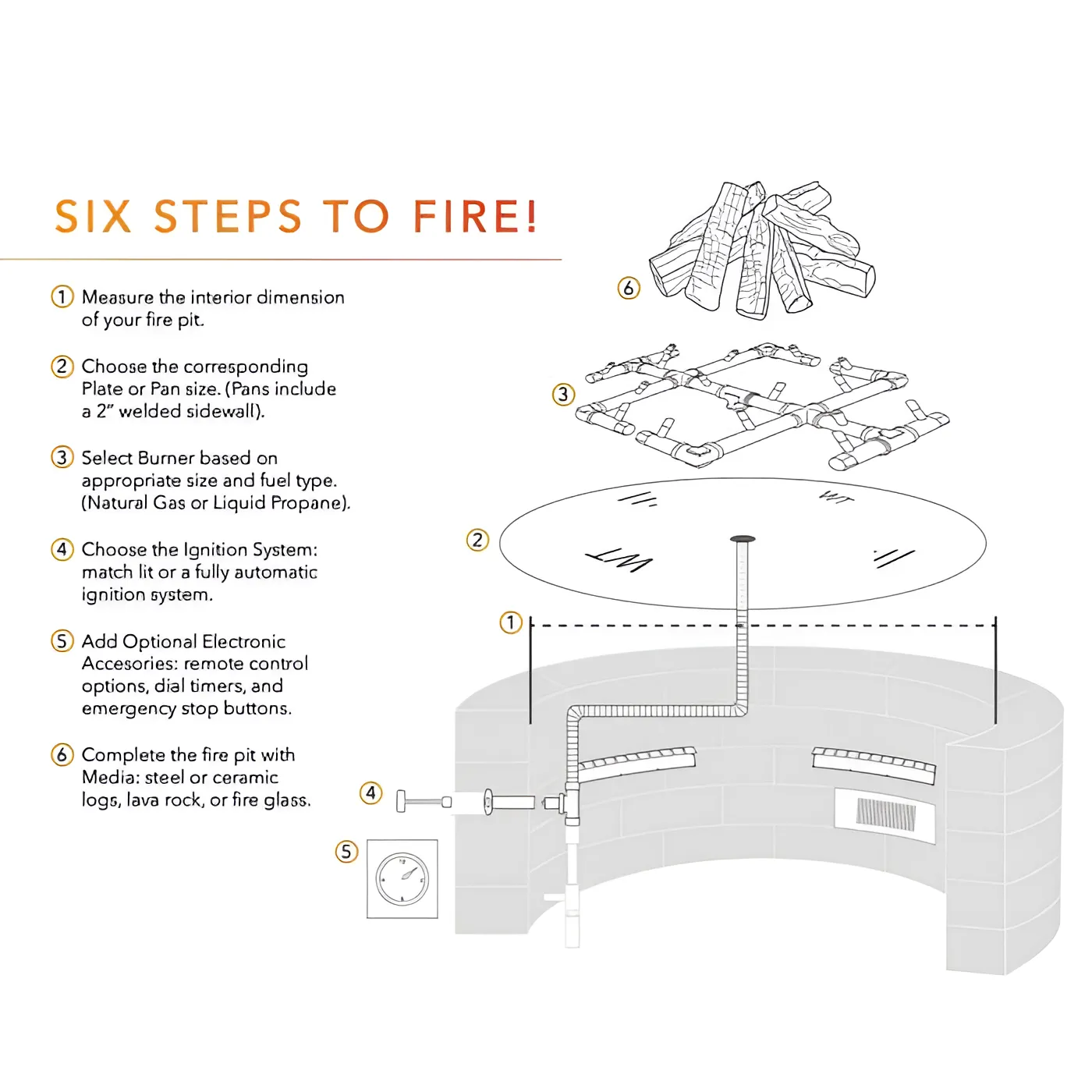

Burner Plate/Pan Size Guide

Need help choosing the right size? Check out our Burner & Plate Size Guide for assistance in finding the perfect fit for your fire pit. Or call/chat for assistance.

FREE Media Options

• Black Lava Rock
• Rolled Lava Rock
• 1/2" Reflective Fire Glass
• 1/2" Fire Glass 2.0 Cubes

• 3/4" Recycled Fire Glass

Note: Use the easy-to-use Media Calculator to help you determine the ideal amount of media needed for your fire feature. Or call/chat for assistance.

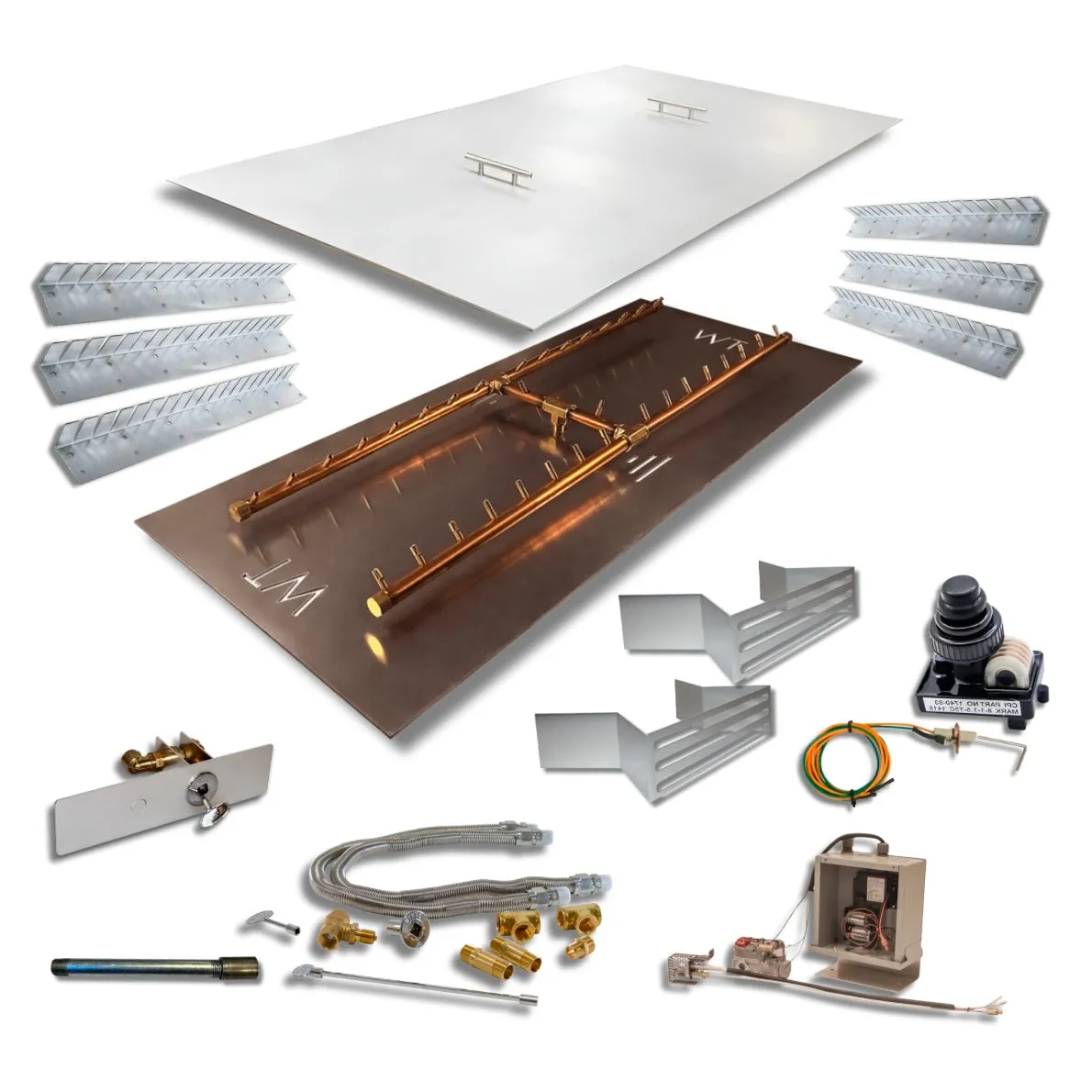

Bundle Item Options

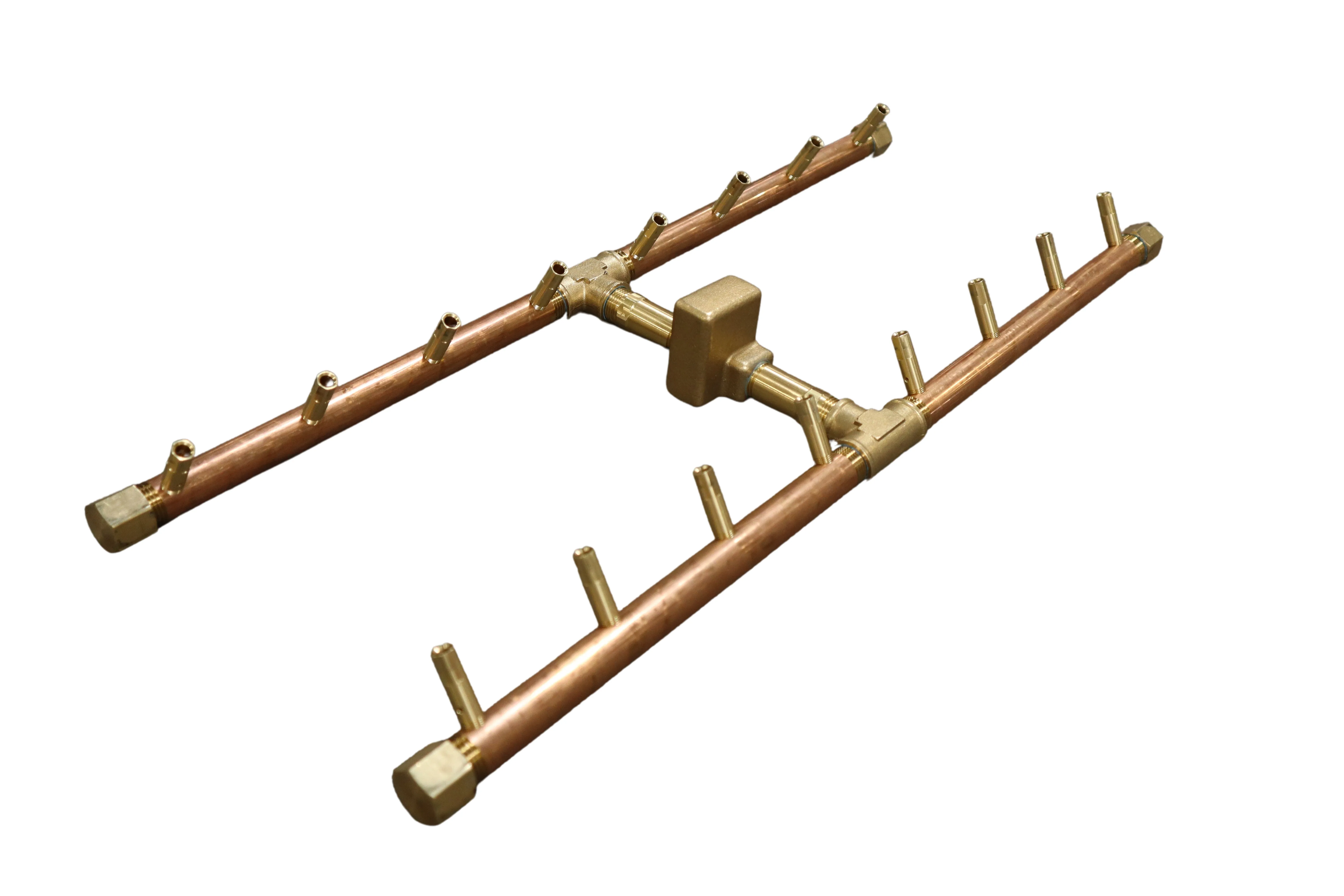

1. Burner

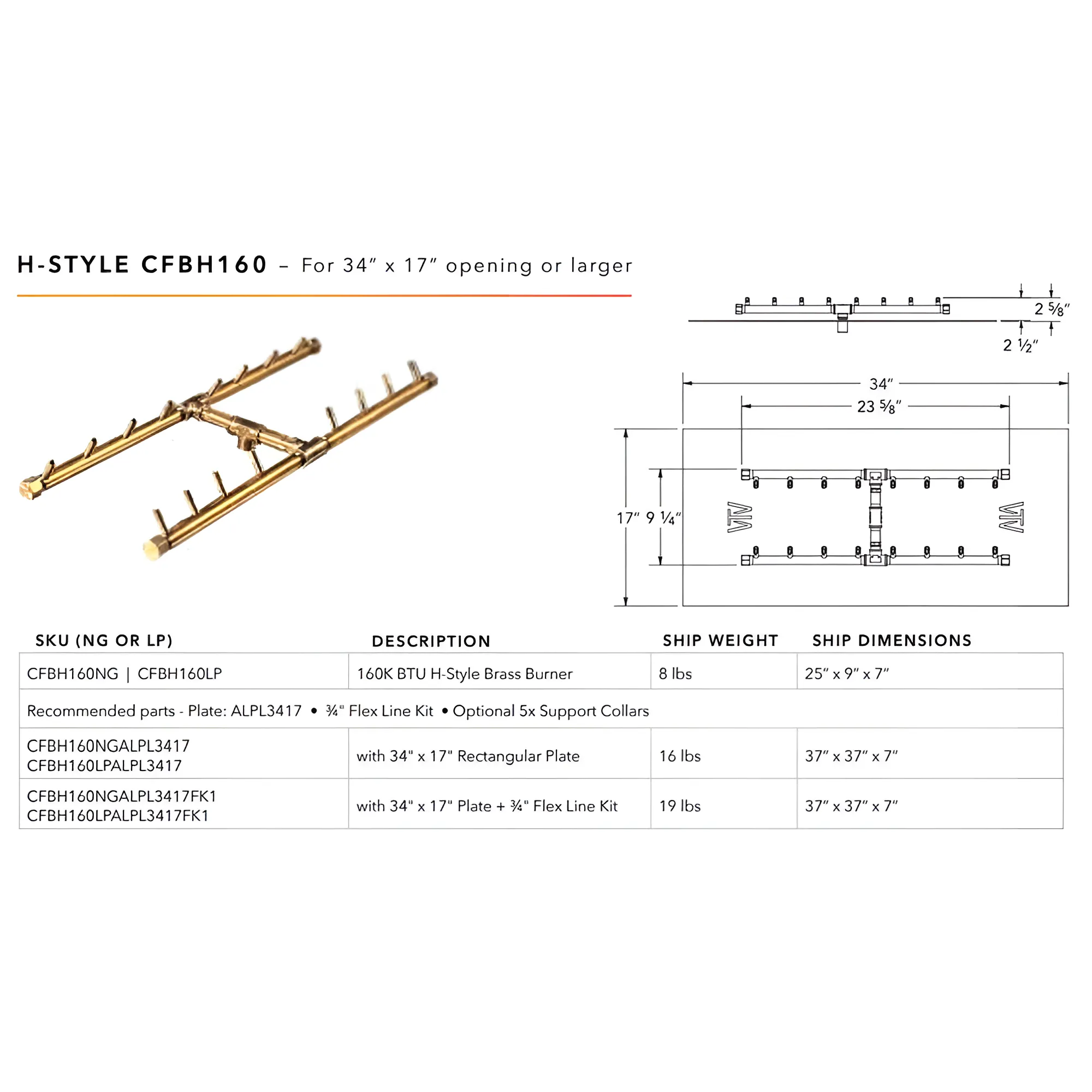

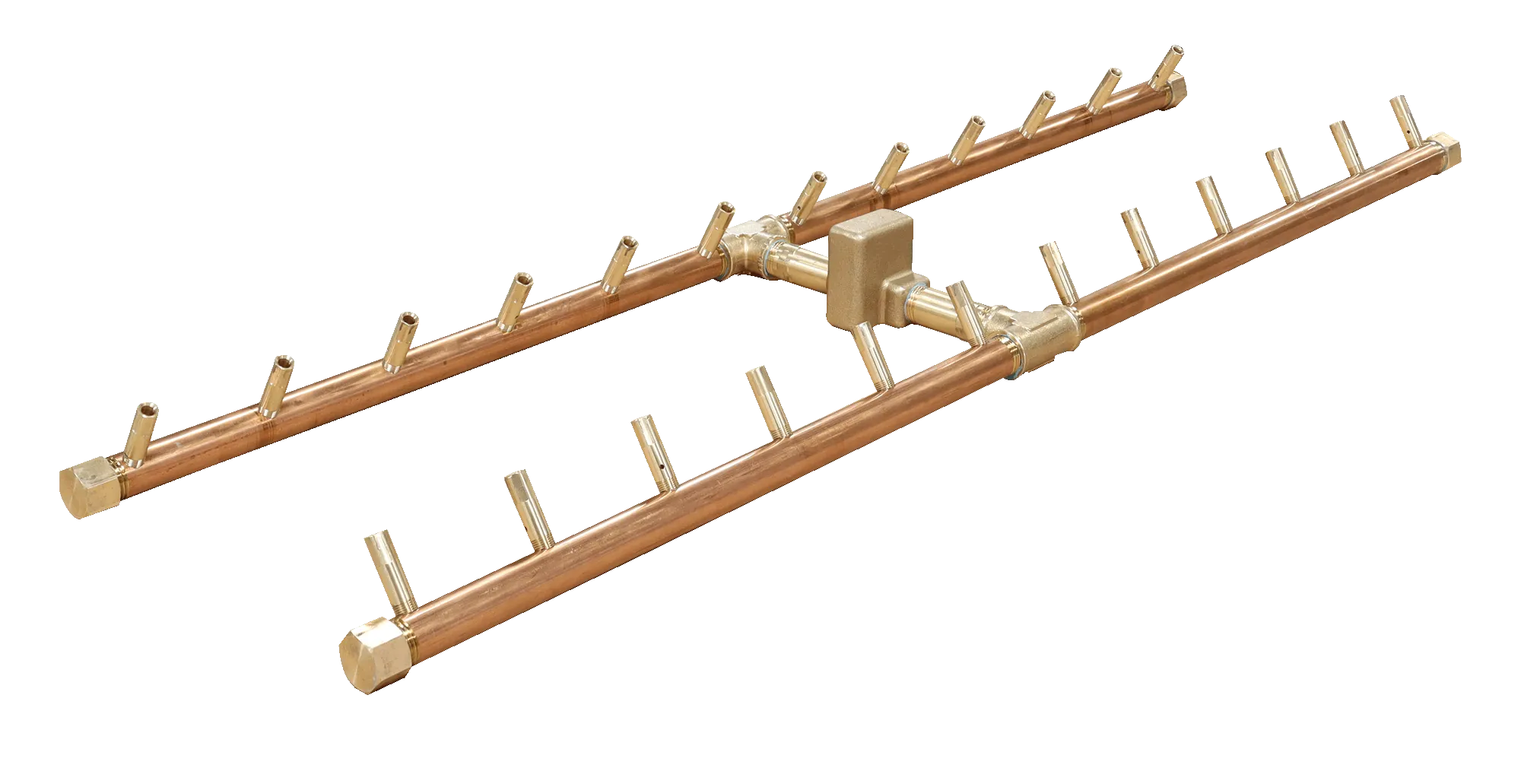

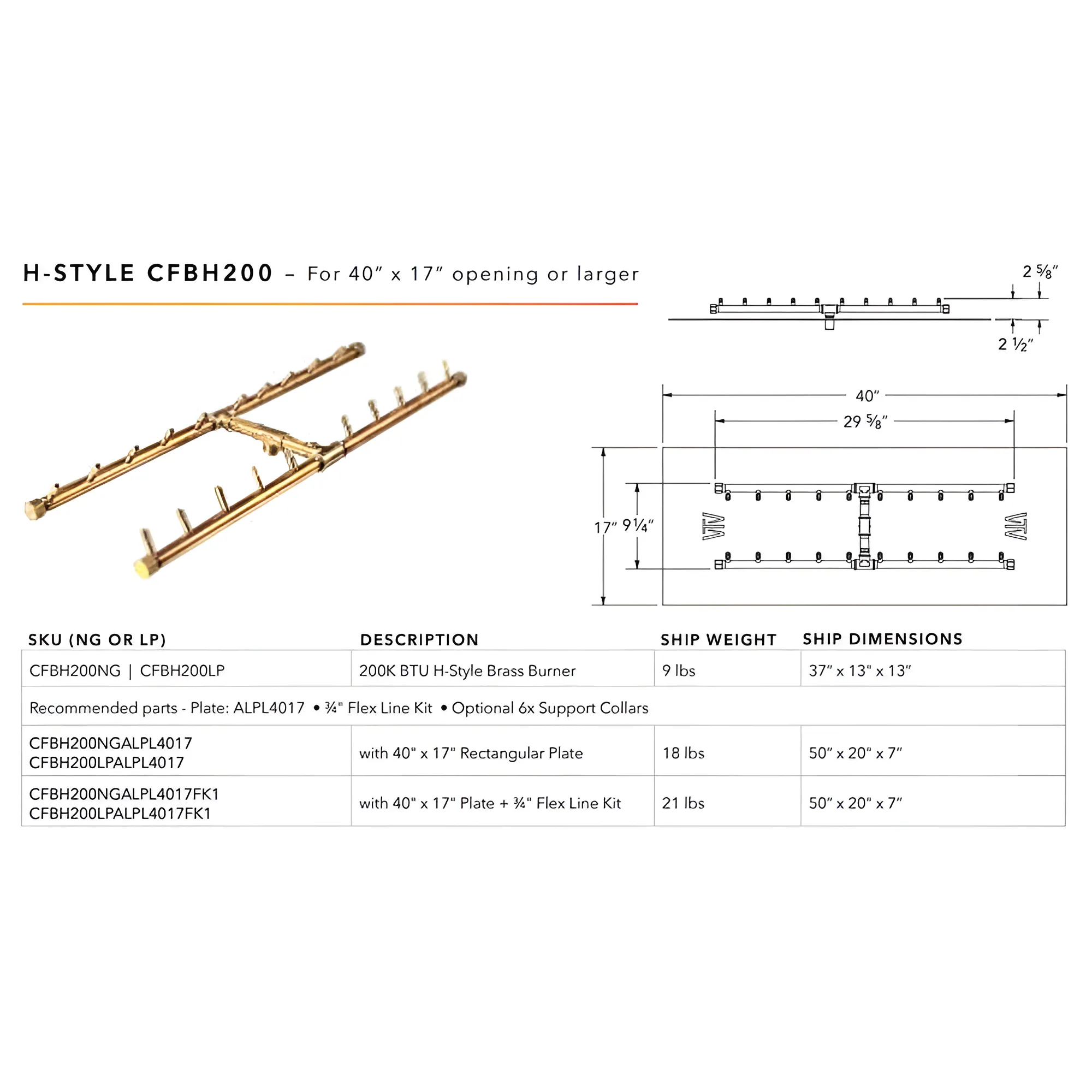

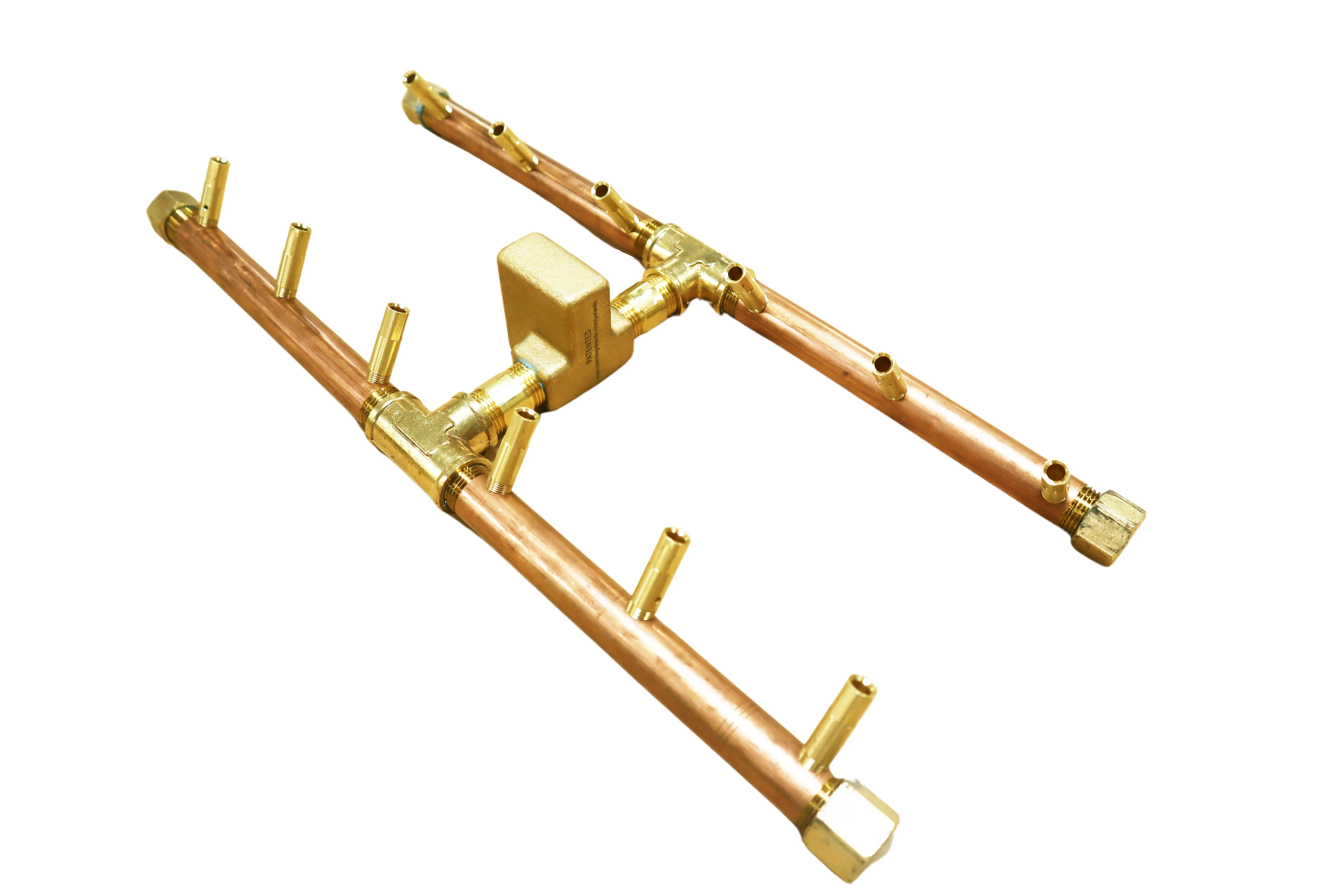

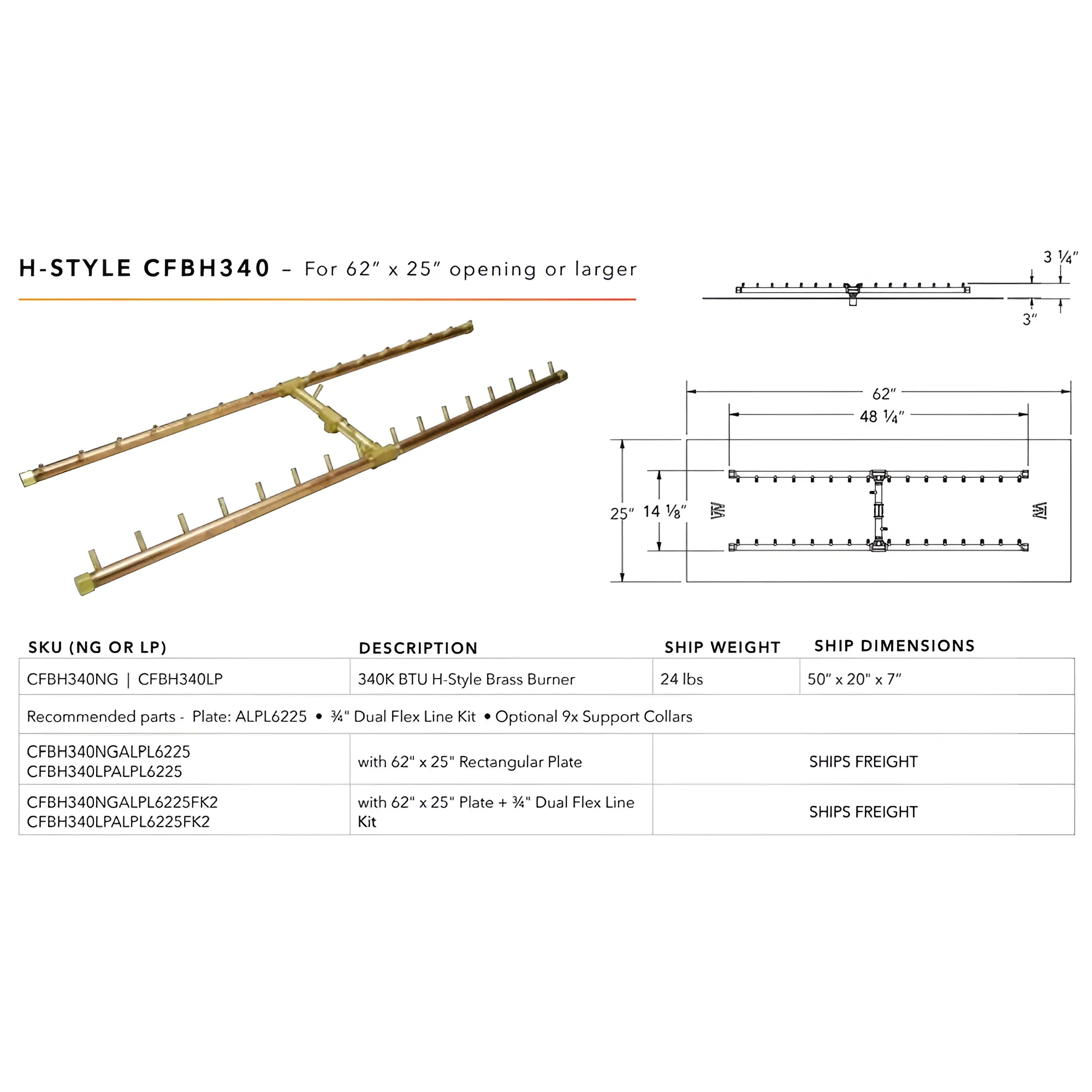

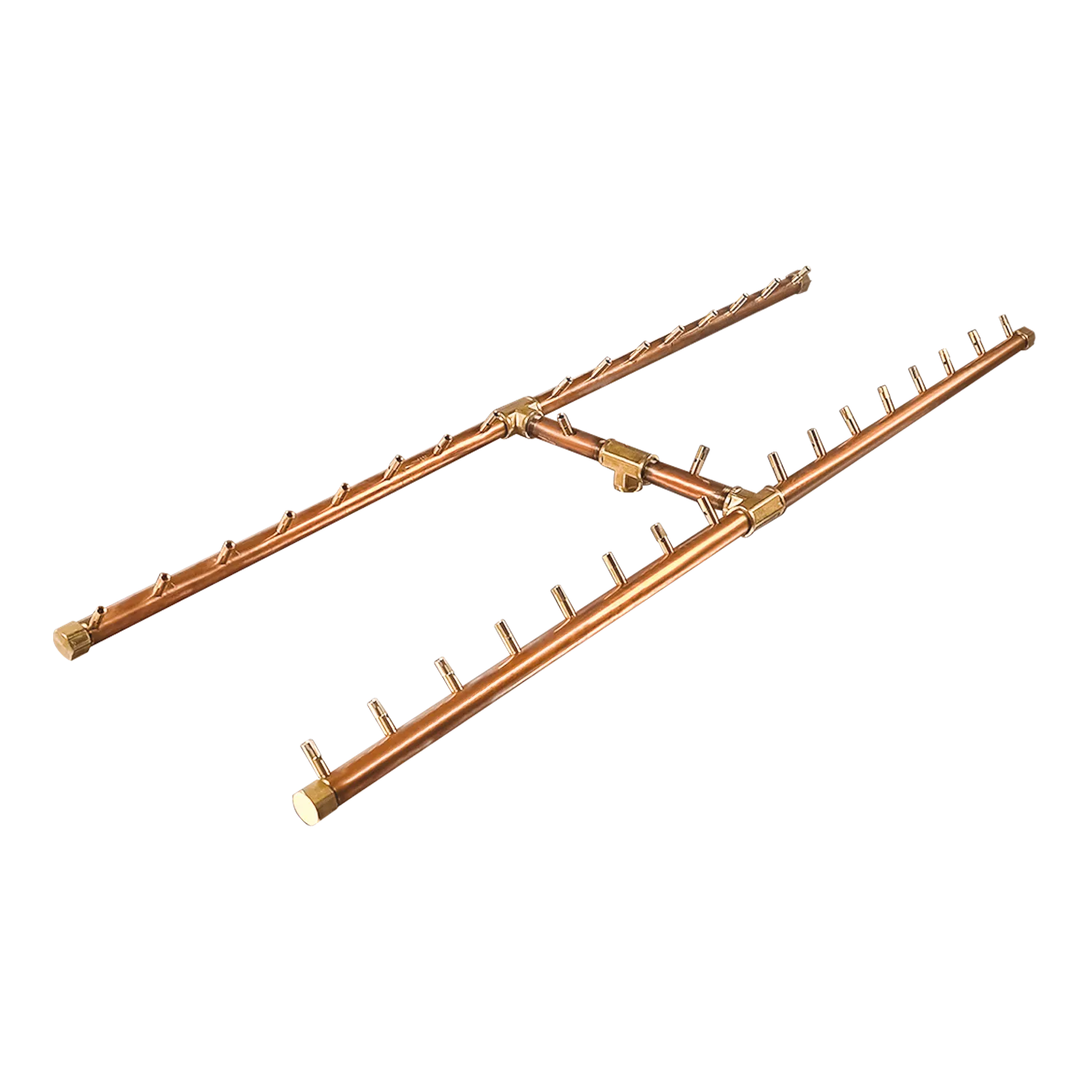

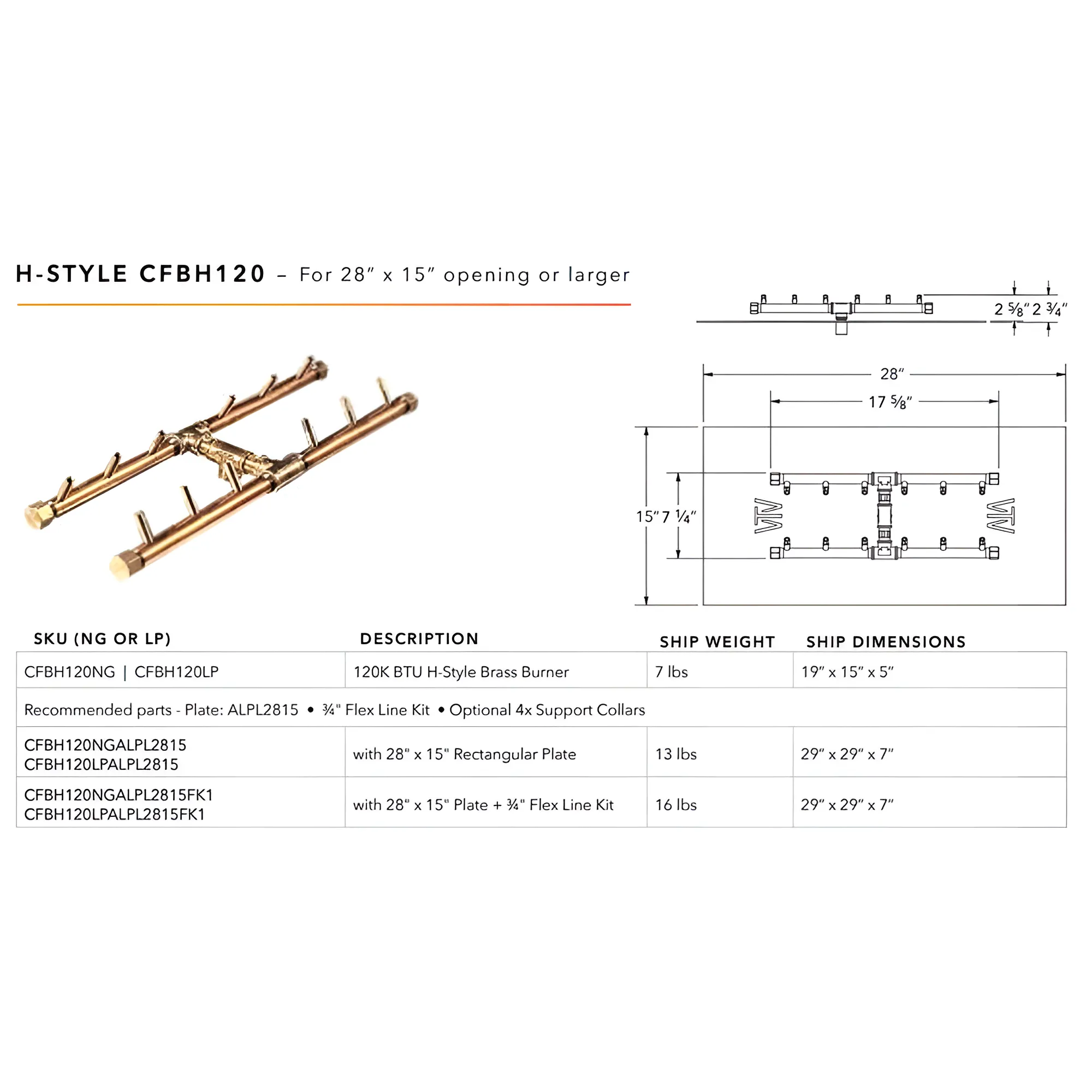

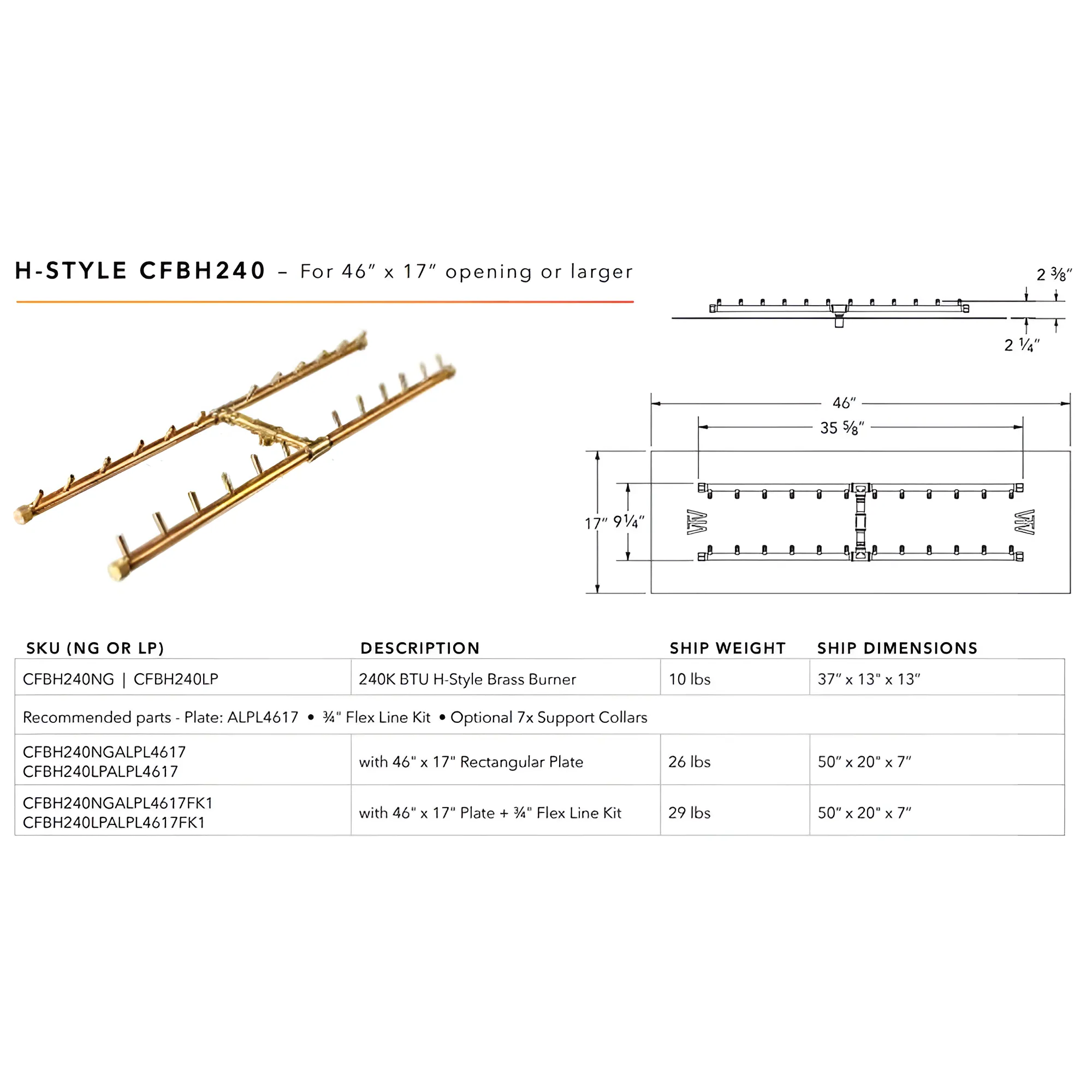

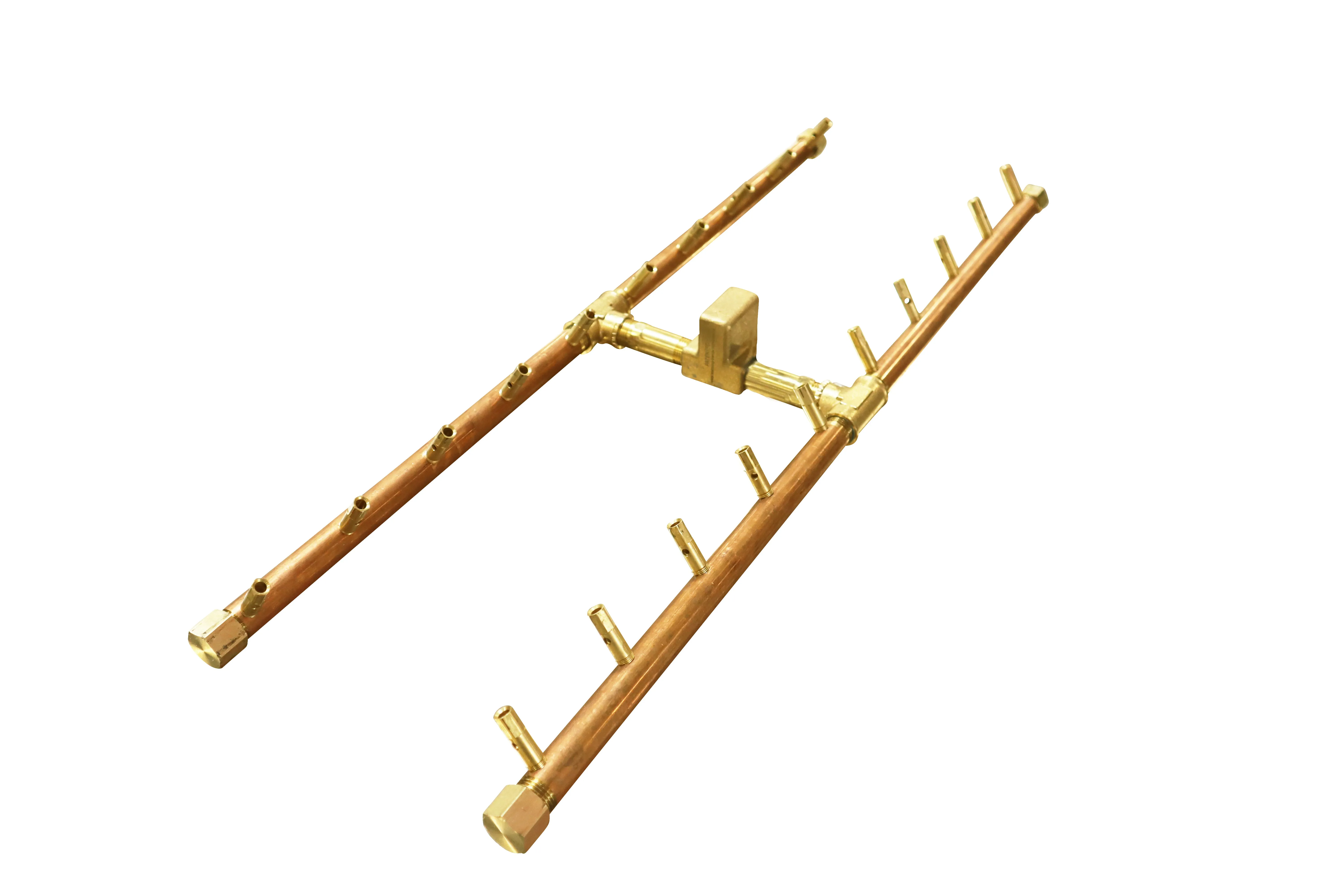

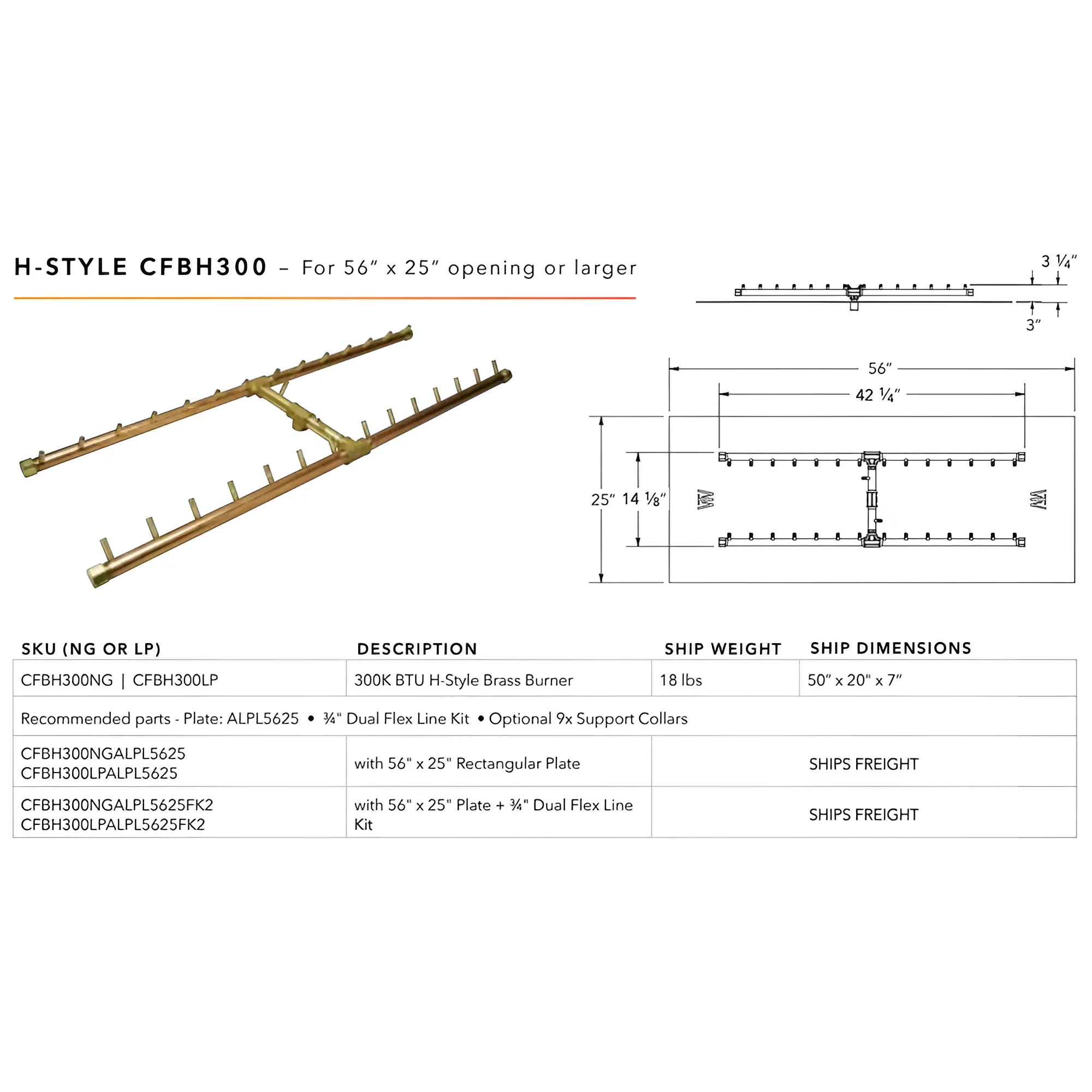

The H-Style Crossfire Burner is available in various standard sizes, ranging from 120K BTU (18x7 inches) to 340K BTU (48x14 inches).

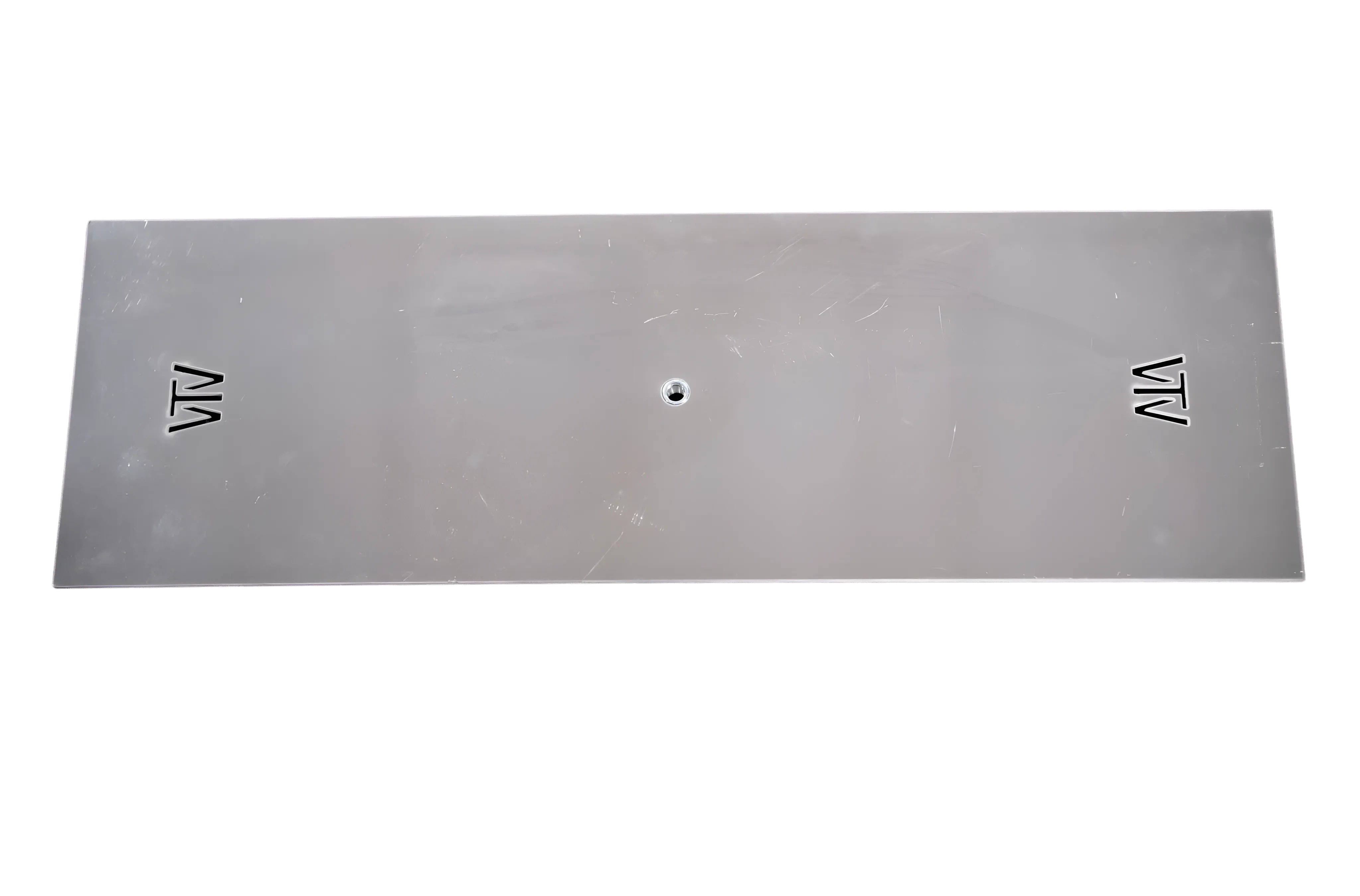

2. Plate Or Pan

Plates and pans are available in square or circular shapes and are made from tempered aluminum. They feature weep holes for proper drainage, a central opening for the gas inlet, and come in two thicknesses: 1/8 inch or 3/16 inch. Choose the size based on the opening of your fire pit.

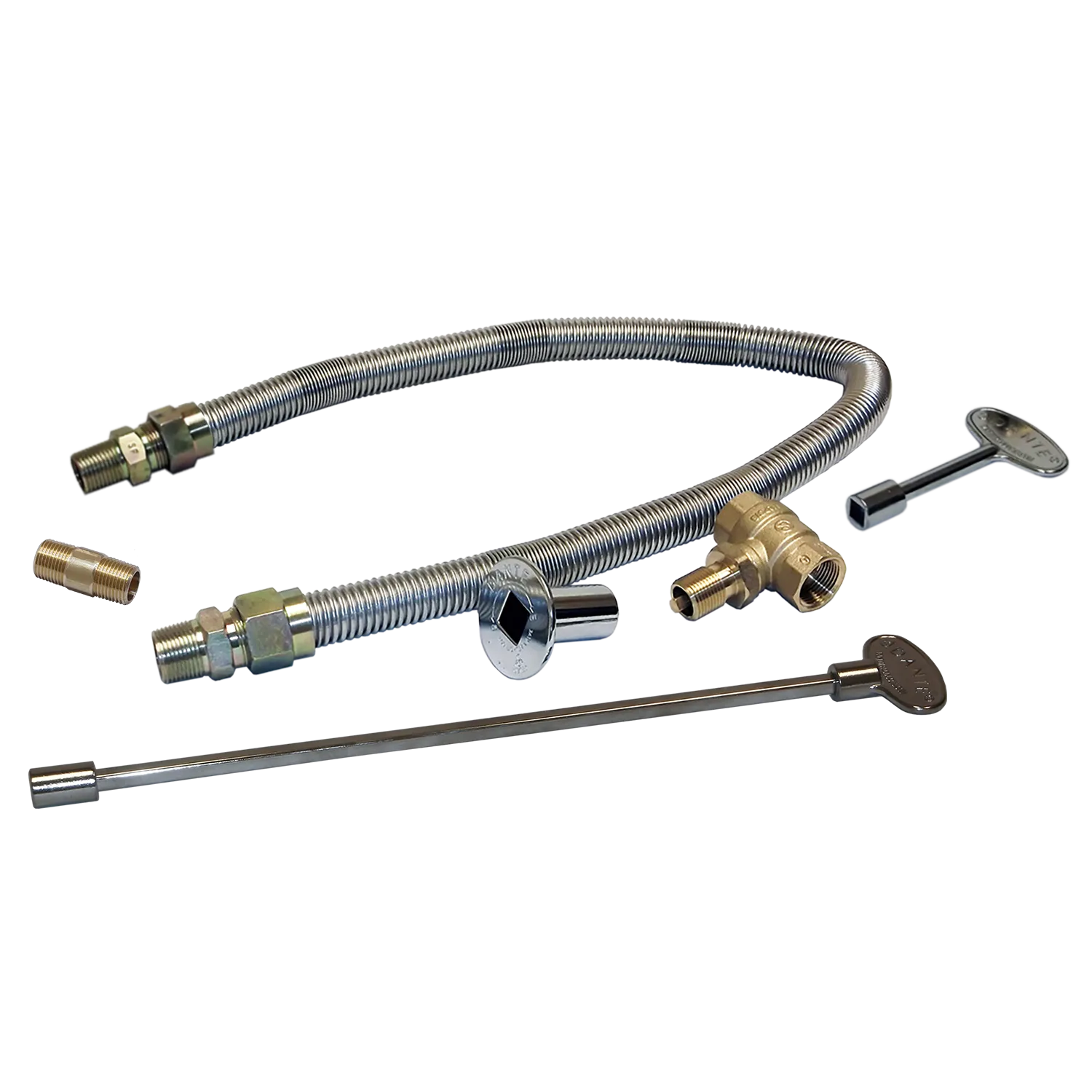

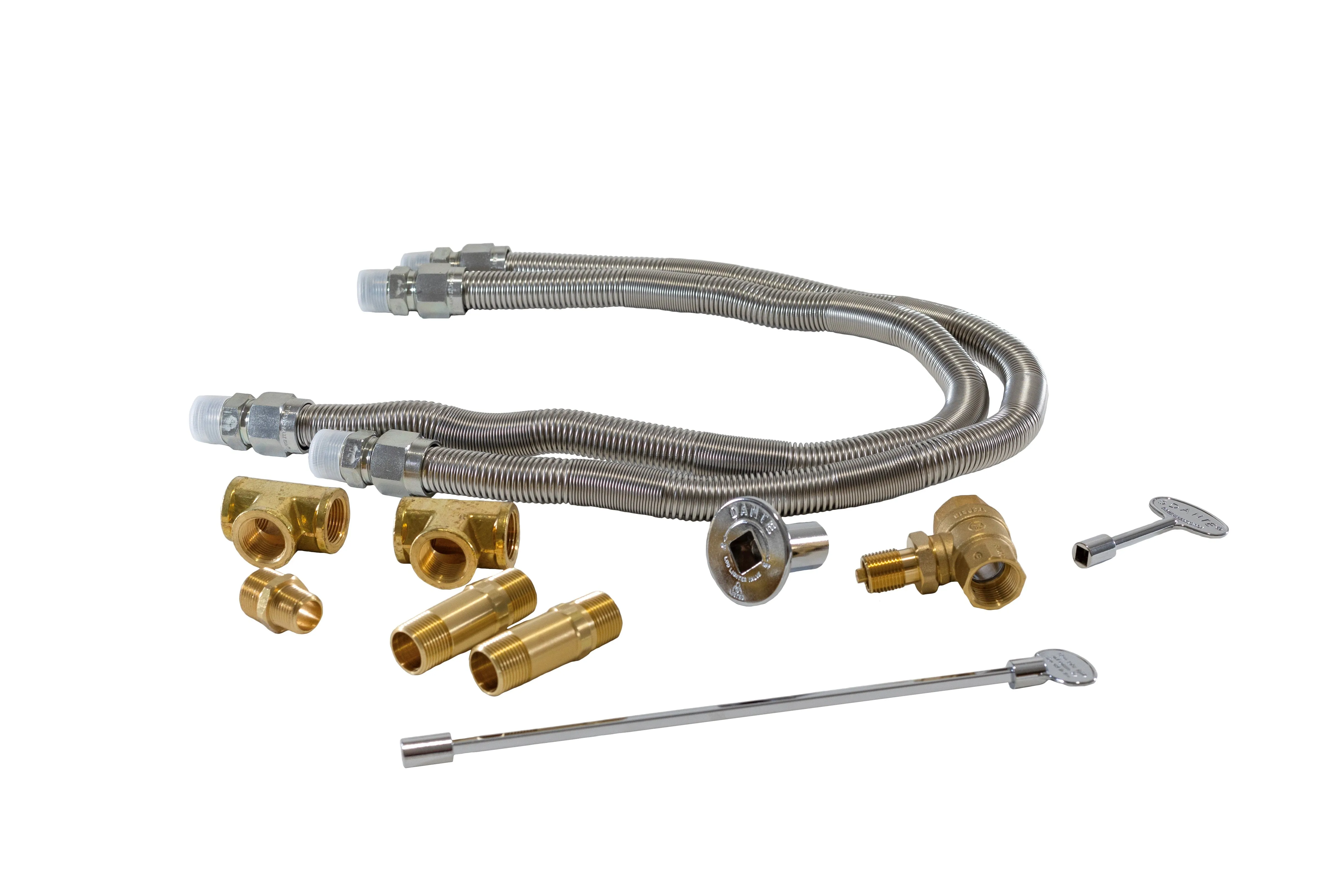

3. Flex Line & Key Valve Kit

Two Flex Line & Key Valve Kits are available based on your burner's BTU rating:

• FK1: For burners under 249K BTU
• FK2: For burners over 249K BTU

4. Ignition Types

There are four main ignition systems for fire pits:

• Match Light Ignition: The simplest option. Open the gas valve and light the burner with a match or lighter. This is the default system for most fire pits.

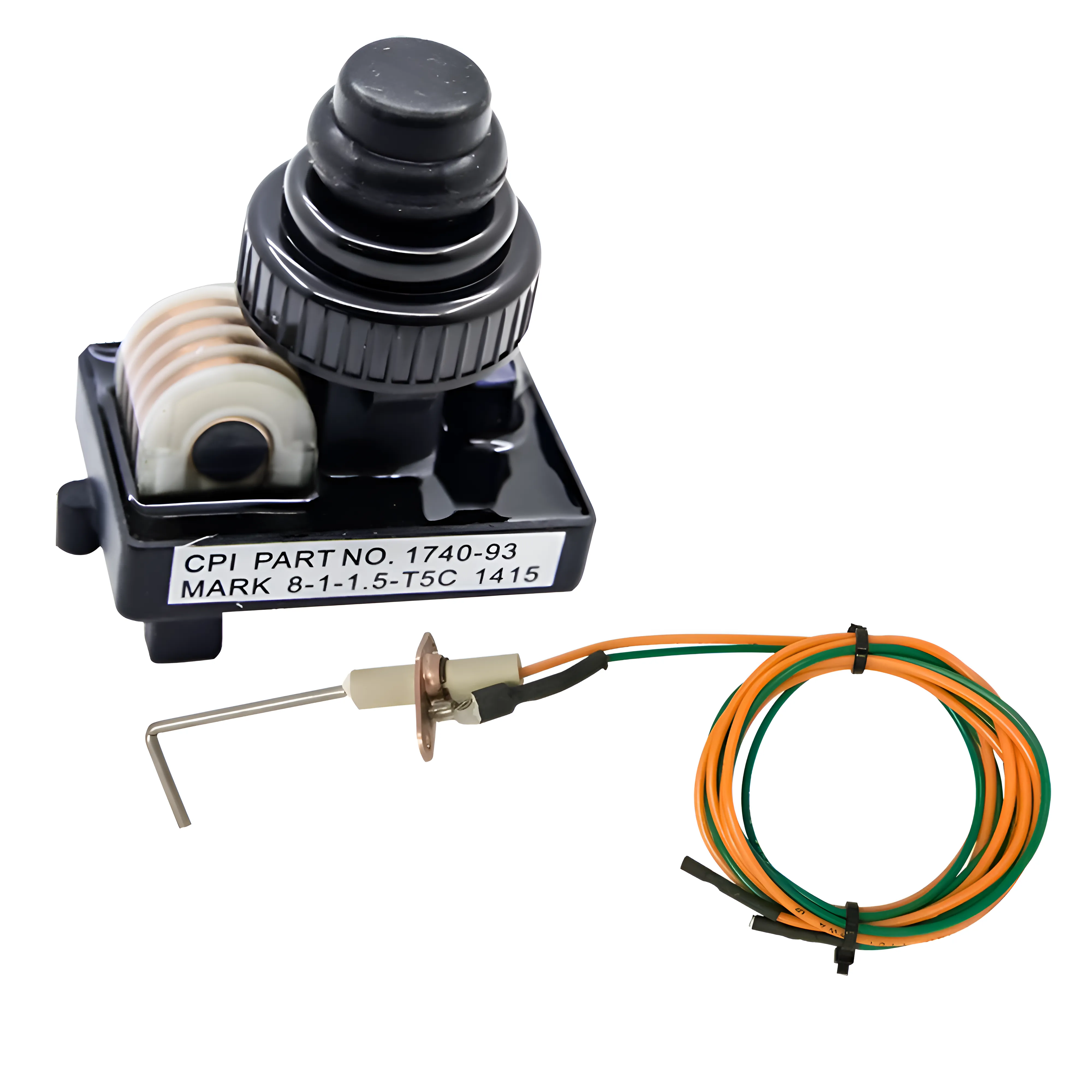

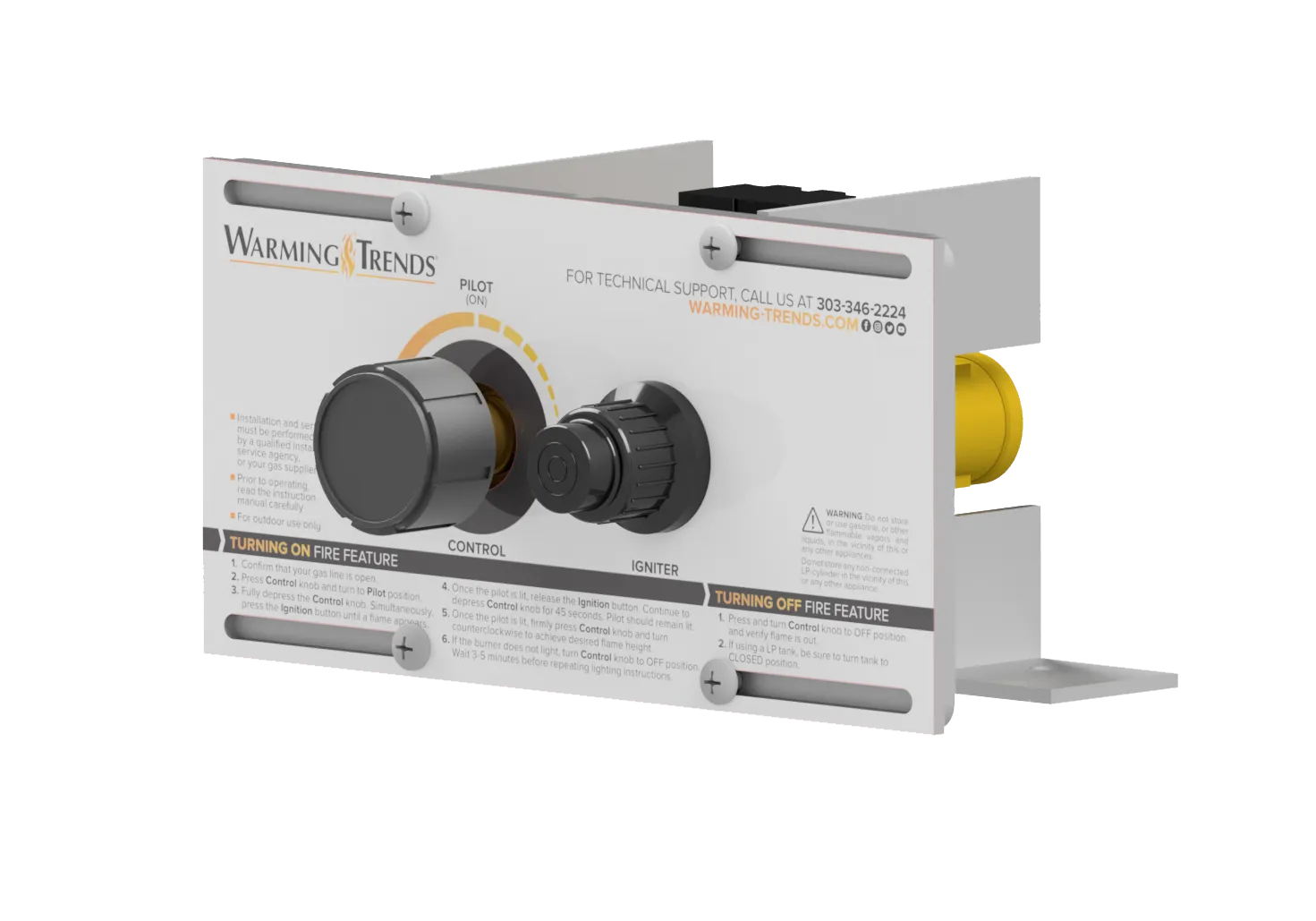

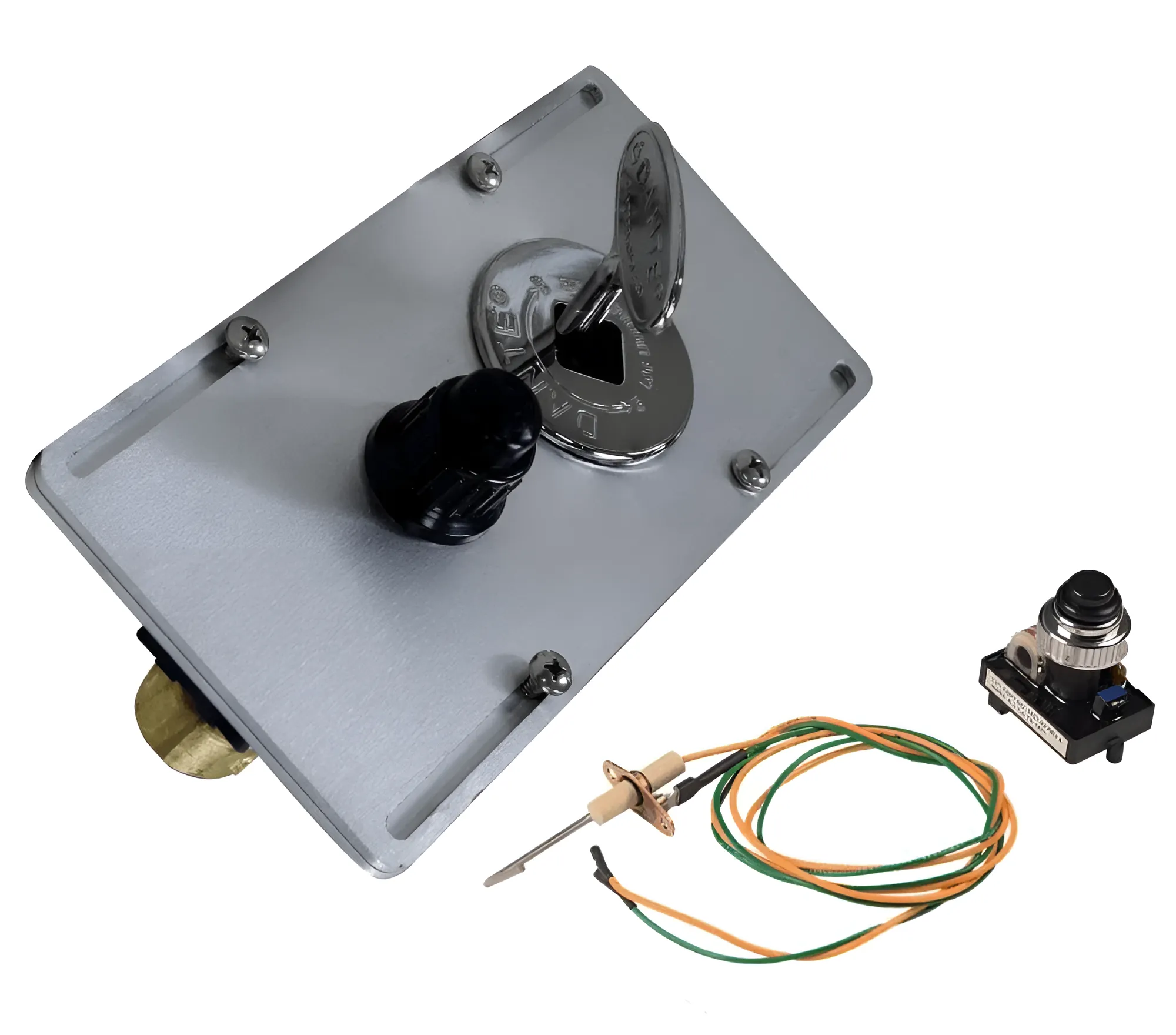

• Push Button Spark Ignition: Works like a grill igniter. Open the gas valve and press the ignitor button—no lighter or match required.
• Push Button Spark Ignition with Flame Sense: Similar to the standard push button system but includes a flame-sensing safety feature to shut off the gas if the flame goes out. This system does not need external power.

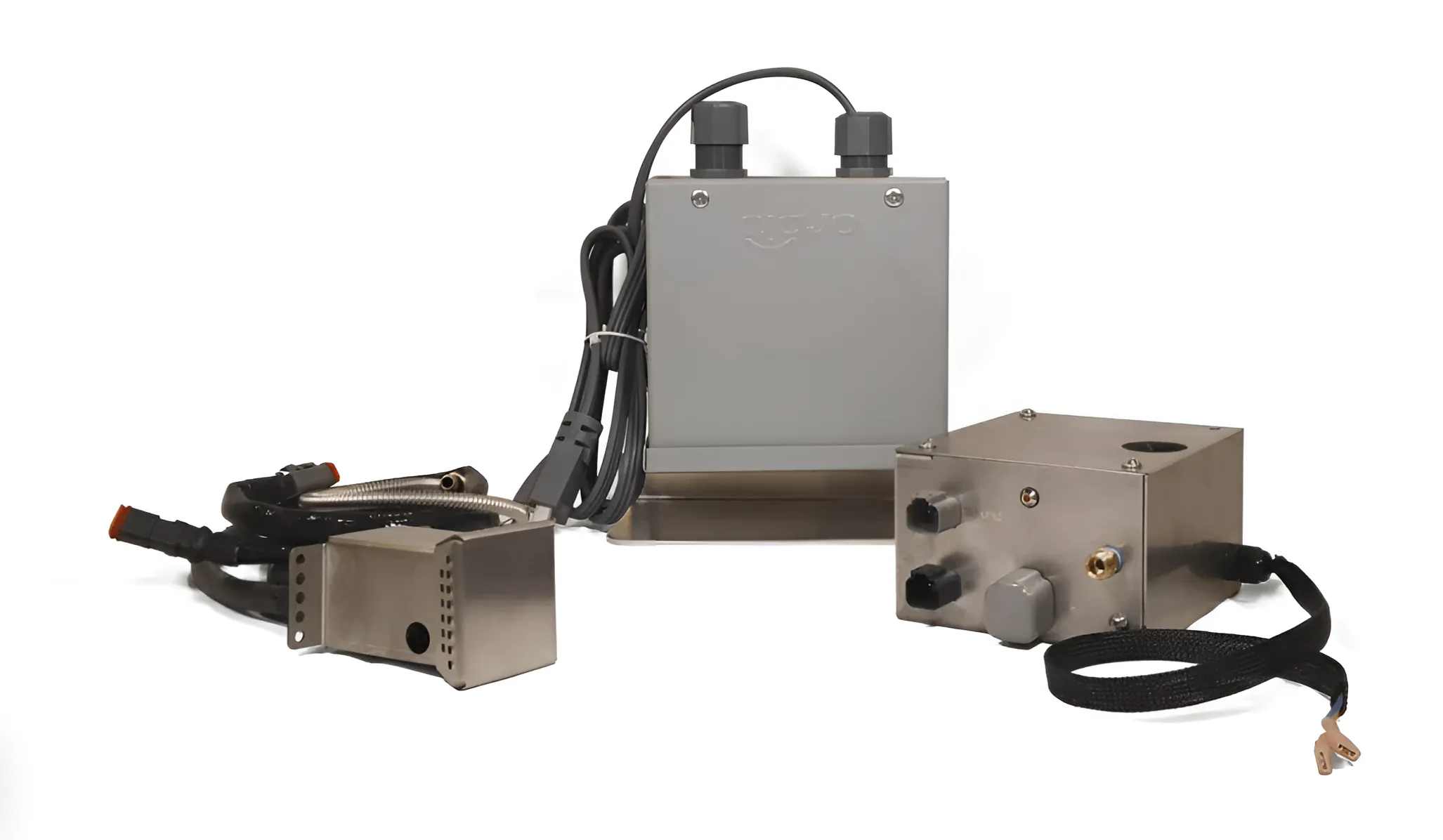

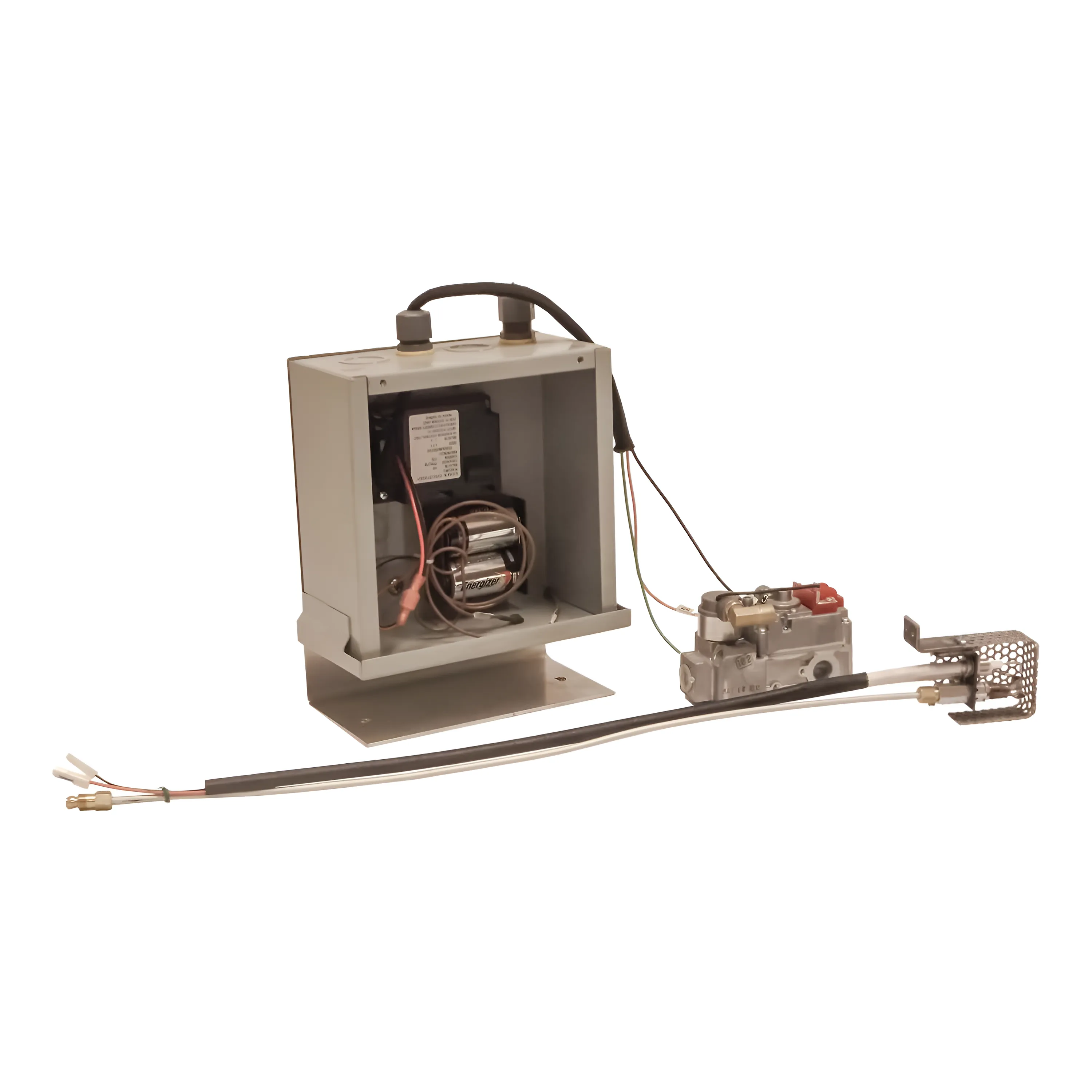

• Electronic Ignition: A premium system that lets you turn the fire pit on or off with a button. It includes flame-sensing for safety. Some models may require external power depending on the burner's BTU rating.

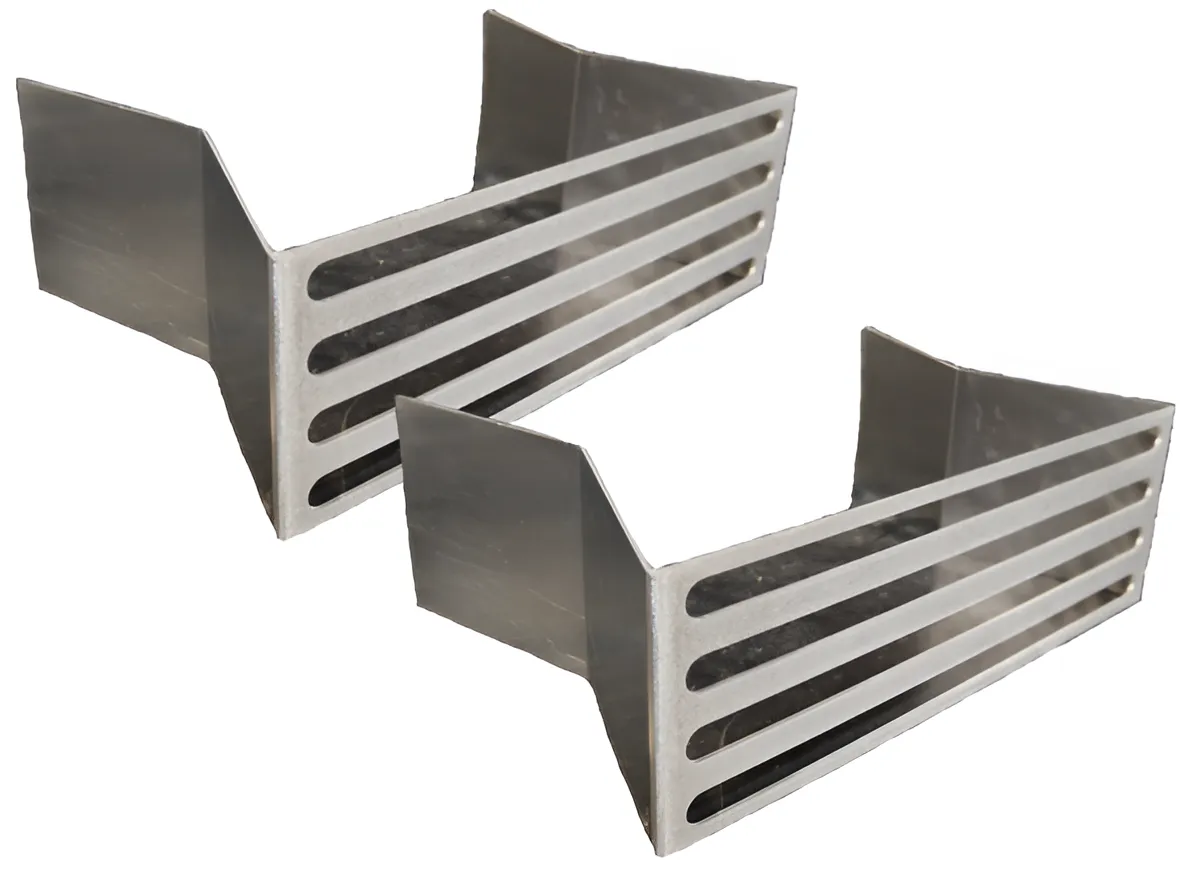

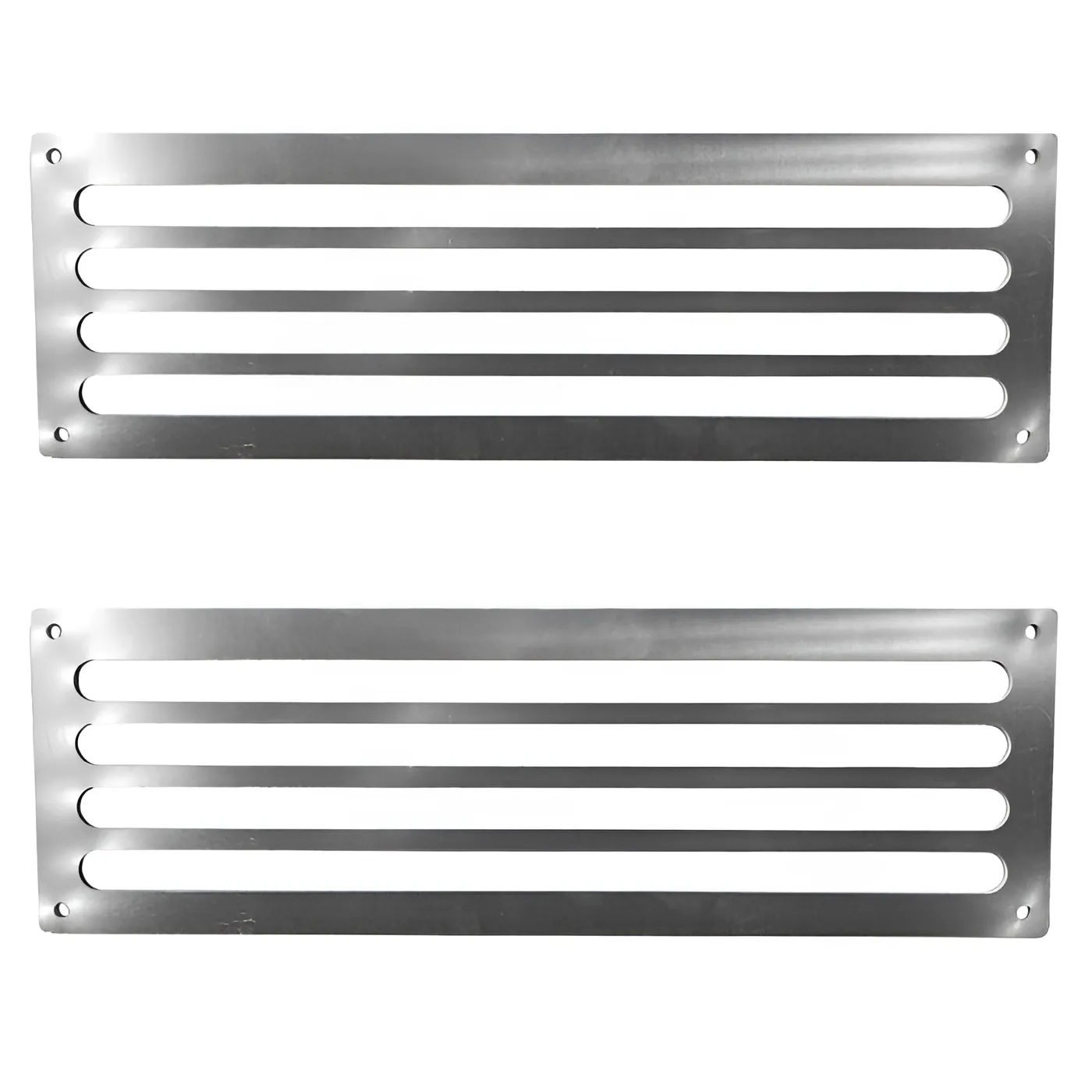

5. Venting

It is recommended to have two 18-square-inch vents on opposite sides for cross ventilation. While some choose smaller vents, proper venting is essential for safety.

6. Installation Collars

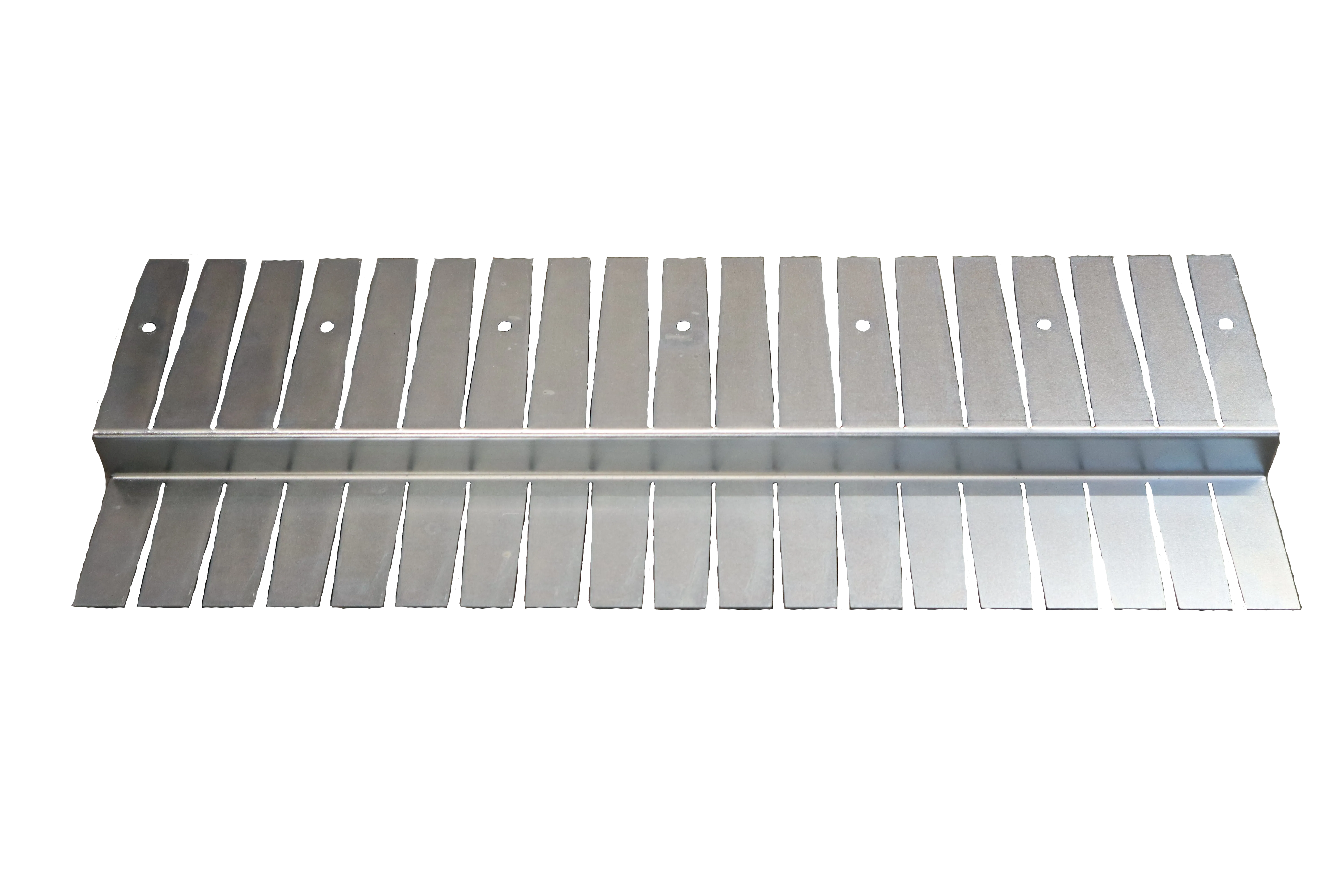

To support the plate, it will sit 4–5 inches below the top of the fire pit. Options for support include stacked bricks, cinder blocks, or specialized support collars, which act as shelves.

7. Cover

Always cover your fire pit to protect it from outdoor elements. A tarp or a dedicated cover is recommended, especially if the fire pit will not be used for an extended period. Warming Trends offers high-quality aluminum covers. To choose the correct size, add a 1-inch lip around the fire pit’s opening. For example, if the opening is 32 inches, a 34-inch cover would be ideal.
