Ultimate Crossfire Bundle: Warming Trends Crossfire CFBO Octagonal Brass Burner Bundle

Ultimate Crossfire Bundle: Warming Trends Crossfire CFBO Octagonal Brass Burner Bundle

$ 761.00

$ 0.00

Save: $

Size:
  • 140K BTU 10.75 x 13.75-Inch (WATERSTOP)
  • 180K BTU 14.75 x 15.75-Inch (WATERSTOP)
  • 280K BTU 22.75 x 21.75-Inch (WATERSTOP)
  • 320K BTU 25 x 23.75-Inch (WATERSTOP)
  • 360K BTU 29.125 x 27-Inch (WATERSTOP)
Fuel Type:
  • Natural Gas
  • Liquid Propane
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Twice the flame, half the gas. Built to last with 100% rust-resistant brass and backed by the Full Manufacture Lifetime Warranty!

Complete your fire pit kit with the Ultimate Crossfire Bundle: Warming Trends Crossfire CFBO Octagonal Brass Burner with WATERSTOP Bundle. This patented, revolutionary burner delivers taller, brighter, fuller, and more natural flames while using less fuel. Its advanced regulation system works seamlessly with propane or natural gas, giving you ultimate control.

Available in a variety of sizes and BTU ratings, the Crossfire burner ensures exceptional durability, corrosion resistance, and unmatched performance—all backed by the Full Manufacture Lifetime Warranty.

Burner Plate/Pan Size Guide

Need help choosing the right size? Check out our Burner & Plate Size Guide for assistance in finding the perfect fit for your fire pit. Or call/chat for assistance.

FREE Media Options

  • Black Lava Rock
  • Rolled Lava Rock
  • 1/2" Reflective Fire Glass
  • 1/2" Fire Glass 2.0 Cubes
  • 3/4" Recycled Fire Glass

Note: Use the easy-to-use Media Calculator to help you determine the ideal amount of media needed for your fire feature. Or call/chat for assistance.

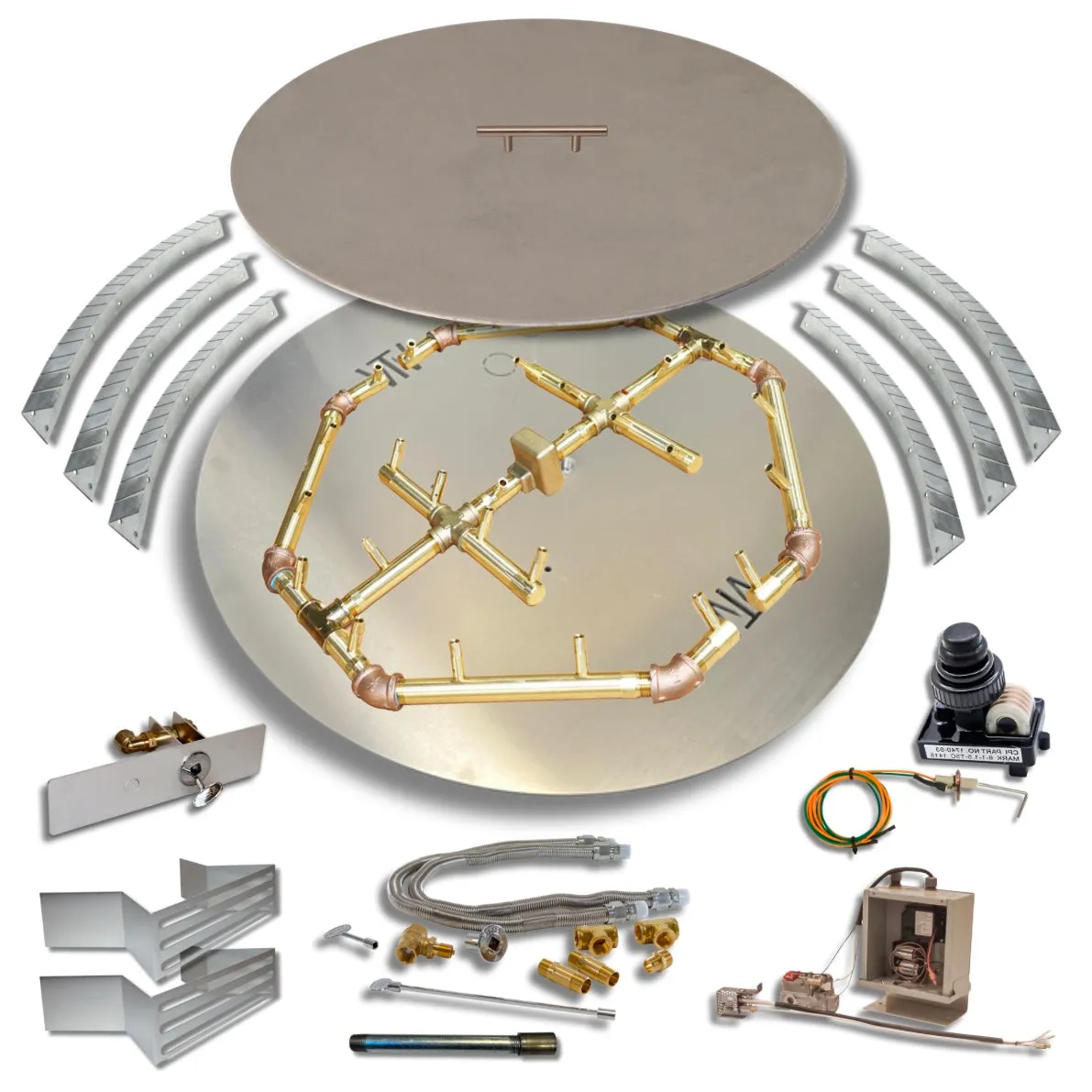

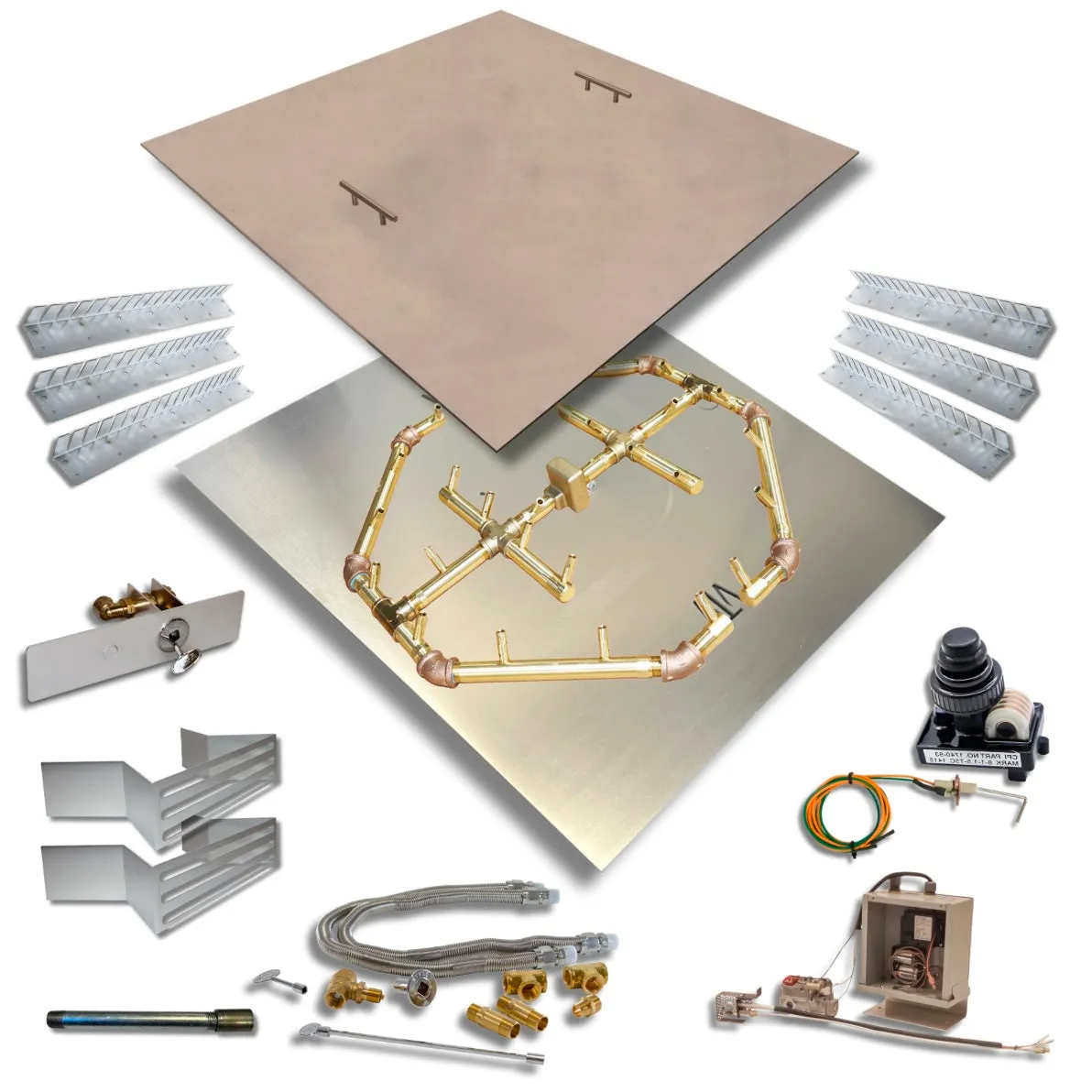

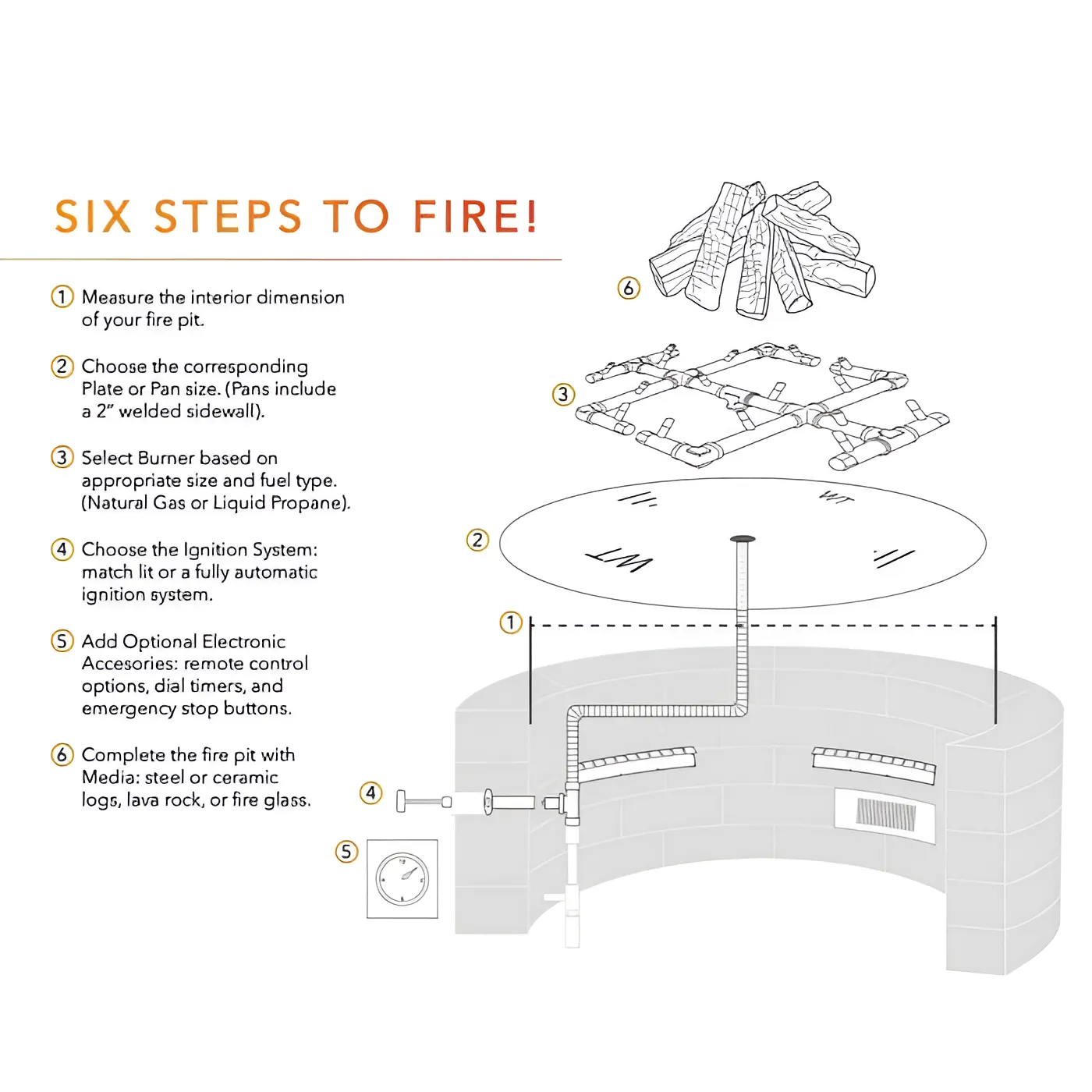

Bundle Item Options

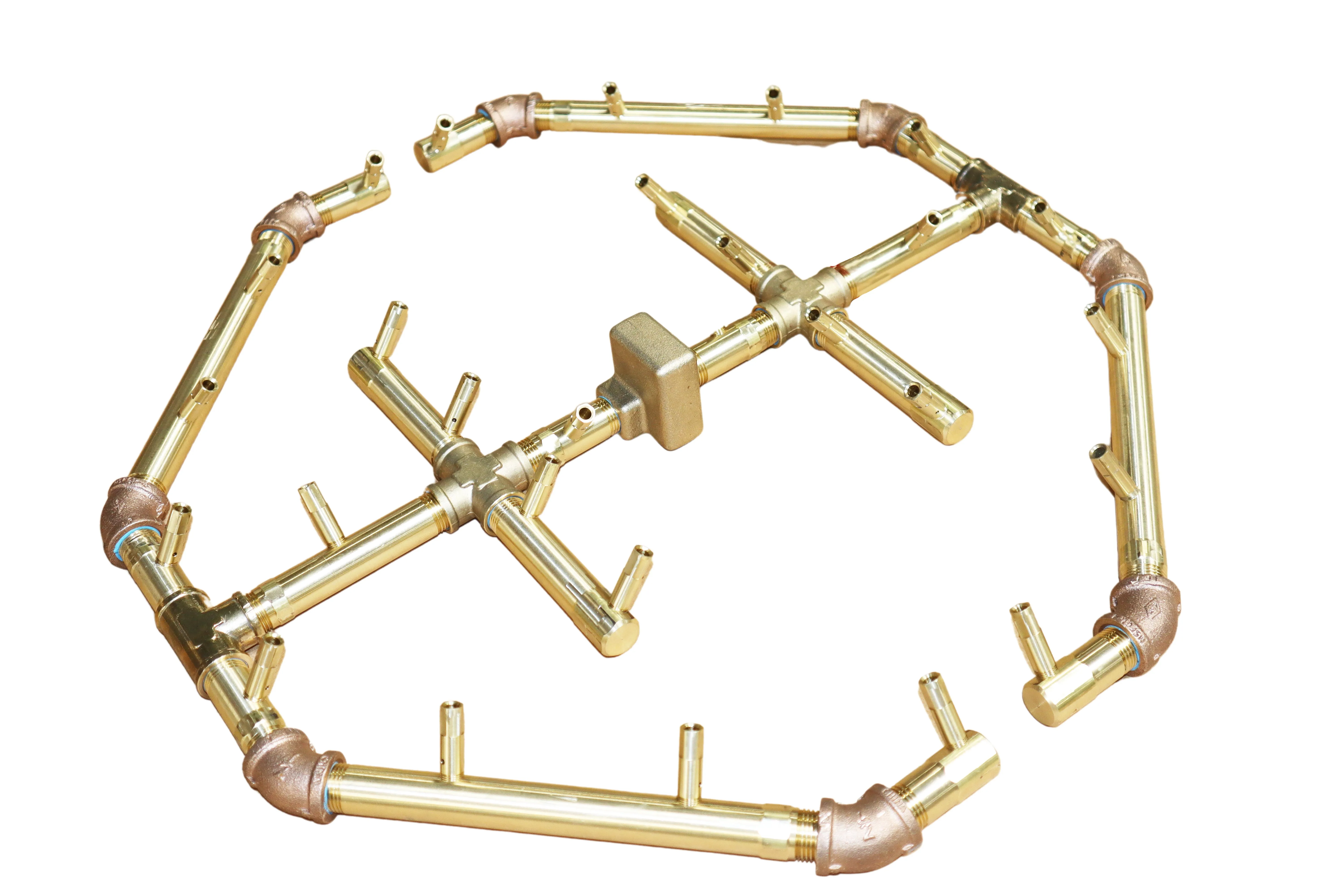

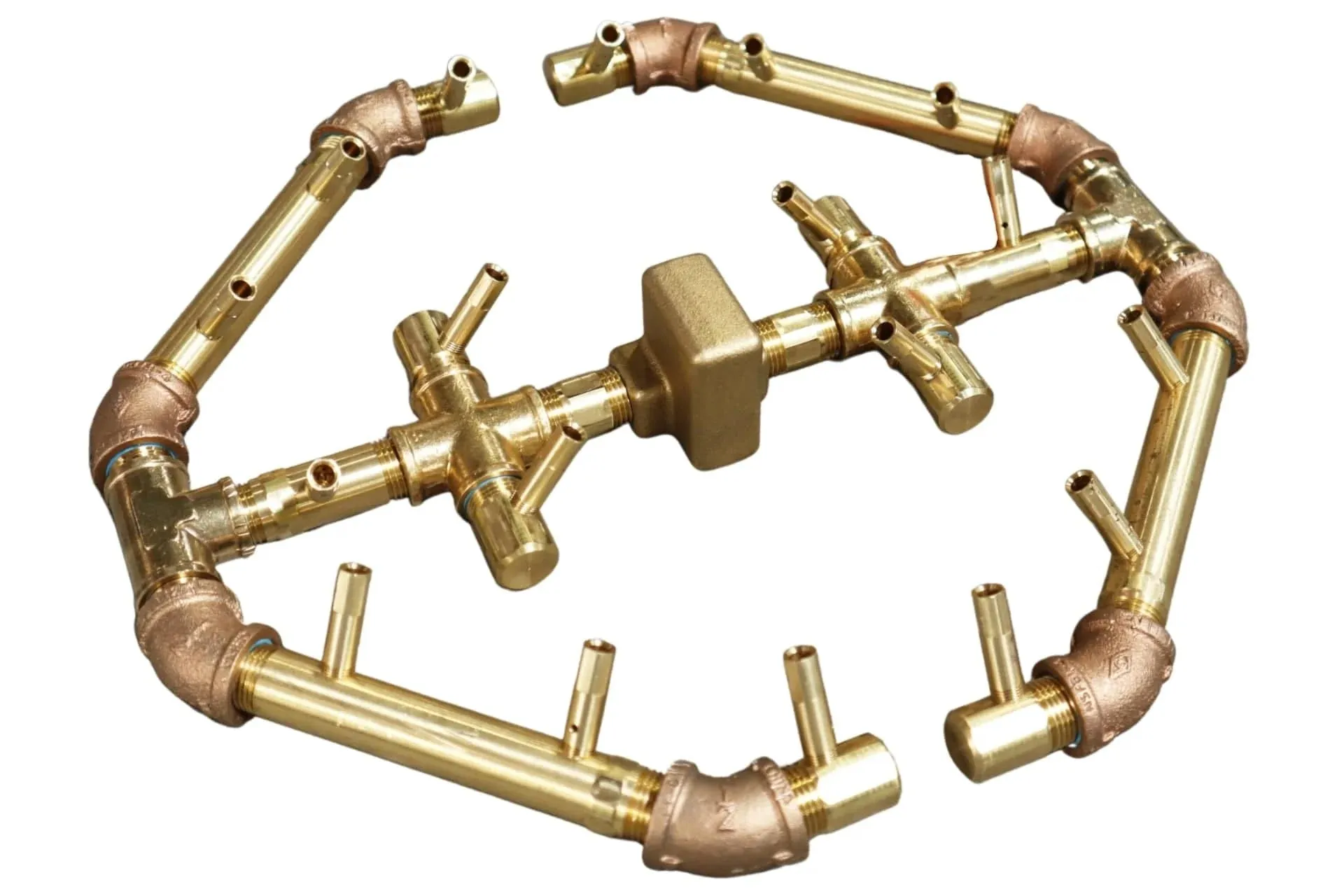

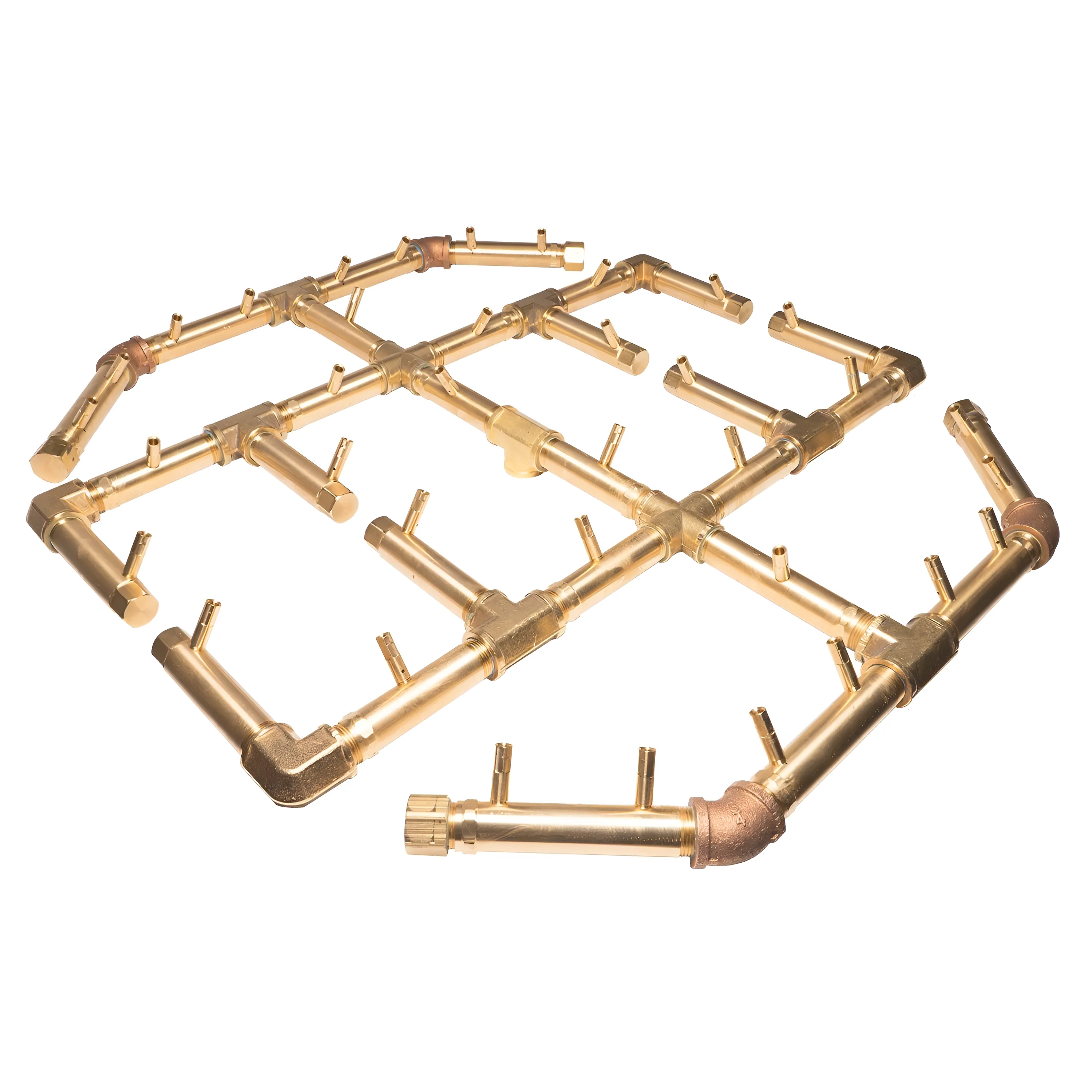

1. Burner

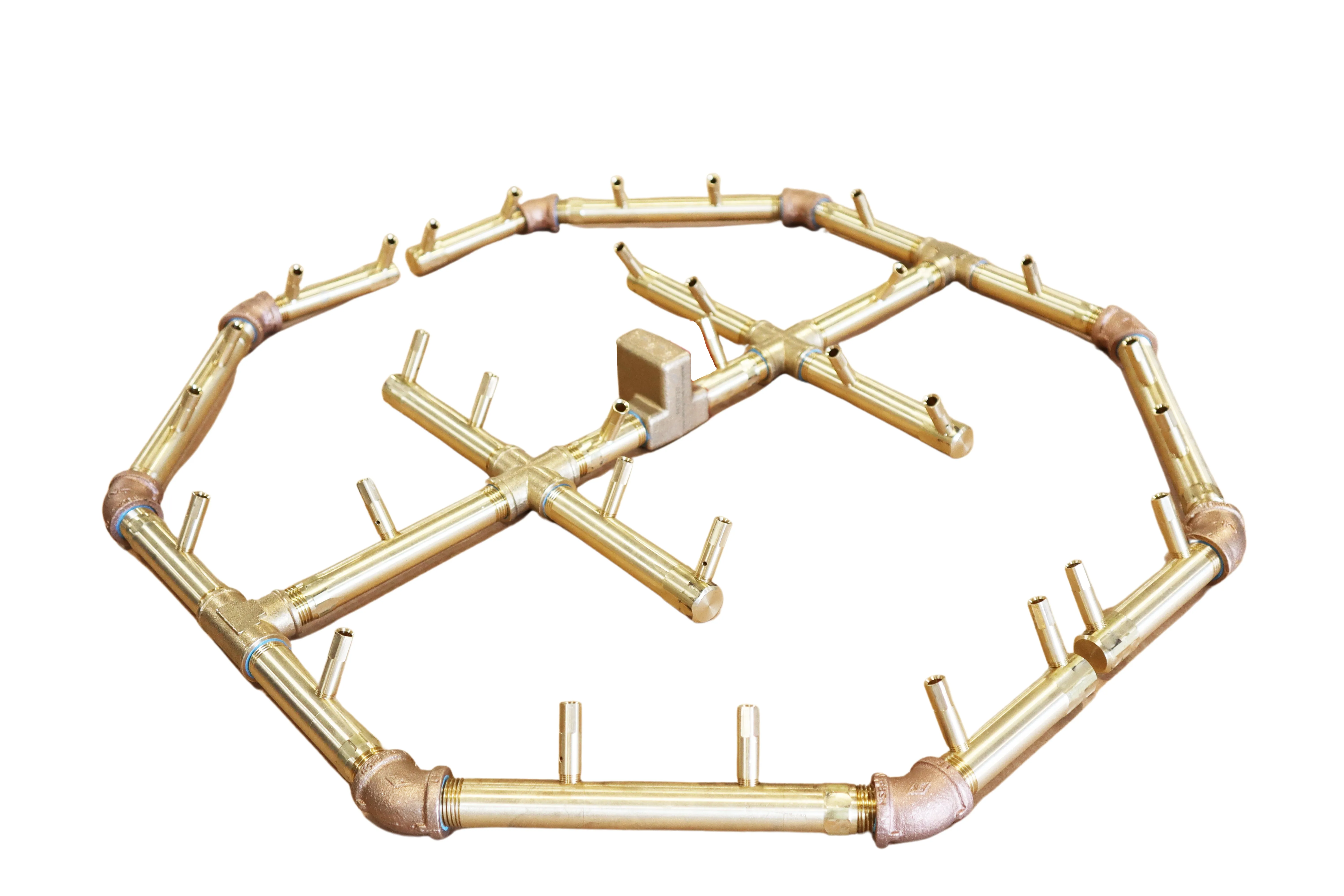

The Octagonal Crossfire Burner is available in sizes ranging from 140K BTU (12.5x14.5 inches) to 360K BTU (29.5x27.5 inches), providing flexibility to suit different fire pit designs.

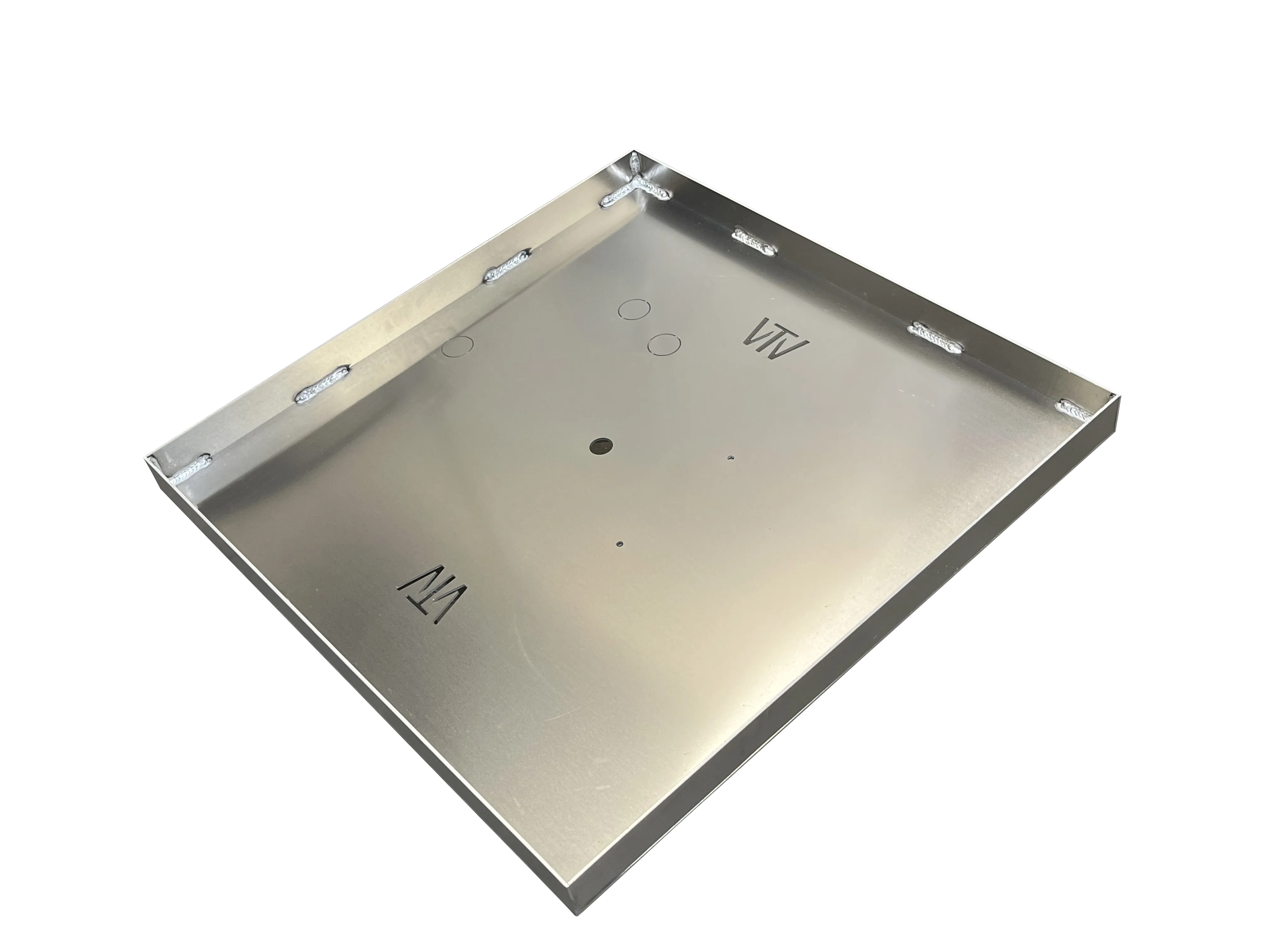

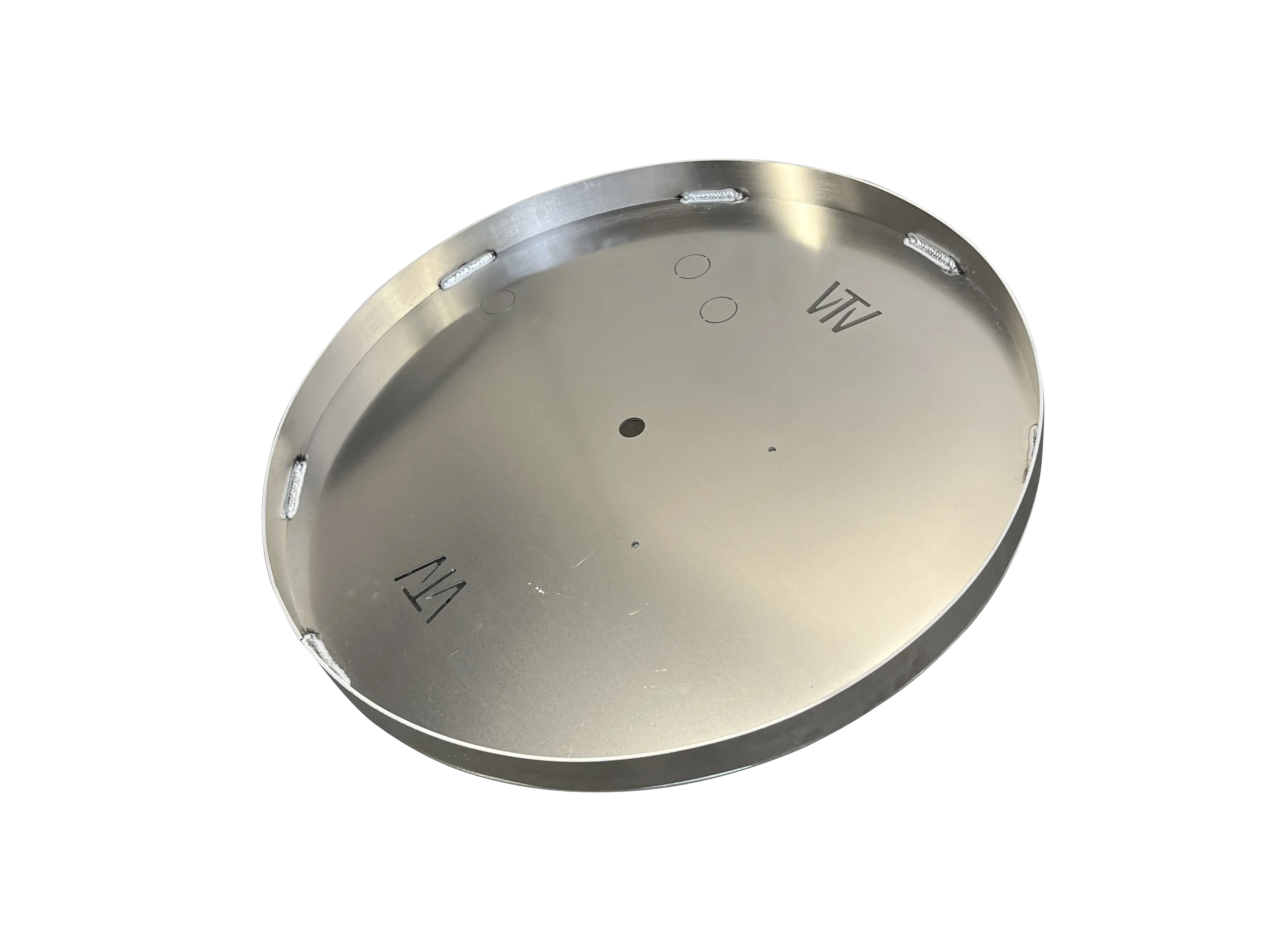

2. Plate Or Pan
Crafted from high-quality tempered aluminum, plates, and pans are available in square or circular shapes. They feature precision-cut weep holes for drainage and come in 1/8" or 3/16" thickness. Each has a central gas inlet opening. Select the size based on your fire pit opening.

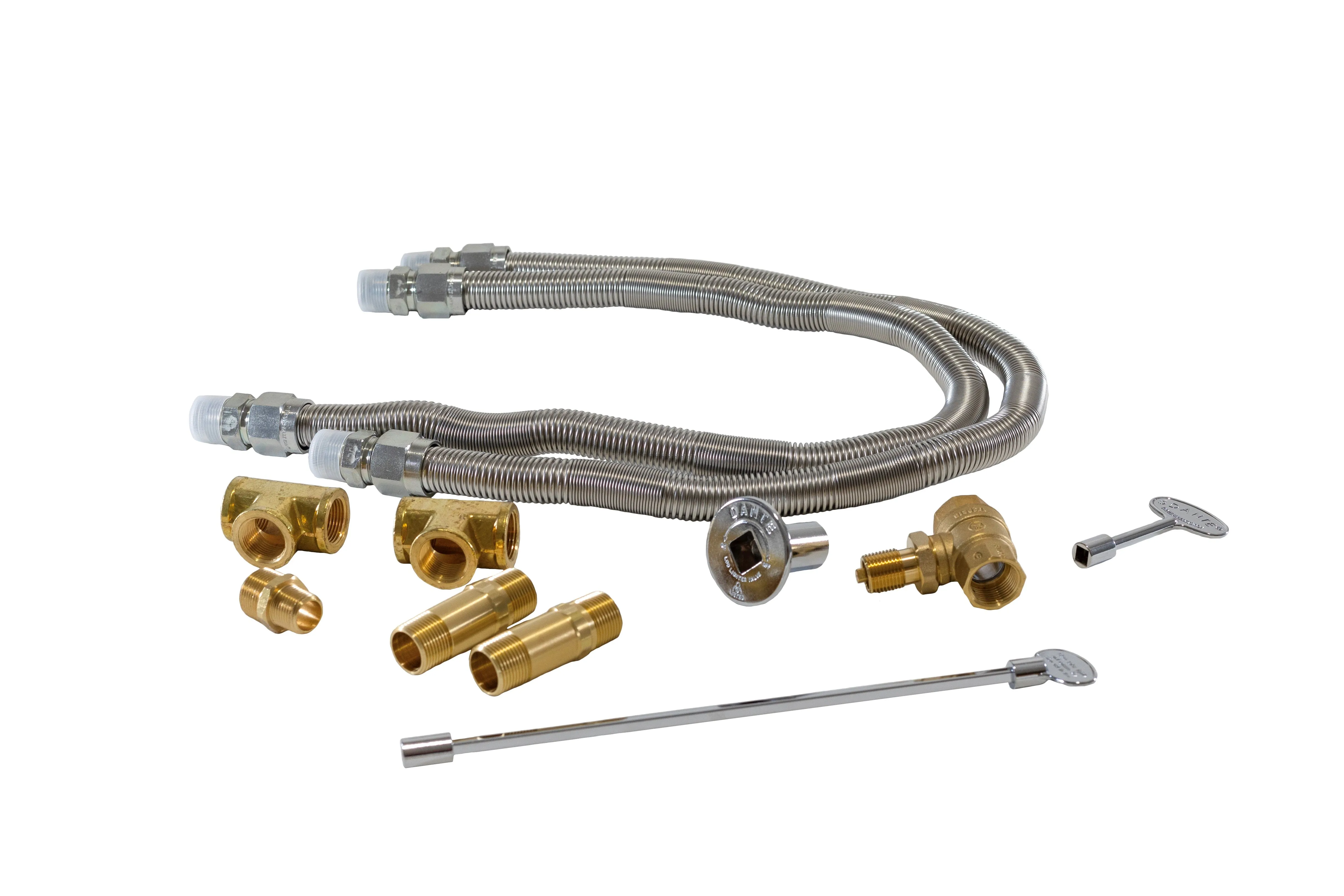

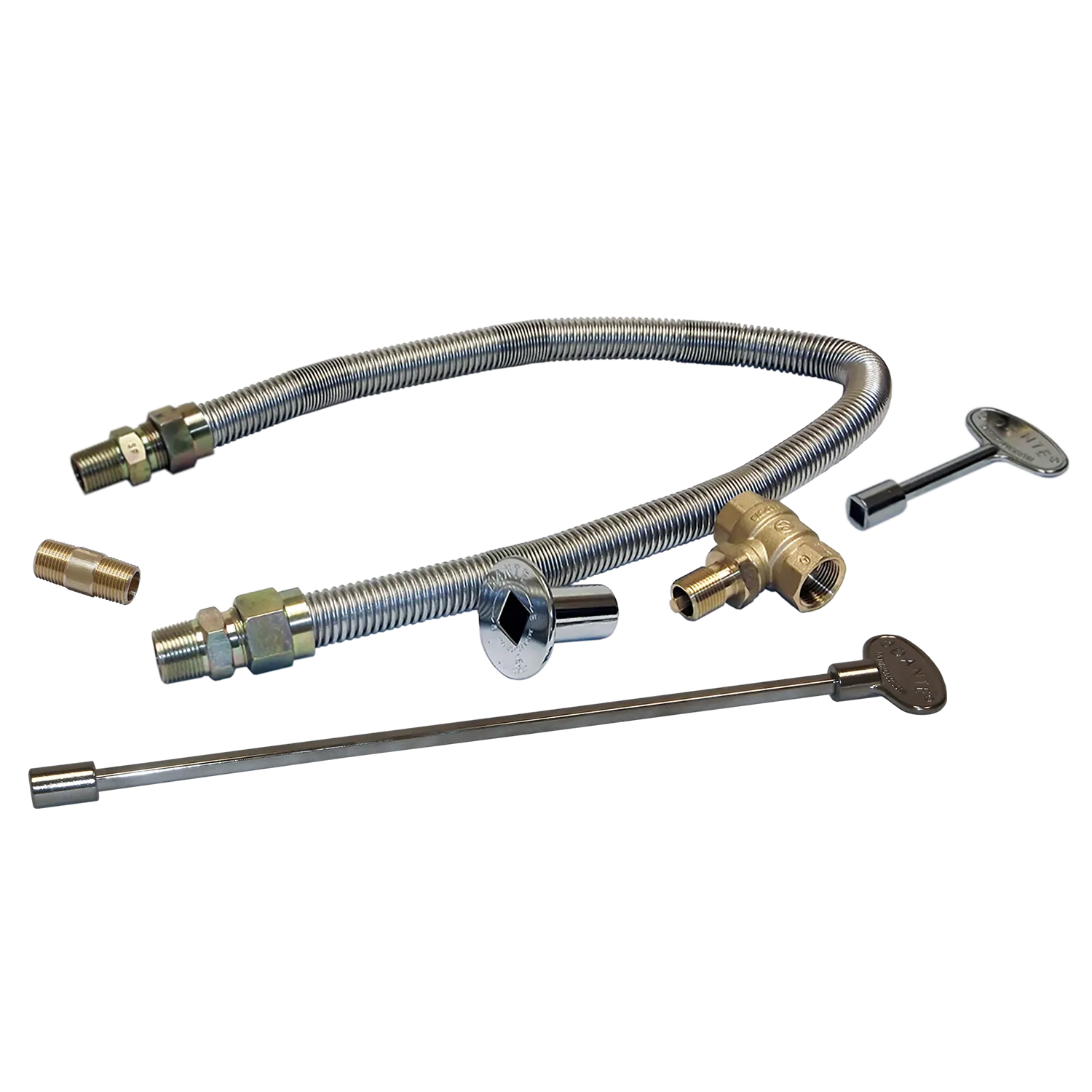

3. Flex Line & Key Valve Kit
Choose the appropriate Flex Line & Key Valve Kit based on burner BTUs:

  • FK1 – For burners below 249K BTU
  • FK2 – For burners above 249K BTU

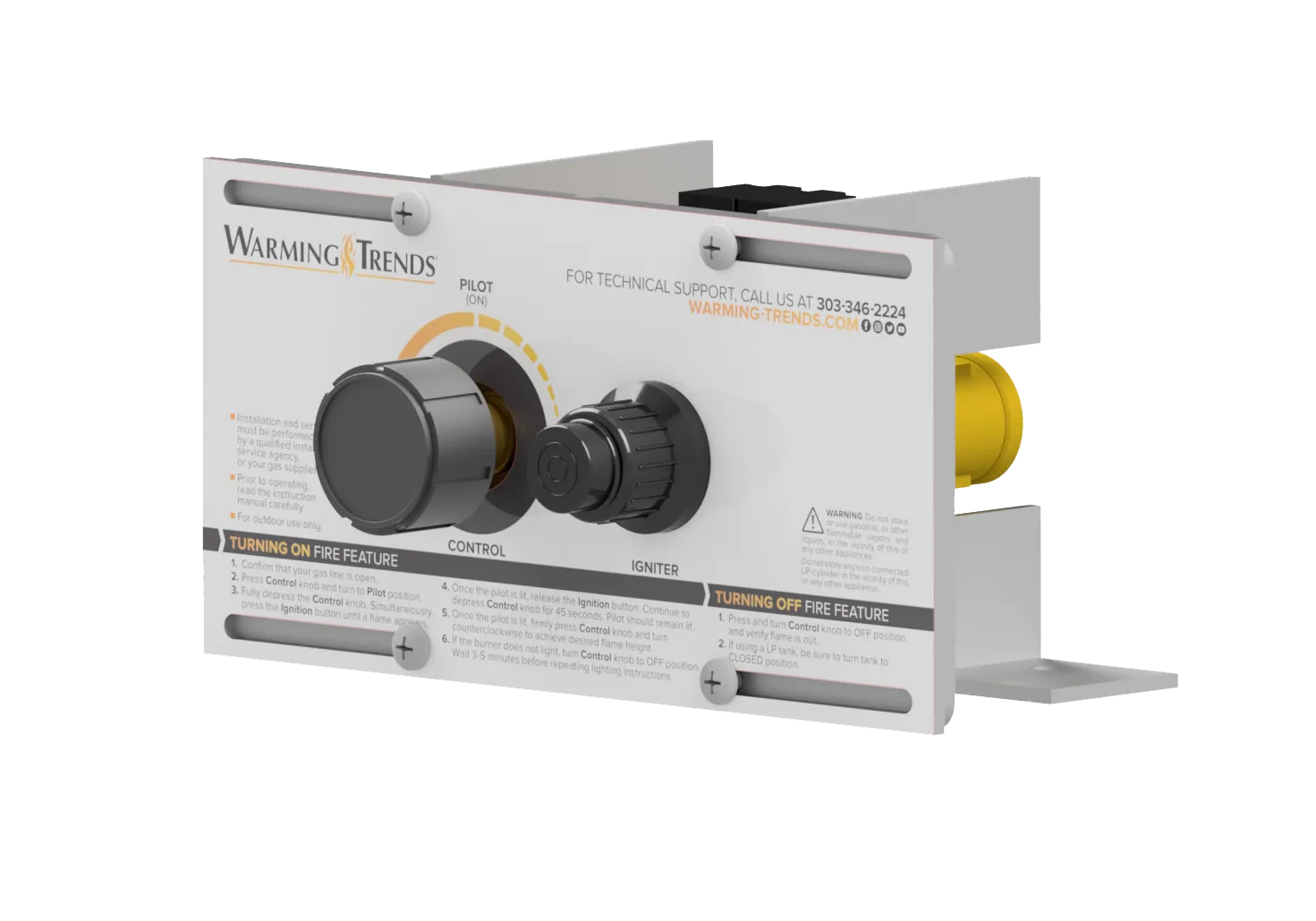

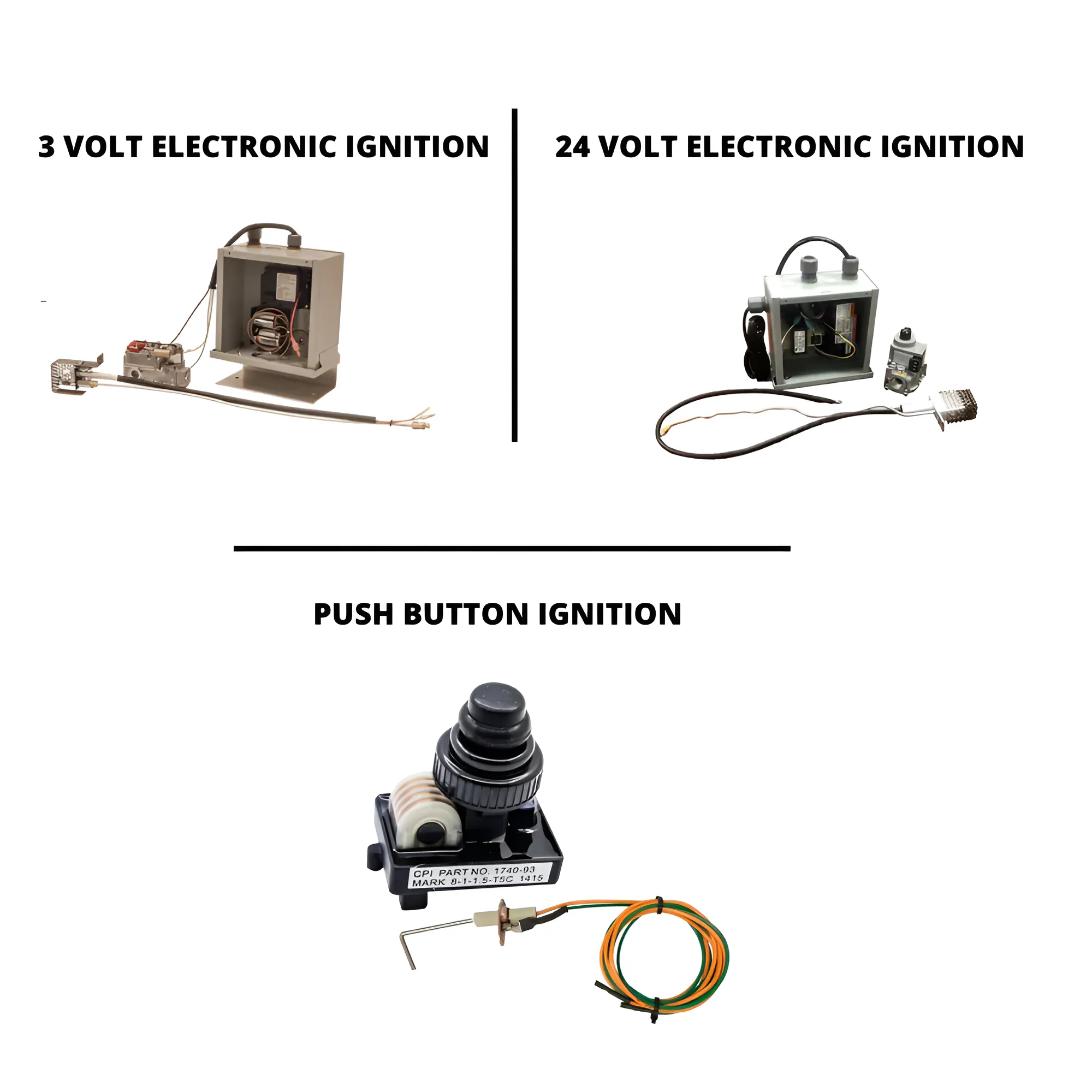

4. Ignition Type
Four ignition options are available to match your preferences:

  • Match Light Ignition – Open the gas valve and ignite with a match or lighter. This is the default system.

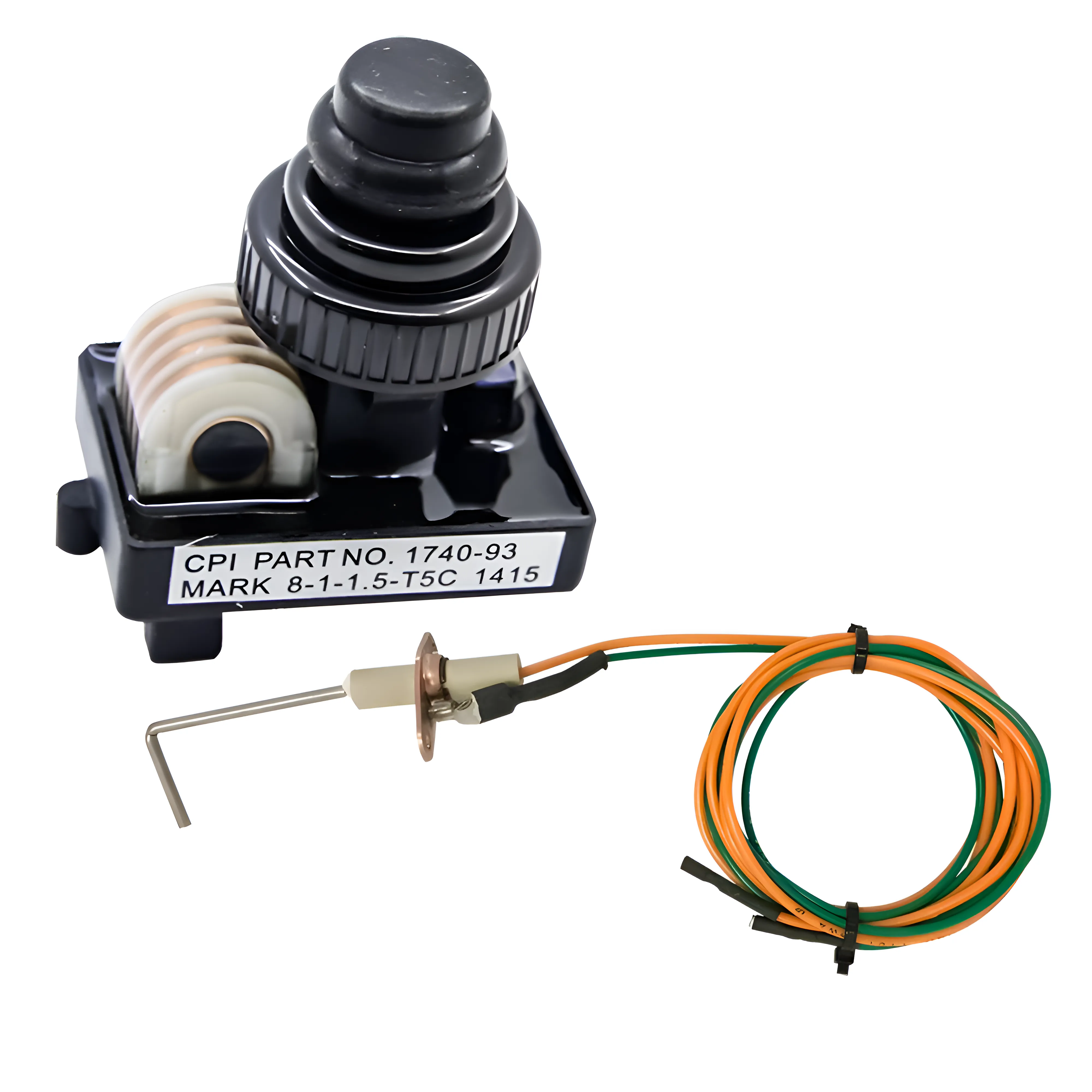

  • Push Button Spark Ignition – Open the gas valve and press the ignitor button for easy lighting. No match is required.

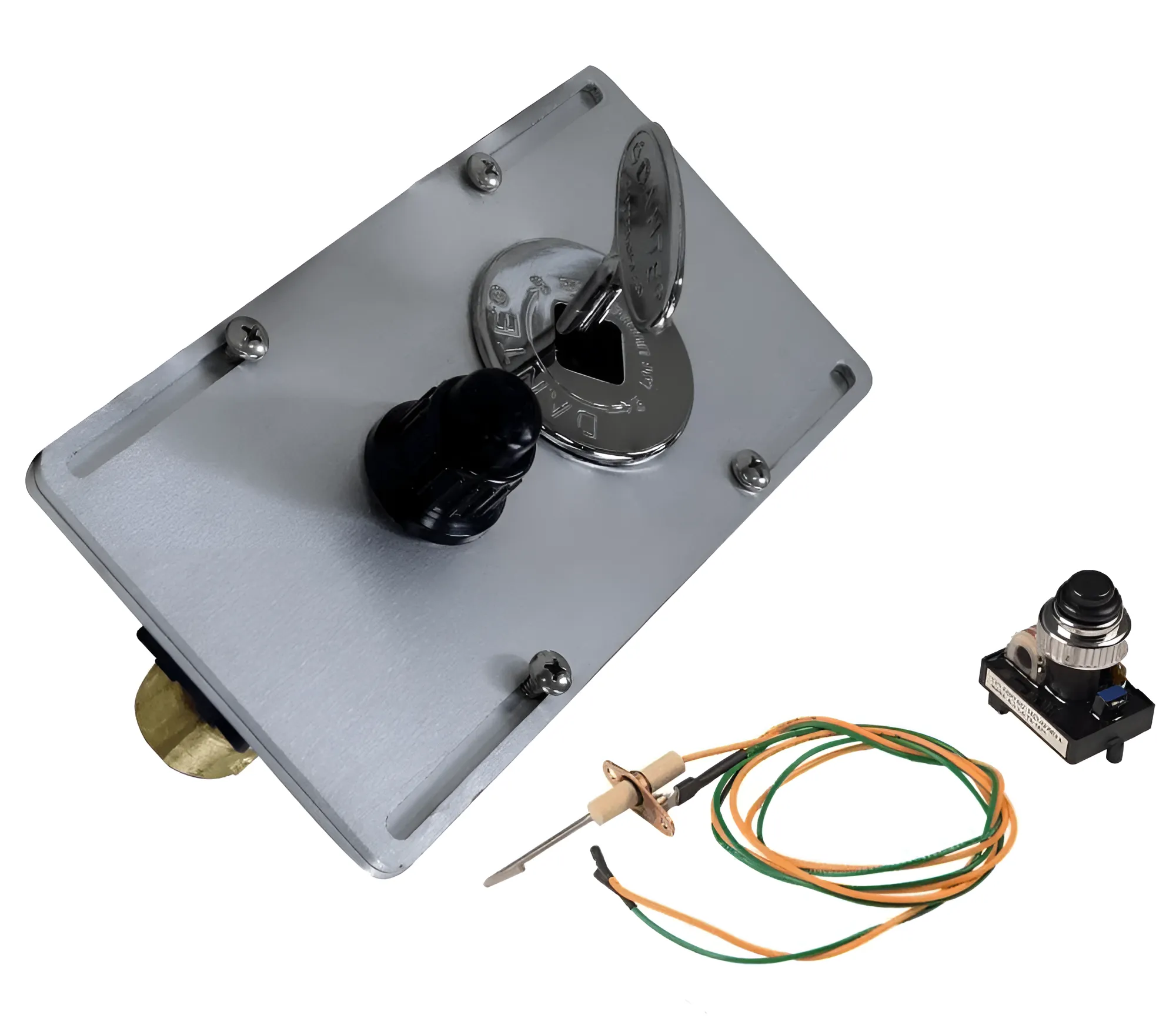

  • Push Button Spark with Flame Sense – Adds a flame sensor that automatically shuts off the gas if the flame goes out. No external power is needed.

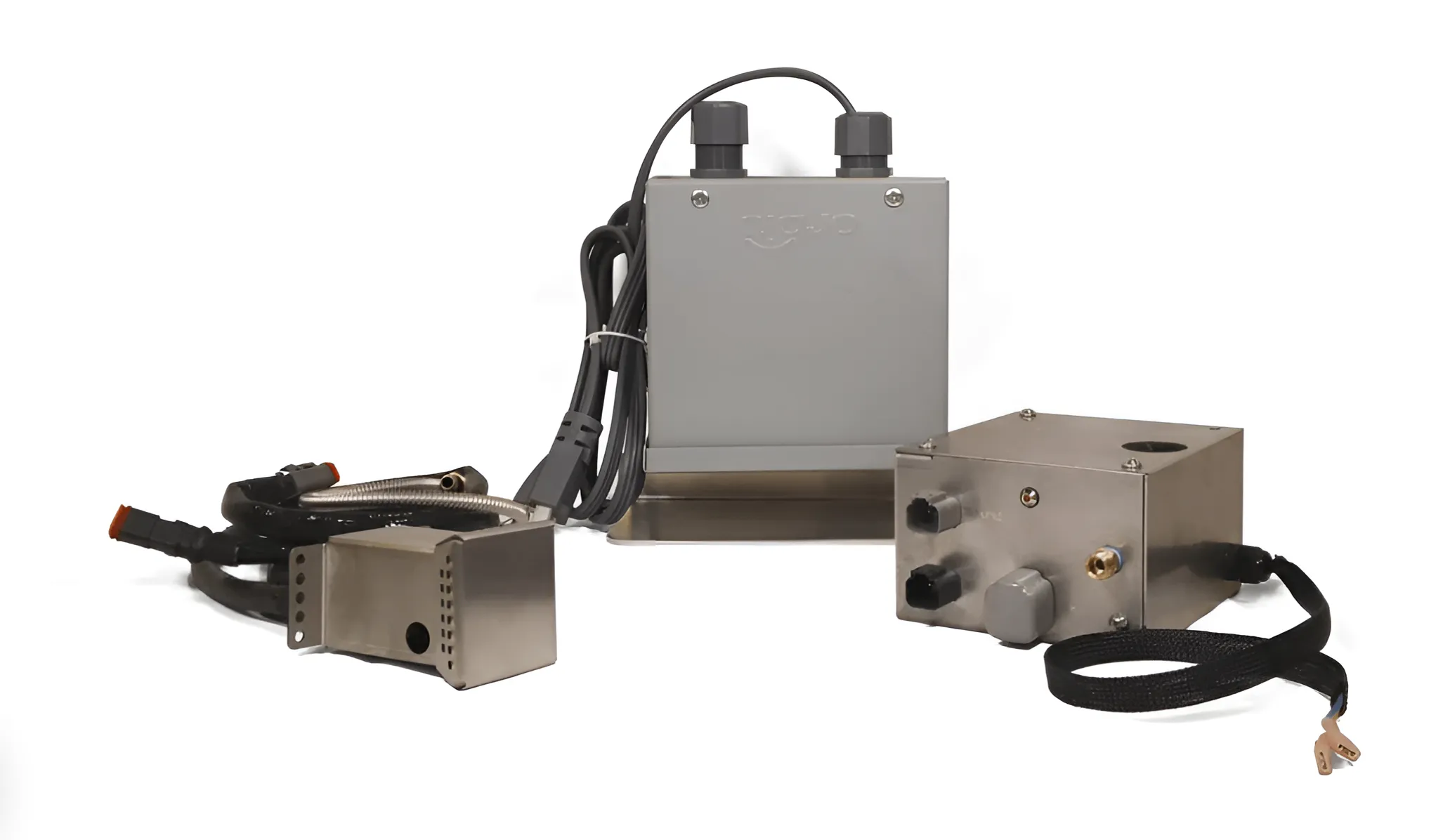

  • Electronic Ignition – Provides remote on/off functionality with built-in flame sensing. Some models may require external power for high BTU burners.

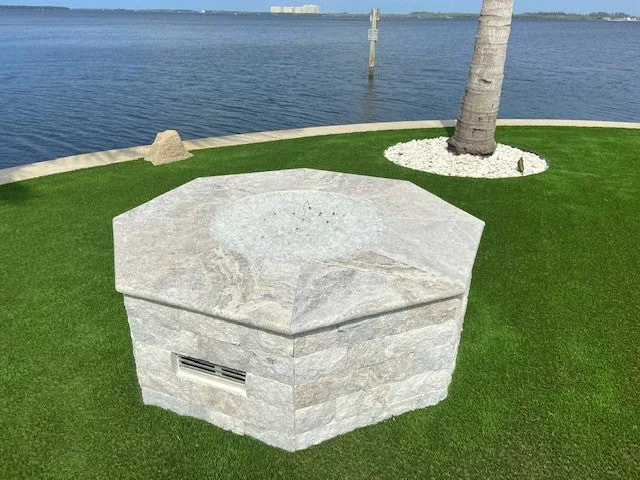

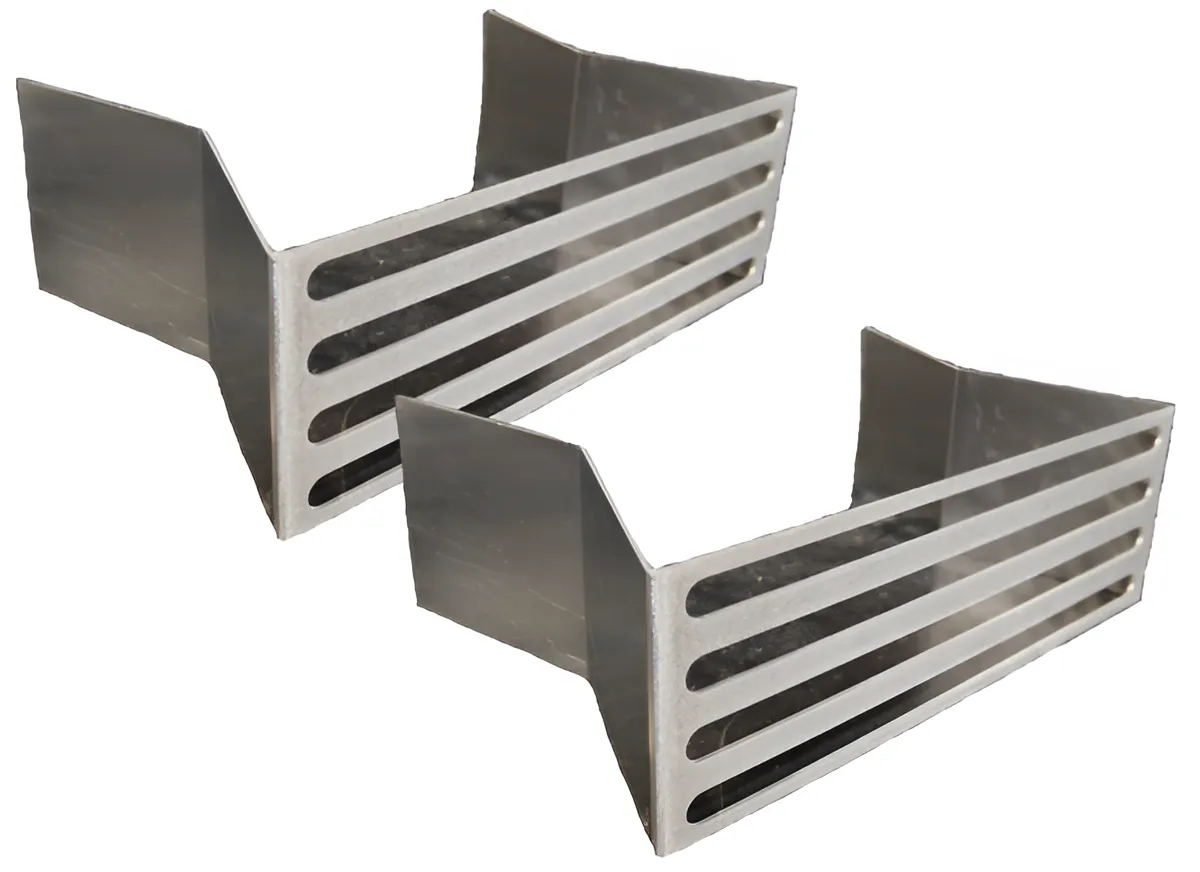

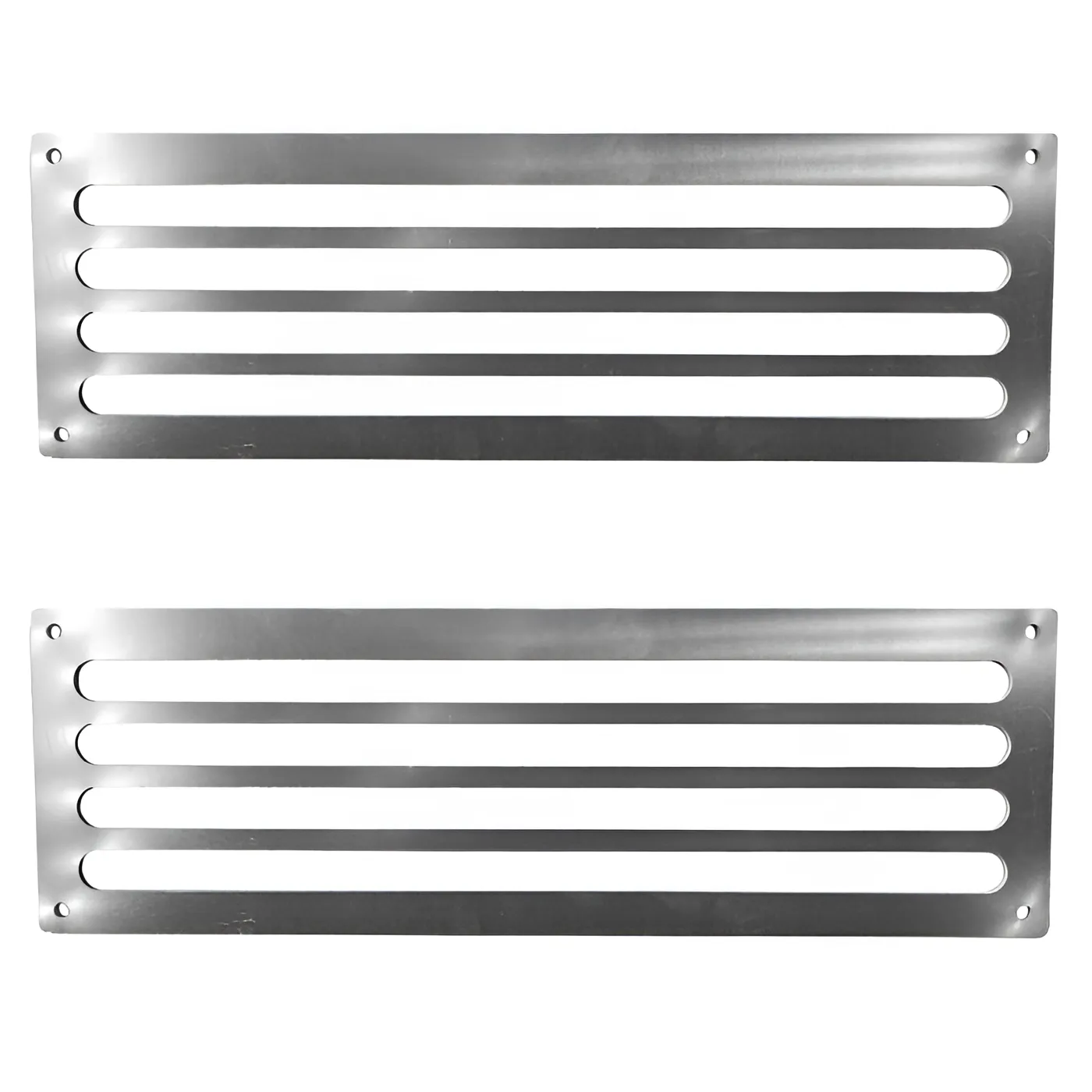

5. Venting
Proper ventilation is recommended with two 18-square-inch vents on opposite sides for cross ventilation. Adjustments can be made, but ensuring adequate airflow is essential.

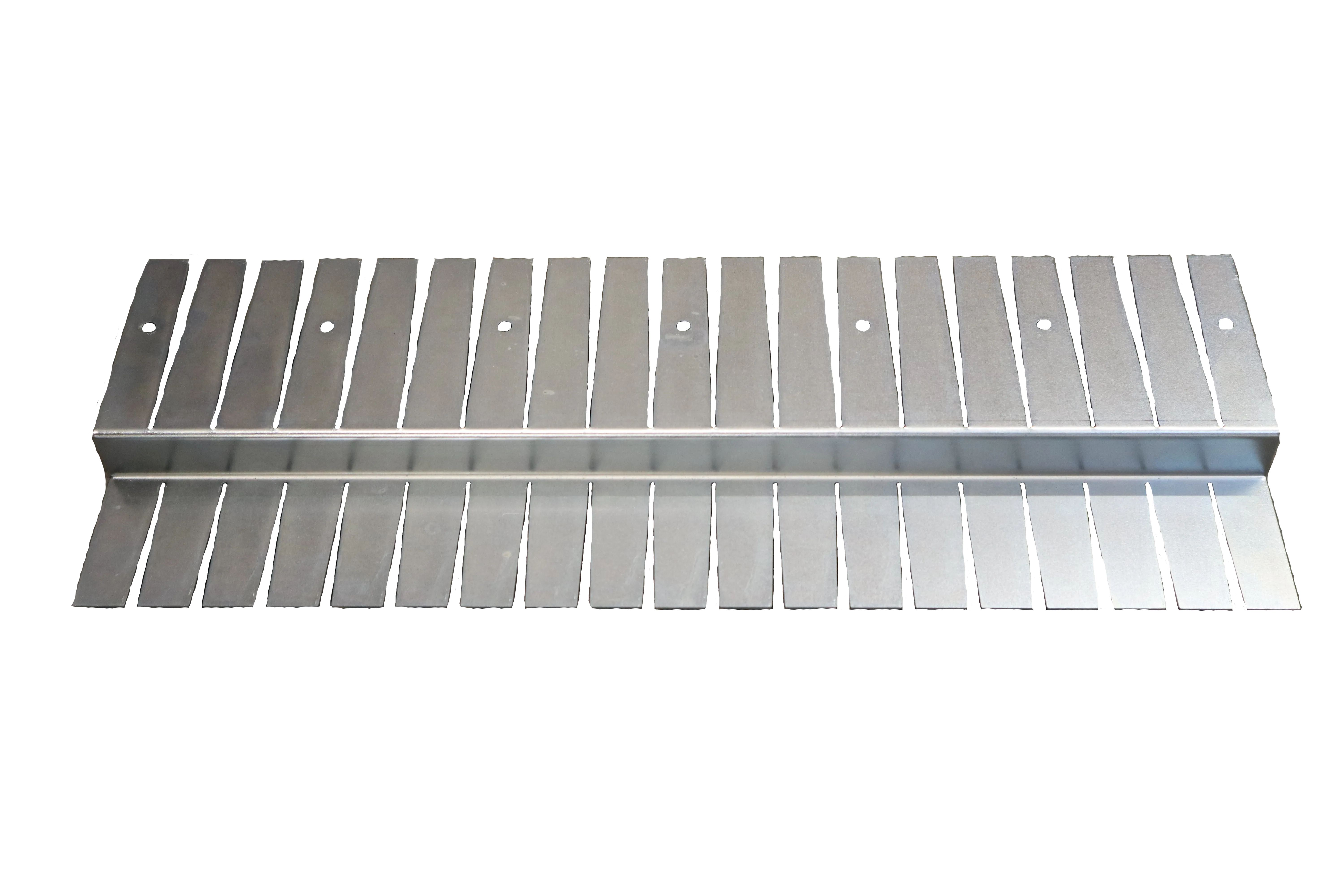

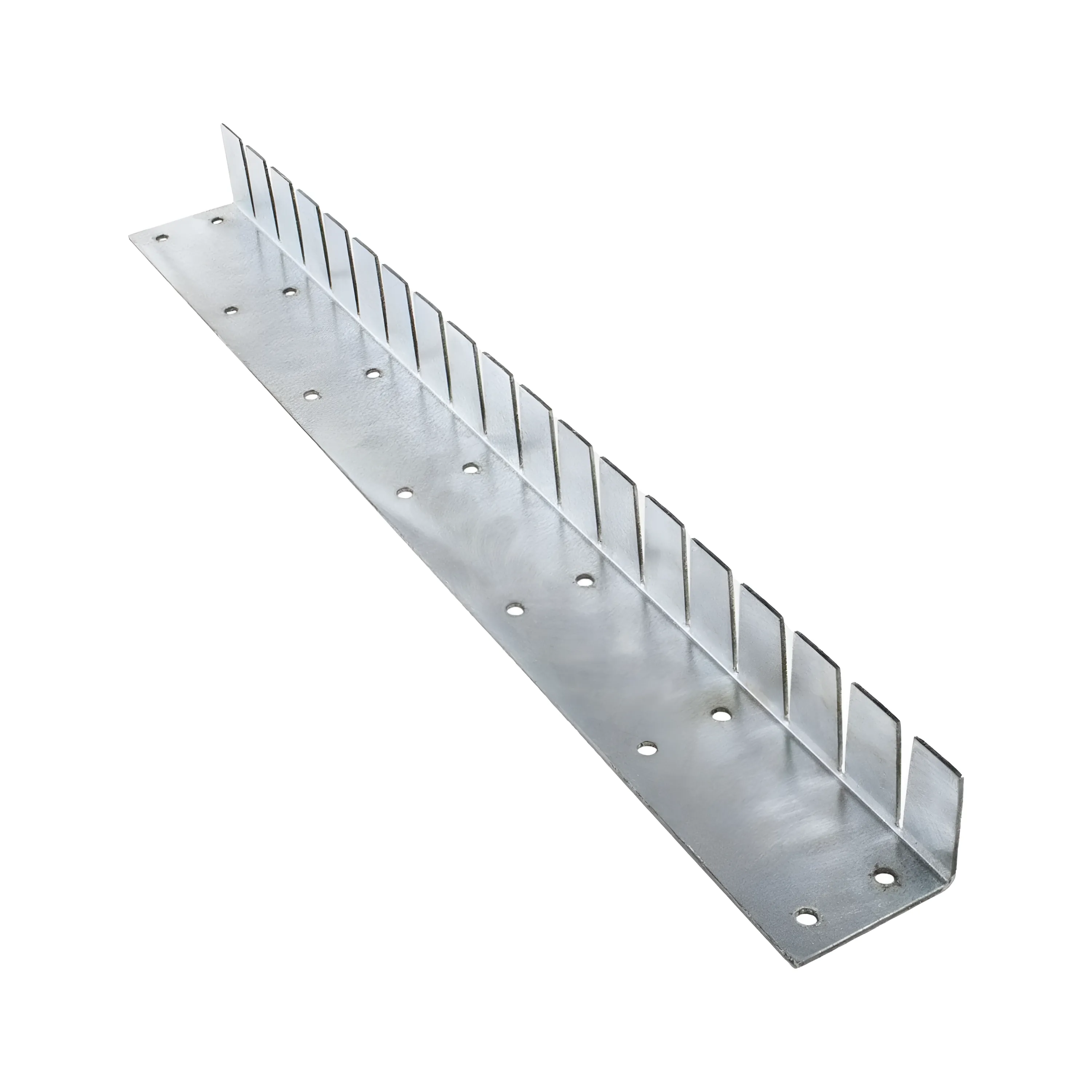

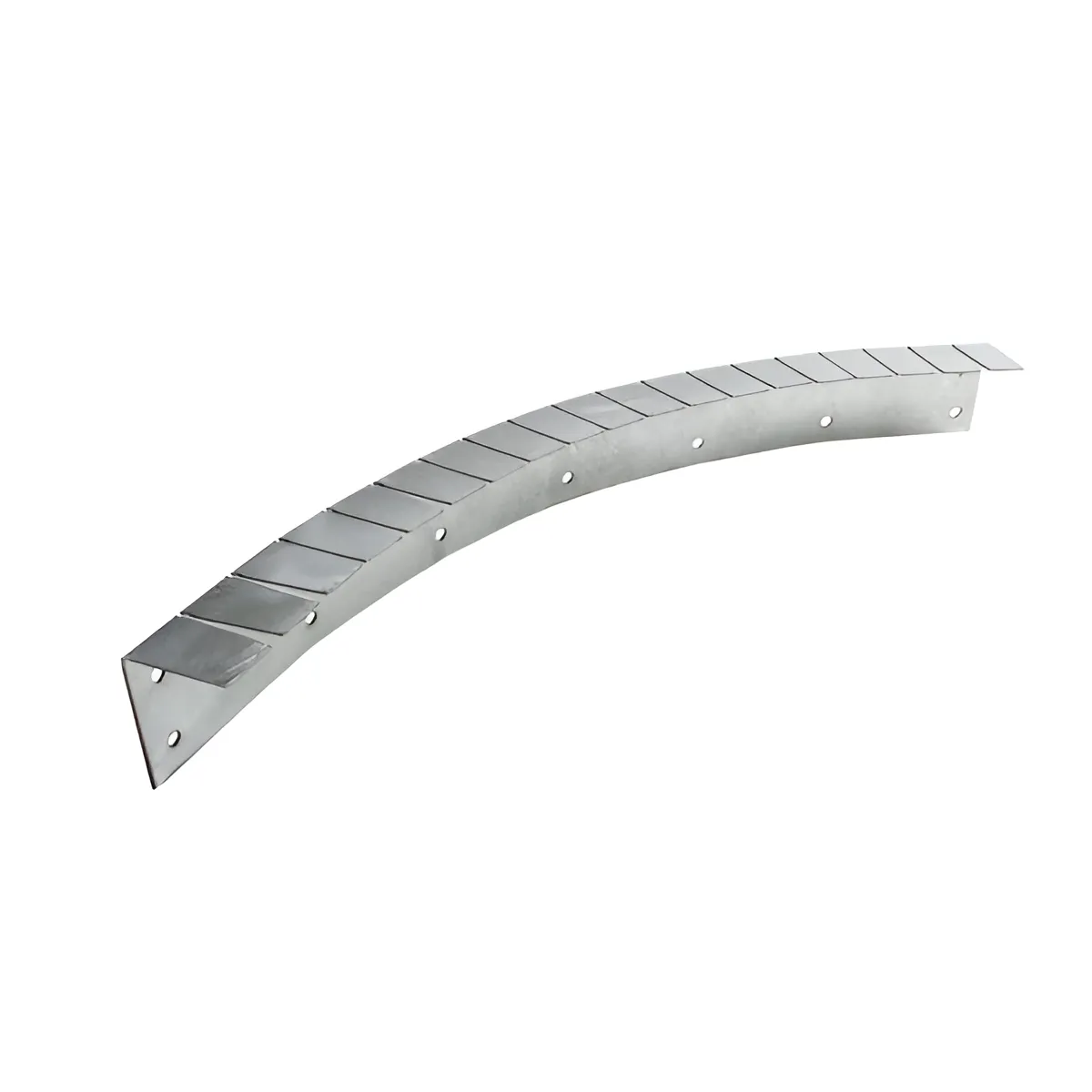

6. Installation Collars
Install collars 4-5 inches below the top of the fire pit to support the plate. Bricks or cinder blocks can substitute, but support collars are specifically designed to hold the plate securely.

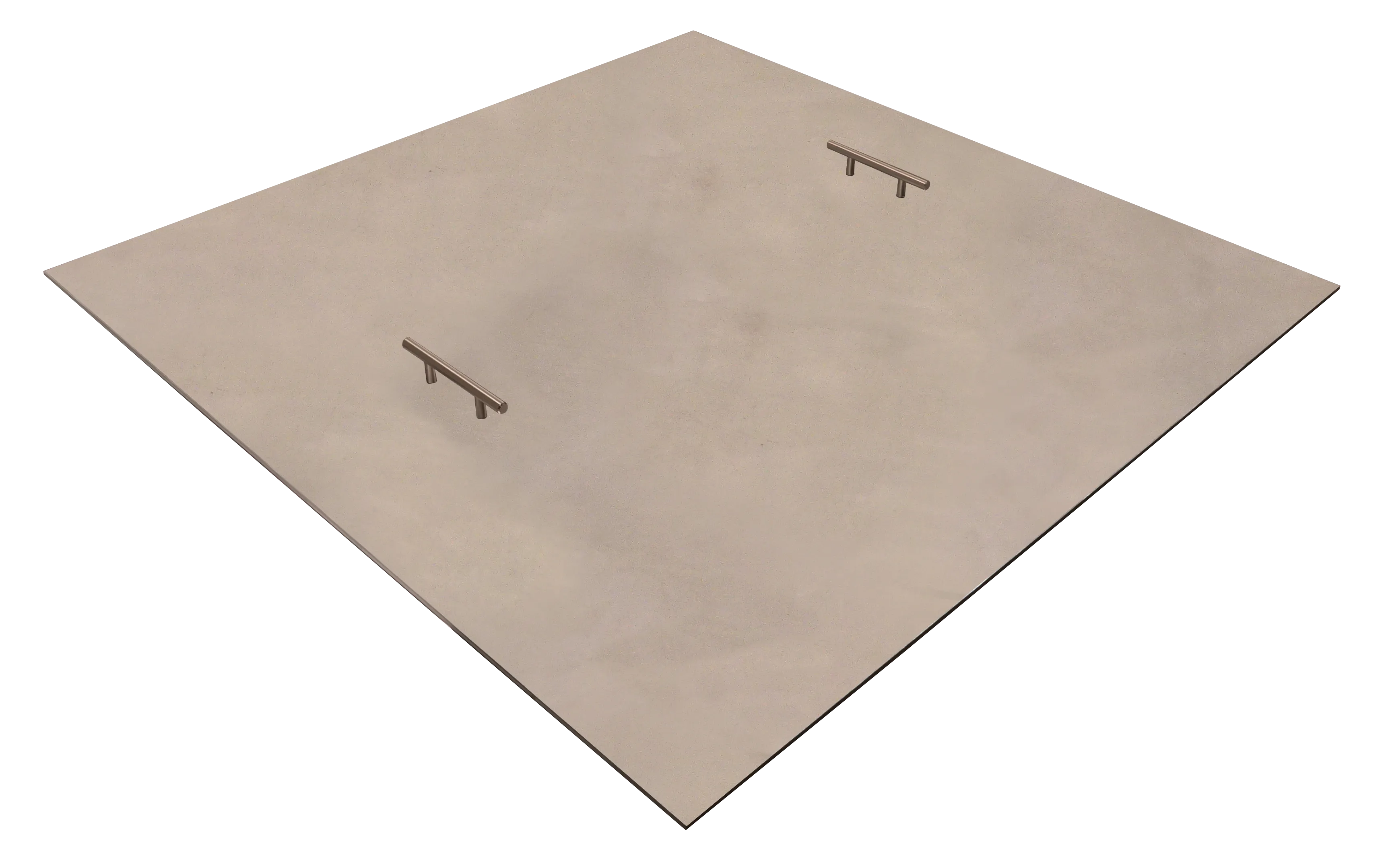

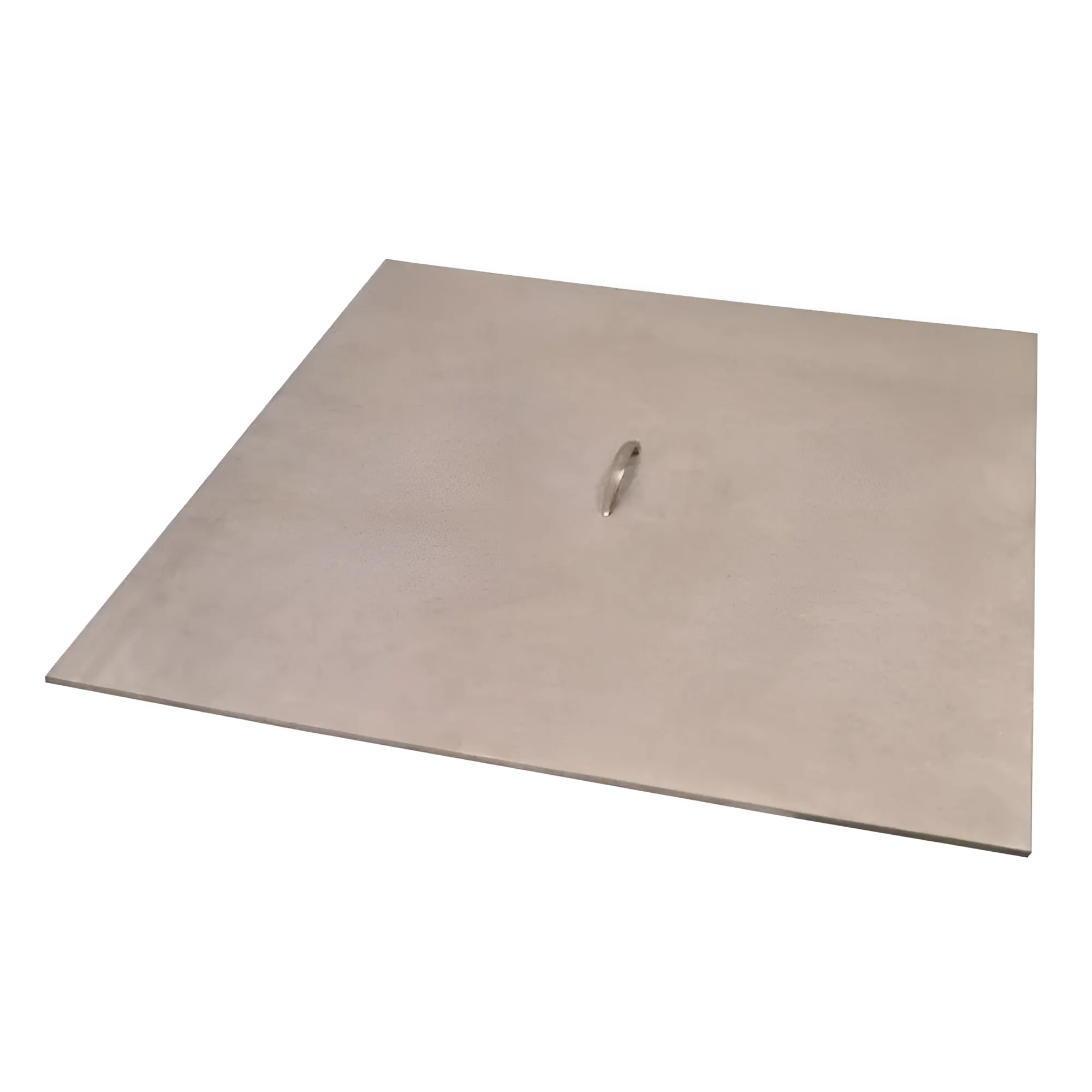

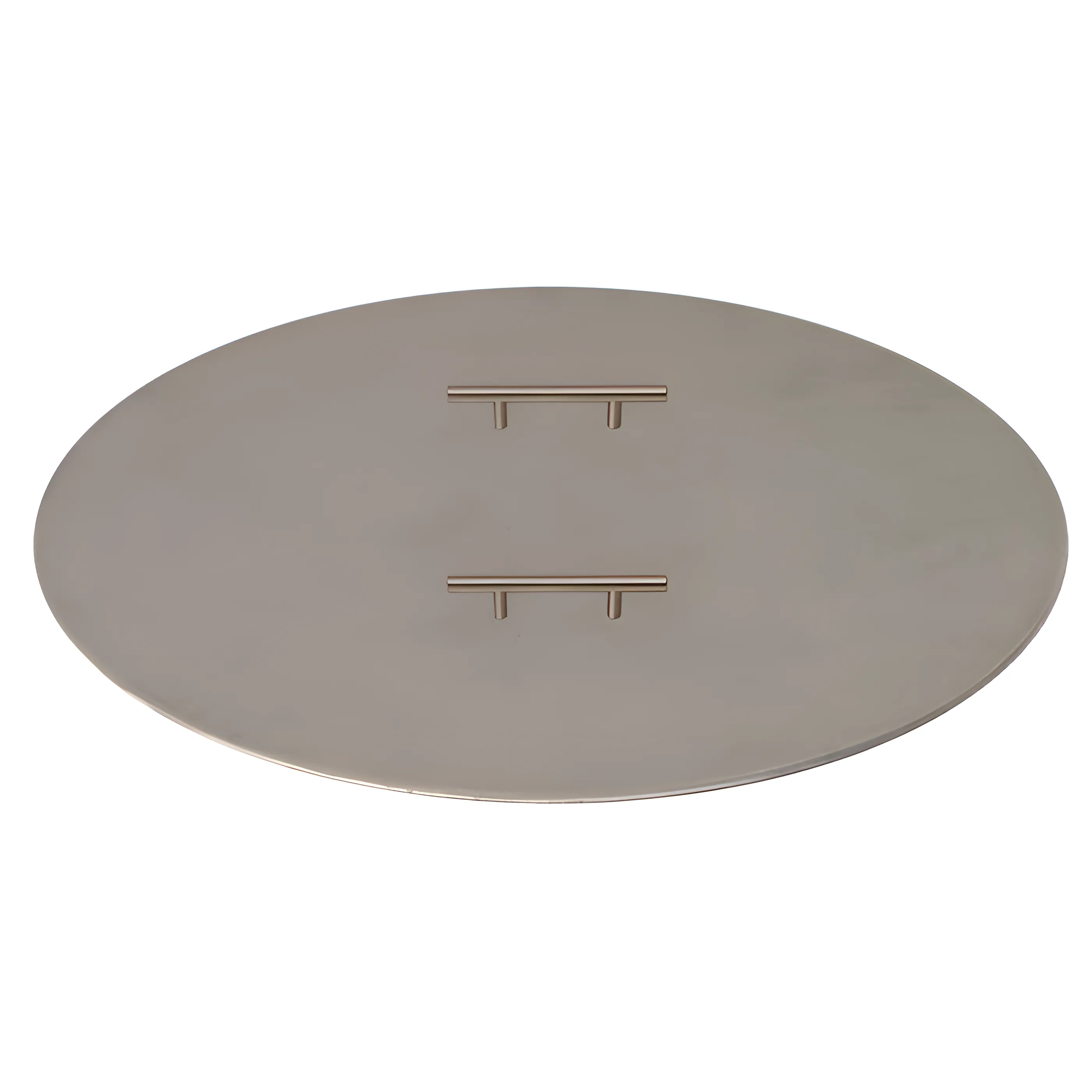

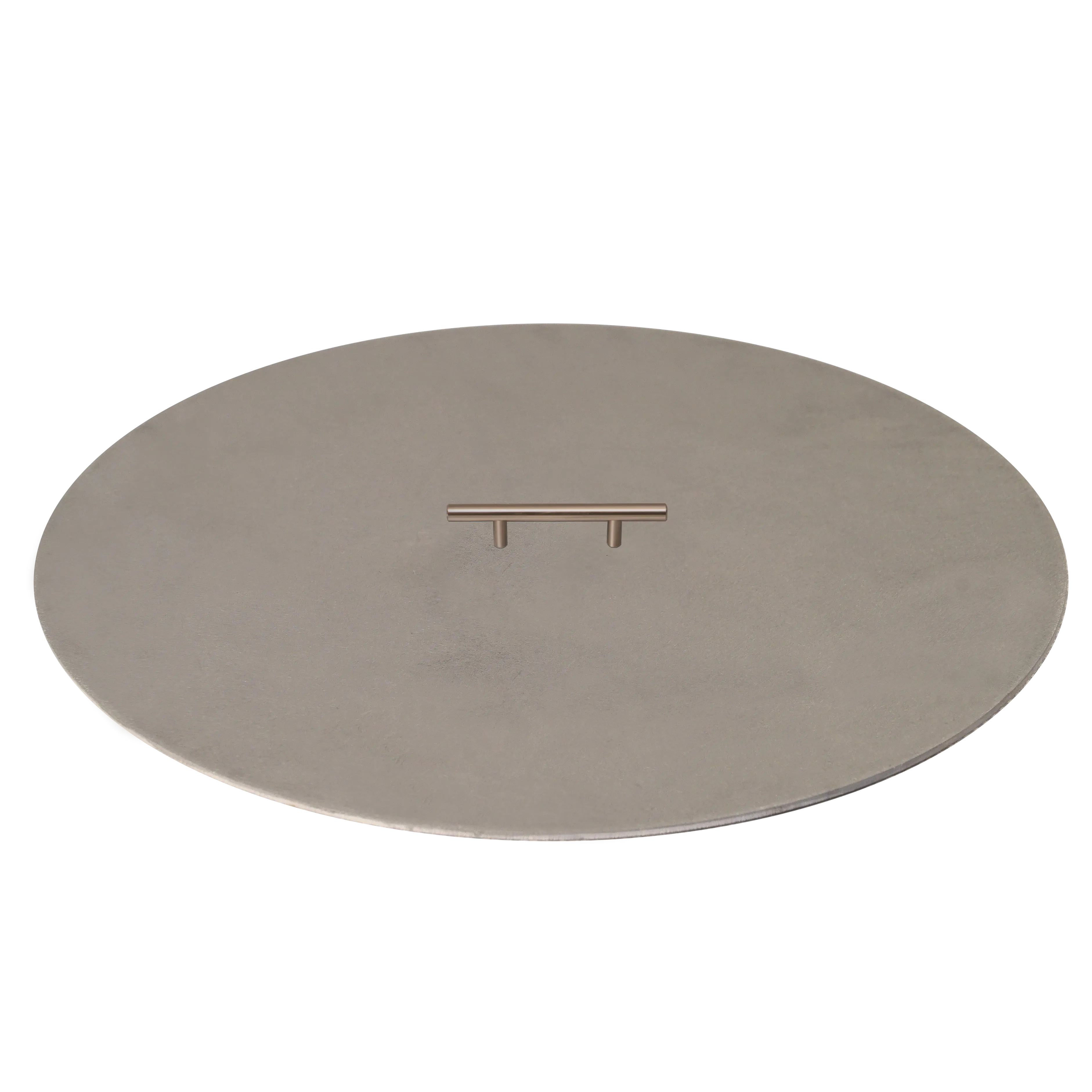

7. Cover
Protect your fire pit from the elements by covering it when not in use. Aluminum covers are available, but a tarp can work temporarily. Choose a cover with a 1-inch lip around the opening (e.g., a 34" cover for a 32" opening).

Features

  • 100% Brass Construction – Corrosion-resistant for minimal maintenance and lifetime durability. No rust!

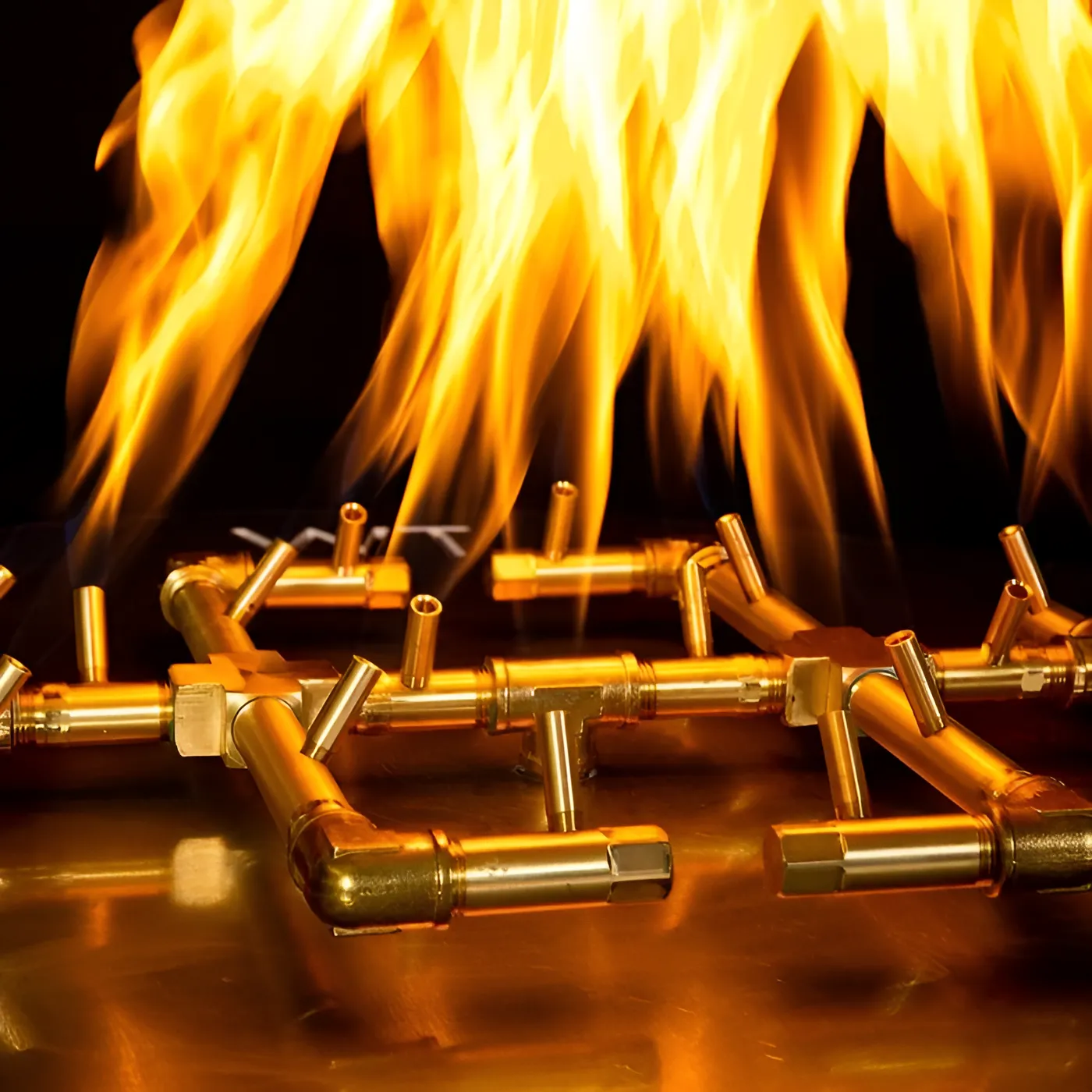

  • Patented Crossfire Burner Design – Produces taller, brighter, and fuller flames for a more natural fire experience.
  • Fuel Compatibility – Works with both natural gas and propane.
  • Fuel Efficient – Uses half the fuel of traditional burners, saving on operating costs.
  • Lifetime Warranty – Backed by Warming Trends’ full lifetime guarantee against rust.
  • Proudly Made in the USA – 100% manufactured in the United States.
  • Multiple BTU Ratings and Sizes – Available in various configurations to fit different fire pit designs.
  • Style Options – Choose from Original, Octagonal, Tree-style, H-style, and Linear designs.

Specifications

ManufacturerWarming Trends
SKU NumberUCB-CFBO
Burner Material100% Brass
Burner StyleCFBO Octagonal Crossfire Brass Burner
Fuel TypeNatural Gas or Propane
Twice The FlameYes
Fuel-EfficientYes
Lifetime WarrantyYes
Made In the USA?Yes

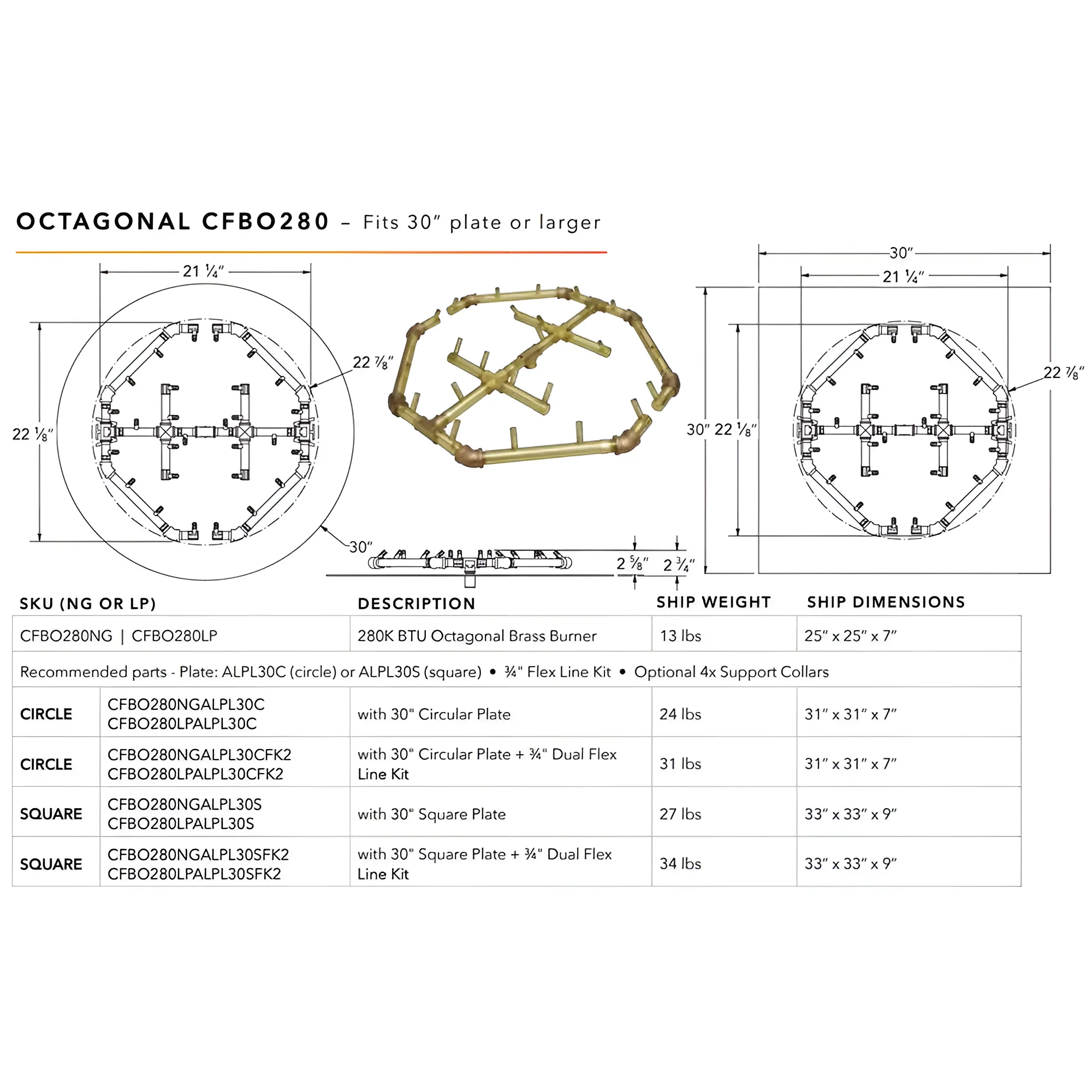

Dimensions

SKU NumberBTUsBurner SizeInlet SizeRec. Opening SizeWATERSTOP
CFBO140140K10.75" x 13.75"1/2"18"Yes
CFBO180180K14.75" x 15.75"1/2"24"Yes
CFBO280280K22.75" x 21.75"1/2"30"Yes
CFBO320320K25" x 23.75"1/2"36"Yes

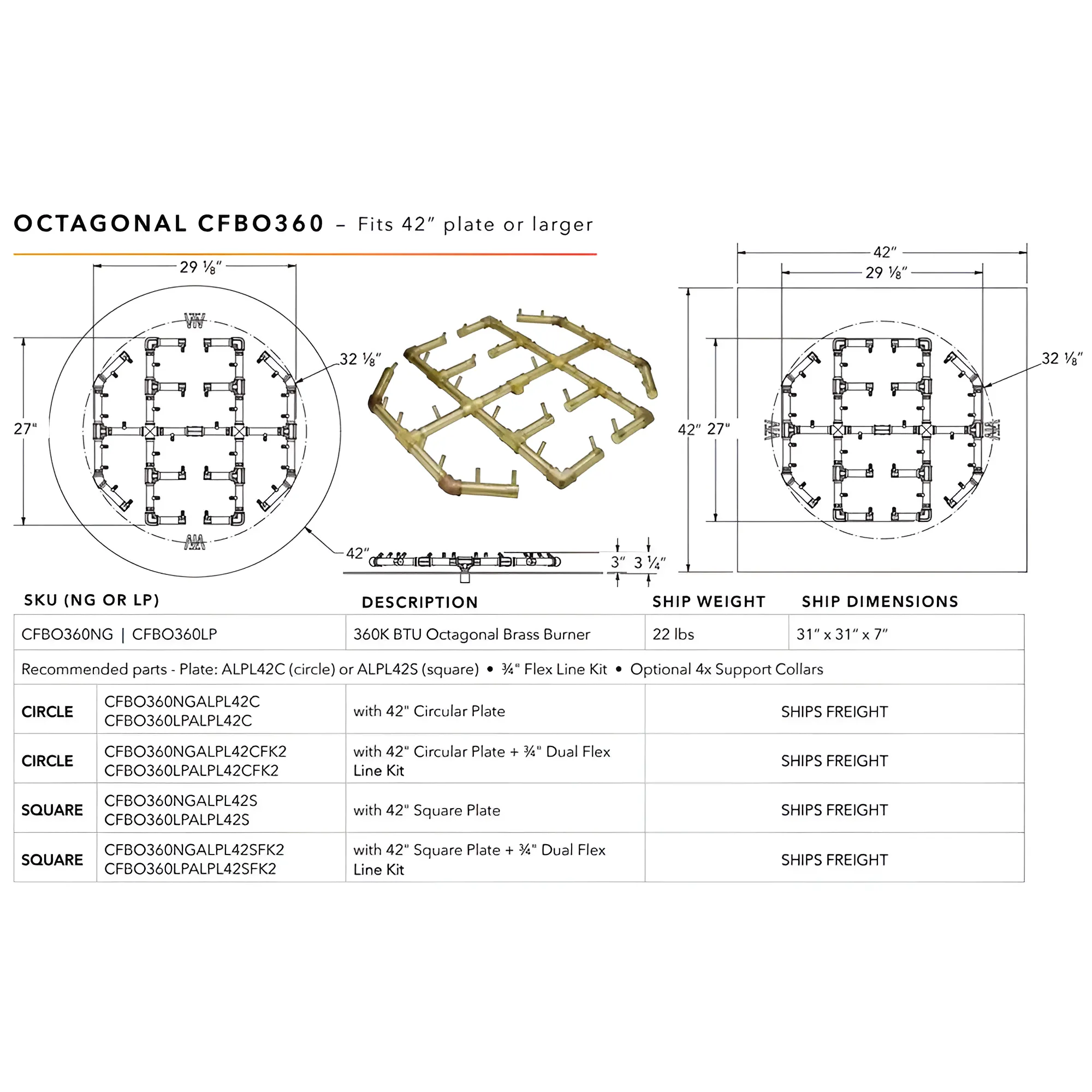

CFBO360360K29.125" x 27"3/4"42"Yes


Collar Guide

  • The adjustable installation collars can bend for round enclosures and can be anchored in with concrete screws
Round Plate/Pan (Diameter)Collars Required
12”2 Units
18”3 Units
24”4 Units
30”5 Units
36”6 Units
42”7 Units
48”8 Units
54”9 Units

Note: For square or rectangular enclosures, use enclosure length and width measurements

Lava Rock Guide

Note: 1 bag = 1 cubic foot

Fire Plate Size Lava Rock Required
18” Plate1 bag
24” Plate1 bag
30” Plate2 bags
36” Plate3 bags
42” Plate4 bags
48” Plate4-5 bags
60” Plate7-8 bags
46x172 bags
50x101 bag


Warranty

Warming Trends warrants that each Warming Trends CROSSFIRE and other jetted-flame-brass-burners is free from defects in materials and workmanship and conforms to its specifications, which are available upon request. The warranty period for a Burner is lifetime warranty beginning on the date of purchase. During the Warranty Period, Warming Trends provides repair and exchange services for the Burners, without charge. Labor not included. Please refer to the manufacturer downloads section below for full warranty details.

Manufacture Downloads

  • Click Here For Warming Trends Owner's Manual

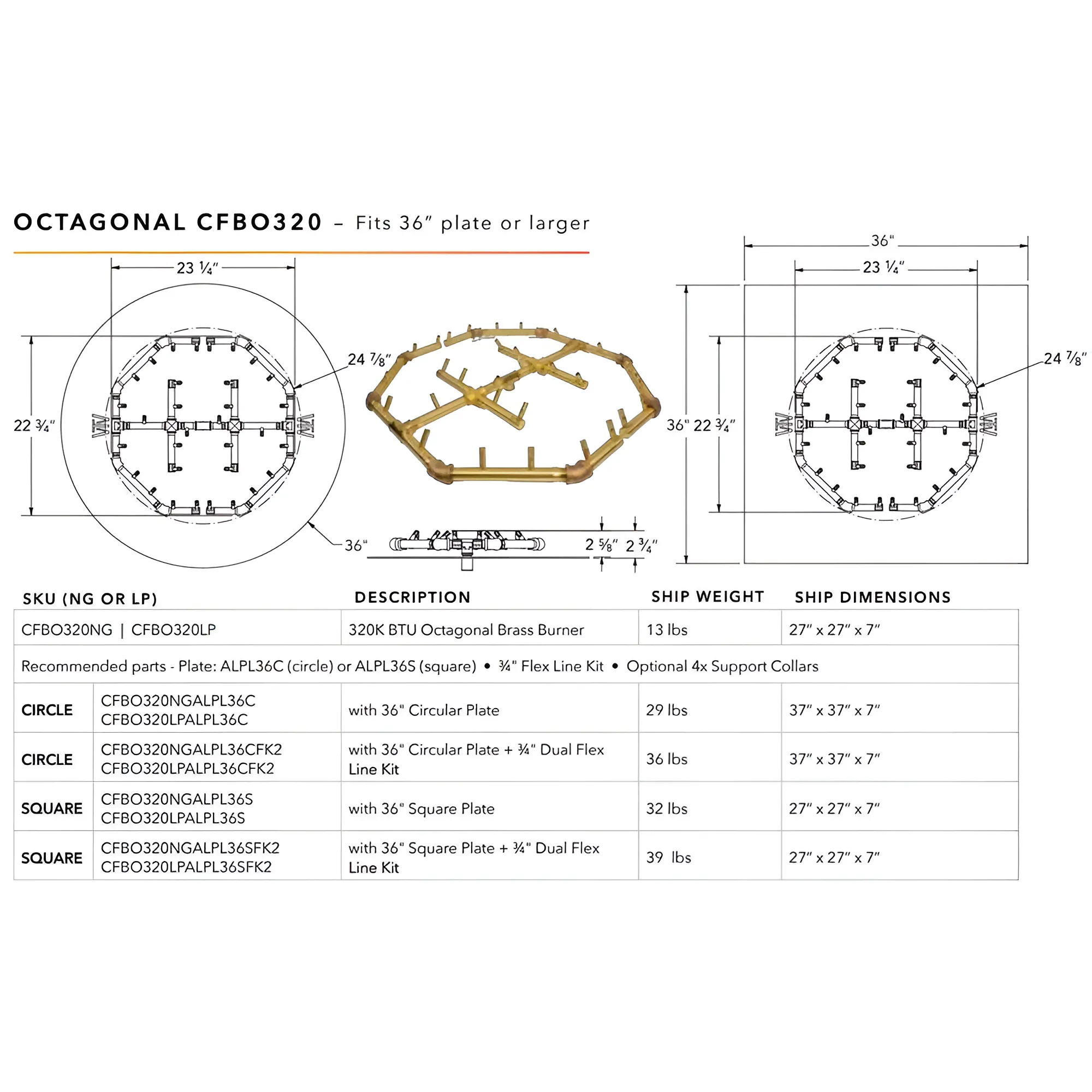

  • Click Here For CFBO140 Detailed Dimensions
  • Click Here For CFBO180 Detailed Dimensions
  • Click Here For CFBO280 Detailed Dimensions
  • Click Here For CFBO320 Detailed Dimensions
  • Click Here For CFBO360 Detailed Dimensions
  • Click Here For Full Warming Trends Burner and Accessories Brochure
  • Click Here For Ignition Systems Trifold Brochure
  • Click Here For Mercury Ignition Owner's & Instructions Manual
  • Click Here For Mercury Ignition Brochure
  • Click Here For Mercury Ignition Q & A Manual
  • Click Here For Full Platinum Ignition Specification
  • Click Here For Mercury Electronic & Clearance Diagram
  • Click Here For A Quick Guide Manual
  • Click Here For Burner Size Guide Manual
  • Click Here For Warming Trends Quick Reference Guide Manual
  • Click Here For WATERSTOP Brochure
  • Click Here For Warming Trends Warranty
  • Click Here For Warming Trends Displays
  • Click Here For Warming Trends Brochure
  • Click Here For Warming Trends Full Catalog
