Twice the flame, half the gas. No rust or corrosion, made from 100% brass, and backed with a Full Lifetime Warranty!

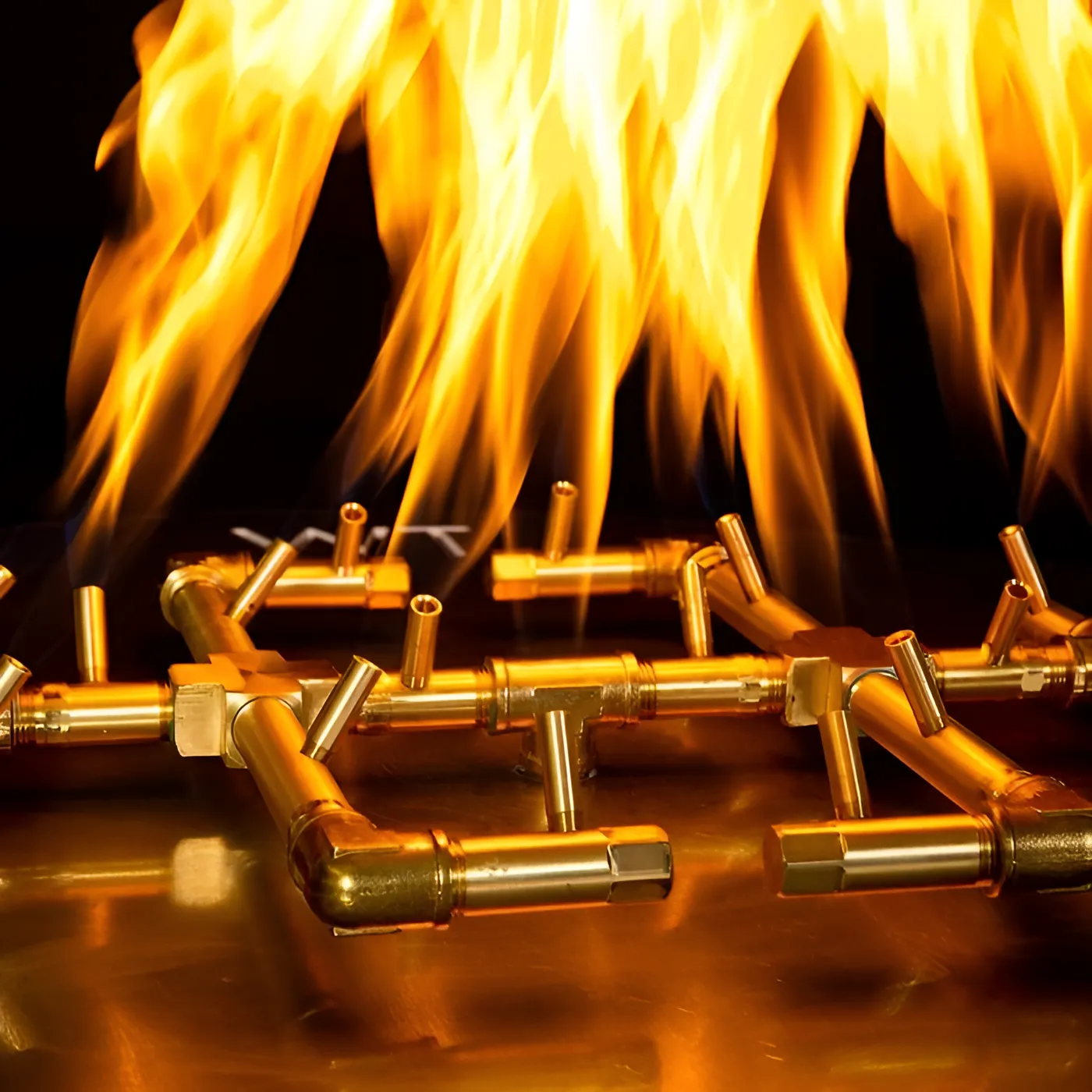

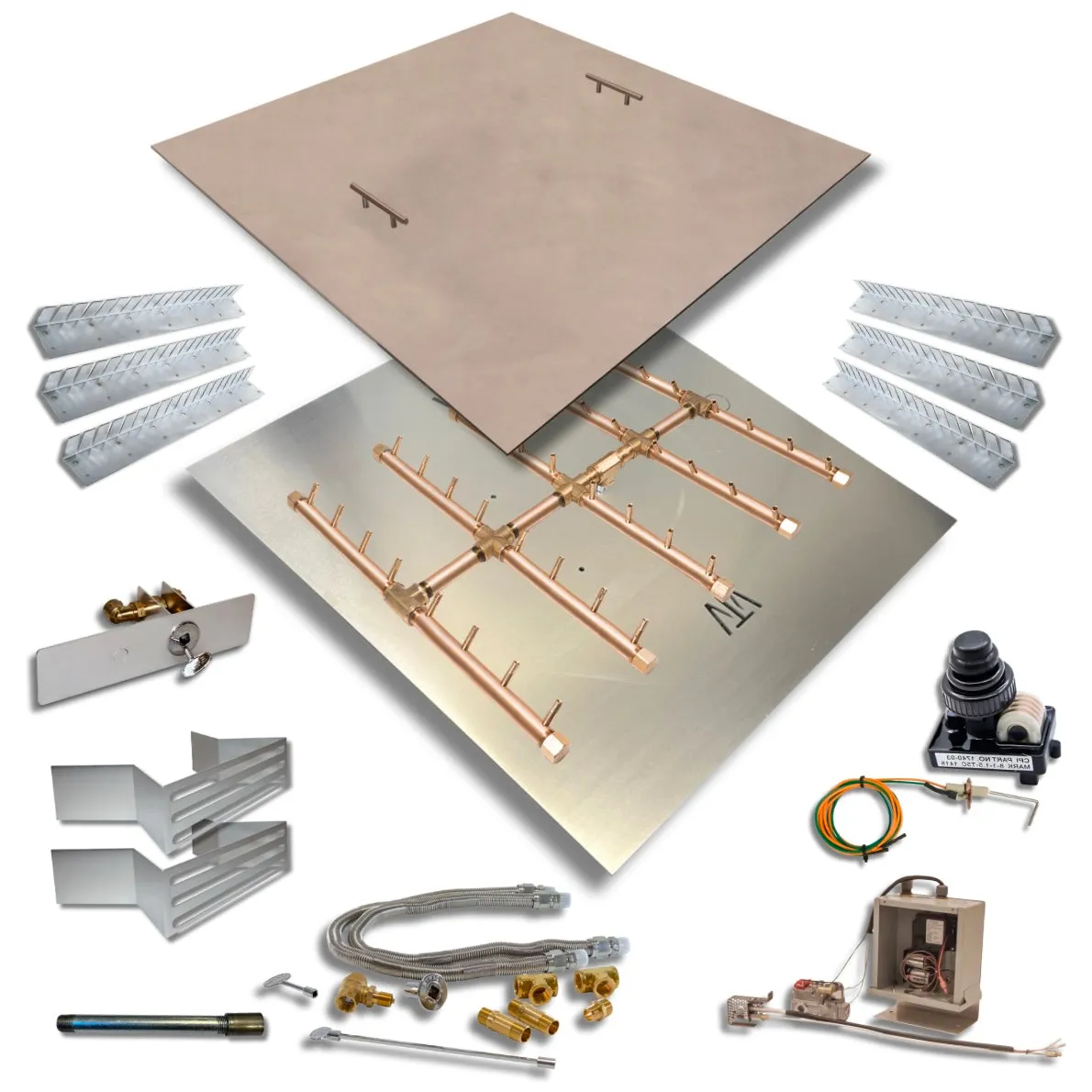

Enhance your fire pit setup with the Ultimate Crossfire Bundle: the Warming Trends Crossfire CFBST Square Tree-Style Brass Burner. This revolutionary, patented burner delivers taller, brighter, fuller, and more natural flames while using less fuel. Its innovative regulation system works seamlessly with both propane and natural gas.
Available in a variety of sizes and BTU ratings, the Crossfire burner ensures exceptional durability, corrosion resistance, and unmatched performance—all backed by the Full Manufacture Lifetime Warranty.

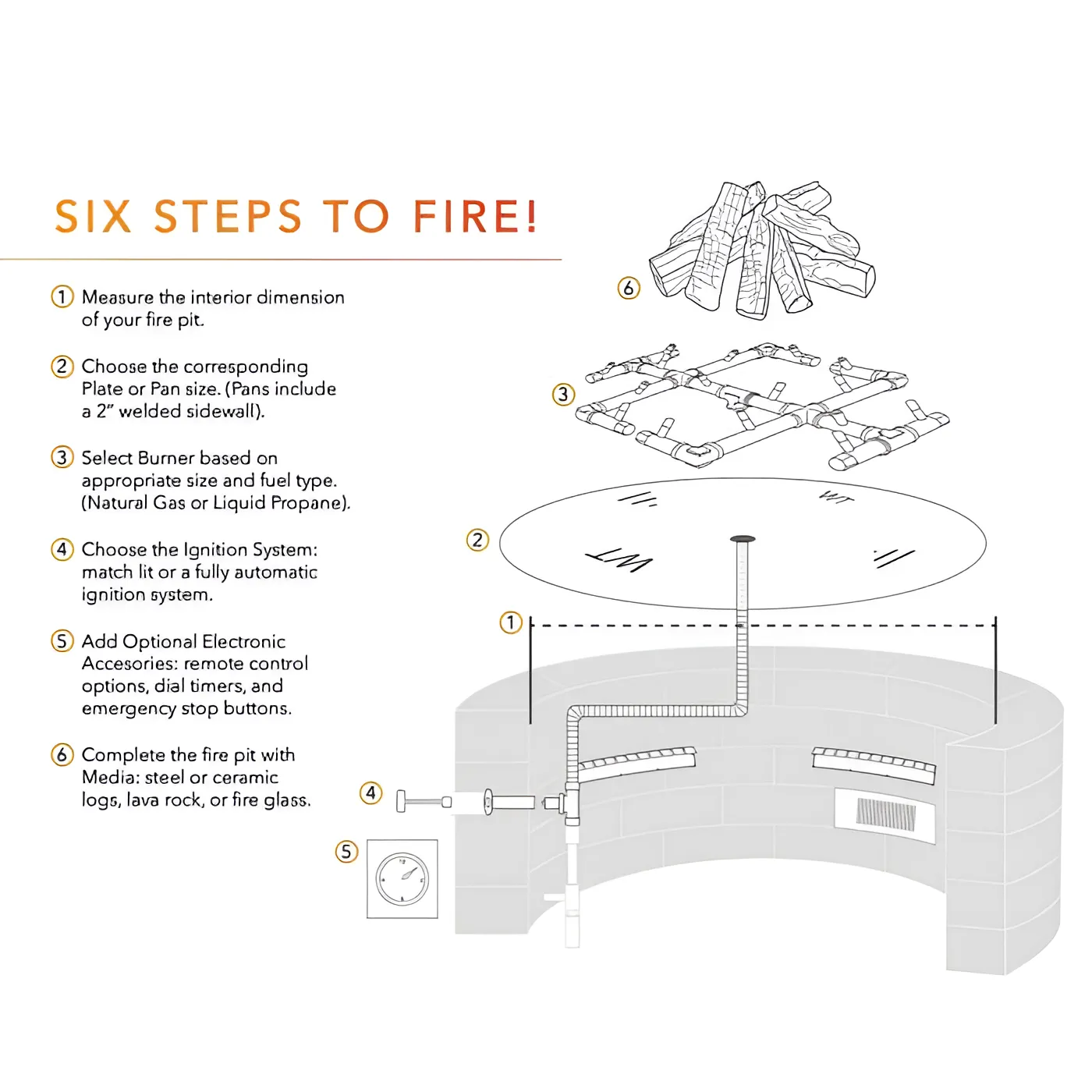

Burner Plate/Pan Size Guide
Need help choosing the right size? Check out our Burner & Plate Size Guide for assistance in finding the perfect fit for your fire pit. Or call/chat for assistance.
FREE Media Options
- Black Lava Rock
- Rolled Lava Rock
- 1/2" Reflective Fire Glass
- 1/2" Fire Glass 2.0 Cubes
3/4" Recycled Fire Glass
Note: Use the easy-to-use Media Calculator to help you determine the ideal amount of media needed for your fire feature. Or call/chat for assistance.
Bundle Item Options

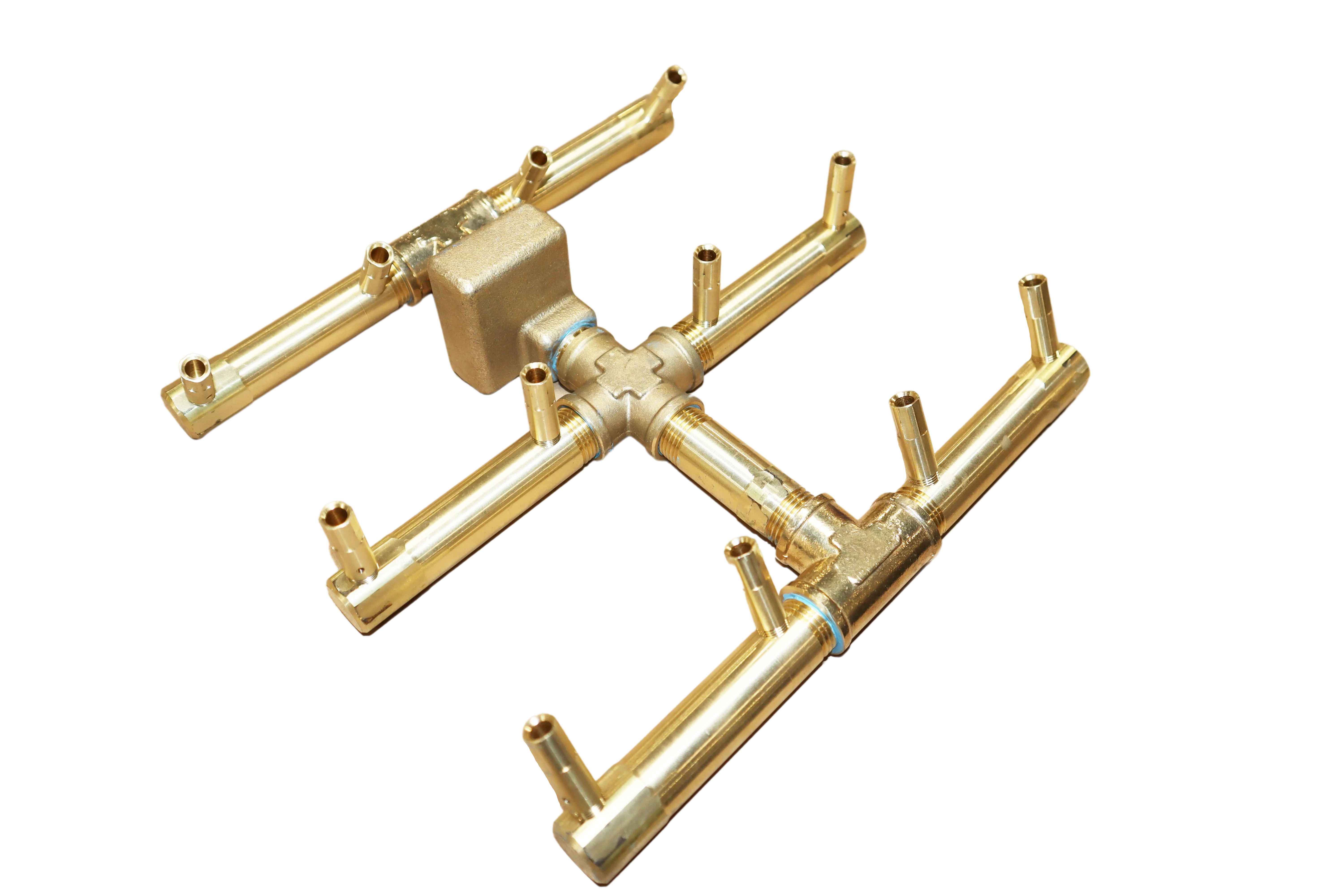

1. Burner

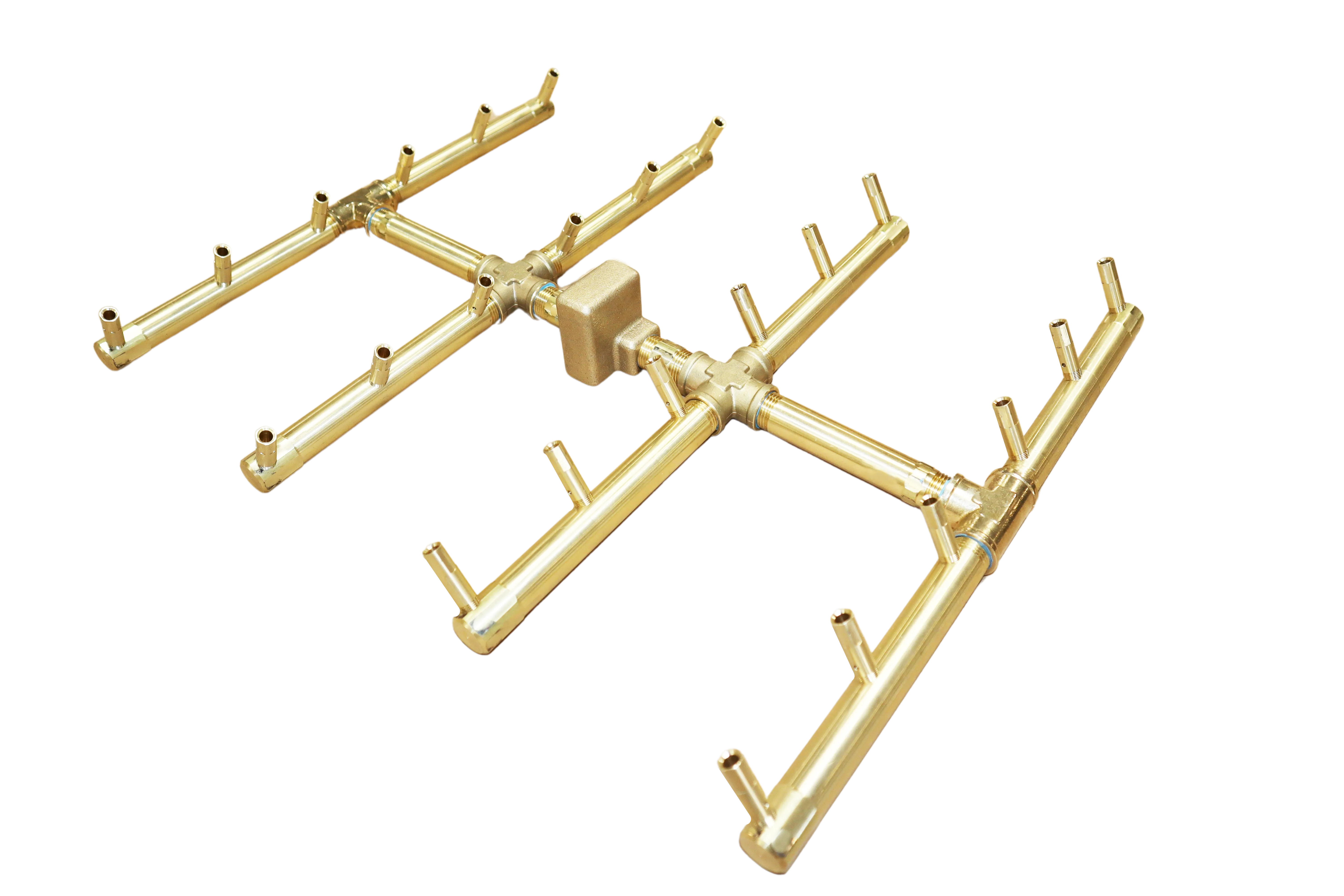

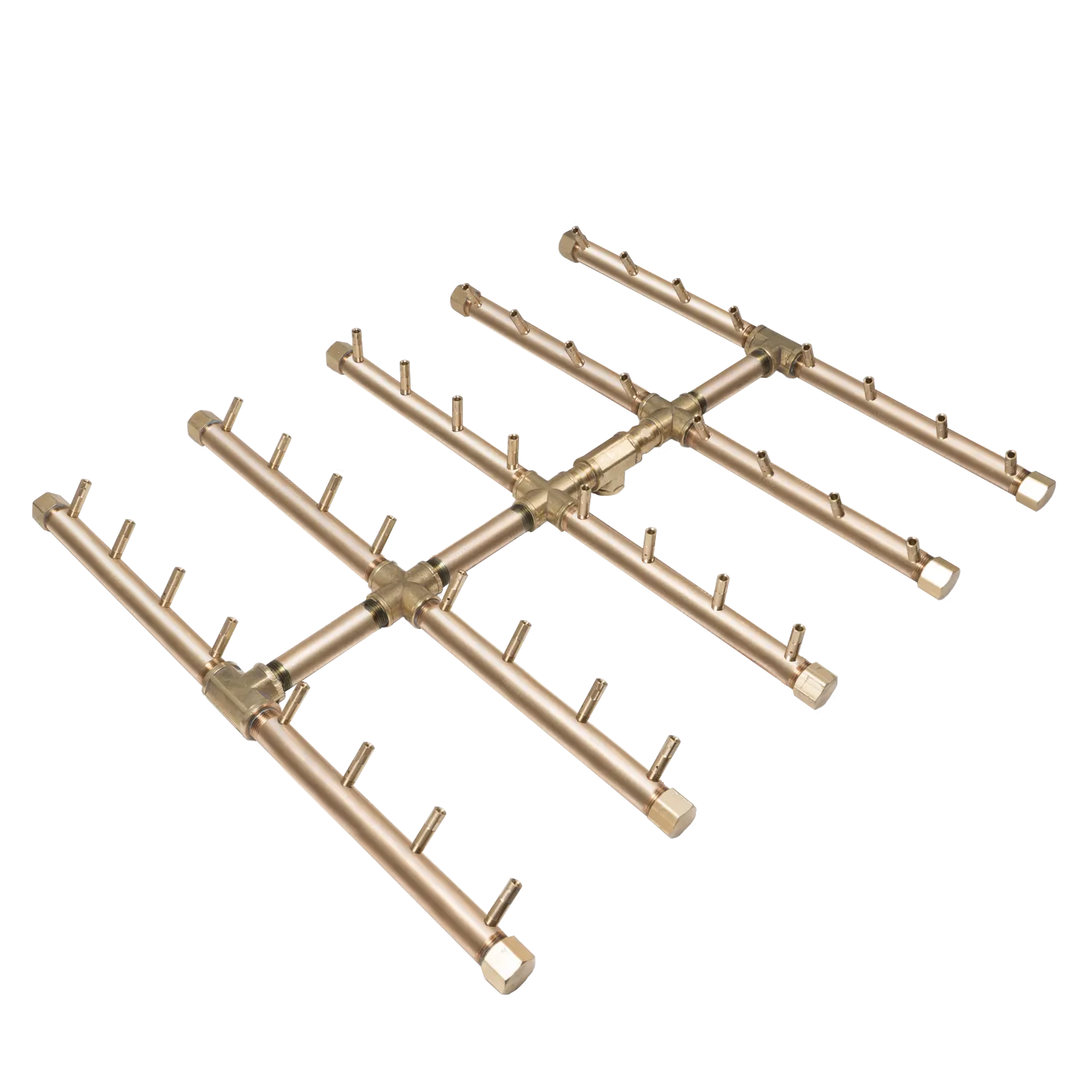

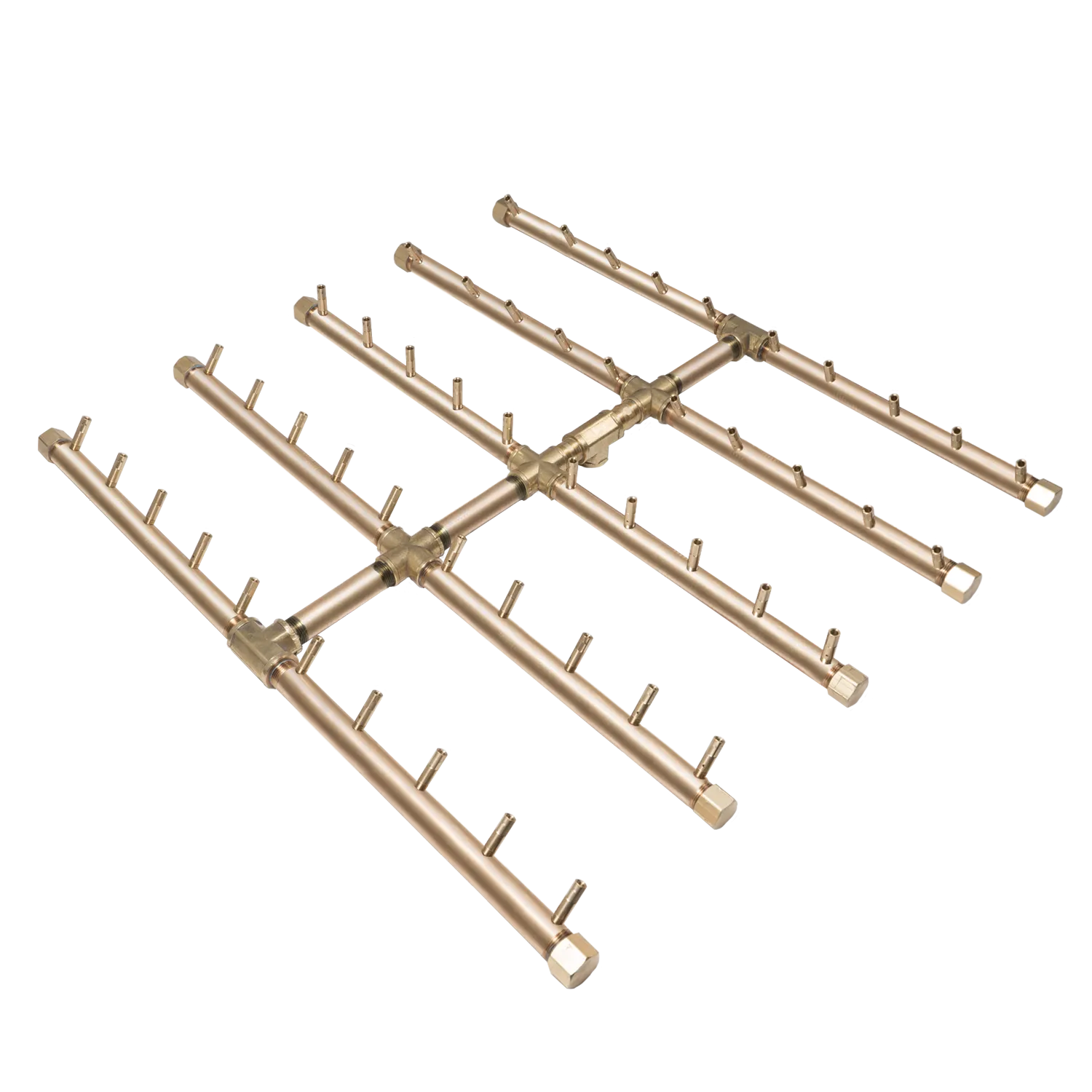

The Square Tree-Style Crossfire Burner is available in standard sizes ranging from 120K BTU (10x11.25 inches) to 500K BTU (31.25x30.5 inches).

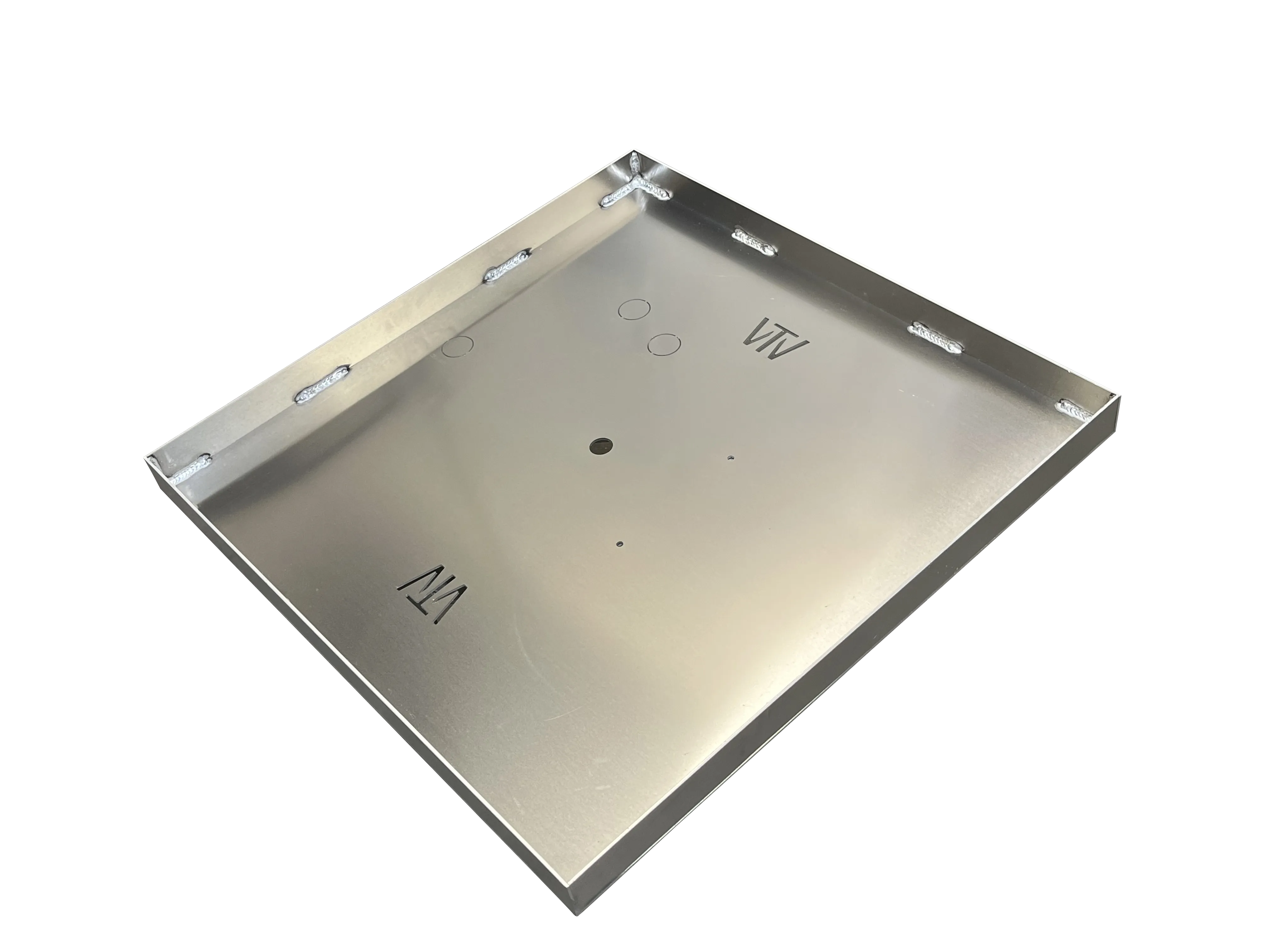

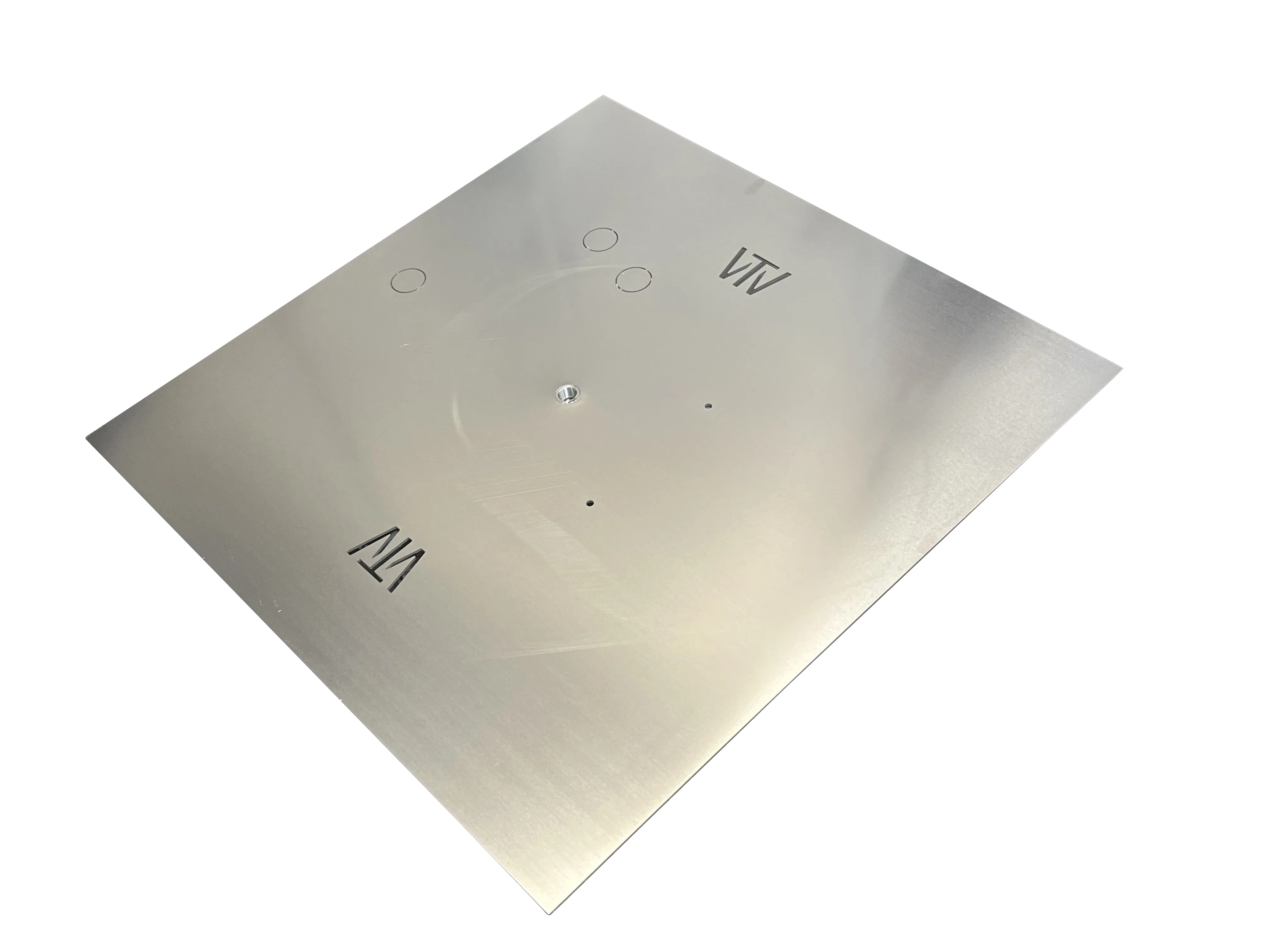

2. Plate Or Pan
Plates and pans are crafted from tempered aluminum and come in square or circular shapes. They feature precision-cut weep holes for drainage and a central gas inlet opening. Available in 1/8-inch or 3/16-inch thickness, the size depends on your fire pit’s opening.

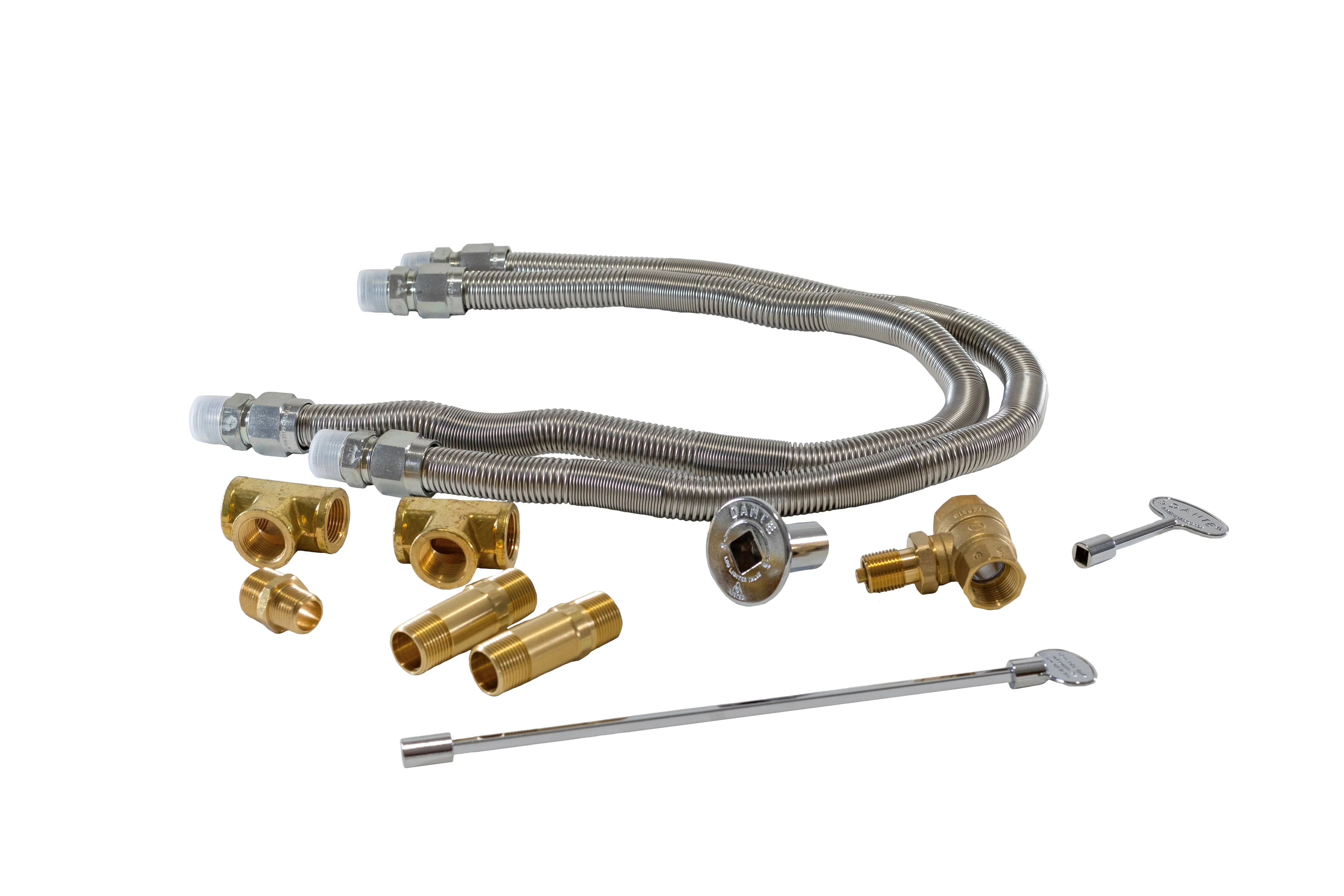

3. Flex Line & Key Valve Kit
Choose the appropriate Flex Line & Key Valve Kit based on your burner’s BTU rating:
- FK1: For burners under 249K BTU
- FK2: For burners over 249K BTU
4. Ignition Types
Choose from four ignition systems for your fire pit:
- Match Light Ignition: Open the gas valve and light the burner with a match or lighter. This is the default system.

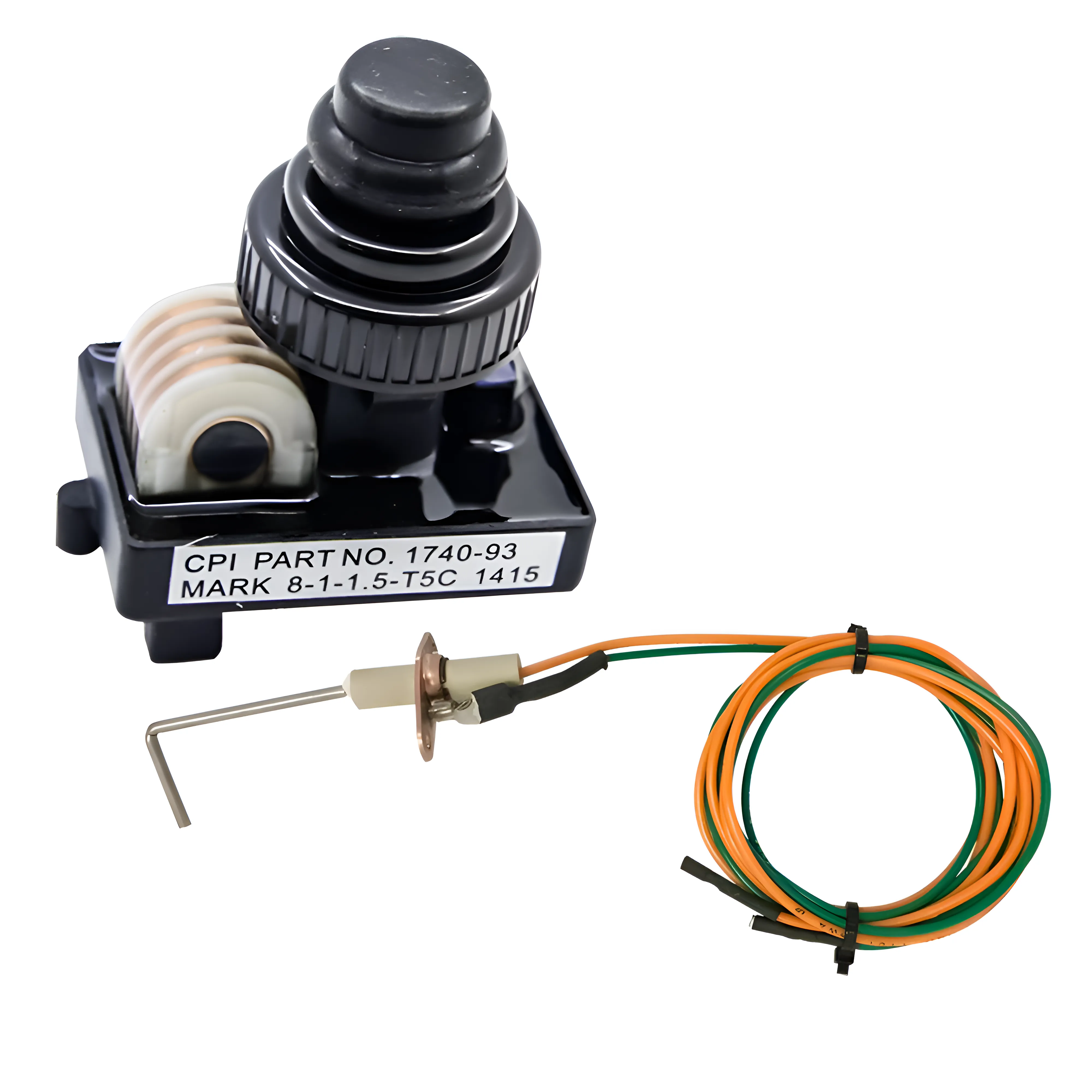

- Push Button Spark Ignition: Open the gas valve and press the ignitor button—no lighter or match required.

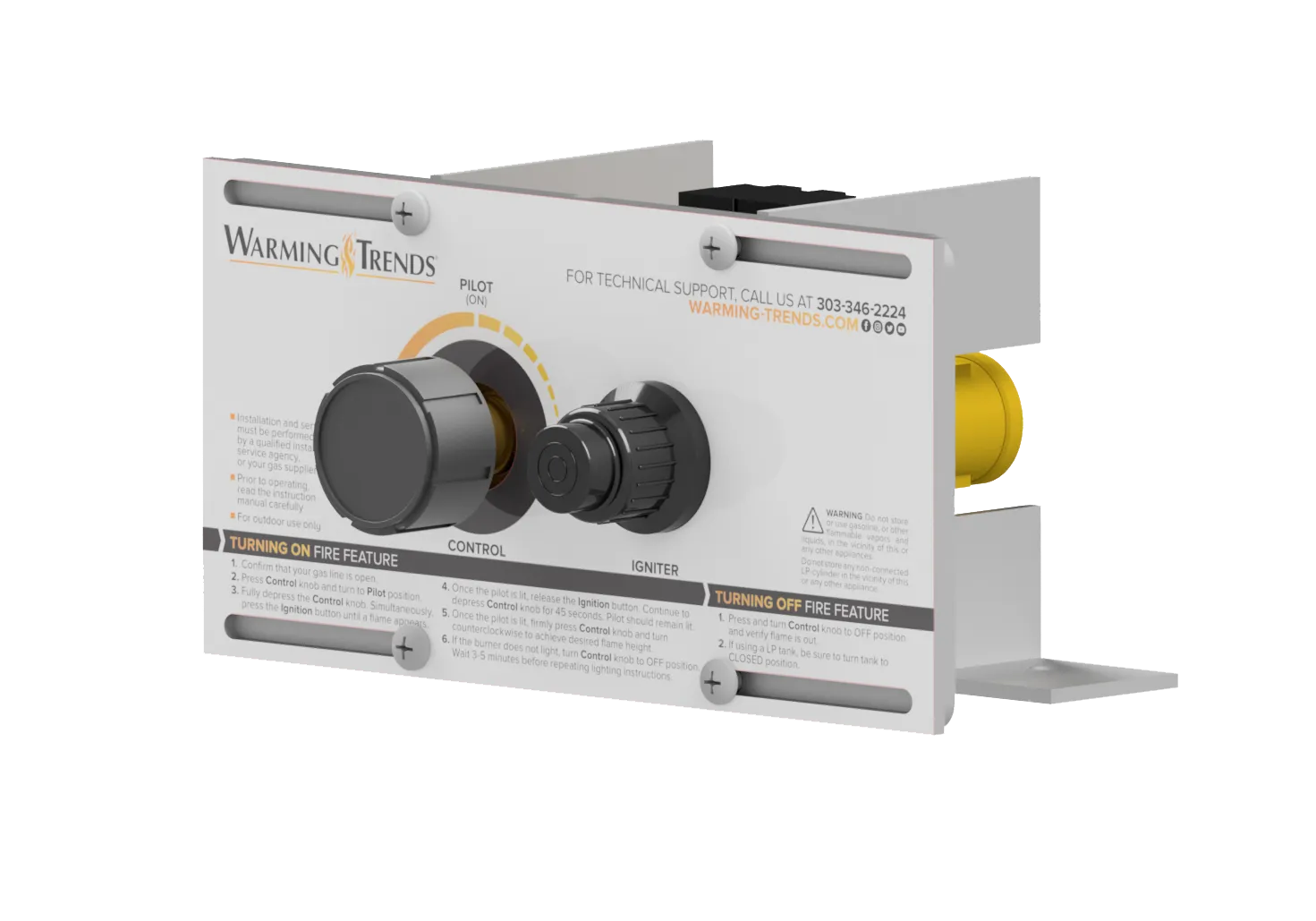

- Push Button Spark Ignition with Flame Sense: Includes a flame-sensing safety feature that shuts off the gas if the flame goes out. Does not require external power.

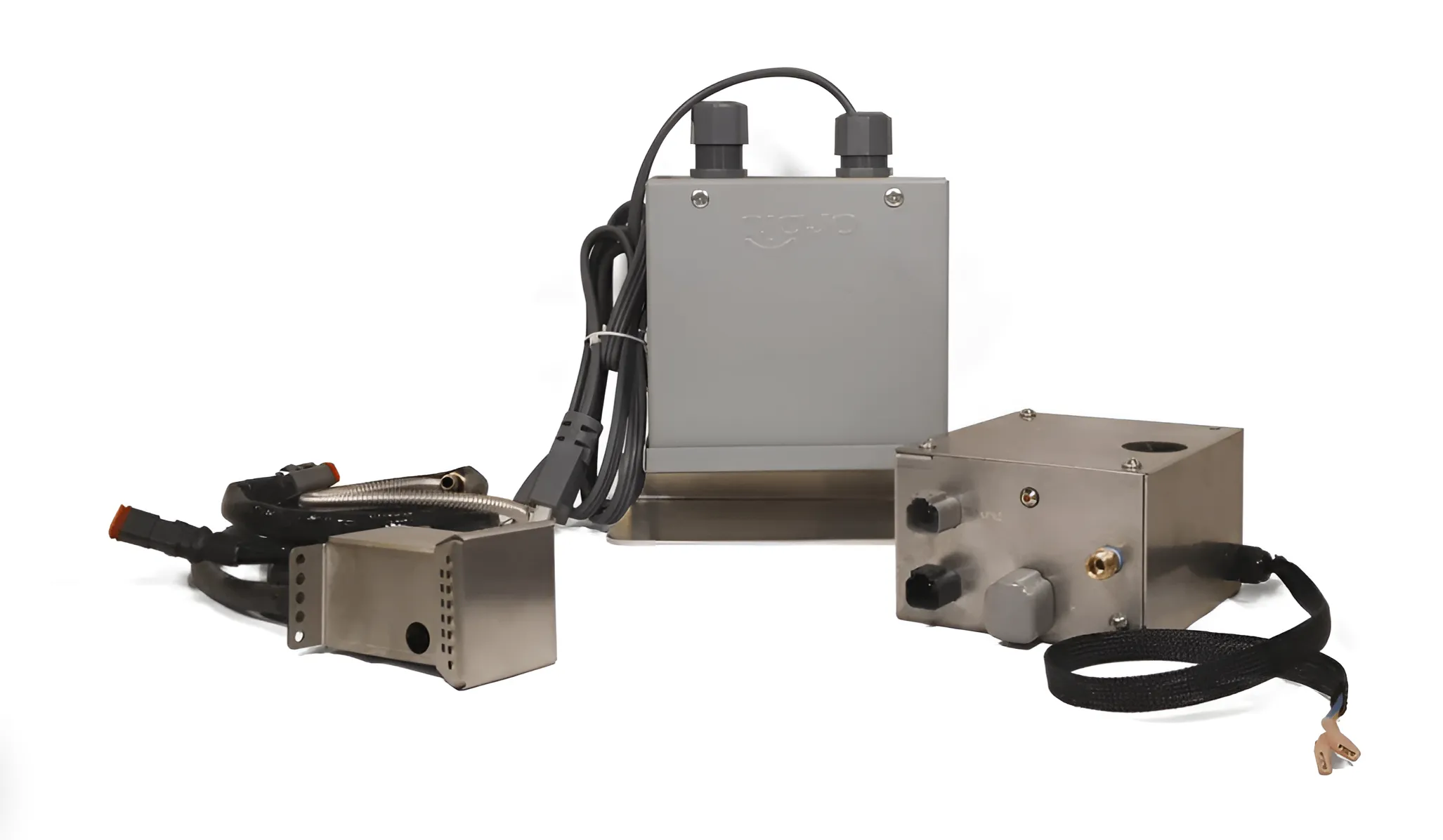

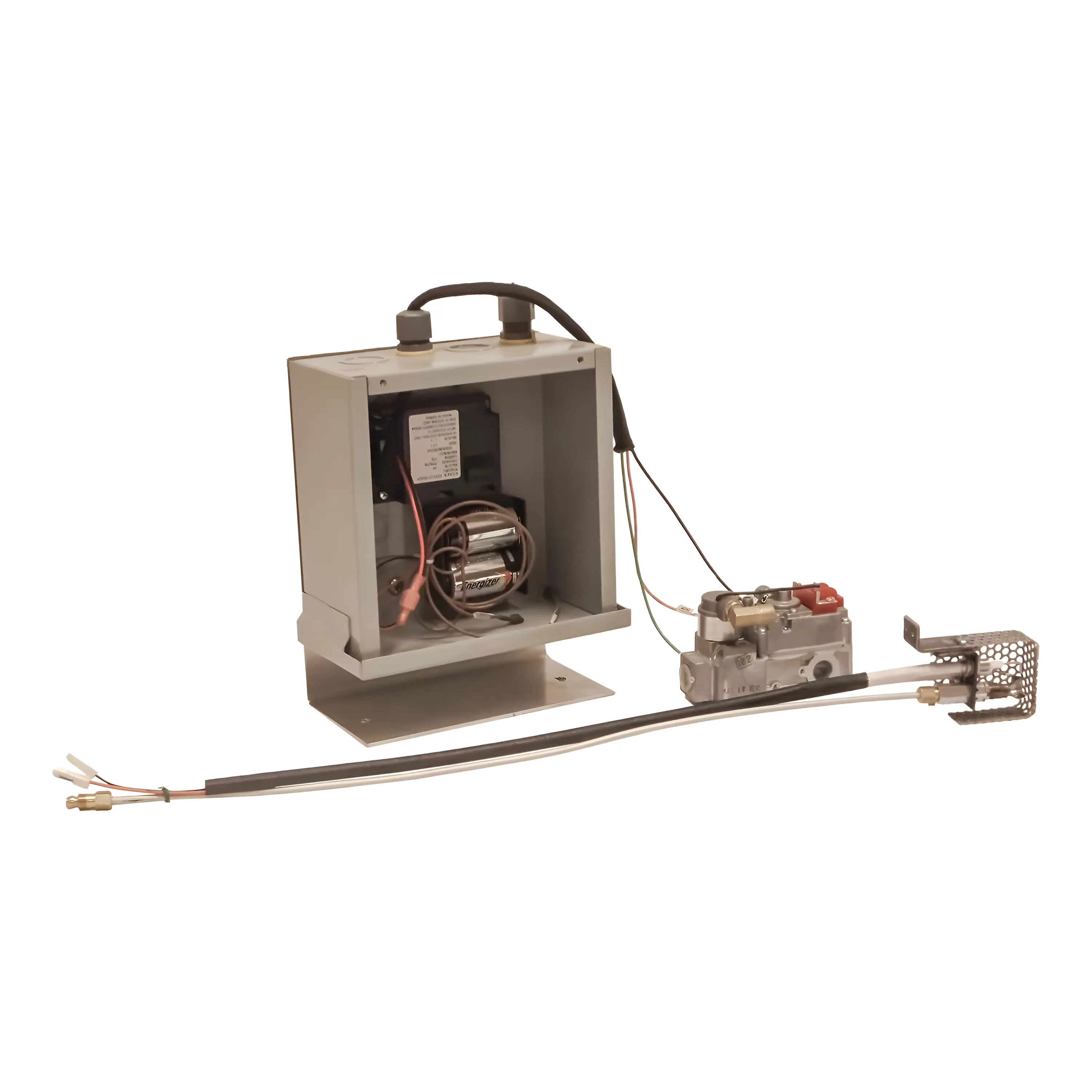

- Electronic Ignition: A premium system that allows you to turn the fire pit on or off with a button. It includes a flame-sensing safety feature. Some models may require external power depending on the burner’s BTU rating.

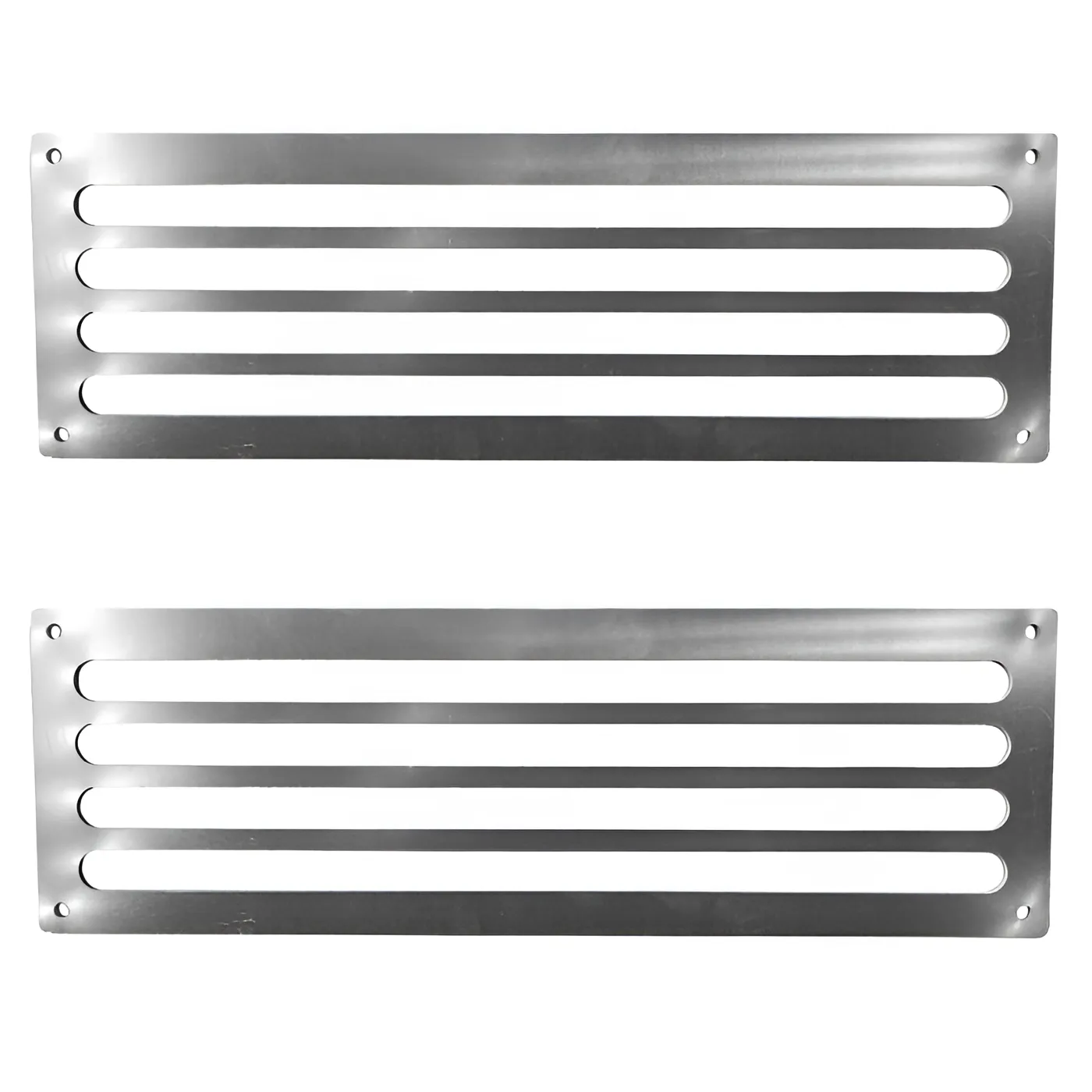

5. Venting
It is recommended to have two 18-square-inch vents on opposite sides for proper cross ventilation. While smaller vents are possible, adequate venting is essential for safety.

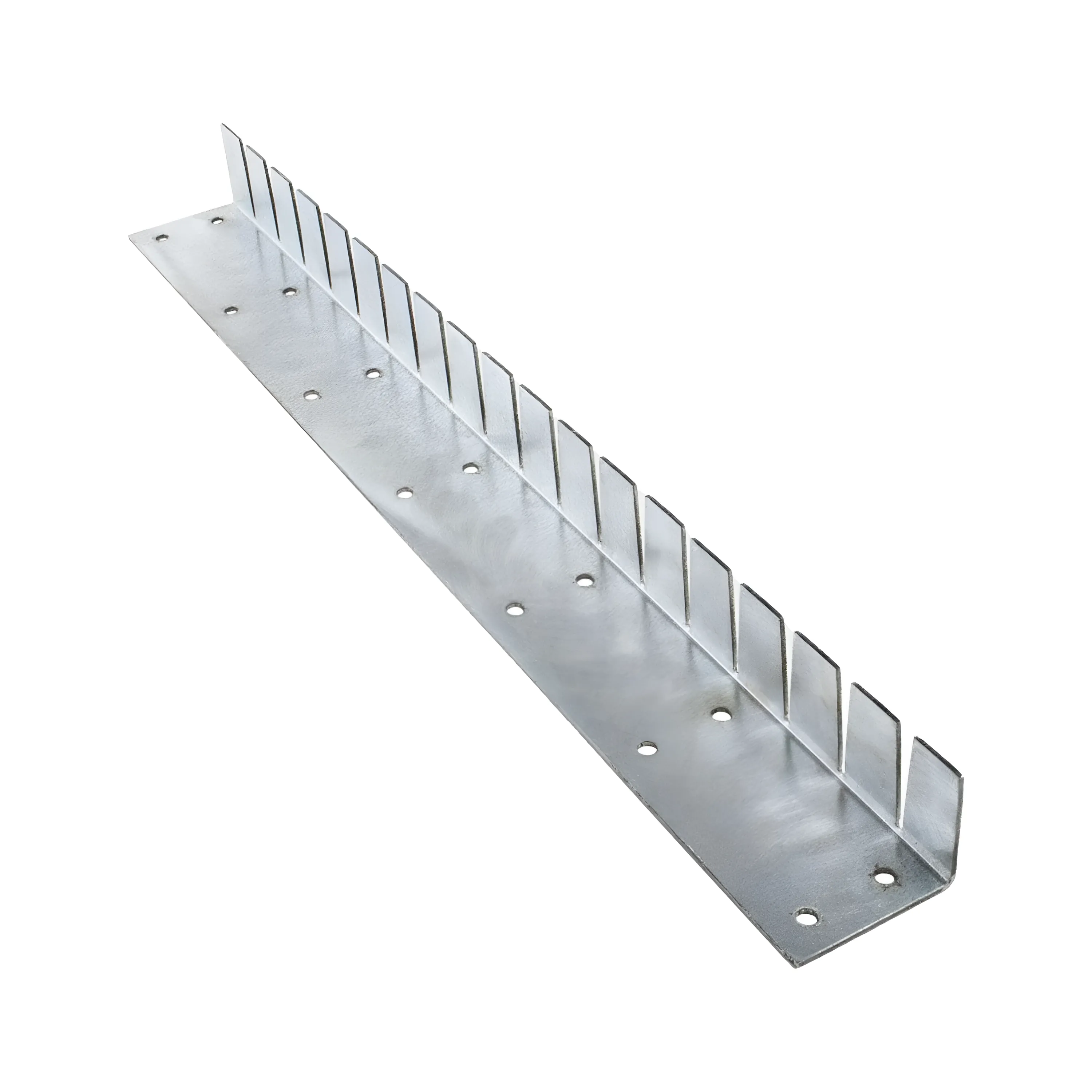

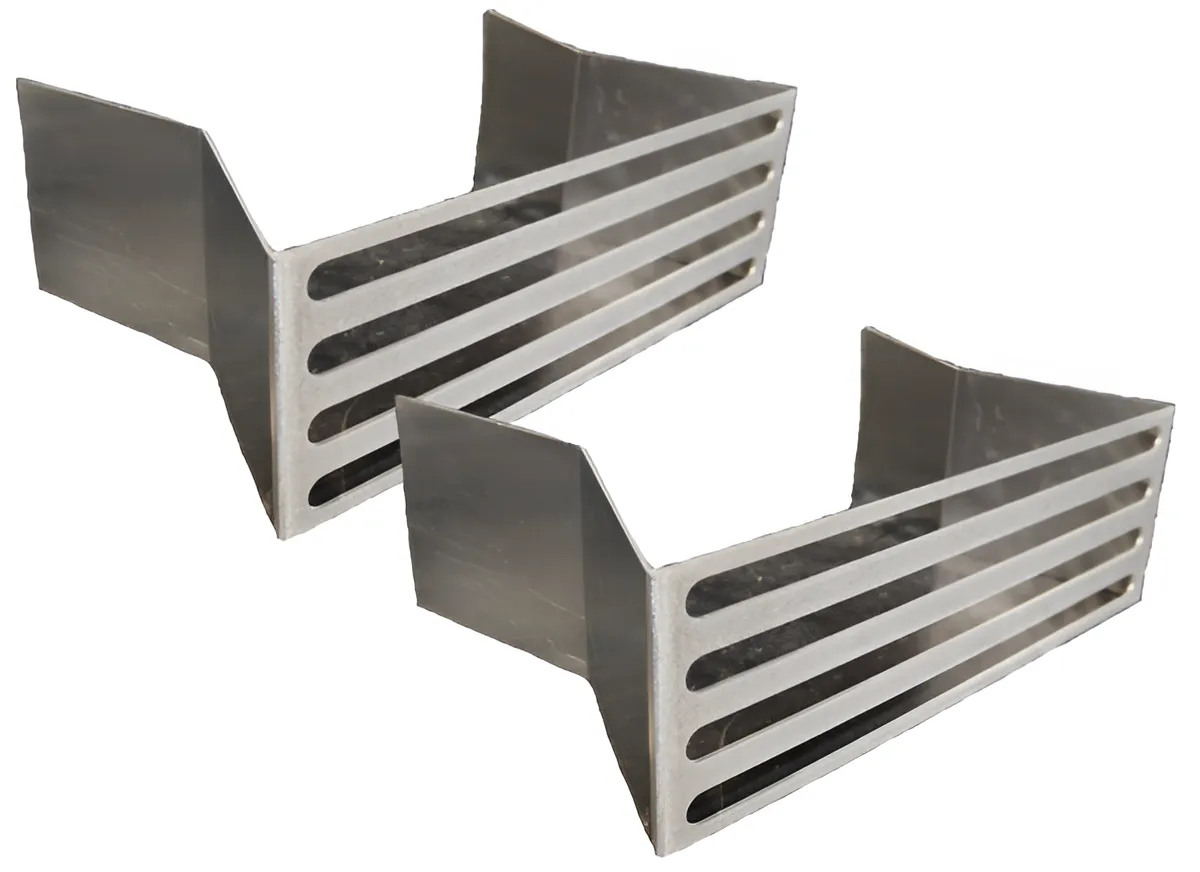

6. Installation Collars
The plate should sit 4–5 inches below the fire pit’s top edge. Support options include stacked bricks, cinder blocks, or specialized support collars that act as shelves for the plate.

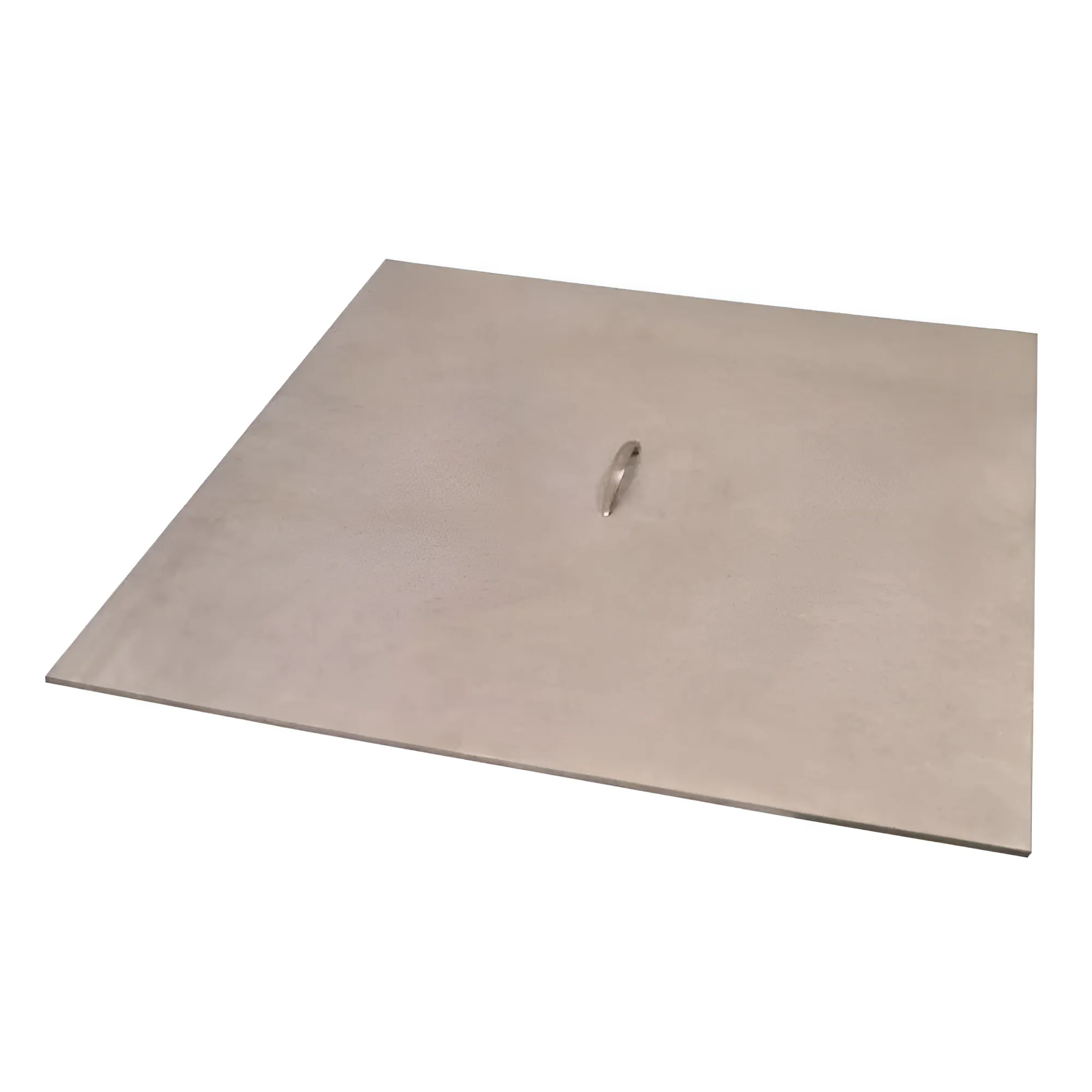

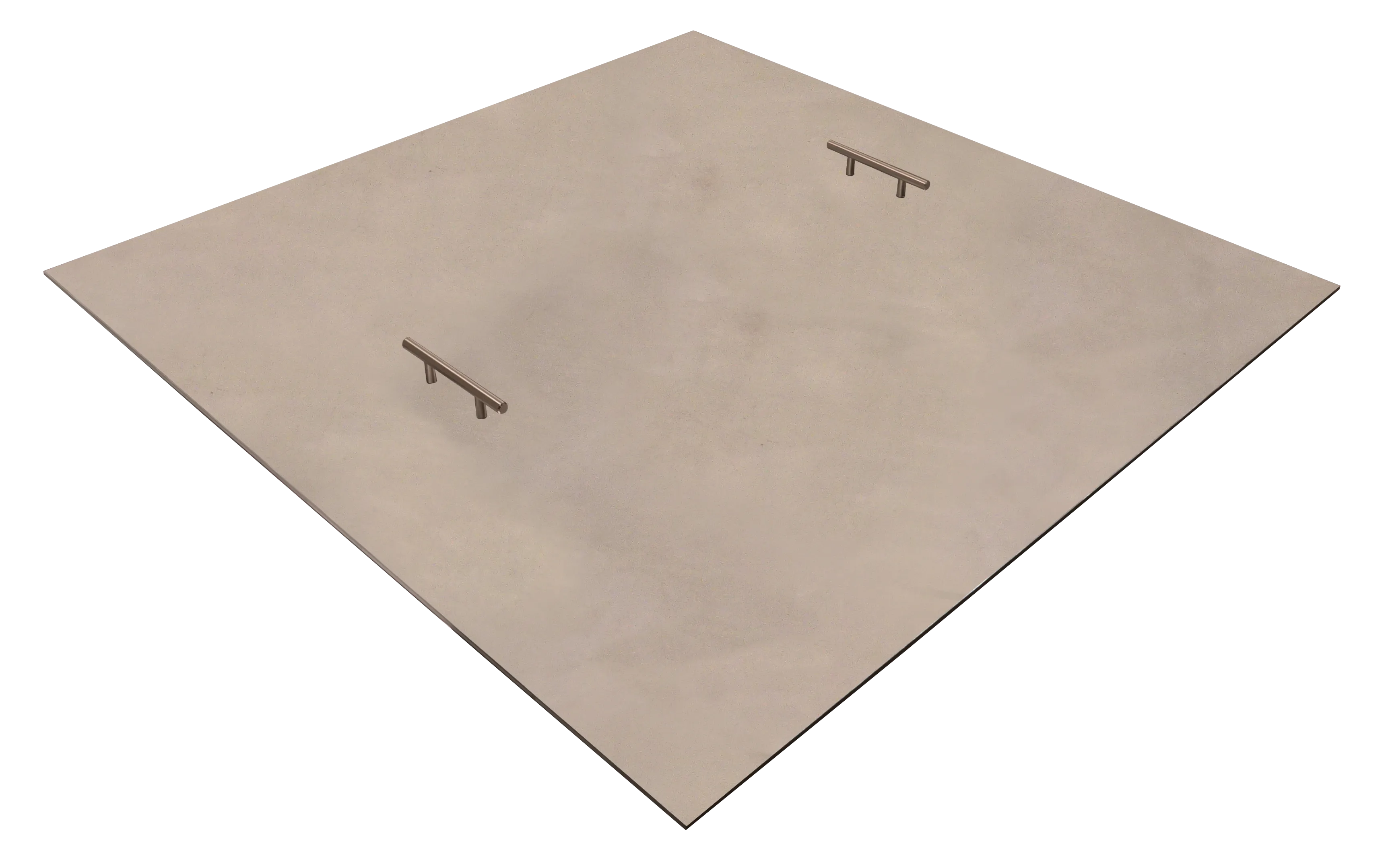

7. Cover
Always cover your fire pit to protect it from outdoor elements. Warming Trends offers durable aluminum covers sized to leave a 1-inch lip around the fire pit opening. For example, a 32-inch opening requires a 34-inch cover. A tarp can also be used if needed.
Features
- 100% Brass Construction: Corrosion-resistant for long-lasting durability and low maintenance—no rust, guaranteed.
- Innovative Crossfire Burner Design: Patented technology produces taller, brighter, fuller, and more natural flames.
- Versatile Fuel Options: Compatible with both natural gas and propane.
- Fuel Efficiency: Consumes only half the fuel of traditional burners, whether using propane or natural gas.
- Lifetime Warranty: Backed by Warming Trends' full lifetime warranty against rust and defects.
- Made in the USA: Proudly 100% manufactured in the United States.
- Customizable BTU Ratings and Dimensions: Available in a variety of sizes to meet your needs.
- Multiple Style Options: Choose from Original, Octagonal, Tree-Style, H-Style, or Linear designs.
Specifications
| Manufacturer | Warming Trends |
| Burner Material | 100% Brass |
| Burner Style | CFBST Square Tree-Style Crossfire Brass Burner |
| Fuel Type | Natural Gas or Propane |
Dimensions
| SKU Number | BTUs | Burner Size | Inlet Size | Rec. Opening Size | WATERSTOP |
| CFBST120 | 120K | 10" x 11.25" | 1/2" | 28" | Yes |
| CFBST240 | 240K | 20" x 18" | 1/2" | 24" | Yes |

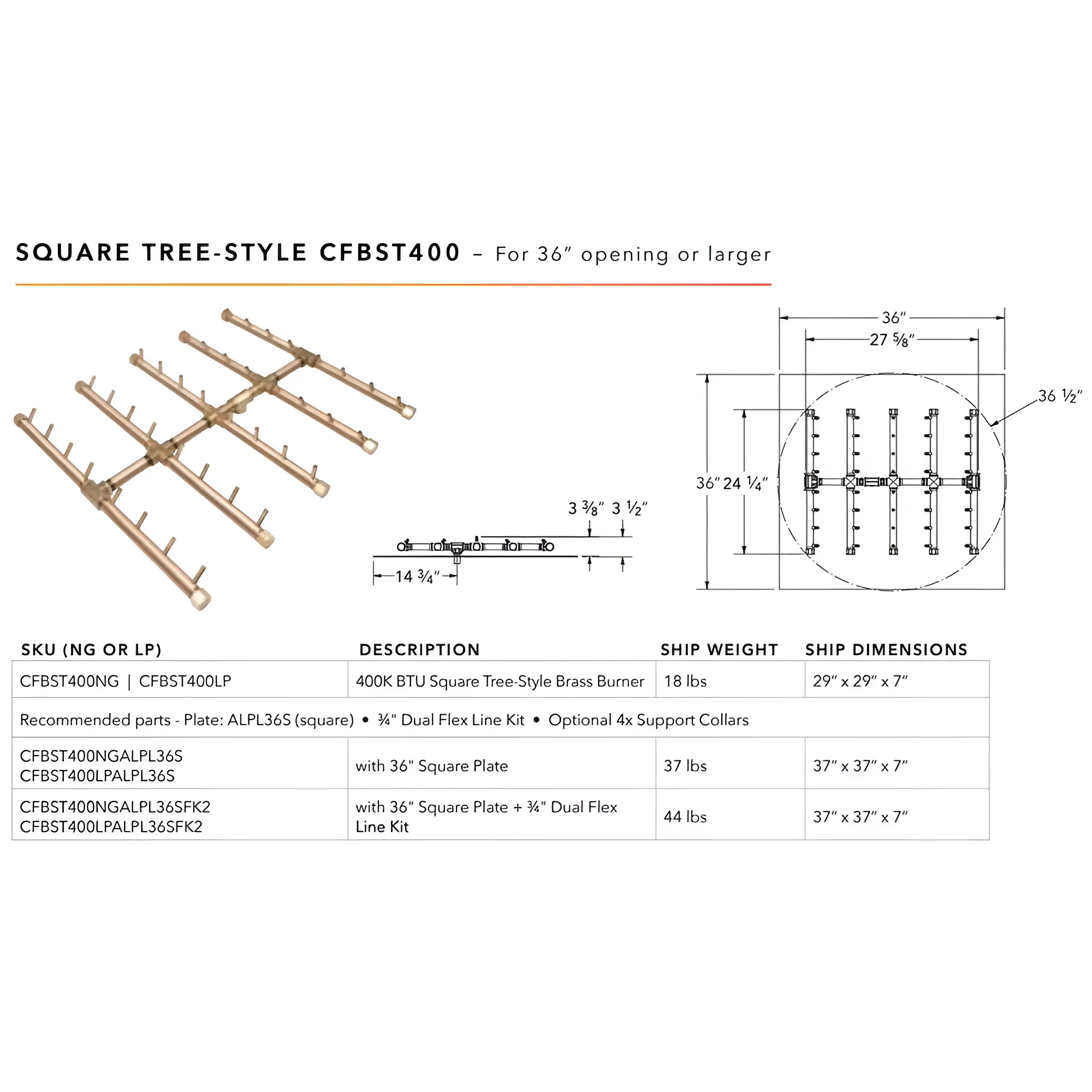

| CFBST400 | 400K | 28" x 24.5" | 3/4" | 36" | Yes |

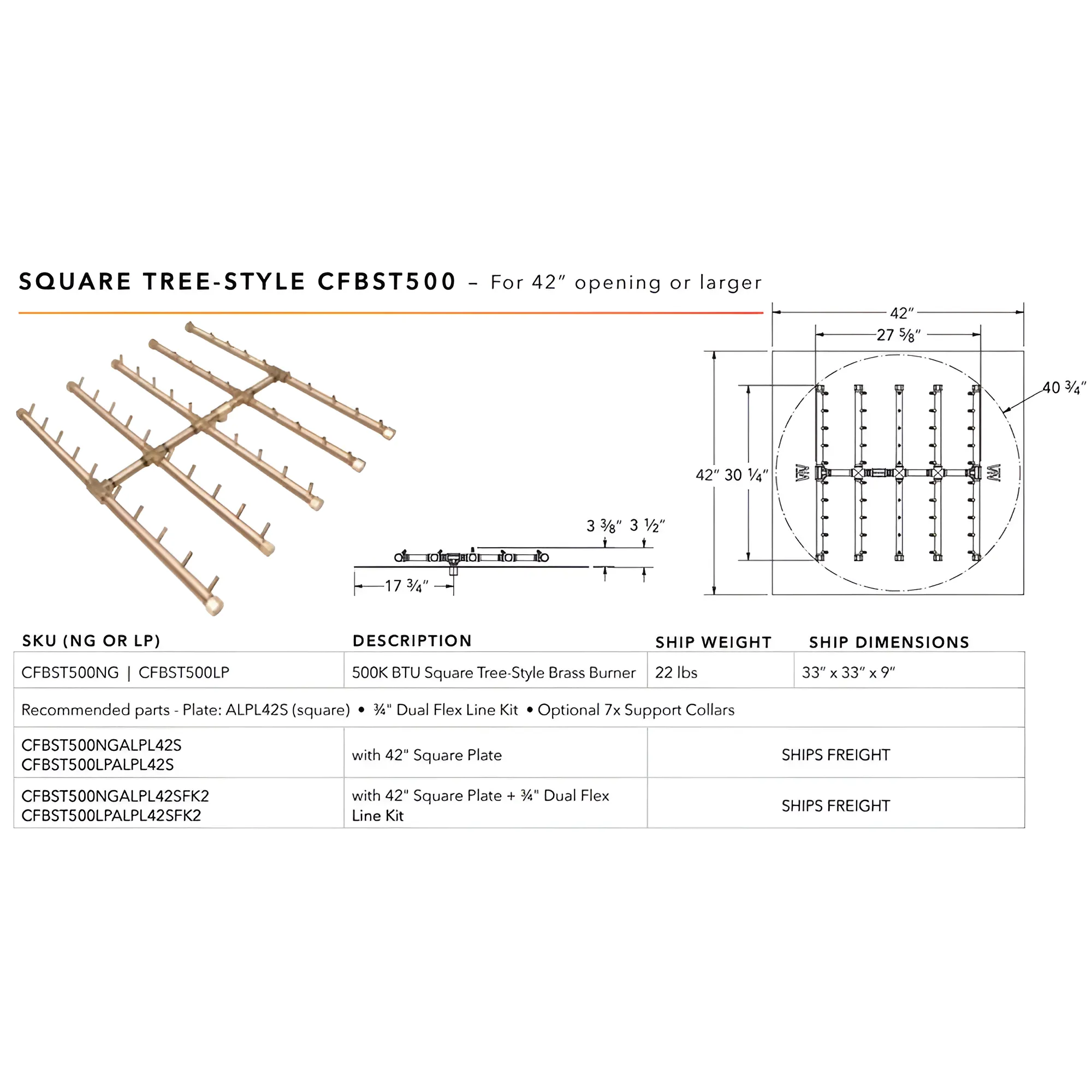

| CFBST500 | 500K | 31.25" x 30.5" | 3/4" | 42" | Yes |
Collar Guide
- The adjustable installation collars can bend for round enclosures and can be anchored in with concrete screws
| Round Plate/Pan (Diameter) | Collars Required |
| 12” | 2 Units |
Note: For square or rectangular enclosures, use enclosure length and width measurements
Lava Rock Guide
Note: 1 bag = 1 cubic foot
| Fire Plate Size | Lava Rock Required |
| 18” Plate | 1 bag |
Warranty
Warming Trends warrants that each Warming Trends CROSSFIRE and other jetted-flame-brass-burners is free from defects in materials and workmanship and conforms to its specifications, which are available upon request. The warranty period for a Burner is lifetime warranty beginning on the date of purchase. During the Warranty Period, Warming Trends provides repair and exchange services for the Burners, without charge. Labor not included. Please refer to the manufacturer downloads section below for full warranty details.
Manufacture Downloads
- Click Here For Warming Trends Owner's Manual
- Click Here For CFBST120 Detailed Dimensions
- Click Here For CFBST240 Detailed Dimensions
- Click Here For CFBST400 Detailed Dimensions
- Click Here For CFBST500 Detailed Dimensions
- Click Here For A Quick Guide Manual
- Click Here For Burner Size Guide Manual
- Click Here For Gas Pipe and BTU Chart Guide
- Click Here For Mercury Ignition Owner's & Instructions Manual
- Click Here For Mercury Ignition Brochure
- Click Here For Mercury Ignition Q & A Manual
- Click Here For Full Platinum Ignition Specification
- Click Here For Mercury Electronic & Clearance Diagram
- Click Here For Warming Trends Quick Reference Guide Manual
- Click Here For Waterstop Brochure
- Click Here For Ignition Systems Trifold Brochure
- Click Here For Full Warming Trends Burner and Accessories Brochure
- Click Here For Warming Trends Warranty
- Click Here For Warming Trends Displays
- Click Here For Warming Trends Brochure
- Click Here For Warming Trends Full Catalog
Legal Disclaimers & Warnings
Product packaging, owners’ manuals, installation instructions, and/or operating instructions may include more information than what is shown on our website. The content on our site is intended to be used for reference purposes only. Please fully read all included manuals and documentation before installing or using this product. WARNING for California residents: this product may contain chemical(s) known to the state of California to cause birth defects, cancer, or other reproductive harm.
