- 【Most Accurate Alerts with Person & Vehicle Detection】The 4K UHD DVR, with smartest and most advanced person & vehicle detection, can send you motion triggered push notifications and email alerts, caused ONLY by people or vehicles. This provides only the most relevant motion alerts, reducing up to 95% of false alarms.
- 【From Black & White to Colored Night】Three night visions to adapt to your needs: smart light night vision, white light night vision, and IR night vision. The smart mode is the default as it can automatically turn on the color night vision once a human/vehicle is detected.
- 【Turbo 3K and Image Scale】3K resolution comes into focus of clearer live stream clarity and a more friendly budget. Monitors in the market usually have 16:9 aspect ratio, which is the same with this 3K cam, while other 5MP cams' ratio is 4:3 that causes distortion.

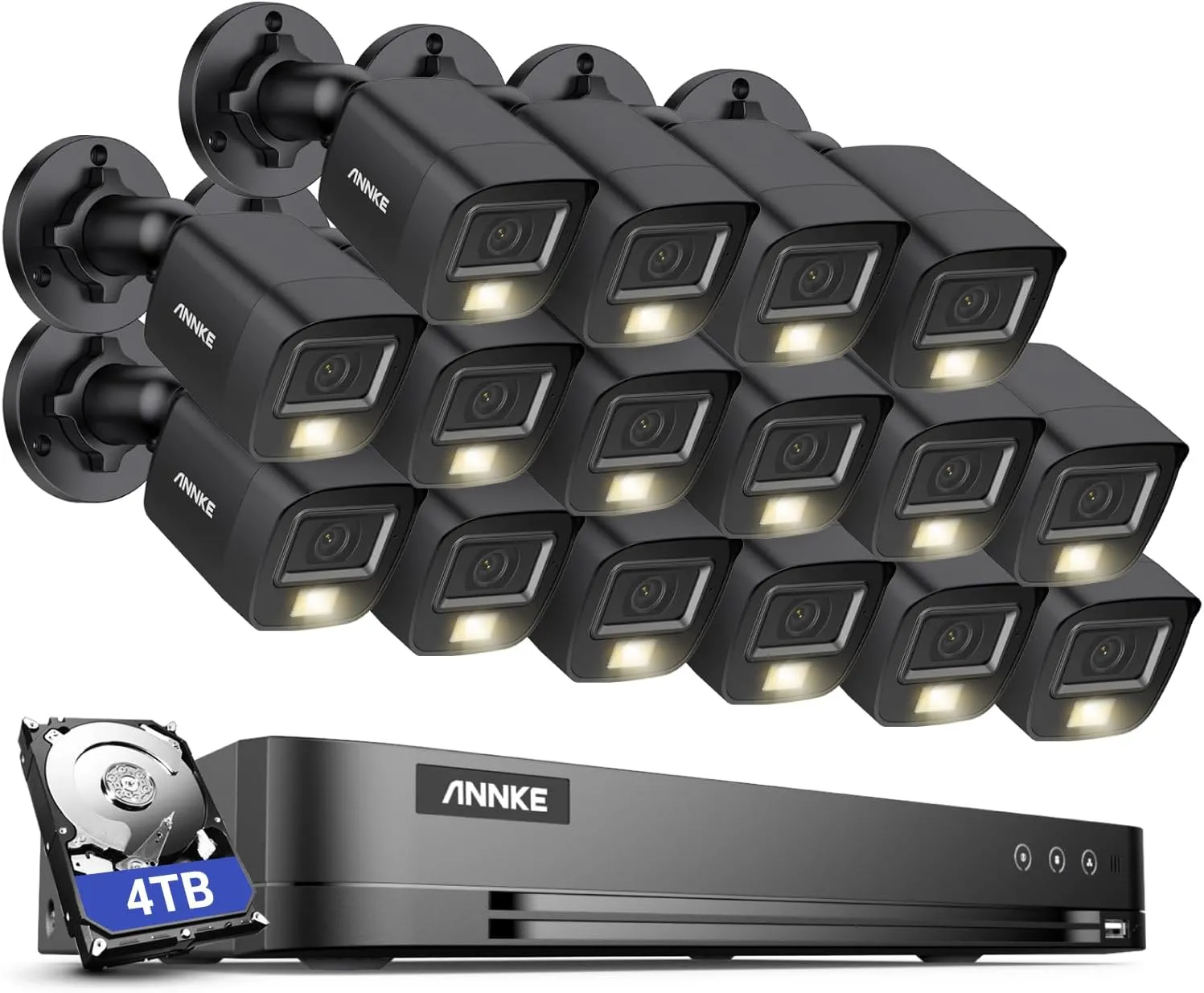

- 【16CH 4K Ultra HD 5-in-1 DVR】The powerful & expandable 4K DVR supports 16 pcs 4K TVI, 5MP AHD, 5MP CVI, CVBS, and 8pcs 4K IP cameras. Record crisp & clean videos at true 4K resolution (3840 X 2160 pixels).
- 【Advanced H.265 & Expandable Storage】H.265 enables the DVR to record for a longer time and consume less bandwidth than H.264 systems. Get 4K live view & recording without losing the image quality. The DVR supports up to 20TB HDD (Only comes with 4TB HDD).
DVR Description:
· 4K(8MP) high definition live viewing, recording & playback
· 16CH Analog and 16 CH IP camera input simultaneously
· Deep learning-based motion detection 2.0 for all analog channels
· Deep learning-based perimeter protection
· Up to 32-ch IP camera inputs (up to 8 MP)
· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
· Up to 10 TB capacity per HDD
Video Compression: H.264 /H.264/H.265/H.265
Audio Input/Output: 1/1 RCA
Supported Analog Camera Types: "Support HD TVI Input: 8MP, 5MP, 4MP, 3MP, 1080p@30 fps, 1080p@25 fps;
Support AHD Input: 5MP, 4MP, 1080p@25 fps, 1080p@30 fps;
Support CVI Input: 5MP, 4MP, 1080p@25 fps, 1080p@30 fps;
Support CVBS Input"
Analog HD Playback Resolution: "4K@8 fps/5MP@12 fps/4MP@15 fps/3MP@18 fps 1080p
IP Camera Input: 16CH(up to 32-ch)
HDD Capacity: Up to 10 TB Capacity
Camera Description:
High quality imaging with 3K, 2960 × 1665 resolution
2.8 mm fixed focal [email protected]
High quality audio with audio over coaxial cable, built-in mic
Up to 25 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS）
Water and dust resistant (IP67)
Image sensor: 3K CMOS Image sensor
Video Resolution: 2960 (H) × 1665 (V) (16:9)
Frame Rate: "TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
CVI: 4 MP@25 fps/30 fps
CVBS: PAL/NTSC"
Lens: 2.8mm
Angle of View: Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129°
Supplement Light Range: IR : Up to 25 m, white Light : Up to 20 m
Supplement Light Mode: IR light works normally, and it switches to white light when human or vehicle are detected at night.
Audio: Built-in mic
Color: Black
